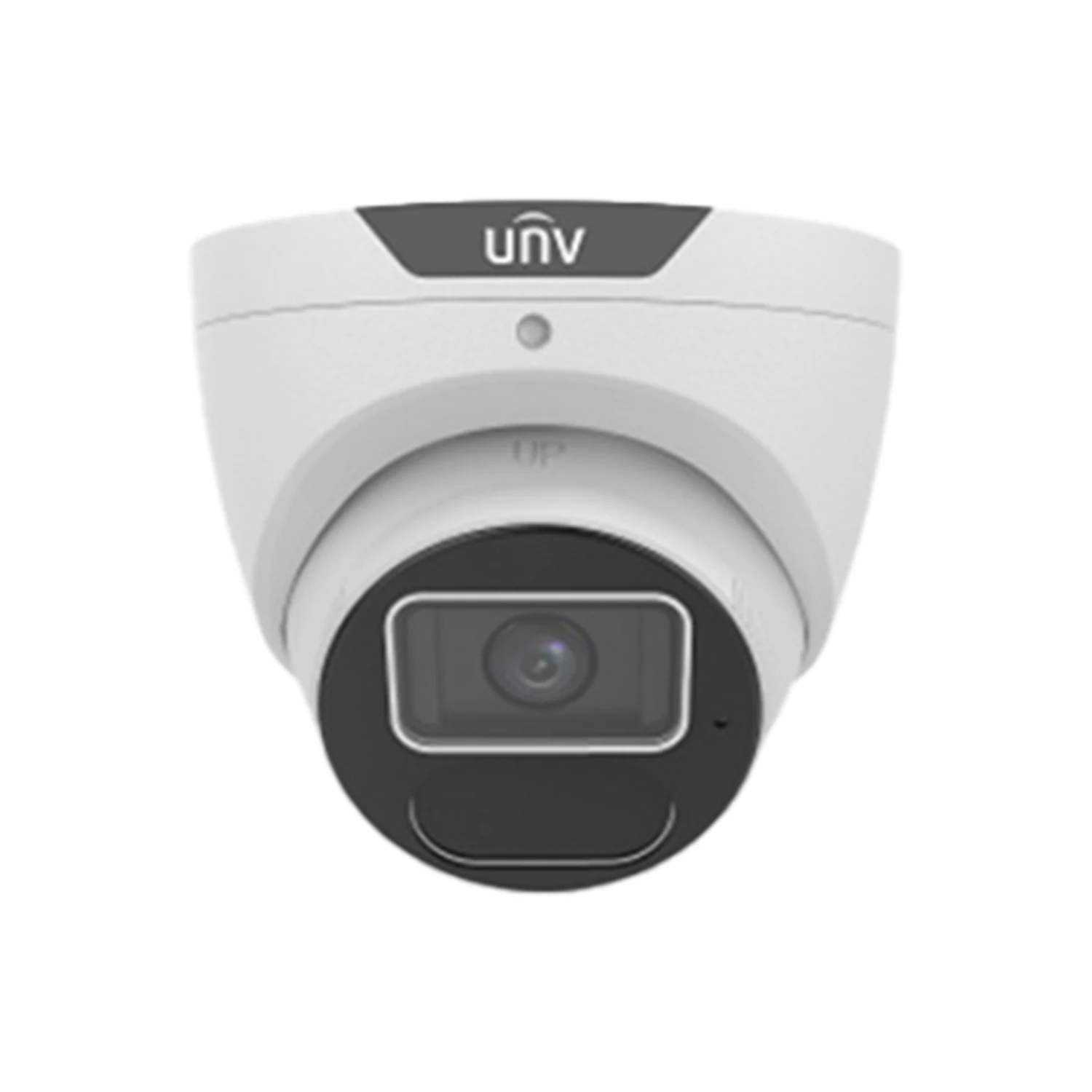

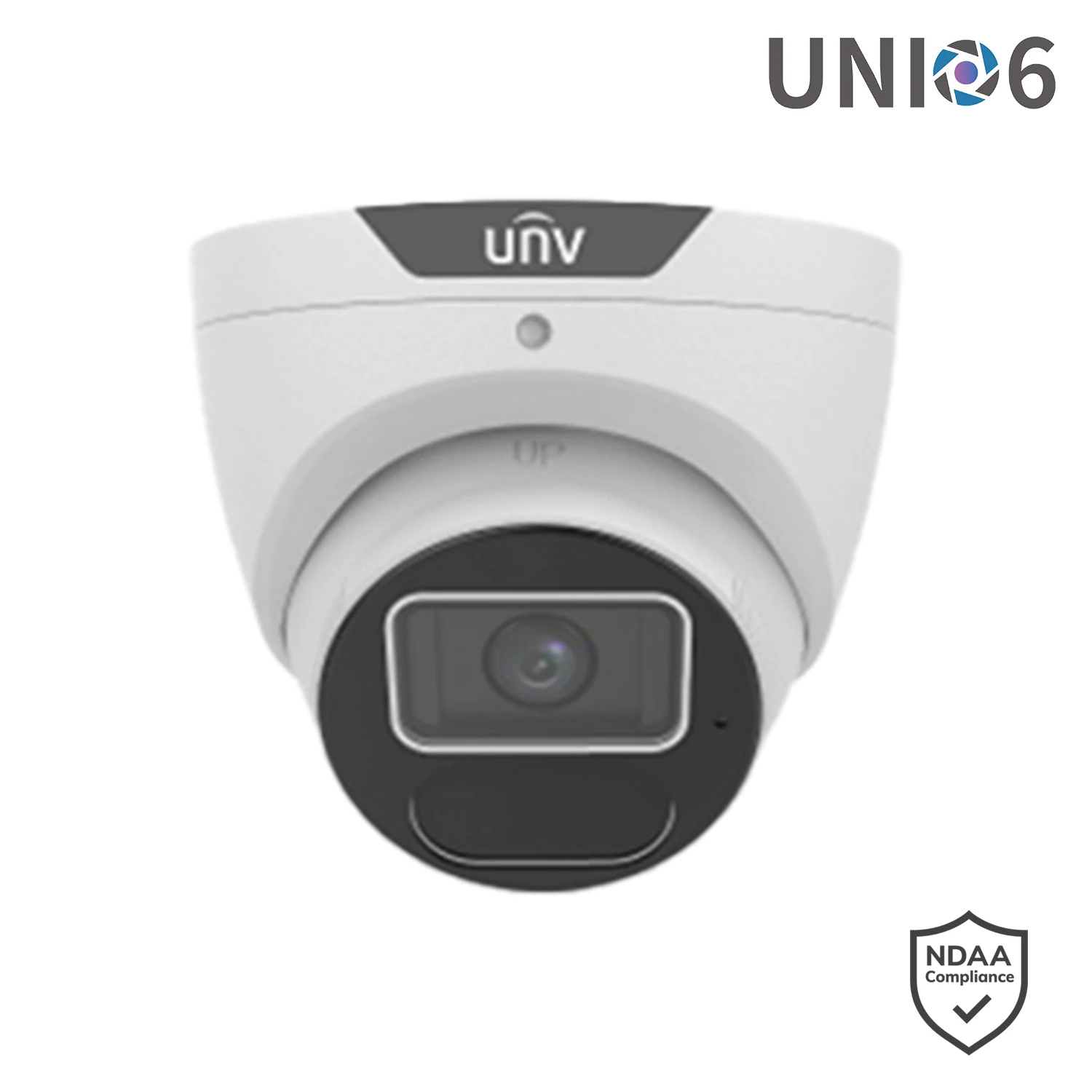

UNV IPC3616SS-ADF28K-I1 6MP LightHunter Fixed IR Turret Network Camera
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Brand | Uniview (UNV), Prime Series |
| Model | IPC3616SS-ADF28K-I1 |
| Type | 6MP LightHunter fixed IR turret network camera (Uniview lists the style as eyeball) |
| Image sensor | 1/2.7 inch, 6.0 megapixel, progressive scan CMOS |
| Minimum illumination | Colour 0.002 lux (F1.6, AGC on). 0 lux with IR on |
| Day and night | IR-cut filter with auto switch |
| Shutter | Auto or manual, 1 to 1/100000 s |
| Dynamic range | 130 dB true WDR |
| Signal-to-noise ratio | More than 56 dB |
| Lens | 2.8 mm fixed focal length, F1.6, fixed iris |
| Field of view | Horizontal 107.2 degrees, vertical 56.39 degrees, diagonal 110.11 degrees |
| DORI distance | Detect 63.0 m, observe 25.2 m, recognise 12.6 m, identify 6.3 m |
| Adjustment angle | Pan 0 to 360 degrees, tilt 0 to 75 degrees, rotate 0 to 360 degrees |
| IR illumination | Smart IR up to 40 m (131 ft), 850 nm, auto or manual control |
| Video compression | Ultra 265, H.265, H.264, MJPEG, triple stream |
| Frame rate | Main stream 6MP (3072 x 2048) up to 25 fps. 4MP, 3MP and 1080P up to 30 fps |
| Video bit rate | 128 Kbps to 16 Mbps |
| Image features | Auto Scene Match (WDR only), 2D and 3D noise reduction, digital defog, HLC, BLC, Smart IR, 9:16 corridor mode |
| Image tools | Up to 8 OSDs, up to 4 privacy mask areas, up to 8 ROI areas |
| Video analytics | Smart intrusion prevention with false alarm filtering: cross line, intrusion, enter area and leave area detection. People counting, people flow counting and crowd density monitoring |
| Events | Motion detection, ultra motion detection, tampering alarm, audio detection |
| Audio | Built-in microphone. G.711U and G.711A at 64 Kbps, 8 kHz sampling. No built-in speaker, no two-way audio |
| Storage | microSD up to 256 GB. Network storage with ANR and NAS (NFS) |
| Network port | 1 x RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH |
| Integration | ONVIF (Profile S, G and T), API, SDK |
| Security | Password protection, strong password, HTTPS encryption, TLS 1.2, exportable operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, WSSE and digest authentication for ONVIF |
| Users | Up to 32 users in 3 levels: administrator, common user and operator |
| Client software | EZStation, EZView and EZLive |
| Power | DC 12 V (plus or minus 25%) or PoE (IEEE 802.3af) |
| Power consumption | Max 6.5 W |
| Power connector | Ø5.5 mm coaxial power plug |
| Dimensions | Ø129 x 110 mm (Ø5.1 x 4.3 in) |
| Weight | 0.43 kg (0.95 lb) |
| Material | Metal and plastic |
| Operating conditions | -30 to 60 degrees C (-22 to 140 degrees F), humidity up to 95% RH, non-condensing |
| Protection class | IP67 (IEC 60529). Surge protection 4 kV |
| Certifications | CE (EMC, LVD, RoHS), FCC, CB, UL/cUL, WEEE |
| Optional accessories | Junction box TR-JB03-G-IN, wall mount TR-WM03-D-IN, wall mount with junction box TR-JB07/WM03-G-IN |
| Colour | White |
Downloads
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
UNV IPC3616SS-ADF28K-I1-BK 6MP LightHunter Fixed IR Turret Network Camera, Black
$224.00
-
UNV IPC2328SB-DZK-I0 8MP LightHunter IR VF Bullet Network Camera
$441.87
-
UNV IPC2B18SS-ADF28 KMC-I1 - 8MP Dual-Light Bullet Camera with Audible & Red/Blue Warning
$355.76
-

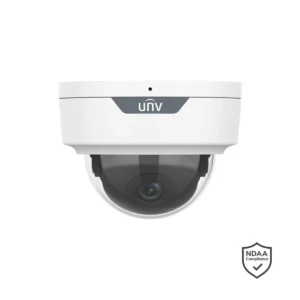

UNV IPC326SS-ADF28K-I1 6MP LightHunter IR Fixed Dome Network Camera
$224.00
-
UNV IPC3608SB-ADF16KM-I0 8MP 180° Wide Angle IR Fixed Eyeball Camera
$328.43
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
LightHunter is Uniview low-light technology. This camera gives a colour image down to 0.002 lux, and works at 0 lux with the IR lights on.
The fixed 2.8 mm lens gives a horizontal view of 107.2 degrees, a vertical view of 56.39 degrees and a diagonal view of 110.11 degrees. Uniview lists detection to 63.0 m, observation to 25.2 m, recognition to 12.6 m and identification to 6.3 m.
Smart IR reaches up to 40 m (131 ft). The camera adjusts the IR strength to keep close objects from washing out.
No. It has a built-in microphone for sound, but no speaker and no two-way audio.
By PoE (IEEE 802.3af) over one network cable, or from a 12 V DC supply (plus or minus 25%) on the 5.5 mm coaxial plug. It uses up to 6.5 W.
Yes. It takes a microSD card up to 256 GB (not included). It also works with a network video recorder.
It is rated IP67 and works from -30 to 60 degrees C (-22 to 140 degrees F) at up to 95% humidity, non-condensing. It has 4 kV surge protection.
It supports ONVIF Profile S, G and T, so it can be used with ONVIF recorders. It is made to work with Uniview NVRs. Ask us to check your recorder first.
Uniview lists a junction box (TR-JB03-G-IN), a wall mount (TR-WM03-D-IN) and a wall mount with junction box (TR-JB07/WM03-G-IN) as options. They are not part of the camera.
In the Downloads section on this page. The datasheet is published by Uniview.
Yes. We supply and install Uniview cameras across Melbourne and the Mornington Peninsula. Request a quote and we will plan cable runs, power and the recording setup with you.
