UNV IPC3608SB-ADF16KM-I0 8MP 180° Wide Angle IR Fixed Eyeball Camera
A powerful 8MP fixed eyeball camera with a 180° horizontal field of view - perfect for eliminating blind spots in corridors, warehouses, and open areas. Features smart intrusion prevention with target classification (human/vehicle), built-in microphone, 120 dB WDR, and smart IR up to 20 m. Compact metal body with IP67/IK10 protection.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Brand | UNV |
| Model / SKU | IPC3608SB-ADF16KM-I0 |
| Image Sensor | 1/2.7" progressive CMOS, 8MP (3840×2160) |
| Lens | 1.68mm fixed, F2.0; H-FOV 180°, V-FOV 100° |
| Illumination | Smart IR up to 20 m; 0.01 lux colour, 0 lux with IR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG; triple streams |
| Intelligent Features | Cross line, intrusion, enter/leave area with classification (human/vehicle); SIP color retrieval |
| Audio | Built-in microphone (no audio out); G.711U/G.711A |
| Storage | MicroSD up to 512 GB, ANR, NAS |
| Protection | IP67, IK10, 4KV surge, -30°C to 60°C |
Similar products
-
UNV IPC2328SB-DZK-I0 8MP LightHunter IR VF Bullet Network Camera
$441.87
-
UNV IPC2B18SS-ADF28 KMC-I1 - 8MP Dual-Light Bullet Camera with Audible & Red/Blue Warning
$355.76
-
UNV IPC3618LE-ADF28K-GM 8MP Easystar IR Fixed Eyeball Network Camera
$197.30
-

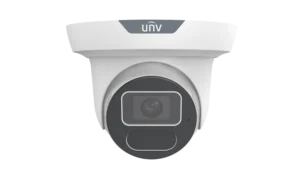

UNV IPC3618SS Series 8MP LightHunter Fixed IR Turret Network Camera
$246.37
-

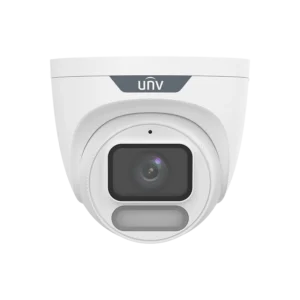

UNV IPC3628LE Series 8MP ColorHunter Fixed Eyeball Network Camera
$267.71
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Dewarping corrects the fisheye distortion from the wide-angle lens, producing a natural rectilinear image suitable for viewing and analytics.
Yes, it has a built-in microphone for audio surveillance, but no audio output or two-way talk.
Smart IR illumination reaches up to 20 m (65 ft), providing clear night vision.
Yes, its smart intrusion prevention filters false alarms by classifying targets as human, motor vehicle, or non-motor vehicle.
It supports MicroSD cards up to 512 GB for edge recording.
Absolutely - it has IP67 (dust/water) and IK10 (vandal) ratings, and operates from -30°C to 60°C.
Yes, it supports ONVIF Profiles S, G, and T, so it can integrate with many ONVIF-compatible recorders.
It accepts DC 12V (±25%) or PoE (IEEE 802.3af). Maximum consumption is 5.5W.
UNV offers junction boxes, wall mounts, corner mounts, pole mounts, and pendant mounts - we can supply and install the right one for your site.
Price Check Snapshot
Sipko Security supplies, installs and configures the UNV IPC3608SB-ADF16KM-I0 8MP 180° Wide Angle IR Fixed Eyeball Camera for homes and businesses across Melbourne. Contact us for advice and a free quote.
