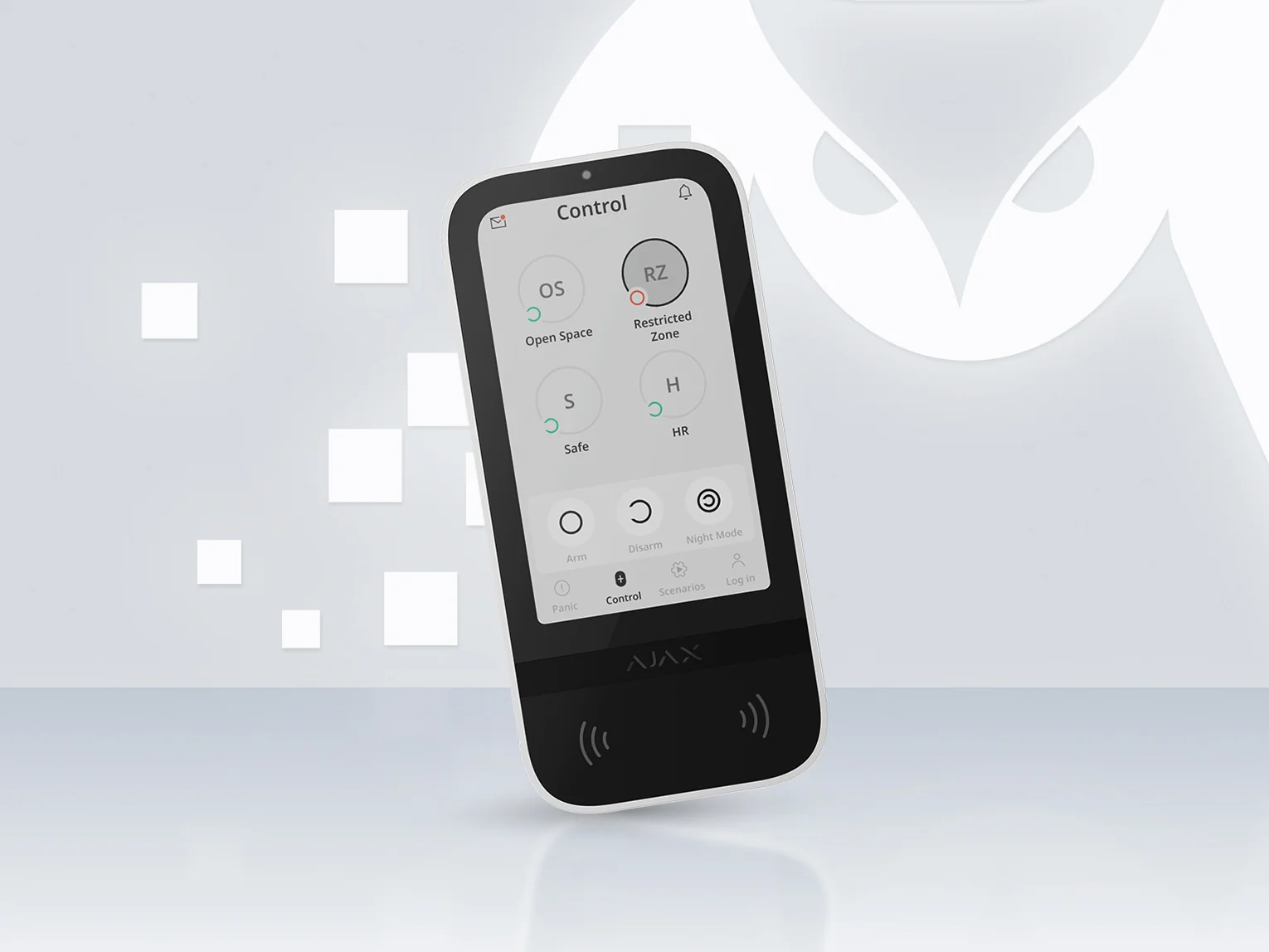

AJAX KeyPad TouchScreen Jeweller Black - Wireless Touchscreen Keypad
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX KeyPad TouchScreen Jeweller |
| Type | Wireless keypad with a touch screen, supporting smartphones, Pass, Tag and codes, indoor use |
| Display | 5 in IPS, 480 x 854 px, capacitive touch, automatic or manual brightness |
| Backlight lifetime | 30,000 hours with Always Active Display on (needs external power) |

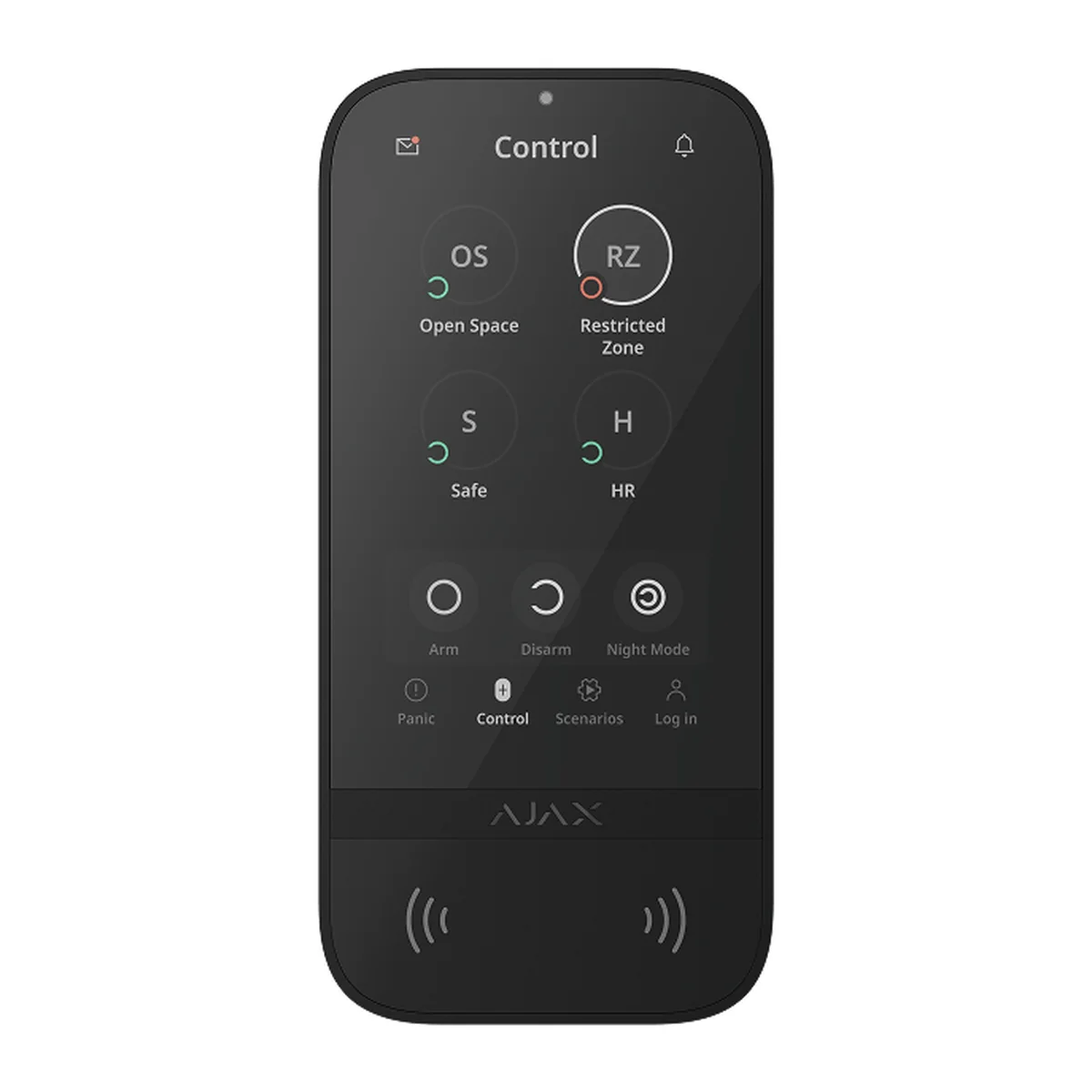

| User interface | Dark or light theme |
| Panic buttons | Panic, fire, auxiliary help |
| Control | Codes, Tag key fobs, Pass cards, smartphone via Bluetooth Low Energy (Android and iOS, BLE 4.2 or later) |
| Contactless standard | DESFire EV1, EV2, ISO 14443-A (13.56 MHz) |
| Access codes | Up to 200 personal codes (depends on the hub) and 1 keypad code |
| Duress codes | Up to 200 personal duress codes (depends on the hub) and 1 keypad duress code |
| Codes for unregistered people | Up to 99 (depends on the hub) |
| Other features | Arming without a code (optional), group management, up to 6 scenario buttons, last 100 events, fire alarm muting, user pre-authorisation, auto screen wake-up, remote firmware update (needs external power) |
| Indication | Display, logo light and buzzer for alarms, door openings and entry/exit delays |
| ACE type | Type B |
| Jeweller and Wings radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 5,500 ft (about 1,680 m) in open space, up to 20 mW |
| Sabotage protection | Auto-lock after more than 3 wrong codes or unverified devices in 1 minute, tamper alarm, holding screw on the SmartBracket, device authentication |
| Communication loss detection | After 36 s |
| Battery | 6 x AA lithium, pre-installed, 2,650 mAh. Up to 1.5 years with default settings and up to 4 uses a day |
| External power | 10.5 to 14 V DC (12 V nominal), up to 0.4 A. The batteries act as backup |
| Power consumption | Quiescent 46 uA, maximum 1.5 mA |

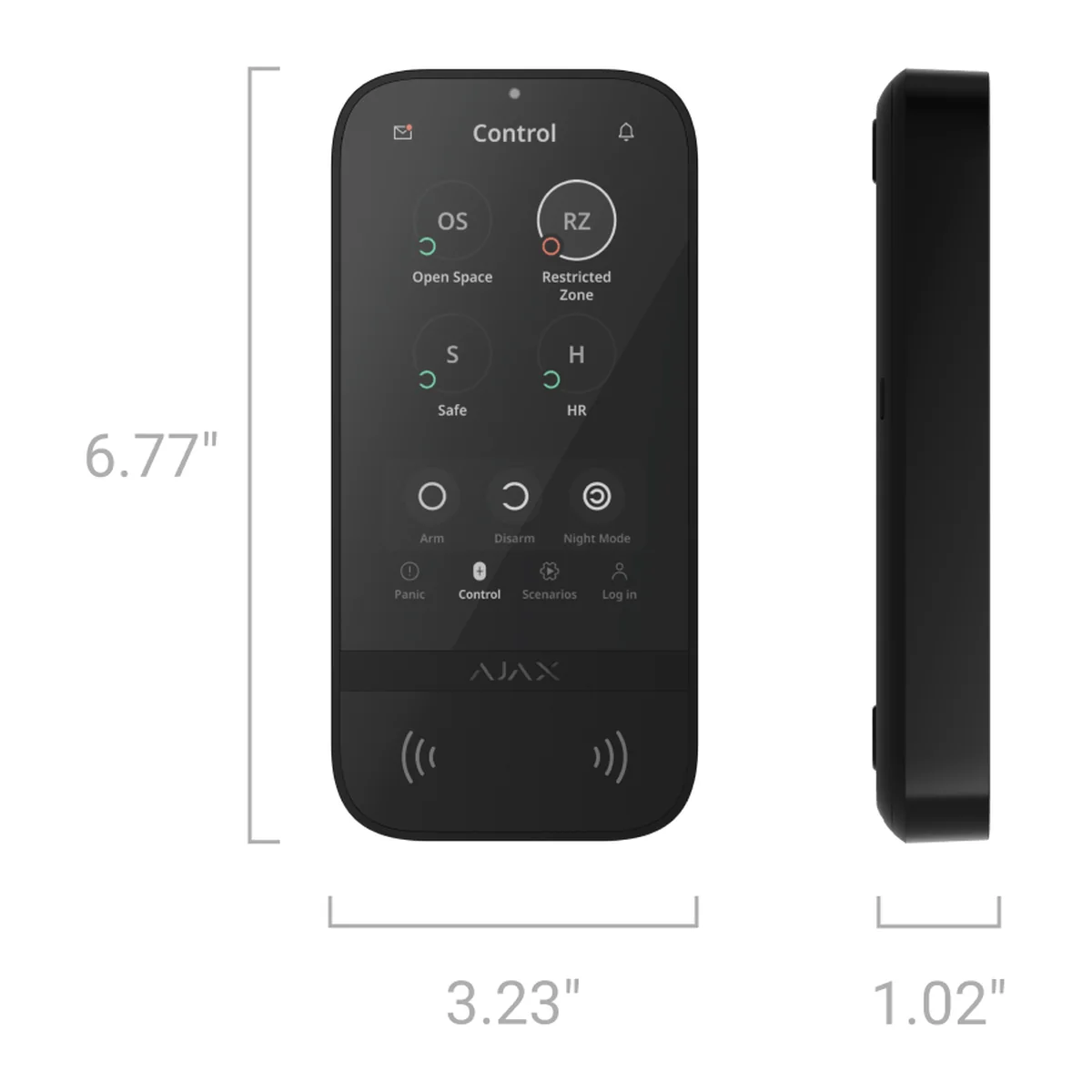

| Dimensions | 6.77 x 3.23 x 1.02 in (about 172 x 82 x 26 mm) |
| Weight | 11.46 oz (about 325 g) for the black version, 11.61 oz (about 329 g) for the white version |
| Operating temperature | 14 to 104 degrees F (about -10 to 40 degrees C) |
| Operating humidity | Up to 75% |
| Use | Indoor use only |
| Colour | Black. Also available in white |
| Complete set | KeyPad TouchScreen Jeweller, SmartBracket mounting panel, 6 AA batteries (pre-installed), installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
-
AJAX Pass Contactless Access Card Black
Price on request
-
AJAX Tag Contactless Key Fob Black
Price on request
-

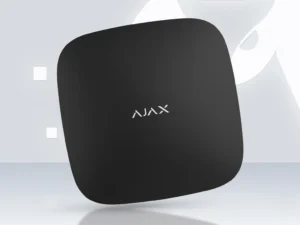

AJAX Hub 2 (4G) Black - Wireless Security Control Panel with Photo Verification
Price on request
-

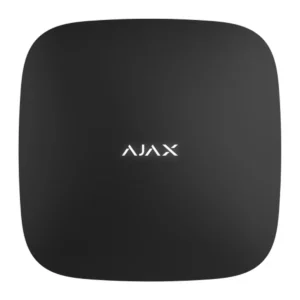

AJAX Hub 2 Plus Jeweller Black - Control Panel with 200 Devices, Wi-Fi and Photo Verification
Price on request
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
With a code, an Ajax Pass card, a Tag key fob, or an Ajax app on a phone with Bluetooth (Android and iOS, BLE 4.2 or later).
Arm and disarm the whole system or groups, run up to 6 automation buttons, see the latest 100 events, mute fire alarms and raise panic, fire or help alarms.
No. It runs up to 1.5 years on the 6 AA lithium batteries fitted (default settings, up to 4 uses a day). An external 10.5 to 14 V DC supply keeps the screen always on and is needed for firmware updates.
Yes, when the keypad is on external power. Ajax rates the backlight for 30,000 hours in that mode.
The keypad locks after more than 3 wrong codes or unverified devices in 1 minute. The lock time is set in the Ajax app.
No. It is for indoor use only. For outside, see the Ajax KeyPad Outdoor.
An Ajax hub, such as Hub 2 (4G) or Hub 2 Plus, which it connects to by Ajax Jeweller radio. It is set up in the Ajax apps. Ask us to check that your hub supports it.
The keypad, a SmartBracket mounting panel, 6 AA batteries (already fitted), an installation kit and a quick start guide. Pass cards and Tag fobs are sold separately.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
