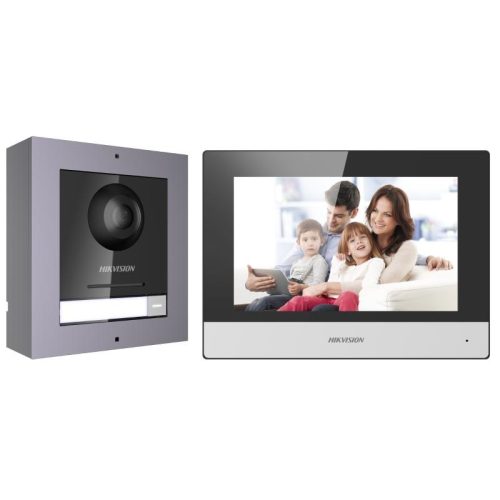

Hikvision DS-KIS602 2MP Intercom Kit
The Hikvision DS-KIS602 is a 2MP video intercom kit pairing a KD8003-IME1 door station with a KH6320 7-inch indoor touchscreen station, supplied in a surface-mount configuration. The indoor station runs on an embedded Linux OS with a 1024 x 600 display and noise-suppressed two-way audio.
PoE powered (IEEE 802.3af) with 10/100Mbps Ethernet and TCP/IP, RTSP network protocols, the system supports 4 inputs and 2 outputs for integration with door hardware. Rated IP65 for outdoor durability, operating from -40C to +60C. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | DS-KIS602 (KD8003-IME1 door station, KH6320 indoor station) |
| Processor | Embedded MCU Processor |
| Operating System | Embedded Linux |
| Display Resolution | 1024 x 600 |
| Display Screen | 7-inch colourful TFT touchscreen |
| Audio Compression | G.711 U, 64 Kbps |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Ethernet | 10/100 Mbps self-adaptive |
| Network Protocol | TCP/IP, RTSP |
| I/O Input | 4 |
| I/O Output | 2 |
| Power Supply | 12VDC / PoE (IEEE 802.3af) |
| Power Consumption | ≤10W |
| Working Temperature | -40°C to +60°C |
| Working Humidity | 10% to 95% |
| Indoor Station Dimensions | 200mm x 140mm x 15.1mm |
| Weight | 683g with packaging, 355g without |
| IP Protection | IP65 (door station) |
| Memory | 128MB |
| Door Station Dimensions | 98mm x 99.8mm x 43.9mm |
| Mounting | Surface mount |
| Warranty | 3 years |
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Via 12VDC or PoE (IEEE 802.3af), so a single network cable can carry both power and data.
The indoor station connects over the network using TCP/IP and RTSP, supporting remote monitoring and control.
Yes, it's rated IP65 for water resistance and operates from -40°C to +60°C.
This kit is supplied for surface mounting.
4 inputs and 2 outputs, for integration with door hardware and sensors.
This product includes 3 years warranty plus SIPKO support, with installation, commissioning and ongoing service options available for Melbourne customers.
2MP Video Intercom, PoE Powered
The Hikvision DS-KIS602 pairs a 2MP door station with a 7-inch touchscreen indoor unit, PoE powered for simpler installation and wide-temperature outdoor durability.
