VIVOTEK ND9326P 8-Channel Embedded PoE NVR
The VIVOTEK ND9326P is a Core+ AI 8-channel embedded PoE NVR with 8 built-in 802.3at/af PoE ports (120W total budget), so cameras plug straight in without a separate PoE switch. It records at up to 192Mbps across two internal 3.5" SATA bays (HDD sold separately) with RAID 0/1 support, decodes H.265/H.264 up to 3840x2160 @ 120fps, and includes VIVOTEK's Deep Search AI engine for people and vehicle search, line crossing, intrusion and loitering detection.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | VIVOTEK ND9326P |
| Model/SKU | ND9326P |
| Type | Core+ AI H.265 8-channel embedded PoE NVR |
| Operating System | Embedded Linux |
| LiveView Display | 8 channels. Layouts: 1x1, 1M+5, 1P+3, 1P+6, 2x2, 2P+3, 3x3, 3V |
| Video Output | HDMI x1, VGA x1. Resolution up to 3840x2160, 1920x1080, 1280x720. Dual monitor supported |
| Video Format | MJPEG, H.264, H.265 |
| Graphic Decoder | Hardware decoding, up to 7680x2560 |
| Decoding Capability | H.265/H.264: 3840x2160 @ 120fps, 1920x1080 @ 480fps |
| Audio Format | G.711, G.726, MPEG-2 AAC-LC |
| Recording Throughput | 192 Mbps, dual recording stream |
| Recording Mode | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming |
| Recording Time | Pre-record: 5 sec (max. 10). Post-record: 20 sec (max. 300) |
| Storage | 2x internal 3.5" SATA bays (HDD purchased separately), RAID 0/1 |
| External Storage | USB storage (USB 3.0). Video clip export via USB pen drive (FAT format) |
| Playback | 4 channels. Layouts: 1x1, 2x2, 1P+3, 3V |
| Network | 2x Gigabit Ethernet (RJ-45), 224 Mbps total network throughput |
| PoE | 8x 802.3at/af compliant PoE ports, 120W total budget |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS |
| USB | Front: 1x USB 3.0. Back: 2x USB 2.0 |
| Alarm I/O | Alarm In x4 (max. 30VDC), Alarm Out x1 (max. 1A/30VDC) |
| Audio I/O | 3.5mm phone jack input and output x1 |
| Camera Integration | ONVIF Profile S |
| Deep Search | Object search (people, vehicle). Scene search (line crossing, intrusion, loitering). Attribute search (gender, age, clothing colour, accessories, vehicle type/colour) |
| Advanced Features | VCA Counting Solution, Smart VCA / Smart 360 VCA event search, Smart Search II, Trend Micro IoT Security (3-year free trial), Cybersecurity Management |
| Remote Client | Shepherd and VSS software, iViewer app (Android/iOS), Chrome browser, VORTEX Connect cloud service |
| Power | 100-240V AC, 50/60Hz. Max. power consumption 190W |
| Dimensions | 315 (D) x 365 (W) x 44 (H) mm |
| Weight | 2.65 kg |
| Operating Temperature | -10°C to 55°C |
| Humidity | 0 to 95% (non-condensing) |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
Similar products
-
AJAX 12V PSU for NVR
Price on request
-

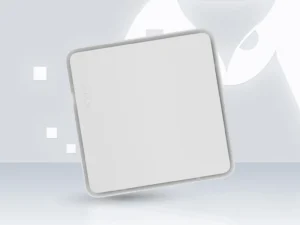

AJAX 8CH White HDMI NVR without HDD - 8-Channel Network Video Recorder
Price on request
-

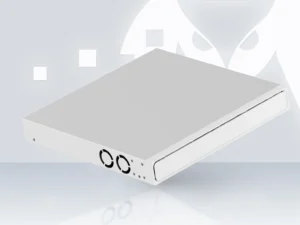

AJAX NVR 16CH White - 16-Channel Network Video Recorder (No HDD)
Price on request
-
AJAX NVR 8CH Black - 8-Channel Network Video Recorder (No HDD)
Price on request
-
AJAX NVR H2D8PAC White, 8-Channel PoE Network Video Recorder (No HDD)
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
No. The ND9326P ships without hard drives. It has two internal 3.5" SATA bays supporting RAID 0 or 1, and a compatible surveillance-rated HDD needs to be purchased and fitted separately.
Yes. The ND9326P has 8 built-in 802.3at/af compliant PoE ports with a combined budget of 120W, so up to 8 PoE cameras can connect and power directly from the NVR without a separate PoE switch.
Deep Search is VIVOTEK's AI-powered analytics engine built into the NVR. It lets you search hours of recorded footage by object type (people or vehicle), by scene events (line crossing, intrusion, loitering), and by attributes such as clothing colour or vehicle type, cutting down the time needed to find specific footage.
Yes. The ND9326P supports ONVIF Profile S for camera integration, so compatible third-party IP cameras can connect alongside VIVOTEK cameras, though full Smart VCA analytics performance is optimised for VIVOTEK cameras.
The ND9326P supports VIVOTEK's Shepherd and VSS desktop software, the iViewer mobile app for Android and iOS, direct access via the Chrome browser, and hybrid cloud management through the VORTEX Connect service.
Complete PoE Recording, Built In
The VIVOTEK ND9326P pairs 8 built-in PoE ports with RAID-ready storage and Deep Search AI analytics, giving Melbourne properties a complete 8-camera recording solution in a single box.
