AJAX KeyPad Plus Jeweller White - Wireless Touch Keypad with Card and Fob Access
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX KeyPad Plus Jeweller |
| Type | Wireless touch keypad with support for encrypted contactless cards and key fobs, indoor use |
| Keys | Capacitive touch |
| Control | Codes, Pass cards, Tag key fobs |
| Contactless standard | DESFire EV1, EV2 (ISO 14443), 128-bit encryption and copy protection |
| Access codes | Up to 200 personal codes (depends on the hub) and 1 keypad code |
| Duress codes | Up to 200 personal duress codes (depends on the hub) and 1 keypad duress code |
| Codes for unregistered people | Up to 99 (depends on the hub) |
| Function button | Alarm (to the monitoring station and users, sirens on), mute fire alarm, or off |
| Indication | LEDs for the security mode, detector faults and loss of connection with the hub |
| Group security | Keypad code plus group ID |
| Jeweller radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 5,600 ft (about 1,700 m) in open space, up to 20 mW |
| Sabotage protection | Locks for 3 to 180 minutes after more than 3 wrong codes in 1 minute (set in the Ajax app), tamper alarm, device authentication |
| Communication loss detection | After 36 s |
| Battery | 4 x AA, pre-installed, 12,000 mAh in total. Up to 3.5 years |
| Power consumption | Quiescent 0.064 mA, maximum 165 mA (3 V nominal) |

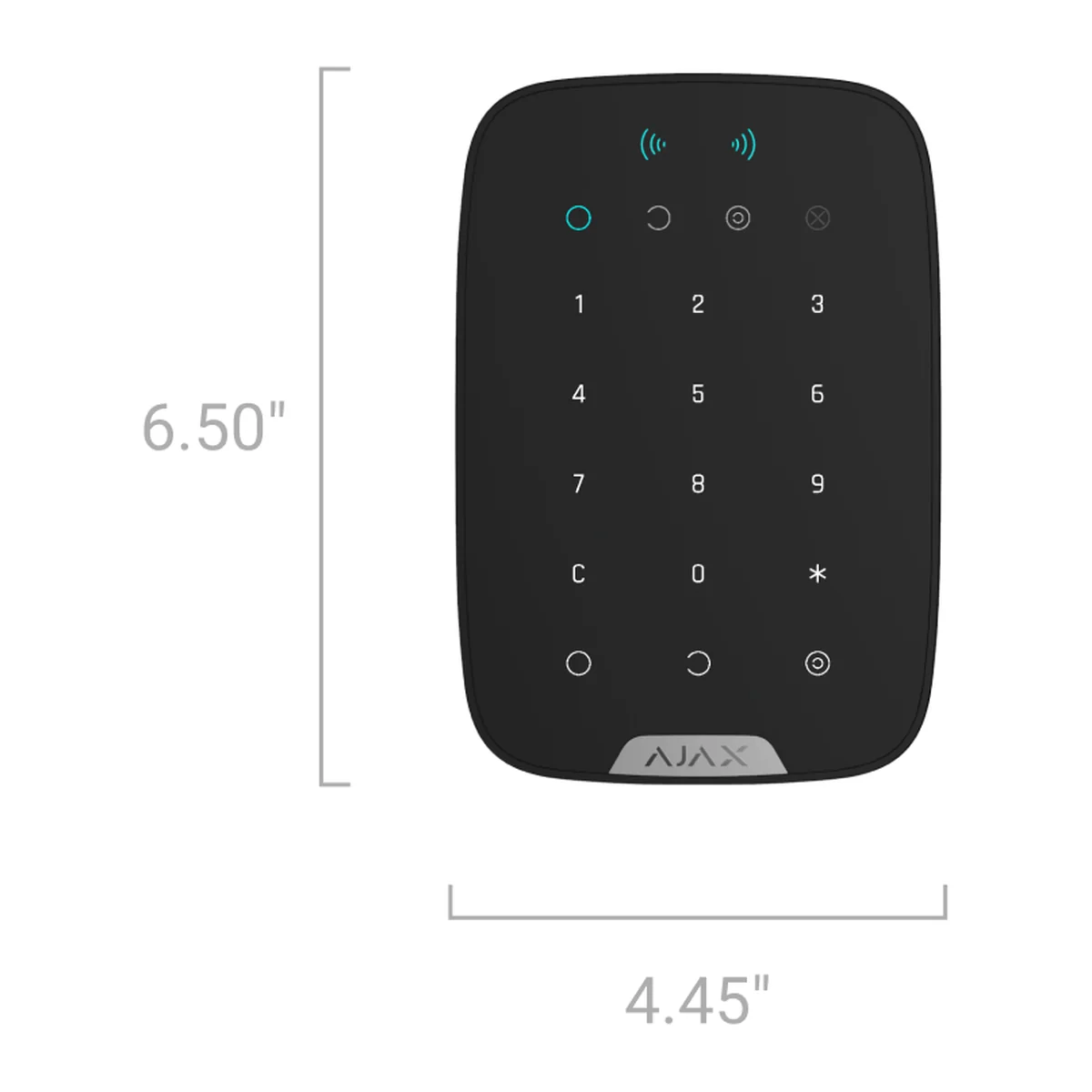

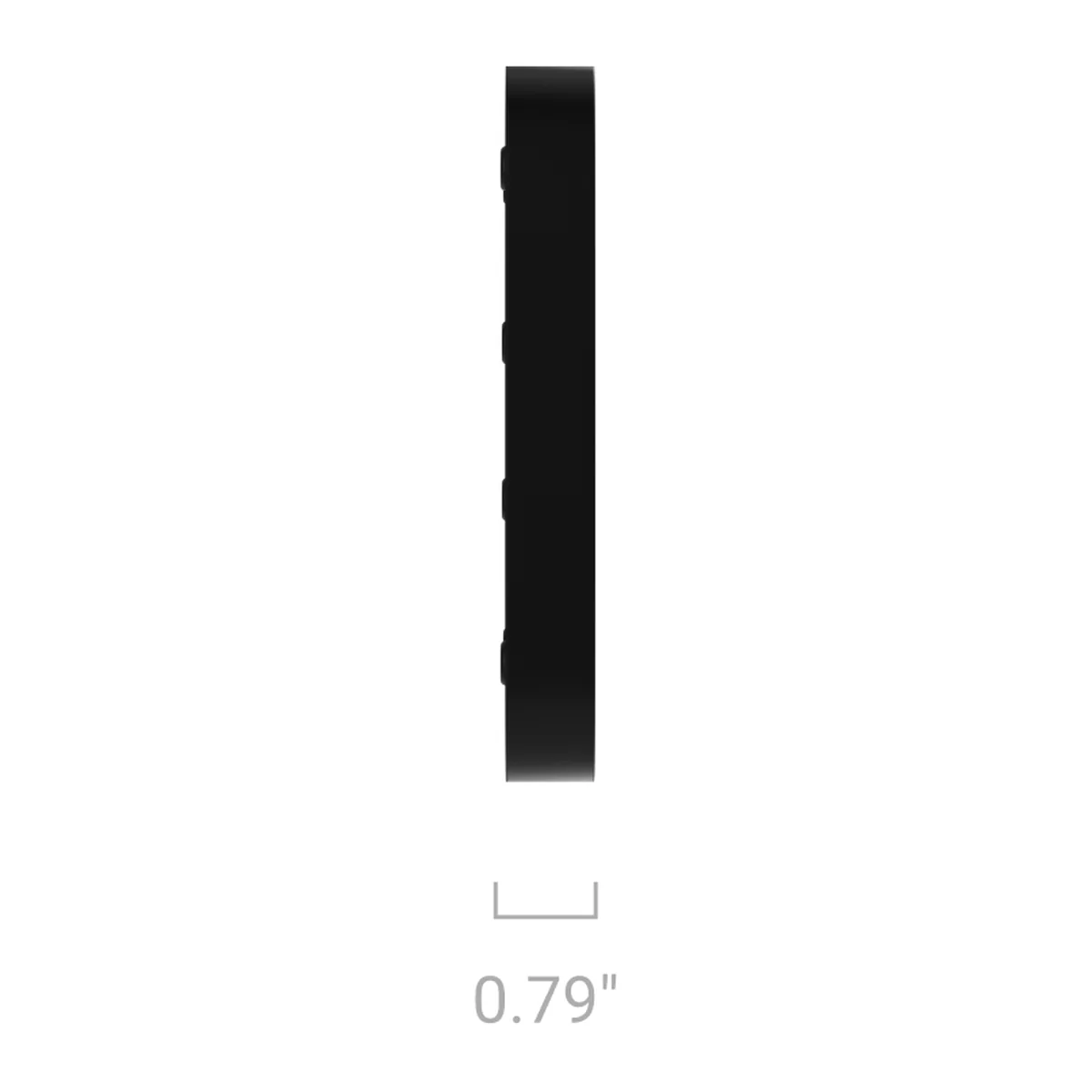

| Dimensions | 6.50 x 4.45 x 0.79 in (about 165 x 113 x 20 mm) |
| Weight | 9.42 oz (about 267 g) |
| Operating temperature | 14 to 104 degrees F (about -10 to 40 degrees C) |
| Operating humidity | Up to 75% |
| Use | Indoor use only |
| Colour | White. Also available in black |
| Complete set | KeyPad Plus Jeweller, SmartBracket mounting panel, 4 AA batteries (pre-installed), installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
-

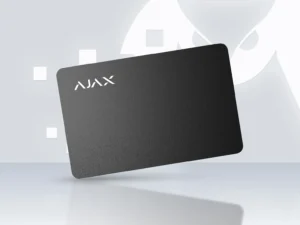

AJAX Pass Contactless Access Card Black
Price on request
-

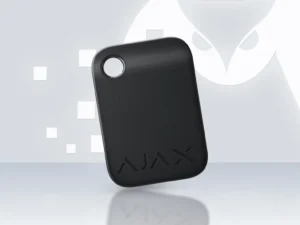

AJAX Tag Contactless Key Fob Black
Price on request
-

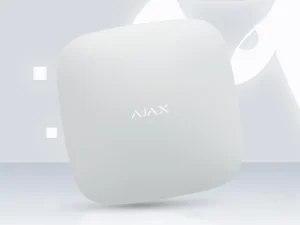

AJAX Hub 2 (4G) White - Wireless Security Control Panel with Photo Verification
Price on request
-
AJAX Hub 2 Plus Jeweller White - Control Panel with 200 Devices, Wi-Fi and Photo Verification
Price on request
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
With a code, an Ajax Pass card or a Tag key fob. Cards and fobs work the same way; they only look different.
Up to 200 personal codes and 200 duress codes, plus up to 99 codes for people not registered in the system. The limit depends on the hub model.
They use DESFire EV1 and EV2 with 128-bit encryption and copy protection, so a card cannot simply be cloned.
The keypad locks for 3 to 180 minutes after more than 3 wrong codes in 1 minute. The lock time is set in the Ajax app.
Yes. The function button can send an alarm to the monitoring station and users and sound the sirens, or mute interconnected fire alarms.
Up to 3.5 years on the 4 AA batteries that come fitted.
No. KeyPad Plus is for indoor use only. For outside, see the Ajax KeyPad Outdoor.
An Ajax hub, such as Hub 2 (4G) or Hub 2 Plus, which it connects to by Ajax Jeweller radio. It is set up in the Ajax apps. Ask us to check that your hub supports it.
The keypad, a SmartBracket mounting panel, 4 AA batteries (already fitted), an installation kit and a quick start guide. Pass cards and Tag fobs are sold separately.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
