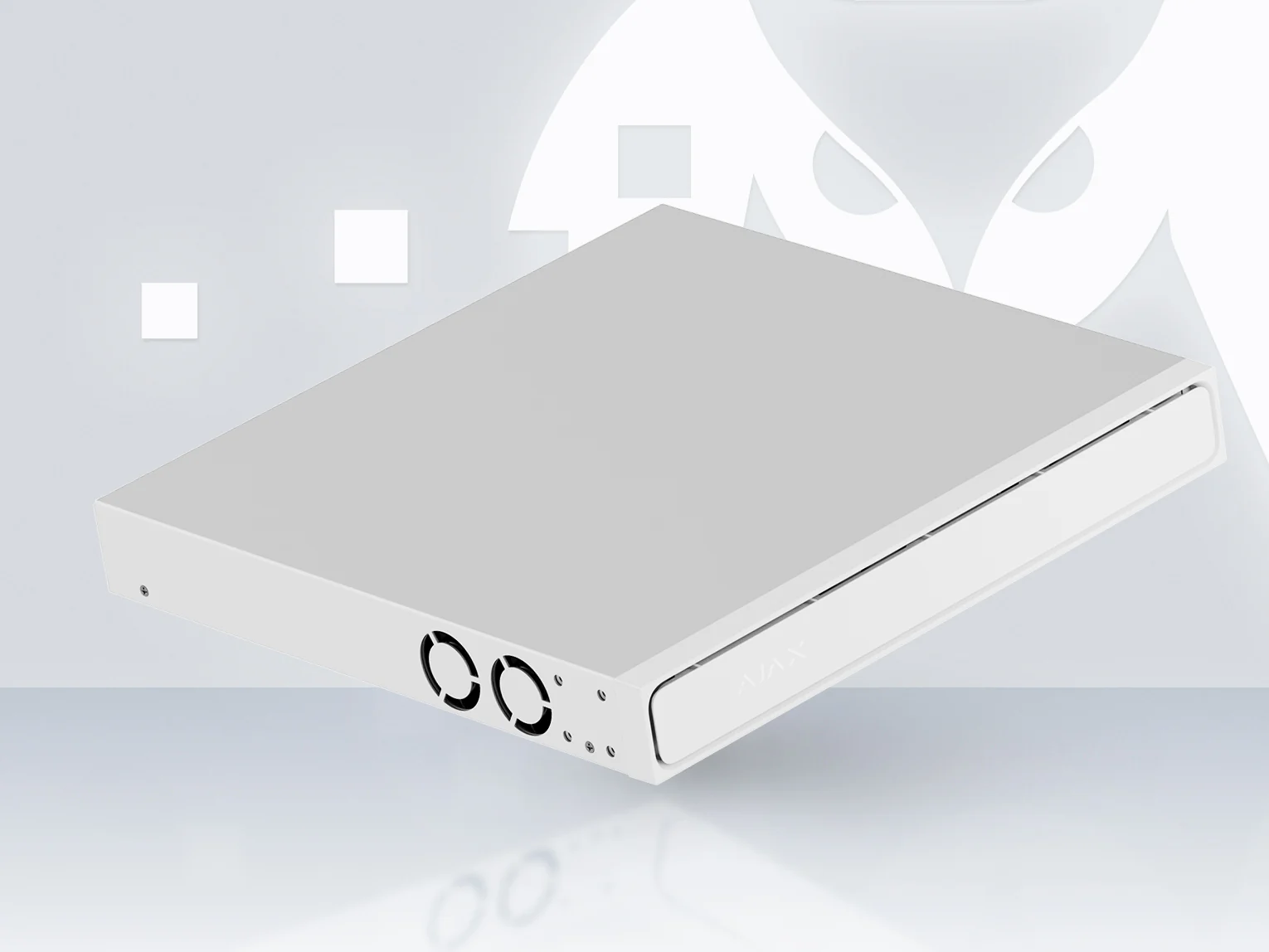

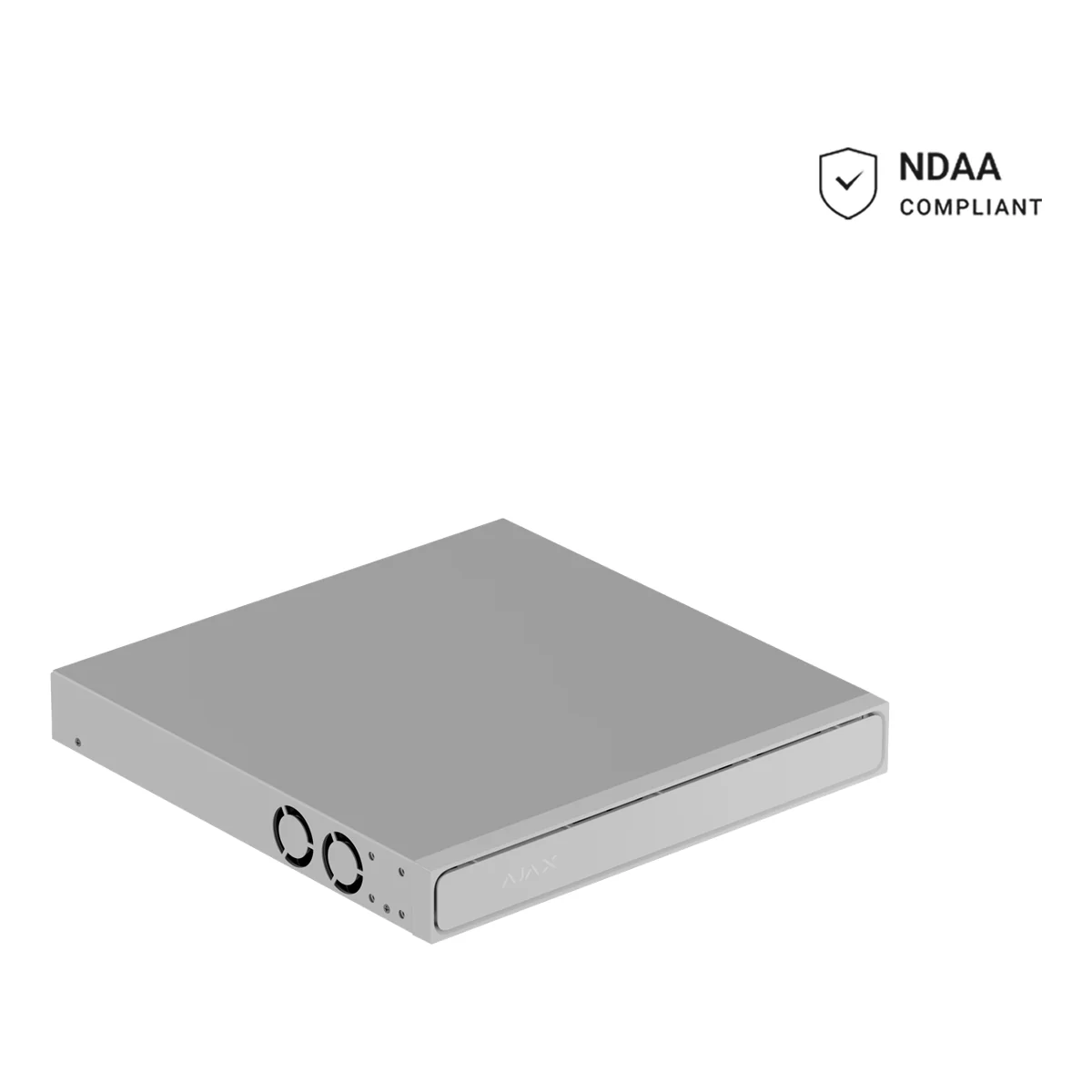

AJAX NVR H2D8PAC White, 8-Channel PoE Network Video Recorder (No HDD)
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX NVR H2D8PAC (8-ch) |
| Type | Network video recorder with 4K HDMI output, 8 PoE ports and 2 hot-swap drive bays |
| Video input | 8 channels |
| Recording resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 px |
| Live view and playback resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF |
| Decoding formats | H.265, H.264, JetSparrow |
| Decoding capability | 2 channels at 4096 x 4096 px (25 fps), 4 channels at 3840 x 2160 px (25 fps), 8 channels at 2880 x 1620 px (25 fps) |
| Live view window division | Templates: 1, 4, 9, 16, 25, 5+1, 7+1, 12+1. Custom: up to 10 x 10 views |
| Synchronous playback | 4 channels |
| Motion detection | Ajax camera: 8 channels. NVR: 8 channels |
| Storage | 2 x SATA III, up to 16 TB per drive, 2.5 inch and 3.5 inch, full hot-swap. Drives not included |
| Recording modes | Redundancy mode (the same streams to two drives) and split mode (streams shared between drives) |

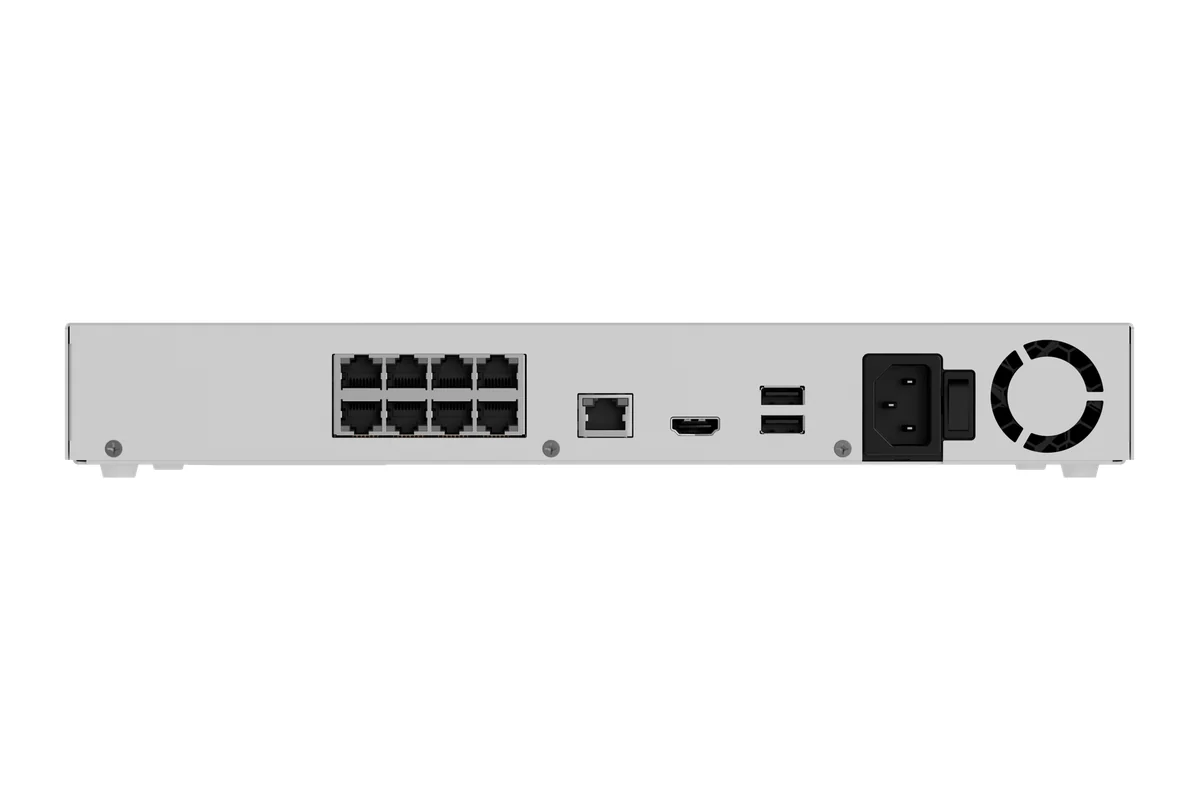

| Network | 1 x RJ45 self-adaptive Ethernet (10/100/1000 Mbps). 8 x 802.3af/at PoE RJ45 fast Ethernet (10/100 Mbps) |
| USB | Rear: 2 x USB 2.0 (Type-A) for keyboard, mouse and USB Audio Class devices. Front: 1 x USB 2.0 (Type-A) for a USB flash drive |
| PoE standard | 8 x IEEE 802.3af/at (Alternative A, power over data pairs) |
| Maximum power per PoE port | 25 W |
| Total PoE power budget | 160 W |
| Network bandwidth | Incoming 160 Mbps, outgoing 160 Mbps |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF Profile G and S, RTSP |
| Main power | 100 to 240 V, 50/60 Hz, 5 A |
| Power consumption | Up to 280 W |
| Clock battery | CR2032, 3 V (system clock only) |
| Dimensions | 12.99 x 12.99 x 1.73 in (about 330 x 330 x 44 mm) |
| Weight | 7.2 lb (about 3.3 kg) without drives |
| Operating temperature | 32 to 122 degrees F (about 0 to 50 degrees C) |
| Operating humidity | Up to 75% |
| Protection class | IP20, indoor use only |
| Colour | White. Also available in black |
| Complete set | NVR H2D8PAC (8-ch), 2 x rack-mount brackets, power cable, Ethernet cable, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
-

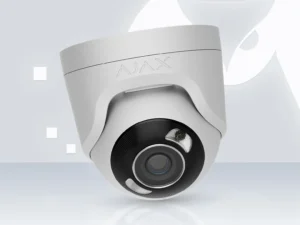

AJAX TurretCam HL 8MP 2.8mm White - 4K AI Hybrid Illumination IP Camera
Price on request
-

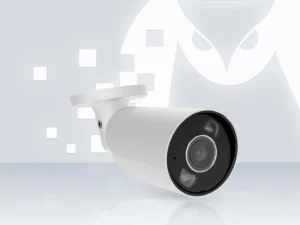

AJAX BulletCam HL 8MP 2.8mm White - 4K AI Hybrid Illumination IP Camera
Price on request
-

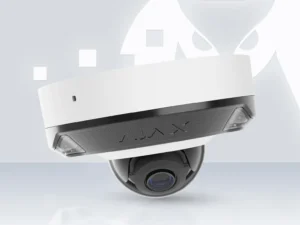

AJAX DomeCam Mini HL 8MP 2.8mm White - 4K AI Hybrid Illumination IP Camera
Price on request
-
AJAX NVR 8CH Black - 8-Channel Network Video Recorder (No HDD)
Price on request
-
AJAX NVR 16CH White - 16-Channel Network Video Recorder (No HDD)
Price on request
Similar products
-
AJAX 12V PSU for NVR
Price on request
-
AJAX 8CH White HDMI NVR without HDD - 8-Channel Network Video Recorder
Price on request
-
Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP WizSense Network Video Recorder
$326.00
-
Dahua DHI-NVR5208-8P-AI/ANZ-S2 8CH WizSense AcuPick PoE NVR
$671.00
-
Dahua DHI-NVR5432-AI/ANZ-S2 32CH WizSense AcuPick NVR with 8K Output
$916.00
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
It has 8 video inputs, so it records up to 8 cameras. It works with Ajax cameras, IP cameras that conform to ONVIF Profiles, and RTSP devices.
Yes. It has 8 PoE ports (802.3af/at) with up to 25 W per port and a total PoE budget of 160 W, so each PoE camera needs one network cable for power and video.
No. It has two SATA III bays for 2.5 inch and 3.5 inch drives up to 16 TB each. The drives are not included.
In redundancy mode the NVR records the same streams to both drives. In split mode it shares the streams between them. Both bays are hot-swap.
Yes. The HDMI output supports up to 3840 x 2160 pixels (4K), as well as 1920 x 1080, 1280 x 1024 and 1280 x 720.
Yes. Two rack-mount brackets come in the box. The NVR is for indoor use only and is rated IP20.
From 32 to 122 degrees F (about 0 to 50 degrees C) at up to 75% humidity.
The NVR, 2 rack-mount brackets, a power cable, an Ethernet cable, an installation kit and a quick start guide.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and set up Ajax cameras and recorders across Melbourne and the Mornington Peninsula. Request a quote and we will plan the cameras, the cabling and the storage with you.
