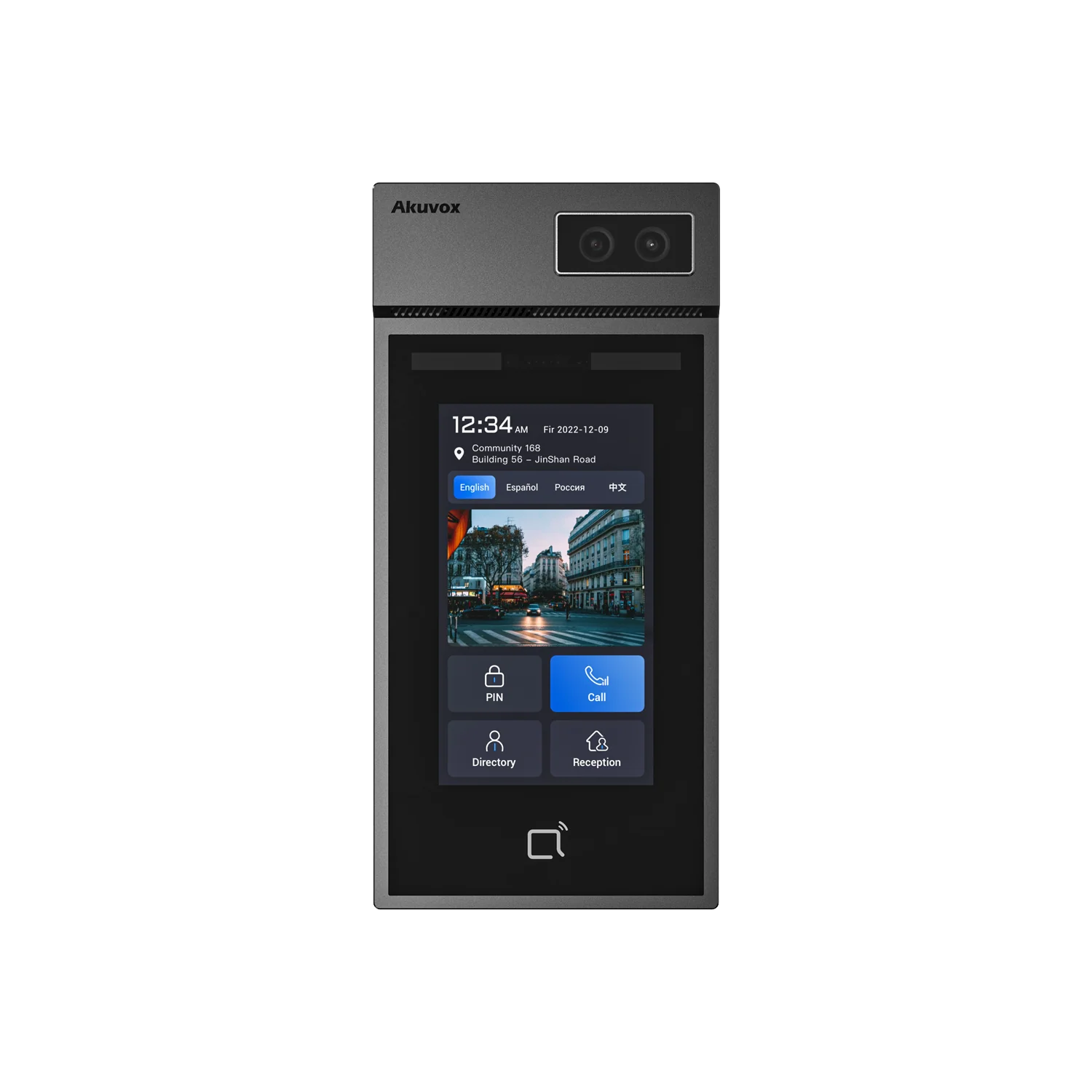

Akuvox S535 5" Facial Recognition Door Station with Modular Expansion
A premium modular IP video door station featuring a 5-inch touchscreen and 2MP wide-angle camera. Its unique modular architecture allows hardware expansion with 4G/LTE, fingerprint, or induction modules. Supports six access methods: facial recognition, fingerprint, PIN, RFID, QR code, and mobile app.
$1,094.00
LTE/4G Module
Adds cellular network connectivity for backup communication or installations without wired internet. Essential for retrofit sites.
Fingerprint Module
High-precision optical fingerprint reader adds biometric authentication. Stores thousands of fingerprints.
Induction Sensor Module
Enables automatic wake-up as a person approaches. Enhances user experience and saves power.
Future Expansion
Modular design allows for additional future modules as technology evolves and new needs arise.
Future-Proof Design
Modular architecture lets you add 4G, fingerprint, or induction features later without replacing the entire unit.
Six Access Methods
Flexibility for any user: facial recognition for residents, PIN for staff, RFID for regular visitors, QR for temporary access.
Rugged & Reliable
IP66 and IK08 ratings ensure operation in harsh weather and resist vandalism in public installations.
Easy Installation
PoE support for single-cable installation. Compatible with standard SIP VoIP systems and third-party access control.
High-Security Residences
Apartments, villas, and gated communities needing facial recognition and multiple authentication methods.
Commercial Buildings
Office entrances requiring scalable access control with options for 4G backup and visitor management.
Retrofit Projects
Existing buildings where LTE module eliminates need for new network cabling to entrance.
Mixed-Use Developments
Combined residential/commercial properties needing different access methods for different user groups.
Future-proof investment: The S535's modular design means you can start with basic functionality and add 4G/LTE for cellular backup, fingerprint recognition, or automatic wake-up induction sensors later as your needs evolve.
Key Specifications
Display
5-inch IPS LCD capacitive touchscreen (1280 × 720 resolution)
Camera
2MP sensor with WDR, 116° horizontal viewing angle, wide dynamic range
Power
PoE (IEEE 802.3af) or 12V DC/4A adapter
Protection Rating
IP66 weatherproof, IK08 vandal resistance
Connectivity
10/100 Mbps Ethernet, Wi-Fi (via USB dongle), Bluetooth 5.0
Access Methods
Face (20,000 profiles), fingerprint, PIN, RFID (13.56MHz/125kHz/NFC), QR code, Bluetooth app
Relay Output
1 × dry contact for door strike release
Operating Temp
-20°C to +55°C (operating), -40°C to +70°C (storage)
Core Features
LTE/4G Module: Adds cellular network connectivity for backup communication or installations without wired internet. Essential for retrofit sites.
Fingerprint Module: High-precision optical fingerprint reader adds biometric authentication. Stores thousands of fingerprints.
Induction Sensor Module: Enables automatic wake-up as a person approaches. Enhances user experience and saves power.
Future Expansion: Modular design allows for additional future modules as technology evolves and new needs arise.
Future-Proof Design: Modular architecture lets you add 4G, fingerprint, or induction features later without replacing the entire unit.
Six Access Methods: Flexibility for any user: facial recognition for residents, PIN for staff, RFID for regular visitors, QR for temporary access.
Rugged & Reliable: IP66 and IK08 ratings ensure operation in harsh weather and resist vandalism in public installations.
Easy Installation: PoE support for single-cable installation. Compatible with standard SIP VoIP systems and third-party access control.
High-Security Residences: Apartments, villas, and gated communities needing facial recognition and multiple authentication methods.
Commercial Buildings: Office entrances requiring scalable access control with options for 4G backup and visitor management.
Retrofit Projects: Existing buildings where LTE module eliminates need for new network cabling to entrance.
Mixed-Use Developments: Combined residential/commercial properties needing different access methods for different user groups.
Technical Specifications
| Category | Specification |
|---|---|
| Brand | Akuvox |
| Model / SKU | akuvox-s535-5-facial-recognition-sip-door-phone-with-modular-expansion |
| Display | 5-inch IPS LCD capacitive touchscreen (1280 × 720 resolution) |
| Camera | 2MP sensor with WDR, 116° horizontal viewing angle, wide dynamic range |
| Power | PoE (IEEE 802.3af) or 12V DC/4A adapter |
| Protection Rating | IP66 weatherproof, IK08 vandal resistance |
| Connectivity | 10/100 Mbps Ethernet, Wi-Fi (via USB dongle), Bluetooth 5.0 |
| Access Methods | Face (20,000 profiles), fingerprint, PIN, RFID (13.56MHz/125kHz/NFC), QR code, Bluetooth app |
| Relay Output | 1 × dry contact for door strike release |
| Operating Temp | -20°C to +55°C (operating), -40°C to +70°C (storage) |
