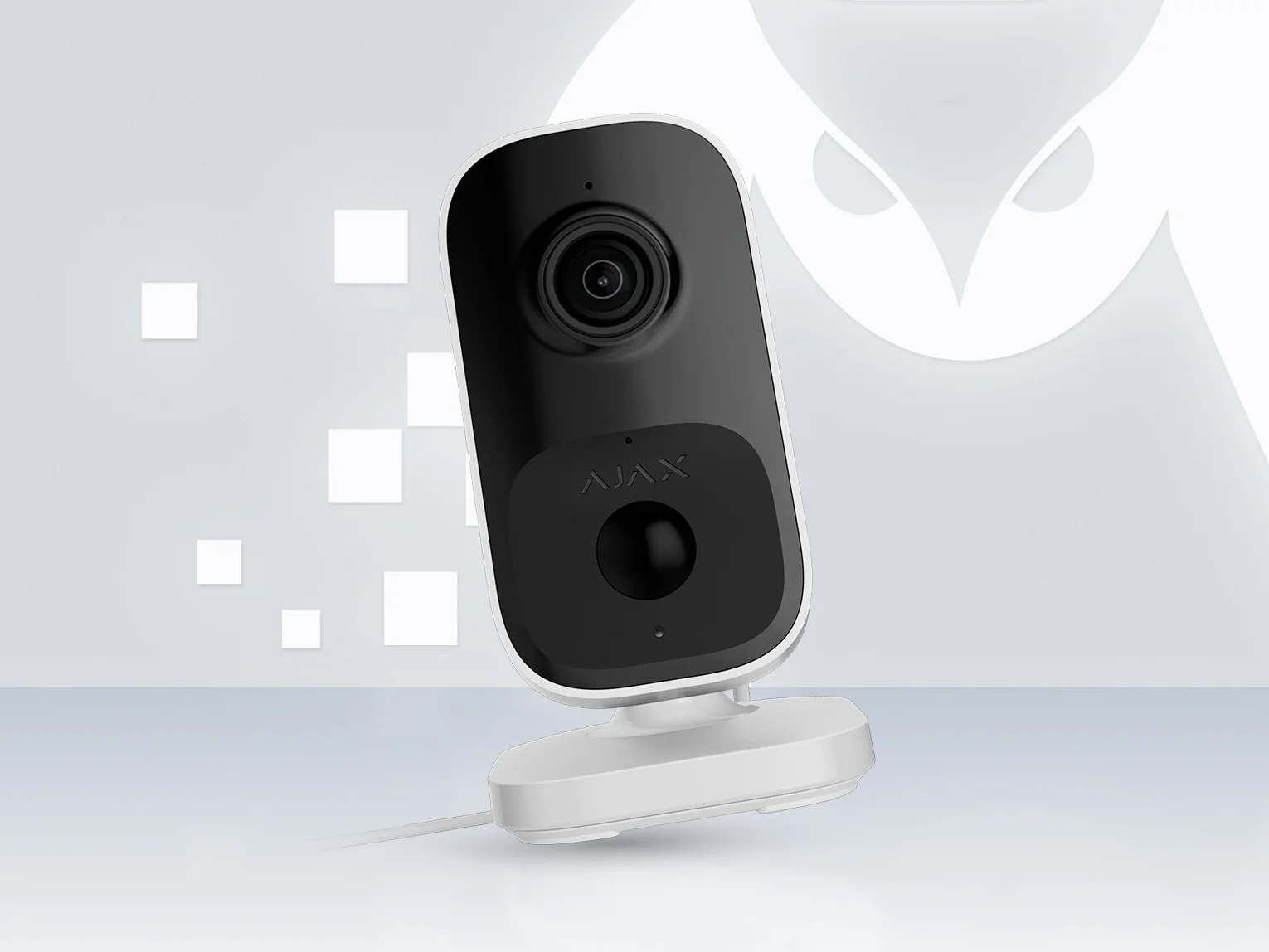

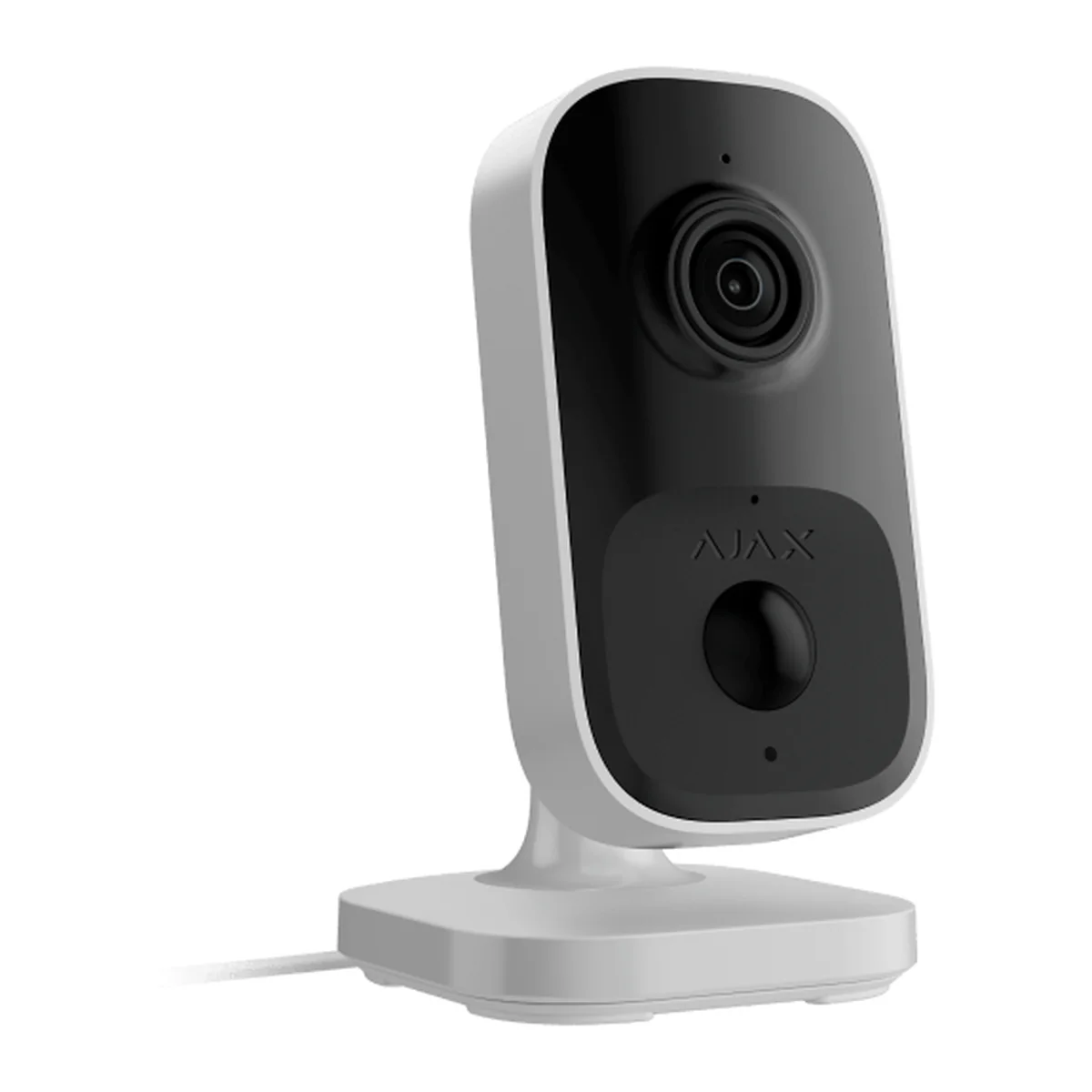

AJAX IndoorCam White - 4MP Indoor Wi-Fi Camera with AI and PIR Detection
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX IndoorCam |
| Type | Indoor Wi-Fi security camera with a PIR motion sensor and built-in AI |
| Image sensor | 4 MP CMOS |
| Video resolution | Up to 2688 x 1520 px |
| Field of view | Horizontal 110 degrees, vertical 60 degrees |
| Video codec | H.264 |
| Dynamic range | HDR |
| Night illumination | Smart IR up to 26 ft (about 8 m), adjusted in real time to avoid overexposure |
| Storage | Ajax NVR or Ajax Cloud Storage |
| Video protocol | JetSparrow, an encrypted peer-to-peer protocol developed by Ajax Systems |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Backup channel | Jeweller and Wings radio, used for commands, alarms, events and photo verification when the camera is added to an Ajax hub |
| Audio | Microphone and speaker for two-way talk, speaker volume 65 dB plus or minus 3 dB. Codec G.722. Noise suppression and echo cancellation always on |
| Motion detection | Built-in PIR sensor plus software image analysis |
| AI object detection | People, pets, vehicles |
| PIR detection distance | Up to 13 ft (about 4 m), depending on the sensitivity setting |
| PIR detection angle | Horizontal 110 degrees, vertical 60 degrees |
| PIR sensitivity | 3 levels, set in the Ajax apps by a PRO or an admin user |
| ONVIF | Conformant with ONVIF Profile S |
| LED indication | An LED shows the state of the camera |

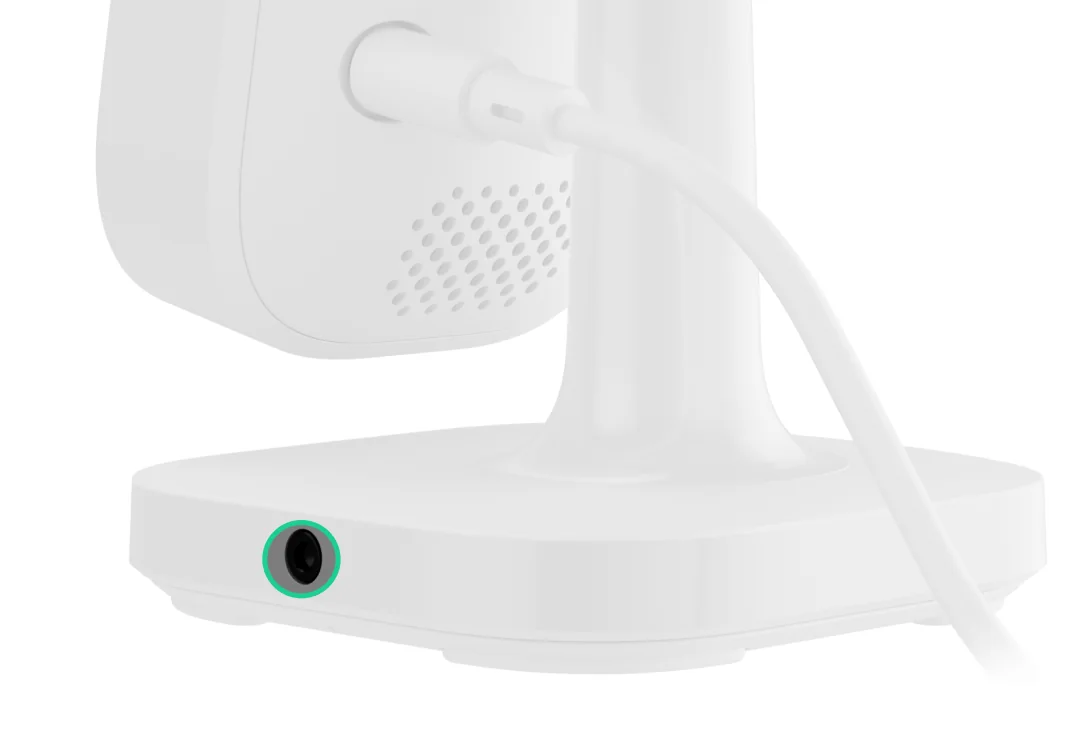

| Sabotage protection | Holding screw on the mounting panel, mTLS encryption, authentication via Ajax Cloud, secure boot, signed over-the-air updates |
| Communication loss detection | Wi-Fi from 30 s, Jeweller and Wings after 36 s |
| Power supply | 12 V DC plus or minus 20%, 1 A (power supply included) |
| Power consumption | Up to 8 W |

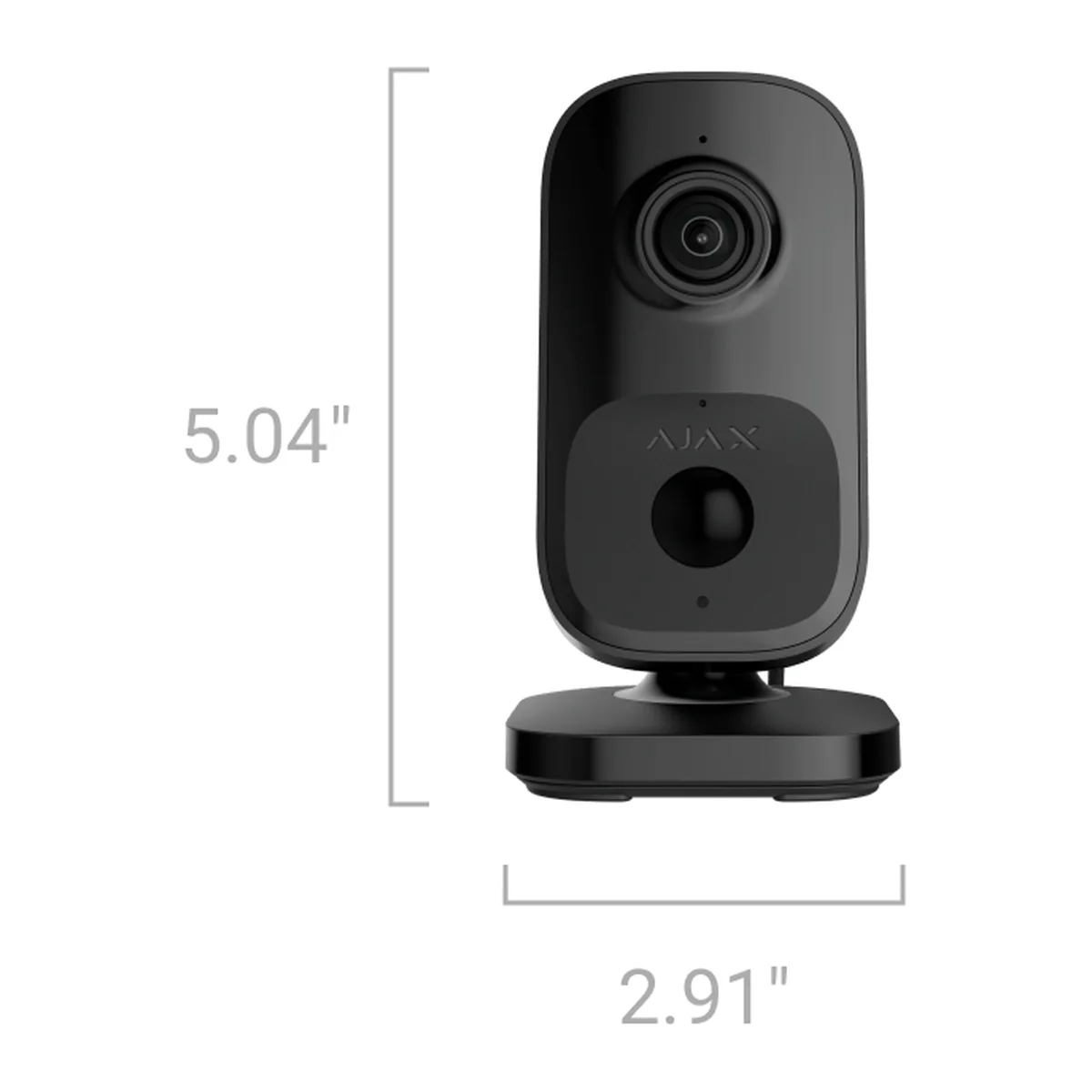

| Dimensions | 5.04 x 2.91 x 2.99 in (about 128 x 74 x 76 mm) |
| Weight | 8.29 oz (about 235 g) |
| Operating temperature | 32 to 104 degrees F (about 0 to 40 degrees C) |
| Operating humidity | Up to 90%, no condensation |
| Protection class | IP20, indoor use only |
| Colour | White (RAL 9003). Also available in black |
| Complete set | IndoorCam, power supply unit, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
AJAX 8MP BulletCam HLVF (2.8 - 12mm) White - 4K Motorized PoE IP Camera
Price on request
-
AJAX BulletCam 5MP 2.8mm White - AI Wired IP Bullet Camera
Price on request
-
AJAX BulletCam 5MP 4mm White - AI Wired IP Bullet Camera
Price on request
-
AJAX BulletCam 8MP 2.8mm White - 4K AI Wired IP Bullet Camera
Price on request
-
AJAX BulletCam HL 5MP 2.8mm White - AI Hybrid Illumination IP Camera
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
No. Ajax designs it for indoor use only (IP20, 0 to 40 degrees C). Keep it out of direct sunlight. For outside, see the Ajax TurretCam, BulletCam or DomeCam Mini.
Over 2.4 GHz Wi-Fi (802.11 b/g/n). When it is added to an Ajax hub, Ajax radio (Jeweller and Wings) is also used as a backup channel for commands, alarms, events and photo verification.
On an Ajax NVR or in Ajax Cloud Storage. Ajax does not list a memory card slot for the IndoorCam.
Yes. It has a microphone and a speaker (65 dB) for two-way talk, with noise suppression and echo cancellation always on.
A PIR sensor (up to 13 ft, about 4 m, 110 degrees across) plus software image analysis detect movement, and on-device AI recognises people, pets and vehicles. Sensitivity has 3 levels.
Yes. Smart IR lights the room up to 26 ft (about 8 m) and adjusts its strength so close objects are not washed out.
From the 12 V power supply in the box. It uses up to 8 W.
The IndoorCam, its power supply, an installation kit and a quick start guide.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply and set up Ajax cameras across Melbourne and the Mornington Peninsula, including adding them to your Ajax system. Request a quote and we will plan it with you.
