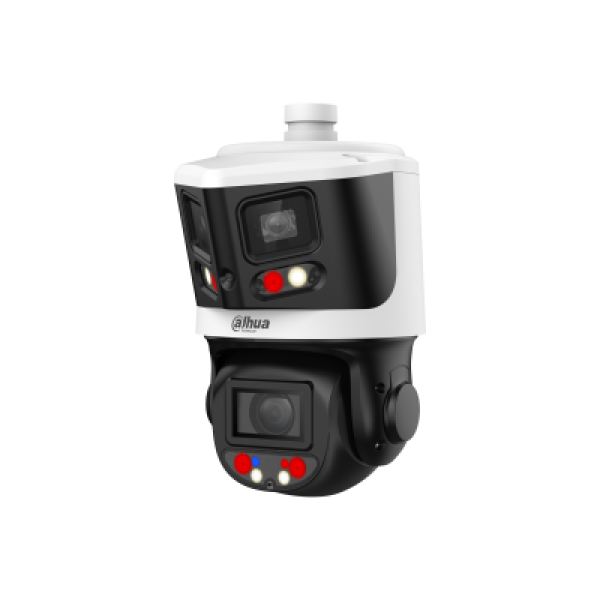

Dahua DH-SDT3E410-8P-MB-A-PV1 8MP + 4MP 10x Panoramic and PTZ Camera
The Dahua DH-SDT3E410-8P-MB-A-PV1 is a dual-camera TiOC unit that combines two cameras in one housing. A fixed 8MP panoramic camera watches a 180° scene continuously, while a separate 4MP PTZ camera with 10x optical zoom automatically turns, zooms and follows anyone who enters it.
That means you keep the whole picture and a close-up of the action at the same time, instead of choosing between them. Starlight low-light performance, infrared to 70m on the zoom camera and Smart Dual Light give usable footage after dark, and active deterrence can flash red and blue lights and play one of 11 built-in warnings. Also includes perimeter protection with human and vehicle classification, face detection, SMD 4.0, a microSD slot supporting up to 512GB, PoE+ or 12V DC power, and an IP66-rated housing with 6000V surge protection. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | Dahua 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera |
| Model/SKU | DH-SDT3E410-8P-MB-A-PV1 |
| Image Sensors | Panoramic: 1/2.8" CMOS (8MP); PTZ: 1/2.8" CMOS (4MP) |
| Max. Resolution | Panoramic: 5376 x 1520; PTZ: 2560 x 1440 |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W); 0 lux (illuminator on) |
| Illumination Distance | Panoramic: 30 m IR, 30 m white light; PTZ: 70 m IR, 30 m white light |
| Focal Length | Panoramic: 2.8 mm; PTZ: 4 mm to 40 mm (10x optical) |
| Field of View | Panoramic: H 180°, V 47°; PTZ: H 58° to 11.3°, V 33.1° to 6.4° |
| Digital Zoom | 16x (PTZ channel) |
| Pan/Tilt Range | Pan 0° to 345°; Tilt -10° to +90° |
| Preset Speed | H: 80°/s; V: 50°/s. 300 presets, power-off memory |
| DORI Distance | Detect 500 m; Observe 197.5 m; Recognise 100 m; Identify 50 m |
| Perimeter Protection (IVS) | Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking, people gathering, human/vehicle classification, linkage tracking |
| Face Detection | Supported on the PTZ channel, with attribute extraction and face cutout |
| SMD | SMD 4.0 |
| Light Warning | Red and blue; flash duration 5 s to 30 s; frequency high, medium, low |
| Sound Warning | 11 built-in alarms plus 10 custom; volume 0% to 100%; 1 to 10 plays |
| Video Compression | H.265; Smart H.265+; H.264; H.264H; H.264B; Smart H.264+; MJPEG (sub stream 1) |
| Stream Capability | 3 streams per channel |
| WDR | PTZ channel 120 dB; panoramic channel DWDR |
| Noise Reduction | 2D NR and 3D NR |
| Image Stabilisation | Electronic (EIS) on the PTZ channel |
| Audio | 1 audio in (line in or built-in mic); 1 audio out (line out or built-in speaker) |
| Alarm | 1 alarm in (0 to 5 VDC); 1 alarm out |
| Network Port | RJ-45 (100 Base-T) |
| Interoperability | ONVIF (Profile S, G and T); CGI; SDK; P2P |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Management Software | DMSS; DSS Pro |
| Power Supply | 12 VDC 3 A ±10%; PoE+ (802.3at) |
| Power Consumption | Basic 12 W; Max. 25 W (illuminator, heater, deterrence and PTZ) |
| Operating Temperature | -30°C to +60°C |
| Protection | IP66; TVS 6000 V lightning proof; surge and voltage transient protection |
| Dimensions | 140.3 mm x 181.7 mm x 238.8 mm |
| Net Weight | 2.17 kg |
| Warranty | 3 years |
Similar products
-
Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-Focal Mini Dome Camera
$204.00
-
Dahua DH-IPC-HDBW3666EP-AS-AUS 6MP Dome Camera with SMD 4.0
$208.00
-
Dahua DH-IPC-HDBW3866EP-AS-AUS 8MP Starlight Dome Camera
$256.00
-
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Eyeball Camera
$139.00
-
Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - 5MP WizColor Series Network Camera
$192.50
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Because the two work together. The panoramic camera never stops watching the whole 180° scene, and the zoom camera automatically follows whoever walks into it. Two separate cameras would each record their own fixed view, and a person could pass between them without ever being captured close up.
Yes. Auto Tracking Lite means that when a target enters the panoramic view, the PTZ camera turns, zooms and focuses to follow their movement, then returns when they leave.
On a perimeter event it can flash red and blue lights and play a warning. It has 11 built-in sound alarms and you can import up to 10 of your own, with adjustable volume and repeat count.
The zoom camera has infrared reaching up to 70m and the panoramic camera up to 30m. Both also have white light, which switches on for full colour footage when a target is detected.
PoE+ (802.3at) or a 12V DC 3A supply. It draws about 12W normally and up to 25W with the illuminators, heater, siren and PTZ motor all working, so the switch or injector needs to support PoE+, not standard PoE.
The Full Picture and the Close-Up
The Dahua DH-SDT3E410-8P-MB-A-PV1 keeps a 180° panoramic view recording at all times while its 10x zoom PTZ camera automatically tracks whoever walks into the scene.
