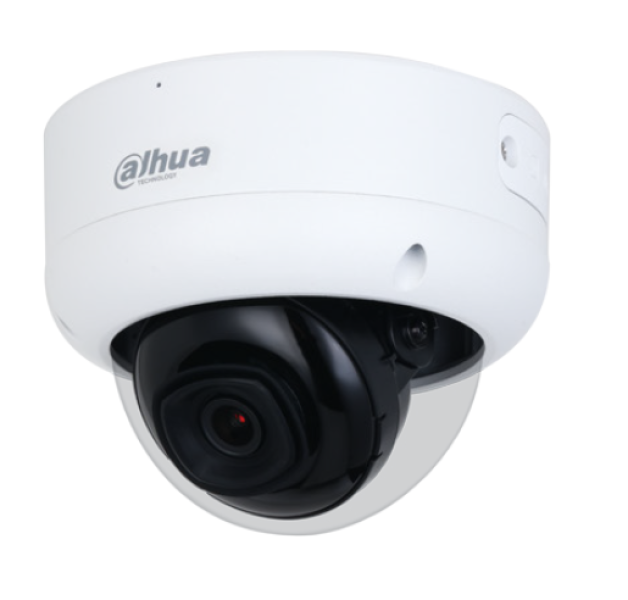

Dahua DH-IPC-HDBW3666EP-AS-AUS 6MP Dome Camera with SMD 4.0
The Dahua DH-IPC-HDBW3666EP-AS-AUS is a 6MP WizSense dome camera with a 2.8mm fixed lens on a 1/2.7" CMOS sensor, delivering 3072 x 2048 resolution. Built-in IR reaches up to 50m, with SMD 4.0 and AI SSA classifying human and vehicle targets to reduce false alarms.
Onboard analytics include tripwire and intrusion detection, backed by a built-in microphone for audio capture. Rated IP67 for outdoor installation, powered by PoE. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | DH-IPC-HDBW3666EP-AS-AUS |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3072 x 2048 |
| Frame Rate | 25fps (PAL) / 30fps (NTSC) at max resolution |
| Lens | 2.8mm fixed |
| Illumination Distance | IR up to 50m |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Smart Detection | SMD 4.0 with AI SSA, tripwire, intrusion (human/vehicle classification) |
| Audio | Built-in microphone, 1 audio in, 1 audio out |
| Alarm I/O | 1 alarm input, 1 alarm output |
| Storage | MicroSD up to 256GB |
| Power | PoE (IEEE 802.3af) |
| Protection | IP67, IK10 |
| Camera Form Factor | Mini dome (eyeball style) |
| Warranty | 3 years |
Similar products
-
Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-Focal Mini Dome Camera
$210.00
-
Dahua DH-IPC-HDBW3866EP-AS-AUS 8MP Starlight Dome Camera
$256.00
-
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Eyeball Camera
$150.00
-
Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - 5MP WizColor Series Network Camera
$190.00
-
Dahua DH-IPC-HDW3641EM-AS-0280B-AUS 6MP Eyeball Camera with SMD
$205.00
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
It steps up to 6MP resolution and extends infrared range from 30m to 50m, suited to larger coverage areas needing more detail.
Yes, it has a built-in microphone that captures audio alongside the video feed.
Yes, its SMD 4.0 and perimeter protection features classify human and vehicle targets to help reduce false alarms.
Standard PoE (IEEE 802.3af).
Yes, it's rated IP67 for weather resistance and IK10 for impact resistance.
This product includes 3 years warranty plus SIPKO support, with installation, commissioning and ongoing service options available for Melbourne customers.
6MP Dome with Long-Range 50m IR
The Dahua DH-IPC-HDBW3666EP-AS-AUS steps up to 6MP resolution with 50m of infrared, a solid mid-range dome for general outdoor coverage.
