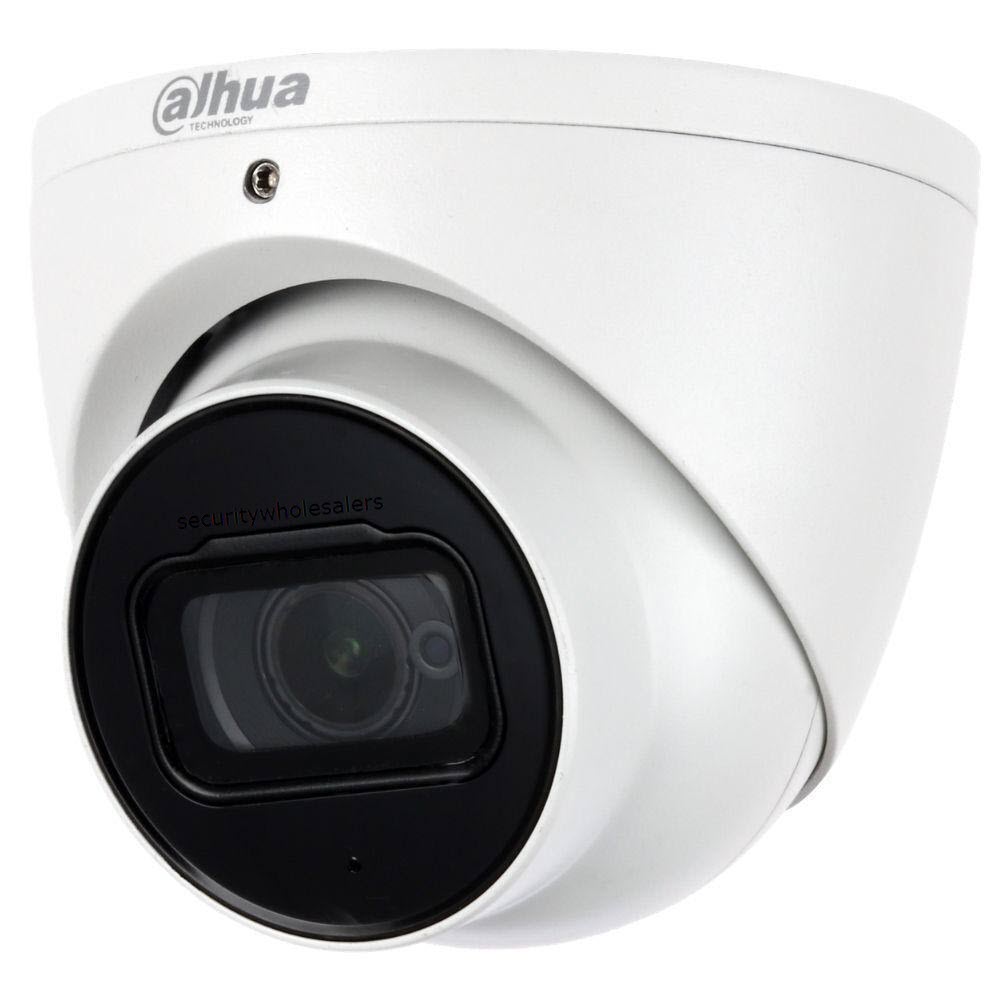

Dahua DH-IPC-HDW3866EMP-S-AUS 8MP Turret Network Camera
The Dahua DH-IPC-HDW3866EMP-S-AUS is an 8MP (4K) turret camera from Dahua's WizSense 3 Series, built around a 1/2.8" CMOS sensor recording at 3840 x 2160 up to 30fps. It has a fixed 2.8mm or 3.6mm lens (2.8mm: 107° view; 3.6mm: 84° view), a single built-in IR illuminator reaching 30m, and SMD 4.0 with AI SSA to classify people and vehicles while filtering out animals and irrelevant motion.
With an AI NVR, Quick Pick lets you search SMD event video for the human or vehicle targets you care about, and Smart H.265+/H.264+ encoding cuts bandwidth and storage needs. It also includes a built-in microphone, MicroSD storage up to 256GB, PoE or 12V DC power, and a metal IP67-rated housing operating from -40°C to +60°C. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | DH-IPC-HDW3866EMP-S-AUS |
| Series | WizSense 3 Series |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840(H) x 2160(V) |
| RAM / ROM | 1GB / 128MB |
| Electronic Shutter Speed | Auto/Manual 1/3s to 1/100,000s |
| Min. Illumination | 0.007 lux@F1.4 (Color, 30 IRE); 0.0007 lux@F1.4 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30m |
| Illuminator | 2 (IR LED), Auto/Manual control |
| Pan/Tilt/Rotation | Pan 0° to 360°; Tilt 0° to 78°; Rotation 0° to 360° |
| Lens | 2.8mm or 3.6mm fixed-focal, M12 mount, F1.4 |
| Field of View (2.8mm) | H: 107°; V: 56°; D: 127° |
| Field of View (3.6mm) | H: 84°; V: 47°; D: 97° |
| DORI Distance (2.8mm) | Detect 87.7m; Observe 35.1m; Recognise 17.5m; Identify 8.8m |
| DORI Distance (3.6mm) | Detect 102.1m; Observe 40.8m; Recognise 20.4m; Identify 10.2m |
| Perimeter Protection (IVS) | Tripwire, intrusion, with human and vehicle classification |
| Smart Features | SMD 4.0, AI SSA, Quick Pick, Smart Search (with Smart NVR) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream 3840 x 2160 @ 1 to 25/30fps; sub streams up to 1920 x 1080 @ 1 to 25/30fps |
| Stream Capability | 3 streams |
| Bit Rate | H.264 and H.265: 3 to 8192 Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| Image Features | WDR 120dB, BLC, HLC, 3D NR, defog, ROI (4 areas), privacy masking (4 areas) |
| Audio | Built-in microphone; G.711a, G.711Mu, PCM, G.726, G.723 |
| Alarm Events | Motion detection, video tampering, tripwire, intrusion, scene changing, audio detection, voltage detection, SMD, SD card and network exceptions, illegal access |
| Network Port | RJ-45 (10/100 Base-T) |
| Interoperability | ONVIF (Profile S, G, T); CGI; P2P; Milestone; Genetec |
| Users/Host | 20 (total bandwidth 64M) |
| Storage | Micro SD card (max 256GB); FTP; SFTP; NAS |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Power Supply | 12VDC / PoE (802.3af) |
| Power Consumption | Basic 4.3W (12VDC), 4.9W (PoE); Max 7.6W (12VDC), 8.9W (PoE) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH |
| Protection | IP67 |
| Casing Material | Metal |
| Dimensions | 93.6mm x Ø106.0mm |
| Net Weight | 500g |
| Certifications | CE-LVD EN62368-1; CE-EMC 2014/30/EU; FCC 47 CFR Part 15 Subpart B; UL62368-1 |
| Warranty | 3 years |
Similar products
-
Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-Focal Mini Dome Camera
$210.00
-
Dahua DH-IPC-HDBW3666EP-AS-AUS 6MP Dome Camera with SMD 4.0
$208.00
-
Dahua DH-IPC-HDBW3866EP-AS-AUS 8MP Starlight Dome Camera
$256.00
-
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Eyeball Camera
$150.00
-
Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - 5MP WizColor Series Network Camera
$190.00
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
It shouldn't. SMD 4.0 and AI SSA classify people and vehicles and filter out small and large animals, cutting down false alerts from wildlife, wind-blown branches and lighting changes.
2.8mm gives a wider 107° view for general area coverage. 3.6mm narrows to 84° but extends the recognise distance from 17.5m to 20.4m, better suited to driveways or gates where identifying detail at range matters more than width.
Yes. It's IP67-rated with a metal housing, operating from -40°C to +60°C, well beyond Melbourne conditions.
It can record to a microSD card of up to 256GB (card sold separately), or to FTP, SFTP or a NAS. For whole-property recording and Quick Pick search, it's best paired with a compatible Dahua AI NVR.
By a single network cable using PoE (802.3af), or by a 12V DC power supply.
This product includes 3 years warranty plus SIPKO support, with installation, commissioning and ongoing service options available for Melbourne customers.
8MP Detail with Fewer False Alarms
The Dahua DH-IPC-HDW3866EMP-S-AUS records sharp 8MP (4K) video and uses SMD 4.0 with AI SSA to tell people and vehicles apart from animals and passing shadows, so alerts stay meaningful.
