Akuvox ACR-CID12 UHF Desktop Card Issuer
The Akuvox ACR-CID12 is a contactless UHF (ultra-high frequency) desktop card reader, distinct from Akuvox's standard RFID desktop reader. It reads EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C tags from up to 10cm away, connecting to a computer over USB plug and play on both Windows and iOS.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | ACR-CID12 |
| Colour | Black |
| Frame | Plastic |
| Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Operating Frequency | 902-928MHz (American Standard), 865-868MHz (European Standard) |
| Read Range | Up to 10cm |
| Connectivity | USB (power supply / data transmission) |
| Operating Systems | Windows, iOS |
| Power | USB, 5VDC |
| Current Draw | Standby <80mA, card-swipe <200mA |
| Buzzer | 1 |
| Dimensions | 107 x 107 x 23mm |
| Working Humidity | 5~80% (at +25°C) |
| Working Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions

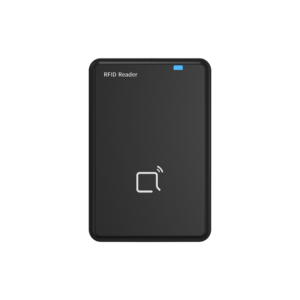

The ACR-CID01 reads standard 125kHz/13.56MHz RFID, BLE and NFC credentials. The ACR-CID12 is a dedicated ultra-high frequency (UHF) reader for EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C tags, which read from a longer range of up to 10cm.
It's a USB desktop reader used to enroll UHF access credentials into a system, without needing to walk to a door or vehicle reader to register each tag.
It operates at 902-928MHz under the American Standard, or 865-868MHz under the European Standard, depending on the region it's configured for.
No. The ACR-CID12 is plug and play over USB, and is supported on both Windows and iOS.
Up to 10cm, which is considerably further than a typical low-frequency RFID desktop reader.
