Akuvox R20BX5 5-Button SIP Door Phone with Video & Card Reader

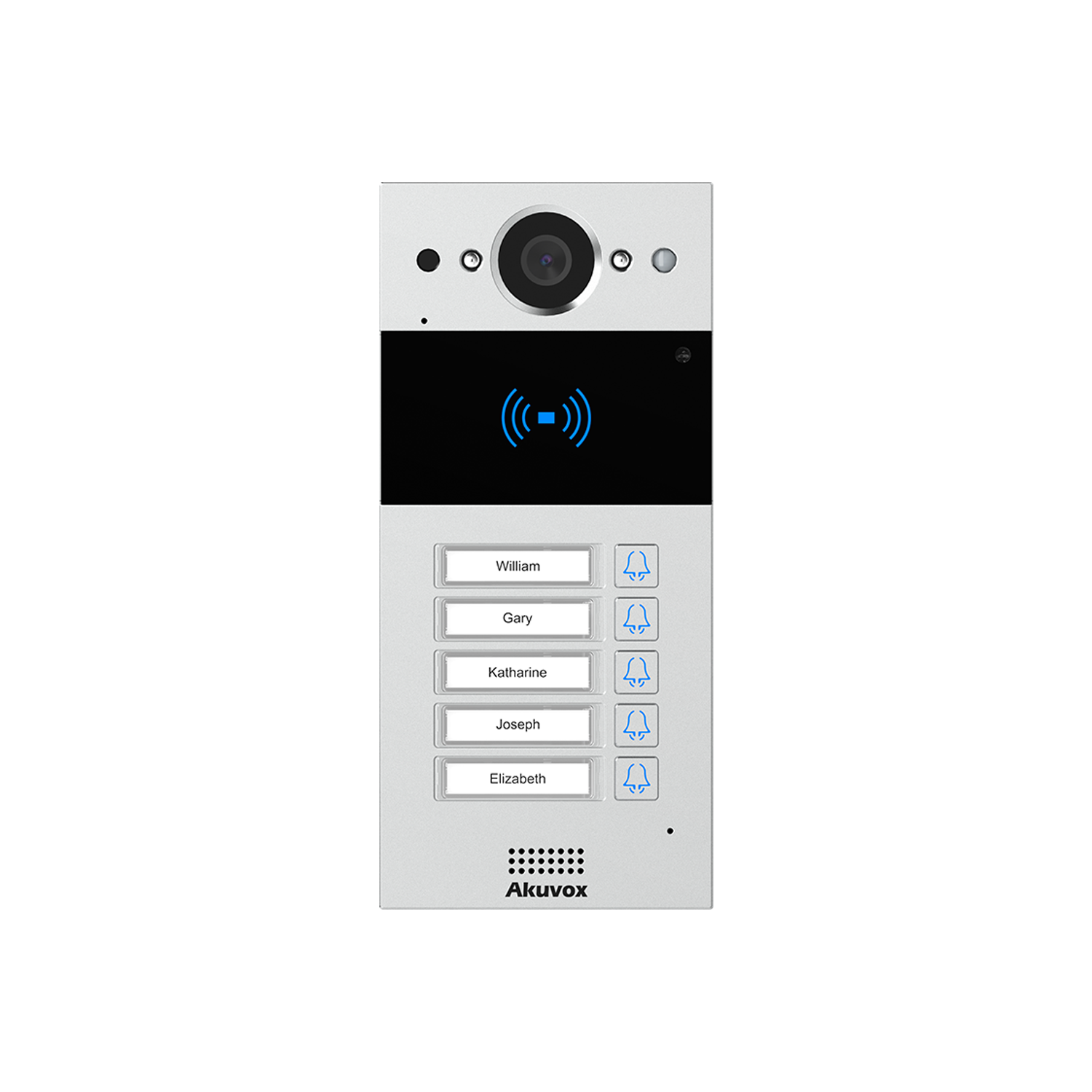

The Akuvox R20BX5 is a 5-button SIP video door phone built for small multi-tenant buildings, offices, and apartment entries. It combines a 2MP wide-angle camera with a built-in 13.56MHz/125kHz RF card reader, giving each of the 5 named call buttons its own resident while also supporting card-based access for regular occupants. Powered by PoE, rated IP65 for outdoor use, and installable flush or wall-mounted.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | R20BX5 |
| Front Panel | Aluminium alloy |
| Camera Sensor | 1/2.8" CMOS, 2MP |
| Video Resolution | Up to 1920x1080, 30fps (1080p) |
| Video Codec | H.264 |
| Viewing Angle | 110° (H) / 58° (V) |
| Minimum Illumination | 0.1 LUX (auto-night mode with IR LEDs) |
| Buttons | 5, with name plate |
| Card Reader | 13.56MHz & 125kHz RF |
| SIP Protocol | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Audio Codecs | G.711a, G.711μ (narrowband), G.722 (wideband) |
| Ethernet | RJ45, 10/100Mbps adaptive |
| Power Supply | PoE (802.3af) or 12V DC |
| Relay Outputs | 2, individually controlled by DTMF |
| Inputs | 2 |
| Wiegand Port | Supported |
| RS485 Port | Supported |
| Microphone / Speaker | 1 / 1 |
| IP Rating | IP65 (waterproof and dust-proof) |
| Installation | Flush-mounted or wall-mounted |
| Flush-Mount Dimensions | 226 x 108 x 52mm |
| Wall-Mount Dimensions | 185 x 85 x 24mm |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10% to 90% |
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
The R20BX5 is a 5-button SIP video door phone suited to small apartment blocks, townhouse complexes, and office entries where up to 5 tenants or departments need their own dedicated call button, alongside card-based access for everyday residents.
The R20BX5 combines both a 5-button speed-dial panel and a built-in RF card reader in one unit, so visitors can call a specific resident by button while regular occupants tap a card or fob to enter without calling anyone.
The built-in reader supports both 13.56MHz (Mifare/DESFire-style) and 125kHz (EM/proximity-style) RF cards and fobs, covering the two most common access card formats used in Australian buildings.
Yes. The R20BX5 includes Wiegand and RS485 ports alongside its 2 relay outputs, allowing it to connect to third-party access control panels and controllers in addition to operating as a standalone SIP door phone.
Yes. It's rated IP65 for weatherproof outdoor use and operates from -30°C to +60°C, with a choice of flush-mount or wall-mount installation depending on the entryway.
