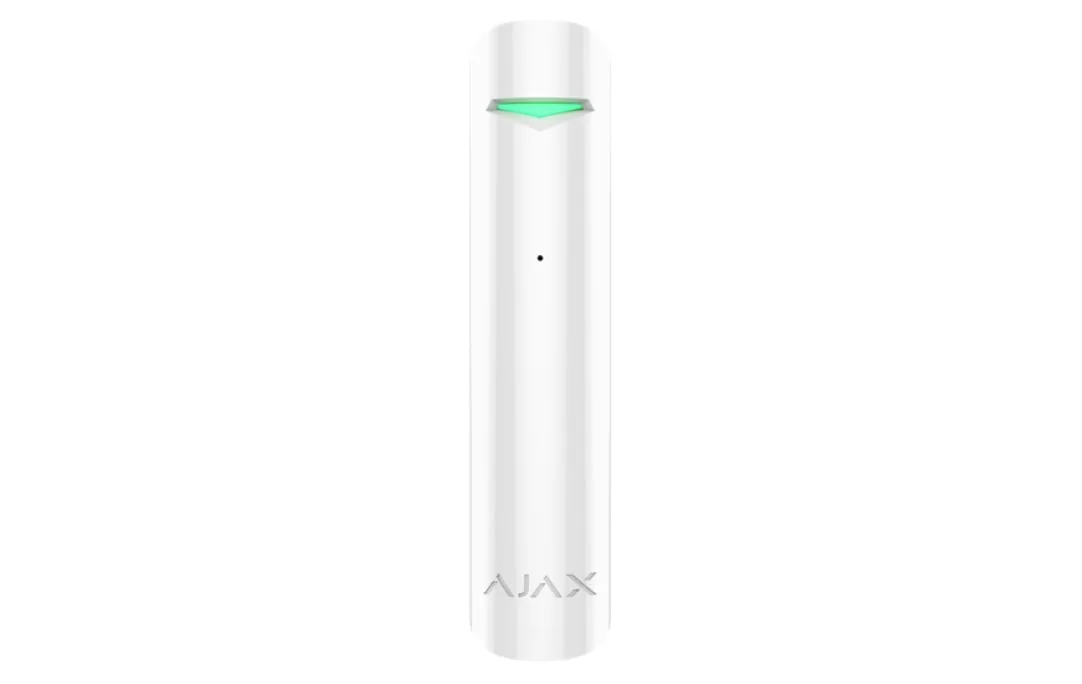

AJAX GlassProtect White - Wireless Glass Break Detector
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX GlassProtect Jeweller |
| Type | Wireless glass break detector with a microphone, indoor use |
| Sensor | Electret microphone |

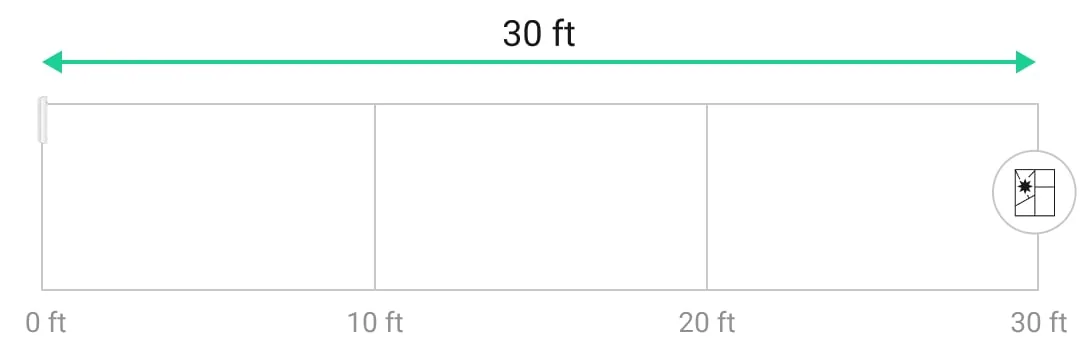

| Detection distance | 1 to 30 ft (about 0.3 to 9 m) |

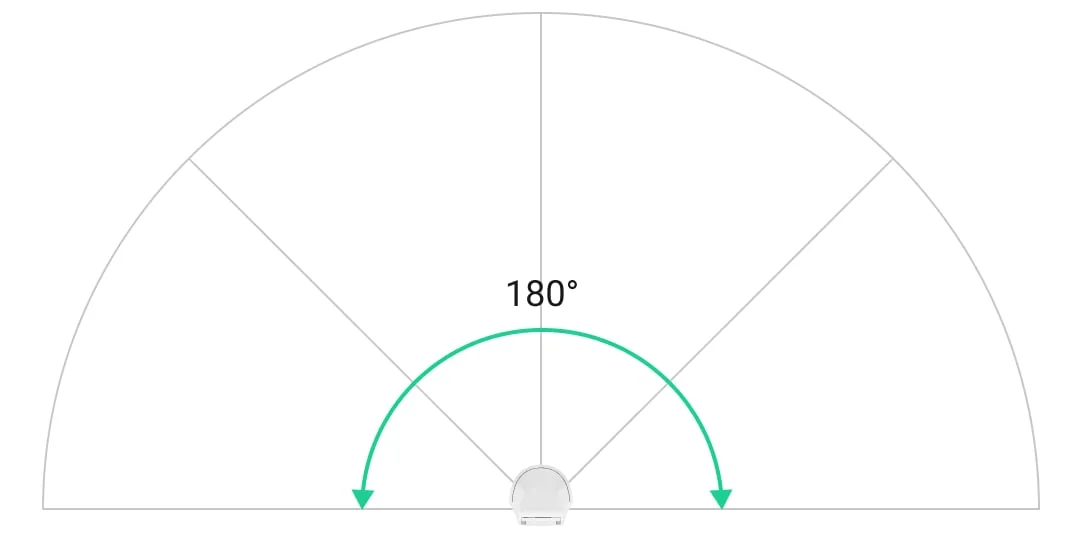

| Detection angle | 180 degrees horizontal |
| Sensitivity | 3 levels, set in the Ajax app |
| False alarm prevention | DualTone: a two-step check of low and high sound frequencies |
| Extra input | Input for a wired detector with a normally closed (NC) contact. Cable included |
| Limitation | Does not detect breaking glass covered with shockproof, sunscreen, decorative or other film |
| Jeweller radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 3,250 ft (about 1,000 m) in open space, up to 20 mW |
| Sabotage protection | Tamper alarm if detached from the surface or the mounting panel, device authentication |
| Communication loss detection | After 36 s |
| Battery | 1 x CR123A, pre-installed. Up to 7 years |
| Power consumption | Quiescent 18 uA, maximum 21 mA (3 V nominal) |

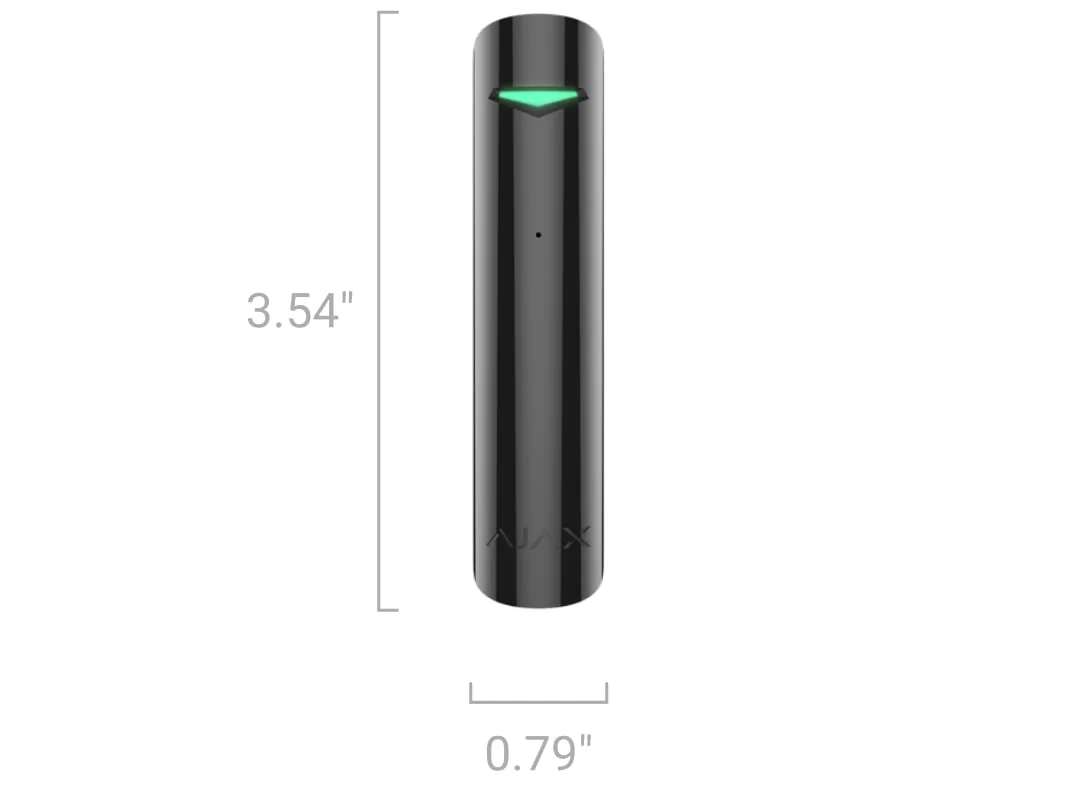

| Dimensions | 3.54 x 0.79 x 0.79 in (about 90 x 20 x 20 mm) |
| Weight | 1.06 oz (about 30 g) |
| Operating temperature | 14 to 104 degrees F (about -10 to 40 degrees C) |
| Operating humidity | Up to 75% |
| Protection class | IP50, indoor use only |
| Colour | White. Also available in black |
| Complete set | GlassProtect Jeweller, SmartBracket mounting panel, CR123A battery (pre-installed), cable for connecting third-party devices, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
AJAX 12-24V PSU for Hub 2/Hub 2 Plus/ReX 2
Price on request
-
AJAX 12V Wireless Dry Contact Relay
Price on request
-
AJAX 6V PSU for Hub 2/Hub 2 Plus/ReX 2
Price on request
-
AJAX Button Black - Wireless Panic Button
Price on request
-
AJAX CombiProtect Jeweller - Motion & Glass Break Detector (White)
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
From 1 to 30 ft (about 0.3 to 9 m), across 180 degrees. One detector can cover several windows in a room.
GlassProtect uses DualTone, a two-step check of both the low and the high sound frequencies of breaking glass, which cuts false alarms. Sensitivity has 3 levels.
Not on glass covered with shockproof, sunscreen, decorative or other film. Ajax notes it will not detect glass breaking through such films. We check your windows first.
Yes. It has an input for a wired detector with a normally closed (NC) contact, and the cable is in the box.
Up to 7 years on the fitted CR123A battery.
No. It is for indoor use only (IP50).
An Ajax hub, such as Hub 2 (4G) or Hub 2 Plus, which it connects to by Ajax Jeweller radio. It is set up in the Ajax apps. Ask us to check that your hub supports it.
The detector, a SmartBracket mounting panel, a CR123A battery (already fitted), a cable for third-party devices, an installation kit and a quick start guide.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
Need the AJAX GlassProtect White - Wireless Glass Break Detector installed?
Sipko Security supplies and installs this product as part of complete Melbourne security systems.
