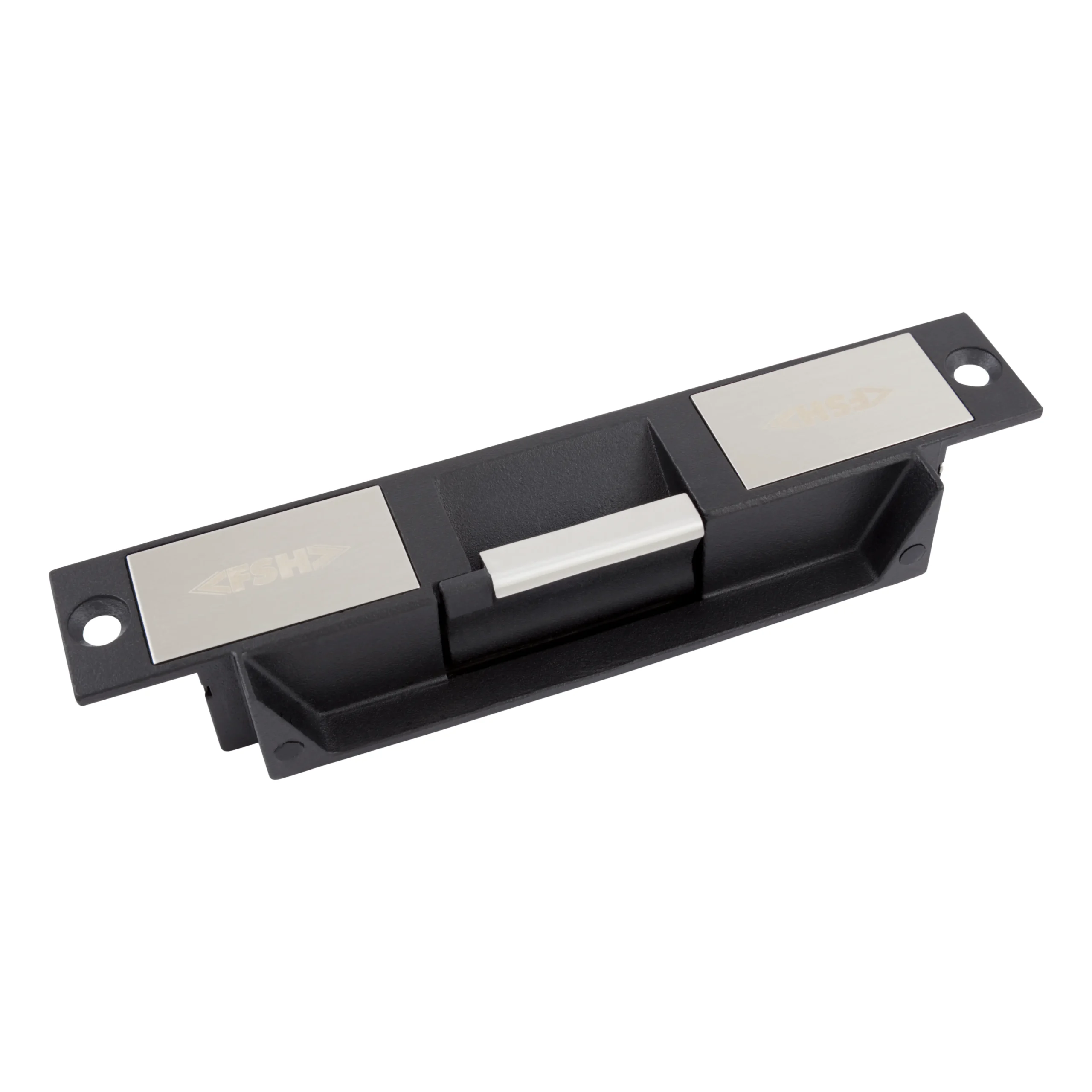

FSH FES20 High Security Stainless Steel Electric Strike
The patented FSH FES20 Series high security electric strikes are manufactured from solid stainless steel, accepting multi-voltages from 12 to 36VDC. They feature a unique, simple Power To Lock (PTL) / Power To Open (PTO) field selectable mechanism designed without loose screws, pins, or springs. Fitted with a standard 10mm strike lip, pre-drilled for extension lips, and backed by a 5-year warranty.
Contact for Trade Pricing
SKU: FSH-FES20 · Commercial grade · 5-Year Warranty
Part No: FES20
Melbourne commercial security systems: Sipko Security supplies, programs, and installs high-security FSH strikes for offices, retail sites, government buildings, and secure facilities. Get in touch for a full installation proposal.
Technical Specifications
Product Details
Holding Strength
Up to 1200kg
Voltage Range
12VDC – 36VDC input auto-selectable
Current Draw
220mA @12V · 120mA @24V · 80mA @36V
Standard Strike Lip
10mm solid strike lip
Material
Satin Stainless Steel body
Fire Rating
Up to 4-hour (AS 1905:1:2015)
Warranty
5 years mechanical + electronic
SCEC Status
SCEC Approved for secure areas
Core Features & Engineering
Detailed Breakdown
High Security Construction: Heavy-duty solid stainless steel faceplate and latch keeper. Specially built for high-traffic entry doors and locations requiring maximum resistance against forced entry.
Patented Field Interchangeability: Features a simple PTL/PTO selectable switch without any loose screws, pins, or springs. Installers can alter the function on-site in seconds with zero risk of dropping miniature internal parts.
Auto-Detecting Multi-Voltage: Accepts any input voltage from 12VDC to 36VDC, reducing system planning requirements and offering broad compatibility.
Full Security Monitoring (FES20M): The FES20M monitored version includes three sensors: Lock Status Sensor (LSS), Door Status Sensor (DSS), and Anti-Tamper Sensor (ATS) to detect if the unit is being dismantled or bypassed.
SCEC Approved: FES20 series strikes are SCEC (Security Construction and Equipment Committee) approved, rendering them compliant for installation in Australian government and high-security establishments.
Pre-Drilled for Extension Lips: Supplied with a standard 10mm strike lip and pre-drilled to support additional extensions if deeper door frames require it.
Complete Technical Specifications
Data Table
| Specification | Details / Values |
|---|---|
| Part Numbers | FES20 (non-monitored) · FES20M (fully monitored) |
| Function | Mortise mount, PTL / PTO site selectable |
| Holding Strength | Up to 1200kg static load |
| Input Voltage | 12VDC to 36VDC multi-voltage |
| Current Draw | 220mA @ 12VDC · 120mA @ 24VDC · 80mA @ 36VDC |
| Fire Rating | Up to 4-hour fire rated (AS 1905:1:2015) |
| SCEC Approval | Approved for secure areas |
| Strike Lip Size | 10mm standard strike lip |
| Monitoring Features (FES20M) | Door status (DSS) · Lock status (LSS) · Anti-tamper sensor (ATS) |
| Hardware Mechanism | No loose screws, pins, or springs in PTL/PTO switcher |
| Material | Satin Stainless Steel |
| Extension Support | Pre-drilled holes for extension lips |
| Mounting Accessories | Complete mounting kit included |
| Warranty | 5 years mechanical · 5 years electronic |
| Brand / Manufacturer | FSH by Allegion |
Frequently Asked Questions
Product FAQ
Yes. The FSH FES20 series strikes are SCEC approved, making them suitable for use in Australian government departments, defense facilities, and corporate environments requiring high-security access equipment.
The FES20M is a fully monitored electric strike. It includes Lock Status Sensor (LSS) to monitor the locking bolt, Door Status Sensor (DSS) to monitor latch engagement, and Anti-Tamper Sensor (ATS) to detect if the strike housing has been opened or tampered with.
The FES20 has a patented mechanism that allows changing the lock state from Power To Lock (fail-safe) to Power To Release (fail-secure) on-site. Unlike standard strikes, this switch does not require removing or adjusting tiny screws, pins, or springs, eliminating the risk of losing small components during configuration.
Yes. The FES20 has auto-voltage sensing that supports any input voltage from 12VDC up to 36VDC, drawing just 120mA at 24VDC and 220mA at 12VDC.
