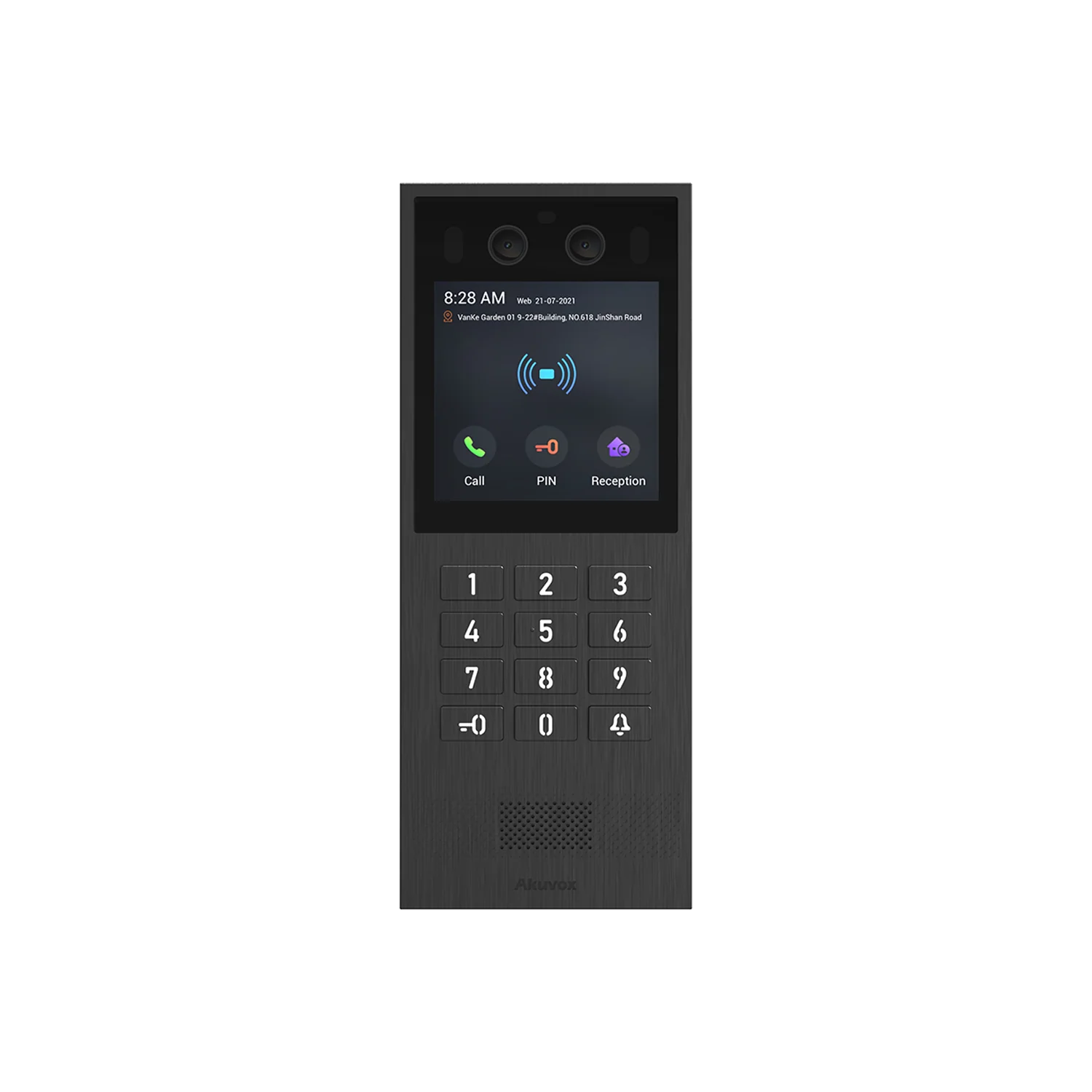

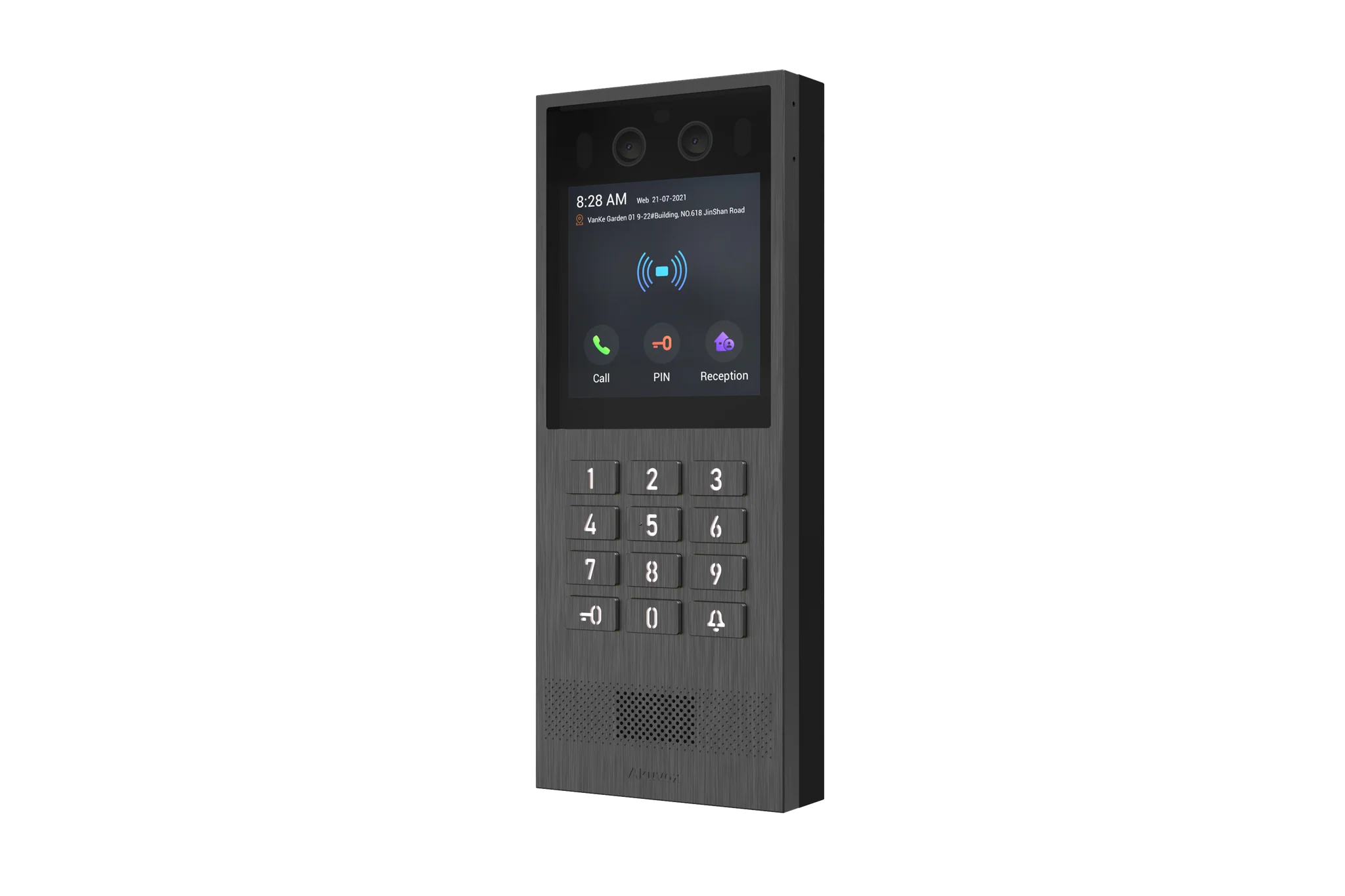

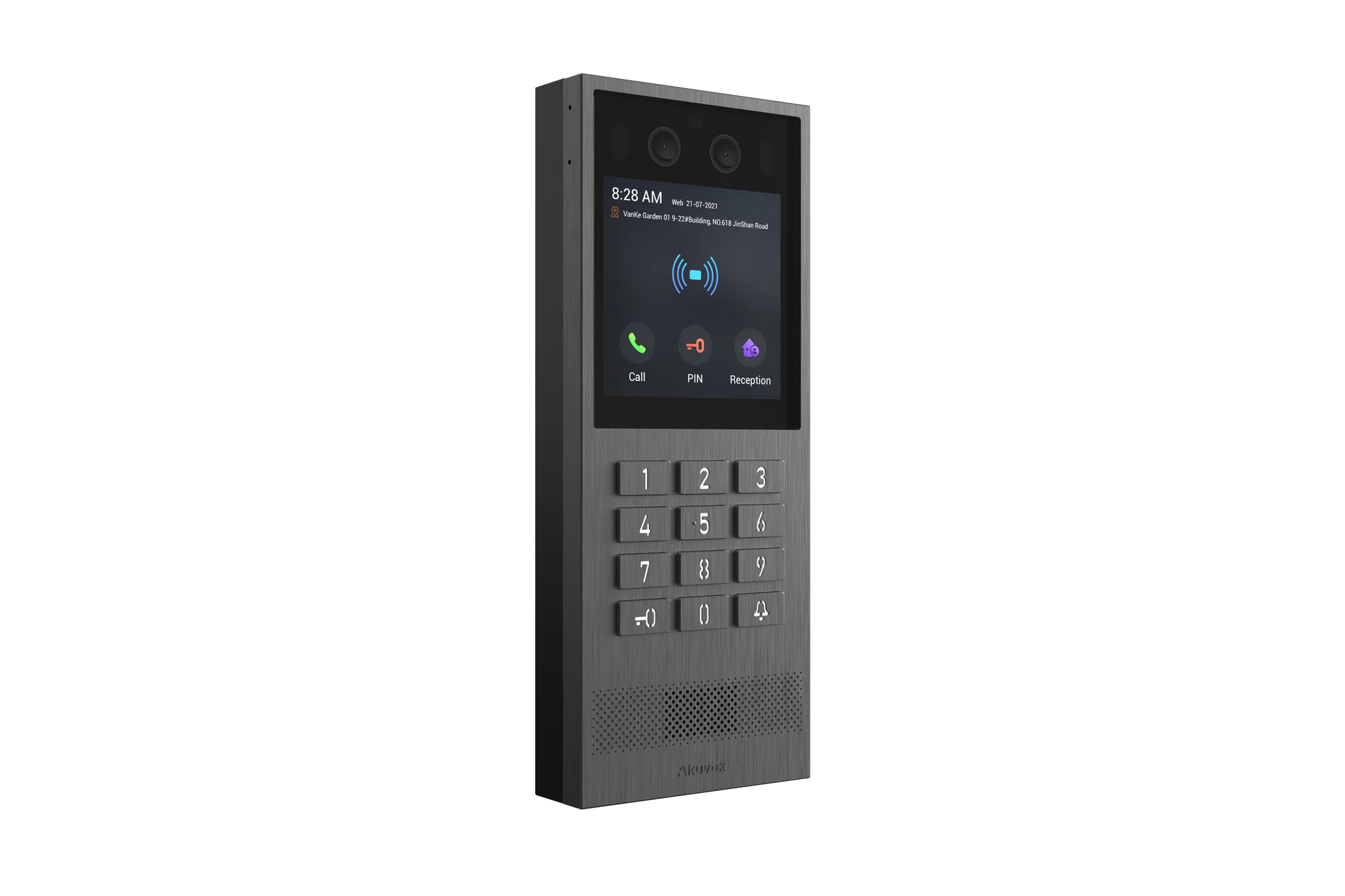

Akuvox X912K 4-Inch Physical Keypad Video Door Phone


Akuvox X912K 4-Inch Physical Keypad Linux Video Door Phone

The Akuvox X912K is a premium, top-of-the-line video door phone featuring a 4-inch color touchscreen with physical numeric keypad, 2MP camera with HDR, multi-way access control (face recognition, IC/ID card, PIN, BLE, QR code), vandal-resistant aluminum body (IP65/IK08), Linux operating system, and flexible power options. Perfect for high-end residential and commercial projects.


IP65 / IK08 Vandal-Proof



SIP & ONVIF Compatible
$1,849.00 RRP
SKU: X912K · In Stock · Premium Touchscreen Video Door Phone
Outdoor Station



Request a Quote



Contact Us



View Full Specs

4-Inch Touchscreen & Keypad
Large color TFT LCD display with physical numeric keypad for intuitive interaction and accessibility.

Face Recognition Access
Multi-way unlock: facial recognition, IC/ID card, PIN code, BLE, and QR code scanning for flexible access.

2MP HDR Camera
Crystal-clear 1080p video with HDR technology, 125-degree wide-angle view, excellent low-light performance.

Vandal-Resistant Design
IK08 rated aluminum alloy body withstands physical attacks. IP65 weatherproof for any environment.

Premium access control for high-end projects: Sipko Security installs and configures the Akuvox X912K for sophisticated residential properties, premium office buildings, and secure commercial facilities across Melbourne. Get a free quote today.

Key Specifications


Display
4-inch color TFT LCD touchscreen with physical numeric keypad


Camera
2MP with HDR, 125-degree wide-angle, auto-lighting


Access Methods
Face recognition, IC/ID card, PIN, BLE, QR code


Operating System
Linux-based with web management portal


Vandal-Resistant
IK08 rated aluminum body, impact-resistant design


Protection Rating
IP65 weatherproof, operates -20 to +60°C


Power Supply
PoE+ (802.3at) or 12V DC (flexible options)


Integration
SIP & ONVIF compatible with third-party systems

Core Features

4-Inch Touchscreen Display: Large color TFT LCD touchscreen for easy navigation and visual feedback with physical numeric keypad backup

Multi-Way Access Control: Face recognition, IC/ID card reader (13.56MHz & 125kHz), PIN entry, BLE connectivity, and QR code scanning for maximum flexibility

2MP HDR Camera: High-resolution 1080p video with HDR technology for superior image quality in varied lighting conditions

Wide-Angle Lens: 125-degree horizontal field of view captures comprehensive entry monitoring

Linux Operating System: Professional-grade OS with auto-provisioning, web-based management, and firmware upgrade capability

Vandal-Resistant Construction: IK08 rated aluminum alloy body withstands physical attacks and outdoor environmental stress

Dual Power Options: PoE+ (802.3at) or 12V DC connector for flexible installation configurations

Full Integration: SIP v1/v2 compliant, ONVIF compatible, H.264 video codec, works with third-party NVRs and access control systems

Relay Output Control: Two relay outputs for door strike, electronic lock, or custom automation via DTMF tone control

Technical Specifications

Category Specification
Device Type Akuvox X912K Video Door Phone (Premium Touchscreen)
Display 4-inch color TFT LCD touchscreen + physical numeric keypad
Resolution 2MP (1920×1080) with HDR
Technology IP / SIP with Face Recognition
Operating System Linux-based
Power Supply PoE+ (802.3at) or 12V DC connector
Power Output 12V/1A maximum
IP Rating IP65 (dust and water resistant)
IK Rating IK08 (vandal-resistant)
Mount Type Wall-mounted & Flush-mounted
Material Aluminum alloy
Physical Dimensions 234 x 94.5 x 34mm
Access Methods Face recognition, IC/ID card, PIN, BLE, QR code
RFID Card Reader 13.56MHz & 125kHz (dual frequency), NFC
Wiegand Port Supported for external card readers
RS485 Port Supported for device integration
Relay Output 2 independent relays (door strike, electronic lock)
Inputs 3 digital inputs
Microphone 2 built-in microphones
Speaker 1 built-in speaker
Audio Codecs G.711a, G.711u (narrowband) & G.722 (wideband)
Video Codec H.264
Video Resolution Support CIF, QCIF, VGA, 4CIF, 720p, 1080p
Max. Frame Rate Up to 30fps at 1080p
Viewing Angle 125-degree (H) / 65-degree (V)
Lighting Auto-lighting with IR LED support
Minimum Illumination 0.1 LUX
Ethernet Port RJ45, 10/100Mbps adaptive
BLE Support Bluetooth Low Energy for mobile device access
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +70°C
Operating Humidity 10% to 90% (non-condensing)
SIP Protocols SIP v1 (RFC2543), SIP v2 (RFC3261)
Network Protocols IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Management Web-based portal, auto-provisioning, firmware upgrade, entry logging
Compliance SIP & ONVIF compatible

Frequently Asked Questions

The X912K is Akuvox’s premium model featuring a 4-inch touchscreen display combined with physical keypad, advanced face recognition technology, multi-way access control (IC/ID card, PIN, BLE, QR code), and vandal-resistant IK08 construction. It’s designed for high-end residential and commercial projects requiring sophisticated access control and visual feedback.

Yes. The X912K includes advanced face recognition technology for biometric access control. It also supports multiple access methods: IC/ID card reading (13.56MHz & 125kHz), numeric PIN entry, BLE mobile device authentication, and QR code scanning. This provides residents and authorized personnel with flexible entry options.

The 4-inch color TFT LCD touchscreen provides a visual interface for residents to see visitors, interact with the system, and access menu options. Combined with the physical numeric keypad, it offers an intuitive, accessible experience. The display shows video feed, caller information, and system status.

Absolutely. The X912K is rated IP65 (fully dust and water resistant) and IK08 (vandal-resistant). The aluminum alloy body is built to withstand physical attacks, impacts, and harsh outdoor weather conditions from -20°C to +60°C. Perfect for high-risk environments.

The X912K features a 2MP camera (1920×1080) with HDR technology for superior image quality in varied lighting. The 125-degree wide-angle lens captures comprehensive entry monitoring, and auto-lighting with IR LED support ensures excellent video in low-light conditions.

Yes. The X912K supports PoE+ (802.3at) standard, allowing a single network cable to provide both power and data. Alternatively, it can be powered via a 12V DC connector for installations where PoE is not available. This flexibility simplifies installation design.

The X912K is fully SIP v1/v2 compliant and ONVIF compatible. It integrates seamlessly with third-party SIP PBX systems, access control platforms, and NVRs. It supports standard H.264 video codec and recognized networking protocols (IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP).

The X912K includes two independent relay outputs for controlling door strikes, electronic locks, or triggering custom automation sequences. They can be controlled individually via DTMF tone commands, web portal, or integrated access control system.

Sipko Security provides professional installation, configuration, and ongoing technical support. The X912K includes web-based management, auto-provisioning, firmware upgrade capability, entry log export, and system diagnostics. Full documentation and training are provided during installation.

Upgrade Your Building Entry with Premium Access Control

The Akuvox X912K combines cutting-edge face recognition, multi-way access control, and professional-grade security in a vandal-resistant design. Perfect for high-end residential properties, premium office buildings, and sophisticated commercial facilities across Melbourne.
