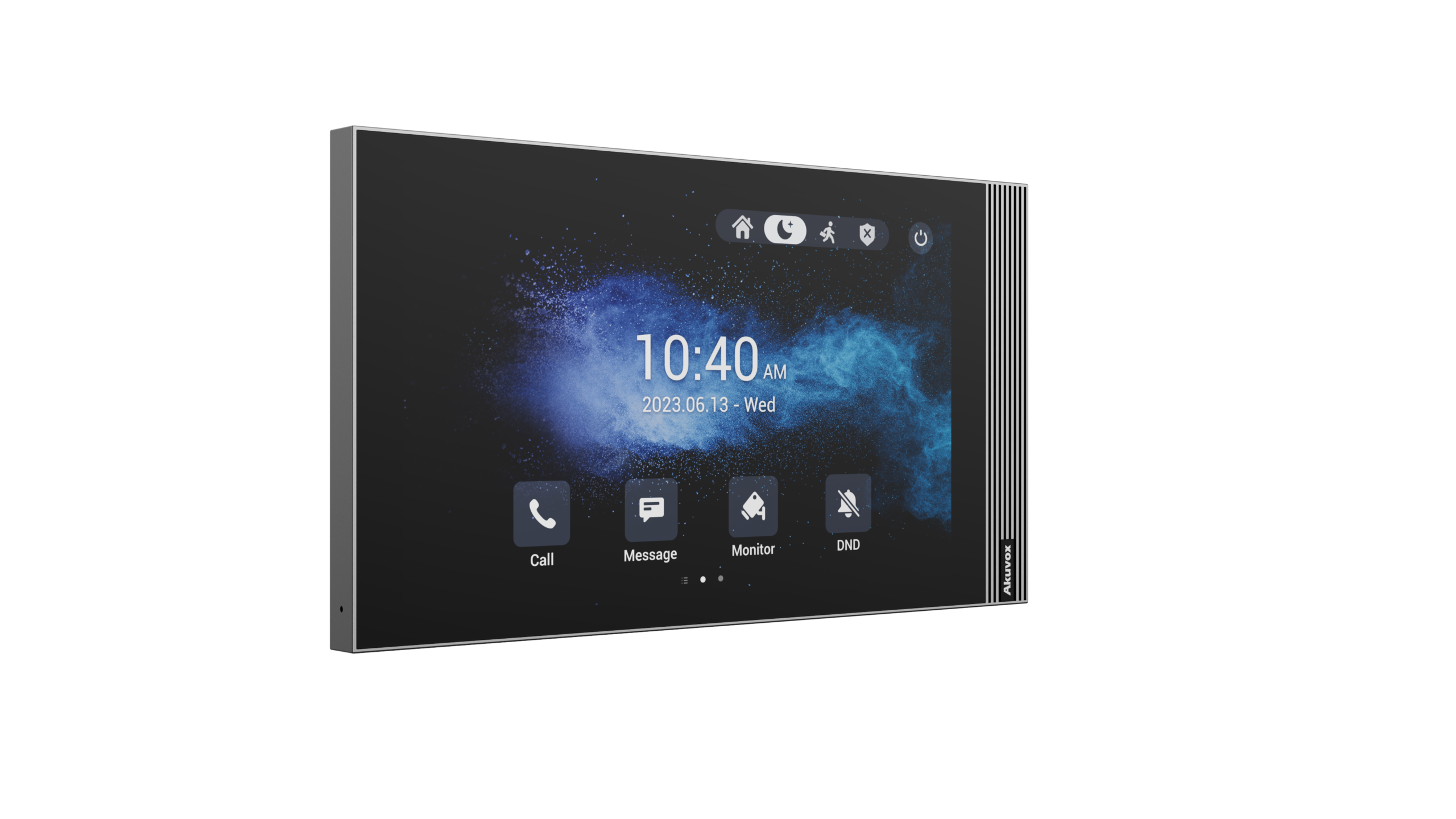

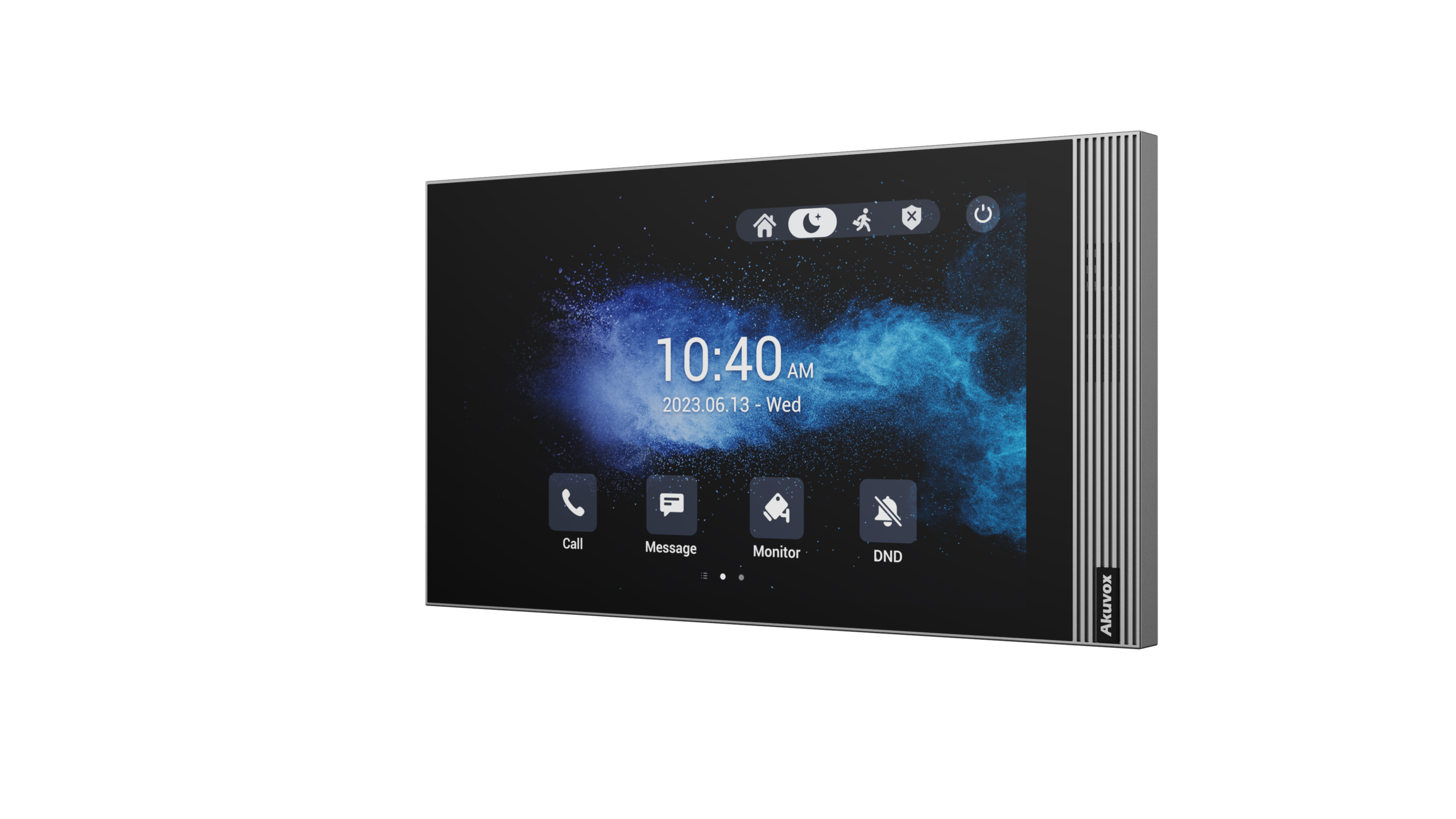

Akuvox S563 8-Inch Touchscreen Android Monitor
The Akuvox S563 is an 8-inch Android 12 indoor monitor with a 1280×800 IPS touchscreen, 2GB RAM / 8GB ROM, and native SIP 2.0 support. It’s built for compact, stylish indoor installations, pairing a slim profile with an on-wall mounting bracket included in the box. A built-in voice changer helps residents protect their identity when answering visitor calls.
Price on Request
SKU: S563 · Indoor Monitor · Gray
Indoor Monitor
8″ Touchscreen Display
IPS LCD panel at 1280×800 resolution in a slim, space-saving profile suited to modern interiors.
SIP 2.0 Intercom
Registers to a SIP PBX or pairs directly with compatible Akuvox SIP door stations for two-way calling.
PoE or 12V DC Power
Runs on Power over Ethernet for single-cable installation or a separate 12V DC supply where needed.
On-Wall Bracket Included
Ships with its wall mounting bracket, ready for a clean surface-mount install without separate hardware.
Indoor monitor installations in Melbourne: Sipko Security supplies and installs Akuvox S563 monitors for homes and apartments, integrated with your existing SIP intercom setup. Get a free quote today.
Technical Specifications
Product Details
Display
8″ IPS LCD, 1280×800
Memory
2GB RAM / 8GB ROM
Operating System
Android 12
Power Supply
PoE or 12V DC
Protocol
SIP 2.0
Dimensions
216 x 124.4 x 12.6mm
Mounting
On-wall bracket included
Colour
Gray
Core Features
Detailed Breakdown
8″ IPS Touchscreen: 1280×800 resolution touch display in a slim 12.6mm-deep housing, sized for space-conscious wall installations.
Android 12 with 2GB RAM / 8GB ROM: Runs Android 12 with enough memory for smooth intercom operation and basic third-party app use.
Native SIP 2.0 Support: Registers directly to a SIP PBX or pairs with compatible Akuvox SIP door stations for two-way audio and video calling.
Voice Changer: Built-in voice changer function lets residents disguise their voice when answering unfamiliar visitor calls, for added privacy.
On-Wall Bracket Included: Ships with its surface-mount wall bracket, so no separate mounting hardware needs to be sourced for a standard install.
Flexible Power Options: Supports PoE for single-cable installation or a separate 12V DC power supply where PoE infrastructure isn’t available.
Complete Technical Specifications
Data Table
| Specification | Details |
|---|---|
| Model | S563 |
| Colour | Gray |
| Display | 8″ IPS LCD touchscreen |
| Resolution | 1280 x 800 |
| Operating System | Android 12 |
| Memory | 2GB RAM / 8GB ROM |
| Protocol | SIP 2.0 |
| Voice Features | Voice changer |
| Power Supply | PoE or 12V DC |
| Mounting | On-wall bracket included |
| Panel Dimensions | 216 x 124.4 x 12.6mm (W x H x D) |
Frequently Asked Questions
Q&A
The S563 is an 8-inch Android indoor monitor used to answer intercom calls from a compatible SIP door station, view visitors, and remotely release doors or gates. It’s a compact, wall-mounted panel suited to apartments, townhouses, and offices.
The standard Akuvox S563 connects over PoE Ethernet and does not include WiFi or Bluetooth. Akuvox also sells an S563W variant with WiFi and Bluetooth built in; if you need wireless connectivity, ask Sipko Security about that alternative when requesting a quote.
Yes. The S563 supports SIP 2.0, allowing it to register directly to a SIP PBX system or work as part of a peer-to-peer setup with a compatible Akuvox SIP door station.
The S563 uses a surface-mount on-wall bracket, which is included with the unit. Sipko Security handles mounting, cabling, and configuration as part of a professional installation.
No, not if your installation has PoE. The S563 can be powered entirely over its Ethernet connection, or via a separate 12V DC power supply if PoE isn’t available at the mounting location.
Ready to Install the Akuvox S563?
Contact Sipko Security to request a quote or discuss integrating the S563 indoor monitor with your existing SIP intercom or access control system. We provide complete design, installation, and ongoing support for Akuvox intercom systems across Melbourne and regional Victoria.
