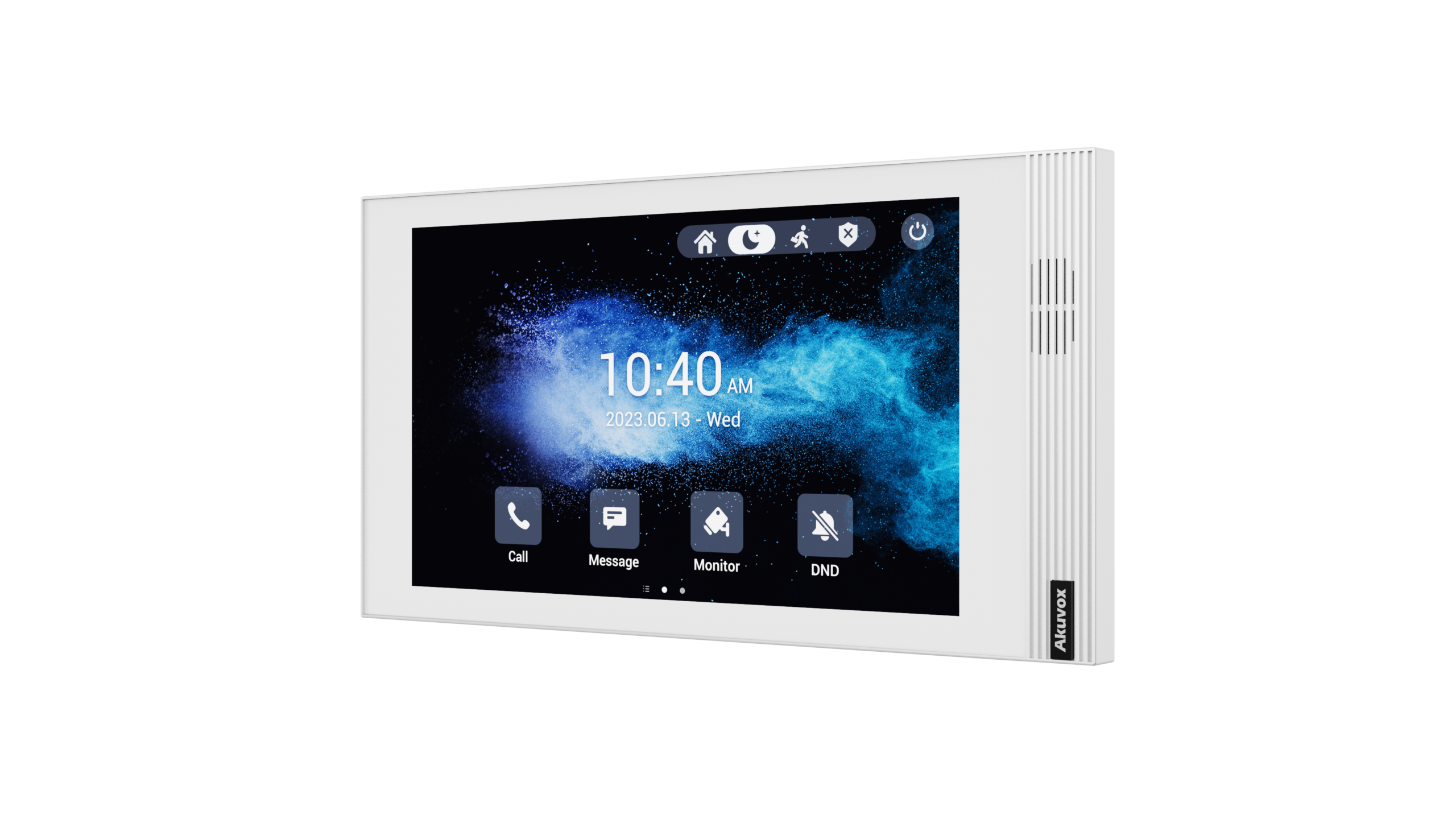

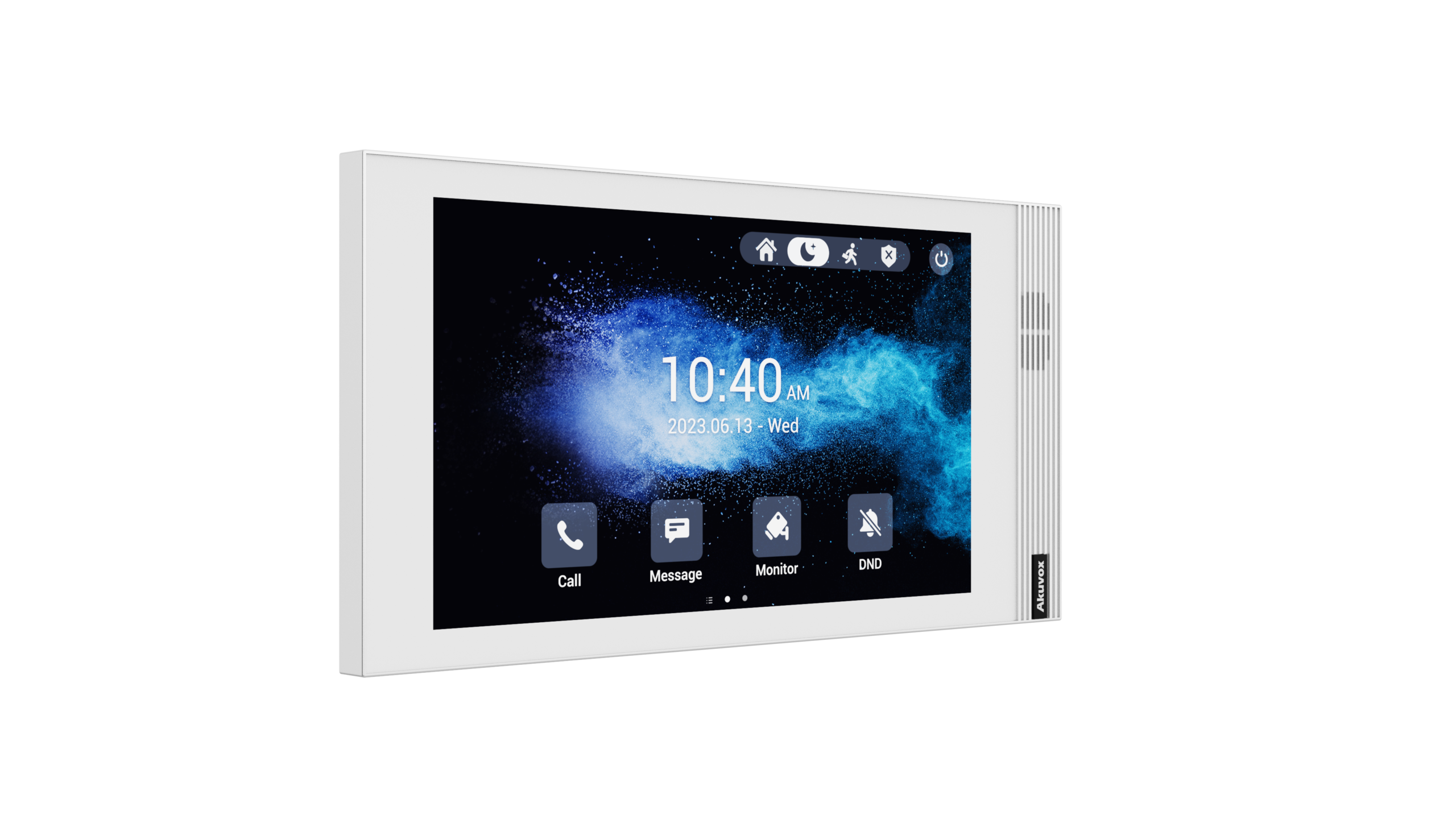

Akuvox S562W-2 7-Inch Linux 2-Wire Indoor Monitor (White)
The Akuvox S562W-2 is a 7-inch Linux indoor monitor built to pair with Akuvox’s R20-2 series 2-wire door phones through a compatible NS-2 2-wire switch, instead of a standard Ethernet/PoE connection. It shares the same compact 216.4 x 118.8 x 21.7mm body and Wi-Fi 6 connectivity as Sipko’s existing S562W range, making it the matching monitor for 2-wire retrofit projects in older apartment and villa buildings.
Price on Request
SKU: S562W-2 (White) · Indoor Monitor
Indoor Monitor
Runs on 2-Wire Cabling
Connects via an NS-2 2-wire switch instead of Ethernet, matched to Akuvox’s R20-2 series door phones.
Wi-Fi 6
Built-in Wi-Fi 6 alongside its 2-wire connection for network features and app-based access.
7″ Capacitive Touchscreen
1024×600 TFT LCD in the same compact, slim-profile body as Sipko’s existing S562 monitor range.
RS485, Relay & 8 I/O
RS485 port, 1 relay output, 1 bell input, and 8 alarm inputs for wider access control integration.
2-Wire retrofit installations in Melbourne: Sipko Security supplies and installs Akuvox S562W-2 monitors paired with R20-2 series door phones for older apartment and villa buildings. Get a free quote today.
Technical Specifications
Product Details
Display
7″ TFT LCD, 1024×600
Memory
128MB RAM / 128MB ROM
Operating System
Linux
Connection
2-Wire via NS-2 switch
Wireless
Wi-Fi 6
Protocol
SIP 2.0
Relays & I/O
1 relay, 1 bell input, 8 I/O
Dimensions
216.4 x 118.8 x 21.7mm
Core Features
Detailed Breakdown
2-Wire Connection via NS-2 Switch: Connects through a compatible Akuvox NS-2 2-wire switch rather than standard Ethernet/PoE, letting it reuse existing 2-wire intercom cabling from older buildings.
Pairs with R20-2 Series Door Phones: Designed as the matching monitor for Akuvox’s R20-2 family of 2-wire door phones, forming a complete 2-wire intercom kit.
7″ Capacitive Touchscreen: 1024×600 TFT LCD display in the same slim, space-saving body as Sipko’s existing S562 monitor range.
Wi-Fi 6 Connectivity: Built-in Wi-Fi 6 provides network access for app-based features alongside the primary 2-wire door phone connection.
RS485, Relay Output & 8 I/O Channels: RS485 port, 1 relay output, 1 bell input, and 8 alarm inputs support integration with wider access control and alarm hardware.
SIP 2.0 Compliant: Provides audio and video communication with compatible door phones via SIP 2.0, the same protocol used across Akuvox’s standard IP monitor range.
Complete Technical Specifications
Data Table
| Specification | Details |
|---|---|
| Model | S562W-2 (White) |
| Colour | White |
| Front Panel | Plastic |
| Display | 7″ TFT LCD, projected capacitive touch |
| Resolution | 1024 x 600 |
| Operating System | Linux |
| Memory | 128MB RAM / 128MB ROM |
| Connection | 2-Wire via Akuvox NS-2 switch |
| Wireless | Wi-Fi 6 |
| Protocol | SIP 2.0 |
| RS485 | Supported |
| Relay Output | 1 |
| Bell Input | 1 |
| Alarm Inputs (I/O) | 8 |
| Compatible Door Phones | Akuvox R20-2 series (2-wire) |
| Installation | Wall-mounted, US or European electrical wall box compatible |
| Dimensions | 216.4 x 118.8 x 21.7mm |
Frequently Asked Questions
Q&A
The S562W-2 is the indoor monitor half of a 2-wire intercom kit, paired with an Akuvox R20-2 series door phone. It’s used in apartment and villa buildings that already have 2-wire intercom cabling installed, avoiding the need to run new Ethernet cable.
Both share the same 7-inch touchscreen, body size, and Wi-Fi 6 connectivity. The key difference is the connection method: the standard S562W connects over Ethernet/PoE, while the S562W-2 connects over 2-wire cabling through an NS-2 switch, matched to 2-wire door phones instead of standard IP door phones.
Yes, it requires a compatible Akuvox NS-2 2-wire switch, which converts the 2-wire signal to standard IP networking for the monitor. Sipko Security will confirm the right switch and wiring setup for your building as part of a quote.
The S562W-2 is designed to pair with Akuvox’s R20-2 series 2-wire door phones, such as the R20A-2 and R20K-2, forming a complete matched 2-wire intercom kit.
The S562W-2 is wall-mounted and compatible with US or European electrical wall boxes. Sipko Security handles mounting, wiring, and configuration as part of a professional installation.
Ready to Install the Akuvox S562W-2?
Contact Sipko Security to request a quote or discuss a 2-wire retrofit installation pairing the S562W-2 monitor with a compatible R20-2 series door phone. We provide complete design, installation, and ongoing support for Akuvox intercom systems across Melbourne and regional Victoria.
