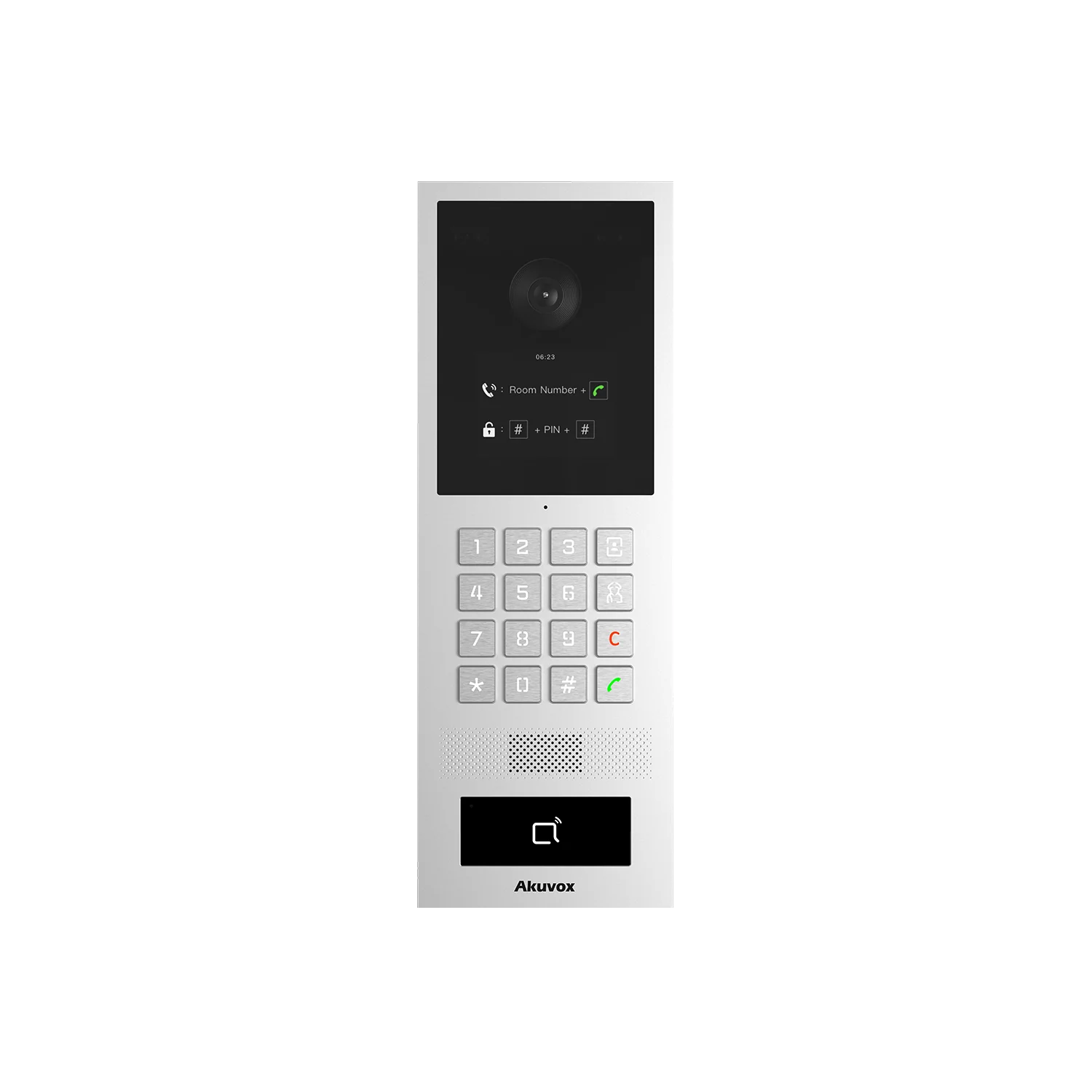

Akuvox S532 2.8-Inch Keypad Linux Video Door Phone
The Akuvox S532 is a compact IP video door phone featuring 2.8-inch LCD display with numeric keypad, 2MP wide-angle camera, multi-way access control (PIN, IC/ID card, NFC, Bluetooth), 2 relay outputs, aluminum diecast housing, Linux operating system, and premium IP66/IK08 protection. Ideal for offices and commercial buildings.
$730.00 RRP
SKU: S532 · In Stock · 2.8-Inch Keypad Video Door Phone
Outdoor Station
2.8-Inch LCD Display
Visual feedback with numeric keypad for intuitive navigation and visual confirmation.
Multi-Way Access Control
PIN, IC/ID card (13.56MHz & 125kHz), NFC, and Bluetooth mobile app support.
130-Degree Wide-Angle Camera
2MP video with 130-degree horizontal viewing angle and auto-lighting for comprehensive coverage.
IP66 / IK08 Protection
Highest weatherproof and vandal-resistant ratings for harsh outdoor environments.
Professional access control for office and commercial buildings: Sipko Security installs and configures the Akuvox S532 for corporate entrances, secure offices, and commercial facilities across Melbourne. Get a free quote today.
Key Specifications
Display
2.8-inch LCD with numeric keypad
Camera
2MP with auto-lighting, 130-degree wide
Access Methods
PIN, IC/ID card, NFC, Bluetooth
Operating System
Linux-based with management portal
Protection Rating
IP66 weatherproof & IK08 vandal-resistant
Relay Outputs
2 independent relays for door control
Power Supply
PoE+ (802.3at) or 12V DC
Integration
SIP & ONVIF compatible
Core Features
2.8-Inch LCD Display: Visual feedback with numeric keypad for intuitive user interaction and system feedback
Multi-Way Access Control: PIN code, IC/ID card (13.56MHz & 125kHz), NFC, and Bluetooth mobile app support
2MP Wide-Angle Camera: 130-degree horizontal and 90-degree vertical viewing angle with auto-lighting and IR LEDs
Linux Operating System: Professional-grade OS with auto-provisioning, web management, and firmware upgrade support
2 Relay Outputs: Independent relays for controlling door strikers, electronic locks, or other devices
IP66 / IK08 Rated: Highest weatherproof and vandal-resistance ratings for harsh outdoor environments
Aluminum Diecast Housing: Durable, lightweight material resistant to corrosion and physical stress
Flexible Power Options: PoE+ (802.3at) or 12V DC connector for adaptable installation
SIP & ONVIF Compliance: Seamless integration with third-party access control and video management systems
Technical Specifications
| Category | Specification |
|---|---|
| Device Type | Akuvox S532 IP Video Door Phone with Keypad |
| Display | 2.8-inch LCD with numeric keypad |
| Resolution | 2MP (1920×1080) with auto-lighting |
| Technology | IP / SIP |
| Operating System | Linux-based |
| Power Supply | PoE+ (802.3at) or 12V DC connector |
| IP Rating | IP66 (fully weatherproof) |
| IK Rating | IK08 (vandal-resistant) |
| Mount Type | Surface-mounted or flush-mounted |
| Material | Aluminum diecast |
| Physical Dimensions | 310 x 106 x 37.8mm |
| Weight | 1.10 kg (unit), 2 kg (with package) |
| Viewing Angle | 130-degree (H) / 90-degree (V) |
| Access Methods | PIN, IC/ID card, NFC, Bluetooth mobile app |
| RFID Card Reader | 13.56MHz & 125kHz (dual frequency) |
| Relay Outputs | 2 independent relays |
| Digital Inputs | 4 inputs |
| Audio Features | Two-way HD audio with echo cancellation |
| Audio Codec | G.711a, G.711u (narrowband), G.722 (wideband) |
| Video Codec | H.264 |
| Video Resolution Support | CIF, VGA, 4CIF, 720p, 1080p |
| Max. Frame Rate | Up to 30fps at 1080p |
| Ethernet Port | RJ45, 10/100Mbps adaptive |
| Light Sensor | Supported |
| Motion Sensor | Supported |
| Wiegand Port | Supported |
| RS485 Port | Supported |
| TF Card Slot | 1 slot for storage |
| Tamper Alarm | Supported |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| SIP Protocols | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Network Protocols | IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Management | Web-based portal, auto-provisioning, firmware upgrade |
| Compliance | SIP & ONVIF compatible |
| Warranty | 2 years |
Frequently Asked Questions
The 2.8-inch LCD display provides visual feedback, showing caller information and video preview. Combined with the numeric keypad, it offers an intuitive interface for residents and visitors to interact with the system.
The S532 supports four access methods: PIN code entry, IC/ID card reading (13.56MHz & 125kHz), NFC, and Bluetooth mobile app access. This provides maximum flexibility for different user preferences.
Yes. The 2MP camera features auto-lighting with high-intensity IR LEDs and internal light sensor, ensuring clear video even at 0.1 LUX (nearly complete darkness). Perfect for nighttime monitoring.
The S532 has a 130-degree horizontal and 90-degree vertical wide-angle lens. This comprehensive coverage allows you to see visitors and surroundings clearly without blind spots.
Yes. The S532 is rated IK08, which means it is highly resistant to physical attacks and impacts. It also features tamper alarm functionality to alert you if someone attempts to damage or tamper with the device.
Absolutely. The S532 is rated IP66, providing complete protection against dust and water. It operates reliably from -40°C to +60°C, suitable for any climate and weather condition.
The S532 offers flexible power options: PoE+ (802.3at) for single-cable installation, or 12V DC external power supply. Choose based on your building’s infrastructure.
Yes. The S532 is specifically designed for office door phones with on-site or hosted IP-PBX systems. Its professional features and multi-way access control make it ideal for corporate security.
The S532 is fully SIP and ONVIF compliant, integrating seamlessly with any SIP PBX system, NVR, or third-party video management platform. Standard protocols ensure broad compatibility.
Professional Access Control for Commercial Buildings
The Akuvox S532 combines a 2.8-inch display, numeric keypad, and multi-way access control in a compact, vandal-resistant design. Perfect for office entrances, corporate facilities, and secure commercial buildings across Melbourne.
