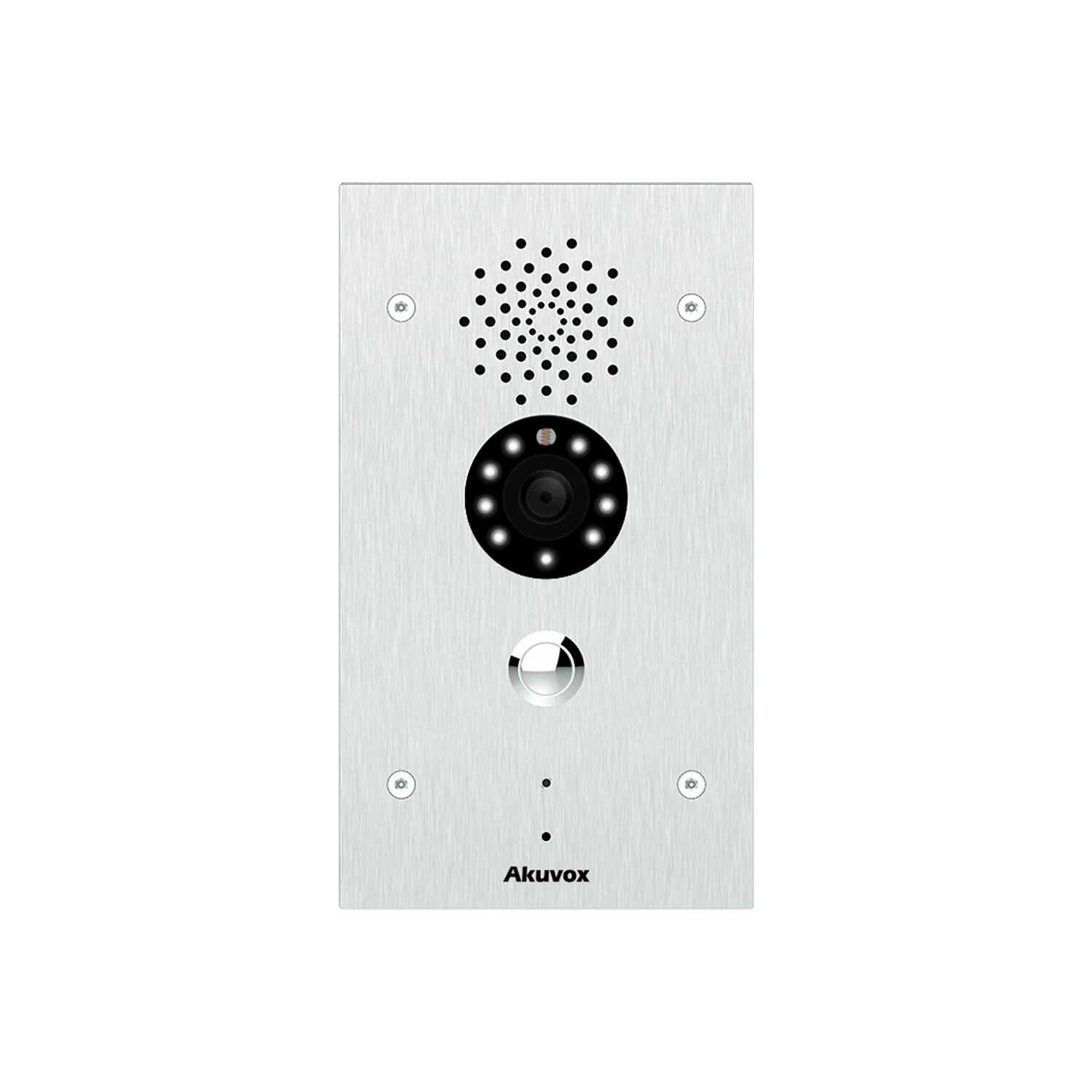

Akuvox E21V Vandal-Resistant SIP Call Station with Video

The E21V is ideal for outdoor public spaces including parking facilities, college campuses, medical centers, industrial parks, subways, airports, and any environment requiring hands-free emergency communication with video verification. Its IK10 vandal-resistant body and IP65 weatherproofing make it suitable for exposed, high-traffic outdoor locations.

Yes. The E21V complies with SIP standards (RFC2543 and RFC3261), allowing seamless integration with any SIP-compatible PBX system, IP phones, softphones, and unified communications platforms. It also supports ONVIF for video integration with NVRs and video management systems.

The two relay outputs can control door locking mechanisms, gate openers, and alarm systems. They are individually controlled via DTMF tones (keypad commands), allowing remote callers or the PBX system to trigger access control without manual intervention. The dual inputs accommodate alarm sensors or door status monitoring.

The E21V features high-intensity infrared (IR) LEDs that automatically activate in low-light or dark conditions via an onboard light sensor. This enables clear night vision and 24/7 monitoring from 0.1 LUX minimum illumination without requiring external lighting. The auto mode switches between visible and IR imaging seamlessly.

Yes, the E21V is fully compatible with IEEE 802.3af PoE (Power over Ethernet), which provides sufficient power for normal operation including video streaming and audio calls. Alternatively, if PoE is unavailable, connect a 12-24V DC power supply directly to the device for standalone operation.

The E21V supports multiple video resolutions (CIF, VGA, 4CIF, 720p, 1080p) with H.264, MPEG-4, and MJPEG compression codecs. Maximum output is 1920×1080 at 30 frames per second. This flexibility allows optimization for network bandwidth and NVR compatibility.

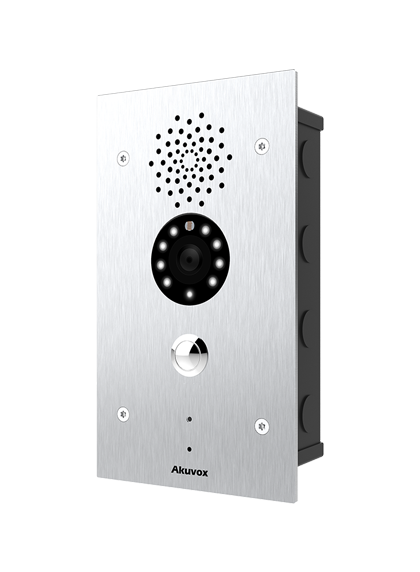

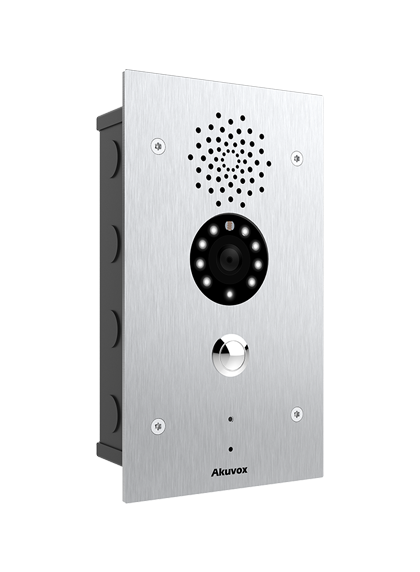

The E21V uses flush-mount installation, designed to sit flush with a wall or column surface. It requires a small recessed mounting cavity (210 x 120mm). Professional installation ensures proper weathersealing and alignment. In Melbourne, Sipko Security provides full installation, configuration, and integration support.

Yes. The E21V is rated IP65 (dust-tight, protected against low-pressure water jets) and IK10 (vandal resistant to mechanical impact). It operates reliably in temperatures from -20°C to +55°C with humidity up to 90%, making it suitable for harsh outdoor environments across all Australian climates.
