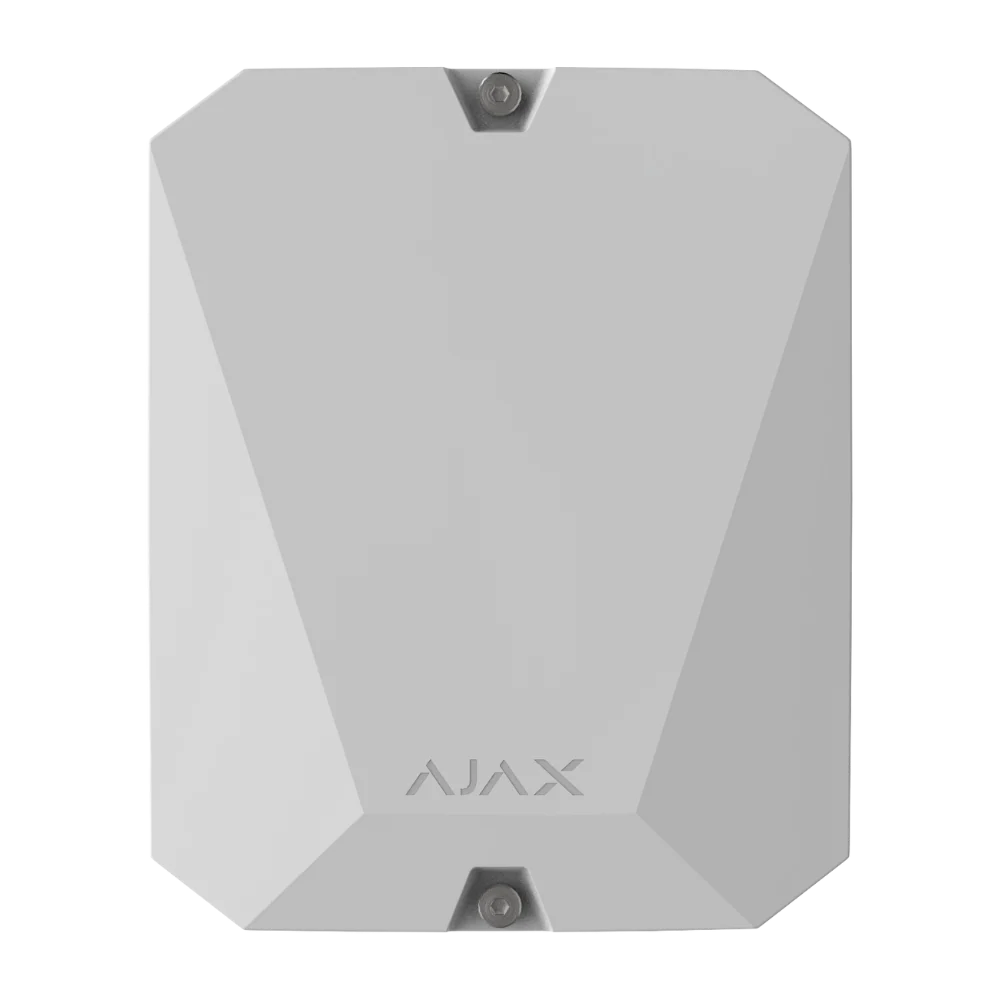

AJAX MultiTransmitter Jeweller | Wired Integration Module (White)
The AJAX MultiTransmitter is a professional wired integration module for connecting third-party detectors and devices to Ajax systems. Supports 18 wired zones with flexible connection types (NC, NO, EOL, 2EOL, 3EOL). Mains and backup battery power, Jeweller wireless protocol, 2,000m range, up to 400m cable support per zone. Perfect for legacy system integration and mixed device environments.
Price on Request
SKU: 30662 · In Stock · PIR Motion Detector with Photo Verification with HDR
Indoor Detector
18 Wired Zones
Connects up to 18 third-party wired detectors or devices to your Ajax system.
Mains Powered
100-240V AC with a 12V backup battery lasting up to 4 days.
2,000m Wireless Range
Communicates with the hub over Ajax’s Jeweller protocol.
Wide Detector Support
Works with NC, NO, EOL, 2EOL and 3EOL wired devices.
Professional indoor security for Melbourne: Sipko Security installs and configures AJAX MultiTransmitter detectors for residential properties, office buildings, retail spaces, and commercial facilities. Get a free quote today.
Key Specifications
Wired Zones
18 zones
Connection Types
NC, NO, EOL, 2EOL, 3EOL
Wireless Protocol
Jeweller (up to 2,000m)
Power
100-240V AC + 12V backup
Backup Runtime
Up to 4 days on backup battery
Core Features
18-Zone Wired Integration: Connects up to 18 third-party wired detectors to your Ajax system
Flexible Connection Types: Supports NC, NO, EOL, 2EOL and 3EOL wired devices
Mains Powered with Backup: 100-240V AC power with a 12V backup battery lasting up to 4 days
2,000m Jeweller Range: Reliable wireless link to the Ajax hub
Legacy System Integration: Ideal for bringing existing wired detectors into an Ajax system
Multiple Power Lines: Separate power lines for fire detectors and other devices
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | AJAX MultiTransmitter (White) |
| Model/SKU | 30662 |
| Type | Wired device integration module |
| Wired Zones | 18 zones |
| Connection Types | NC, NO, EOL, 2EOL, 3EOL |
| Wireless Protocol | Jeweller, up to 2,000m range |
| Power | 100-240V AC mains, 12V backup battery (up to 4 days) |
| Max Load | 1A across all connected zones |
| Color | White |
| Warranty | 24 months |
Frequently Asked Questions
It connects up to 18 third-party wired detectors or devices (such as wired PIR sensors, door contacts, or panic buttons) to an Ajax wireless system.
It supports NC, NO, EOL, 2EOL, and 3EOL wired connection types, covering most third-party wired detectors.
It runs on 100-240V AC mains power, with a 12V backup battery providing up to 4 days of runtime during an outage.
Up to 2,000m in open line-of-sight to the Ajax hub, using the Jeweller wireless protocol.
If you only need to connect one wired device, the single-zone AJAX Transmitter is a simpler battery-powered option. The MultiTransmitter is designed for larger installations needing up to 18 wired zones.
Yes. It provides separate power lines for fire detectors and other devices, with a maximum combined load of 1A across all connected zones.
See the product packaging for the exact included accessories for this item. Contact Sipko Security if you need the full inventory confirmed before ordering.
Yes. Correct wiring to multiple third-party detectors, power line configuration, and signal strength testing are important for reliable integration. Sipko Security provides professional installation for Melbourne customers.
AJAX MultiTransmitter includes 24-month manufacturer warranty. Sipko Security provides full warranty support and ongoing technical assistance for Melbourne customers.
Secure Your Home with Professional Motion Detection
The AJAX MultiTransmitter combines reliable PIR detection, advanced pet immunity, and long battery life for comprehensive indoor security. Perfect for Melbourne homes and businesses seeking professional intrusion detection without false alarms.
