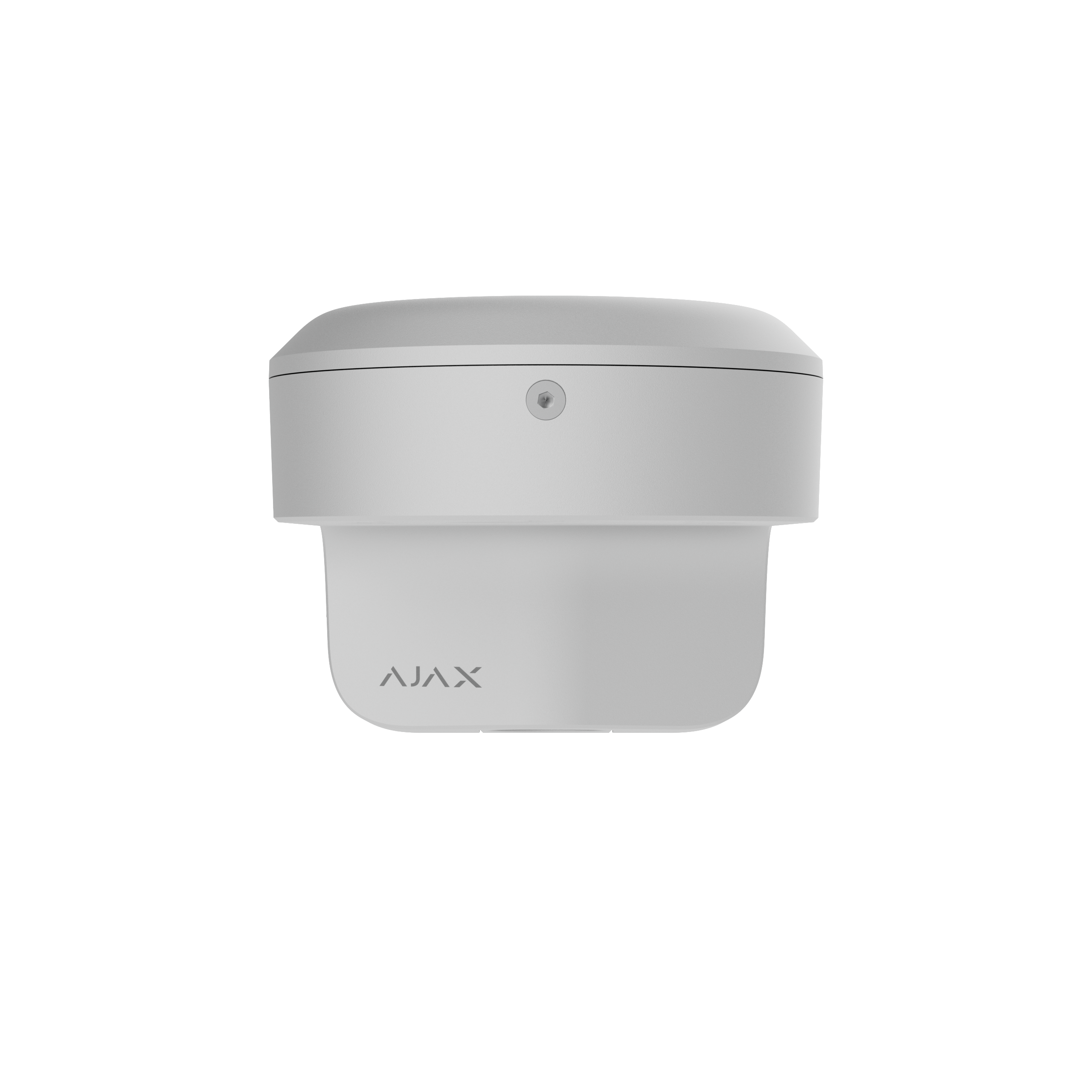

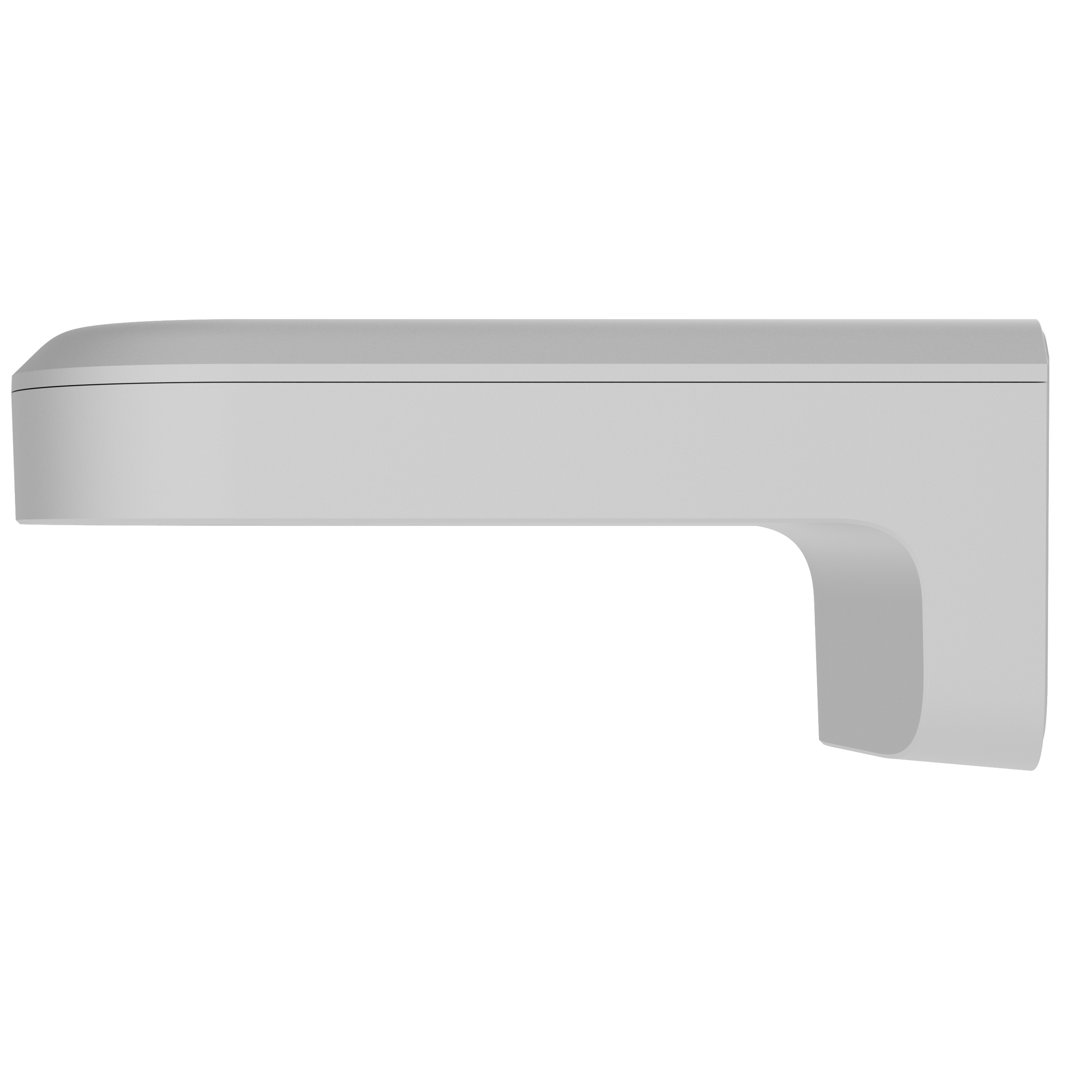

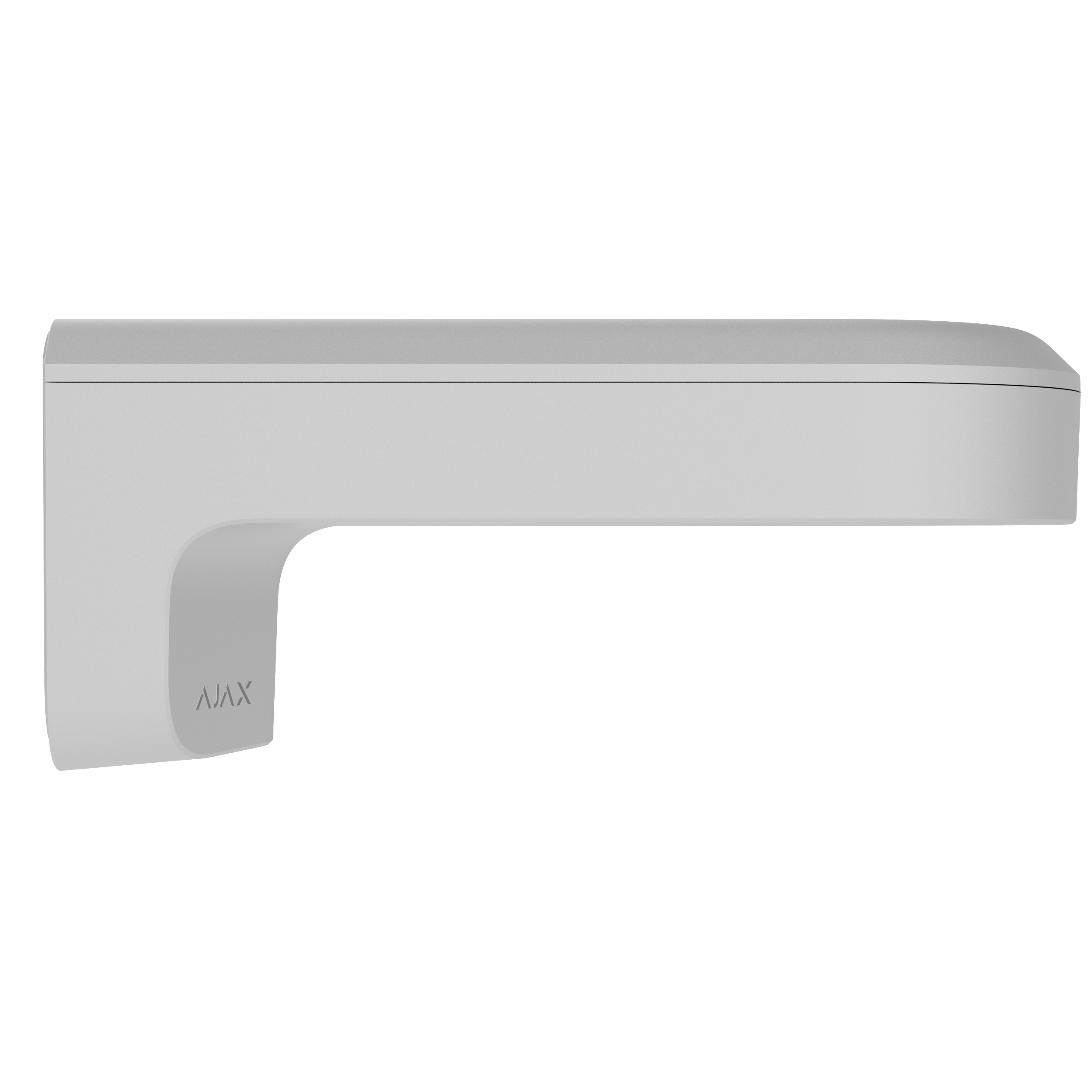

AJAX MountCam B1 White | 237mm Extended Wall Mount
The AJAX MountCam B1 White is a 237mm wall mount bracket for fixed-lens AJAX cameras, giving extra standoff from the wall for a wider field of view. It comes as a complete set with all fasteners included, cable routing latches to keep wiring tidy, and pre-drilled fixing points for both the camera and the mount itself.
Which MountCam do I need? B1 is the longer 237mm version of the shorter 164mm A1 mount, useful when you need extra standoff from the wall. Neither A1 nor B1 has a varifocal adapter; if your camera has a motorized varifocal lens (HLVF models), you’ll want the A2 or B2 variant instead.
Price on Request
SKU: 168238 · In Stock · Camera Wall Mount
Camera Accessory
237mm Extended Standoff
The longer arm of the pair, giving extra clearance from the wall for a wider field of view.
Complete Fastener Set
Everything needed for installation is included, no separate trip for screws or anchors.
Multi-Surface Mounting
Suitable for reinforced concrete, wood, aluminum, and steel surfaces.
Tidy Cable Routing
Internal latches and space to organize and conceal camera cabling inside the mount body.
Professional camera mounting for Melbourne: Sipko Security installs and configures AJAX camera systems for residential properties, office buildings, retail spaces, and commercial facilities. Get a free quote today.
Key Specifications
Type
Extended wall mount, fixed-lens cameras
Length
237mm
Mounting Surfaces
Concrete, wood, aluminum, steel
Color
White (also available in Black)
Included
Complete fastener set, cable routing latches
Core Features
Extended Standoff: The longer 237mm arm gives more clearance from the wall than the standard A1 mount
237mm Standoff: Extends the camera clear of the wall for a better field of view and easier cable access

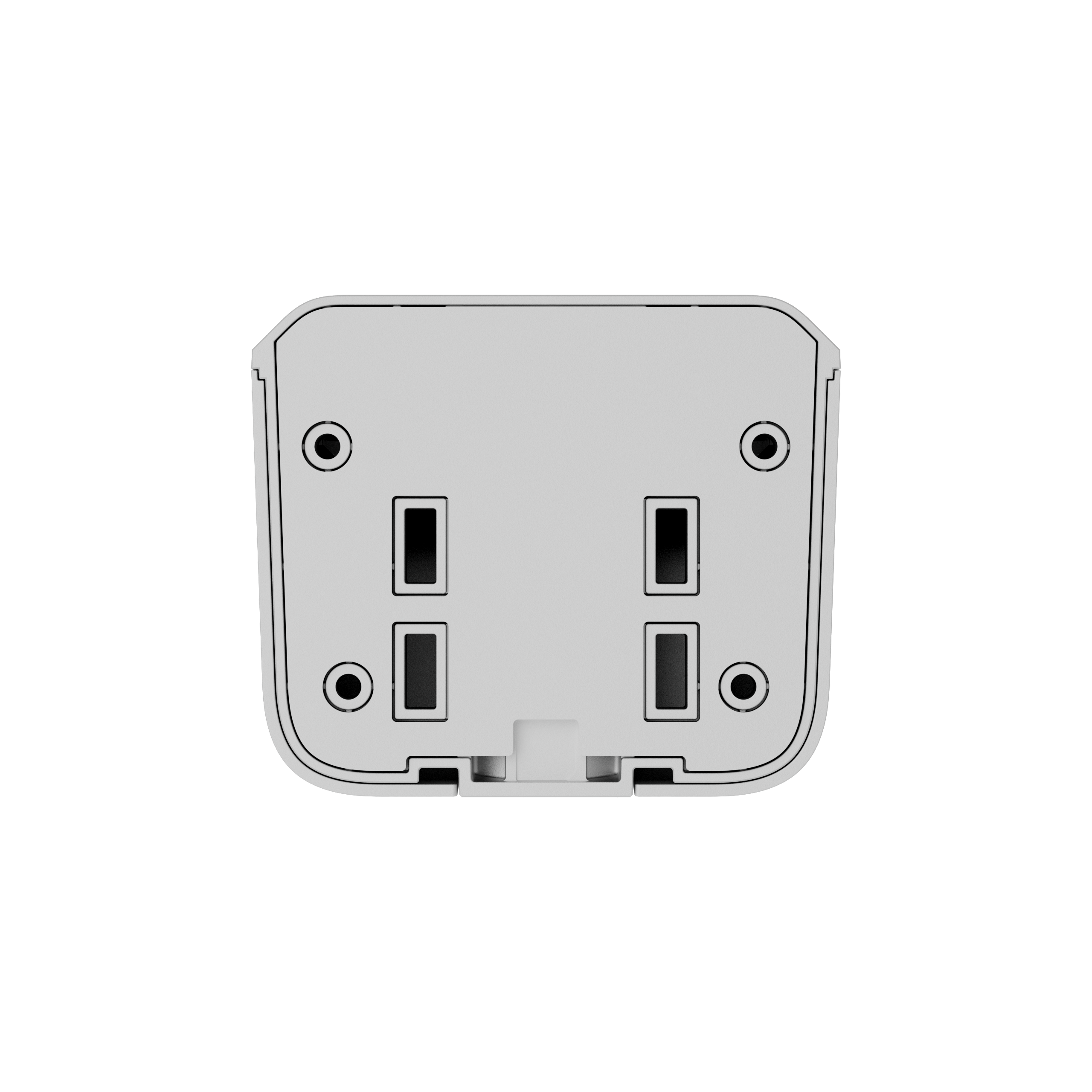

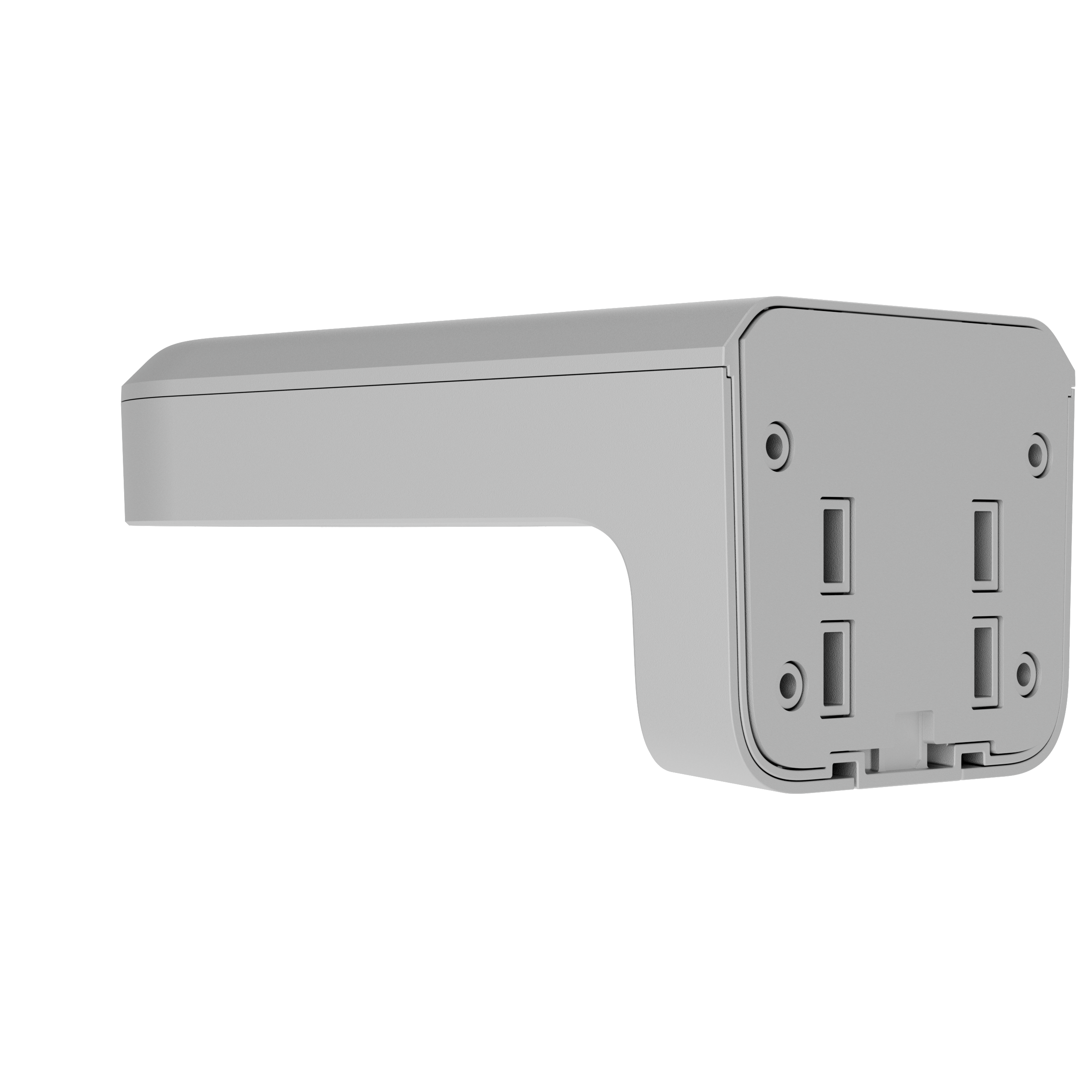

Pre-Drilled Fixing Points: Both the camera and the mount attach through pre-drilled holes, no measuring or drilling extra points
Internal Cable Routing: Latches and internal space keep wiring hidden and protected inside the mount body
Multi-Surface Fixings: Works on reinforced concrete, wood, aluminum, and steel
Complete Set: All required fasteners are included in the box
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | AJAX MountCam B1 (White) |
| Model/SKU | 168238 |
| Type | Extended wall mount bracket, no varifocal adapter |
| Length | 237mm |
| Compatible Cameras | BulletCam HL, TurretCam HL, DomeCam Mini HL |
| Note | For cameras with a motorized varifocal lens (HLVF models), use the A2 or B2 MountCam variant instead |
| Mounting Surfaces | Reinforced concrete, wood, aluminum, steel |
| Fixing Points | Pre-drilled for both camera and mount |
| Cable Management | Internal routing latches and cable space |
| Color | White (also available in Black) |
| Complete Set | Mount body, all required fasteners |
Material, weight, and weatherproofing rating are not published by Ajax for this accessory. We can confirm these against the current technical data sheet before your installation if needed.
Frequently Asked Questions
Both A1 and B1 are for fixed-lens cameras with no varifocal adapter. A1 is the shorter 164mm mount; B1 is the longer 237mm version, giving extra standoff from the wall. If your camera has a motorized varifocal lens (HLVF models), you’d want the A2 or B2 variant instead.
No. Ajax’s own compatibility guidance states BulletCam HLVF is not compatible with any MountCam variant, A1, A2, B1, or B2. Confirm your exact camera model with us before ordering so we can recommend the correct mounting solution.
Yes, it’s supplied as a complete set with all required fasteners for mounting on reinforced concrete, wood, aluminum, or steel.
Yes, the mount includes internal cable routing latches and space to organise wiring, keeping cables protected and out of sight rather than running externally down the wall.
Yes, correct mount selection and secure fixing matter for camera stability and weatherproofing. Sipko Security can confirm compatibility with your exact camera model and handle the full installation.
Mount Your Camera the Right Way
Getting the mount and adapter right the first time avoids re-drilling and re-cabling later. We’ll confirm compatibility with your exact camera model before installation.
