AJAX MountCam A2 Black | 174mm Wall Mount for Varifocal Cameras
The AJAX MountCam A2 Black is a 174mm wall mount bracket with a built-in adapter for AJAX cameras fitted with a motorized varifocal lens. It comes as a complete set with all fasteners included, cable routing latches to keep wiring tidy, and pre-drilled fixing points for both the camera and the mount itself.
Which MountCam do I need? A2 is the varifocal-adapter version of the shorter 164mm A1 mount. If you’re running a fixed-lens camera, A1 is usually the simpler choice; if your camera has a motorized varifocal lens (HLVF models), A2’s adapter is built for it.
Price on Request
SKU: 168237 · In Stock · Camera Wall Mount
Camera Accessory
Built-In Varifocal Adapter
Purpose-made for cameras fitted with a motorized varifocal lens, no separate adapter part needed.
Complete Fastener Set
Everything needed for installation is included, no separate trip for screws or anchors.
Multi-Surface Mounting
Suitable for reinforced concrete, wood, aluminum, and steel surfaces.
Tidy Cable Routing
Internal latches and space to organize and conceal camera cabling inside the mount body.
Professional camera mounting for Melbourne: Sipko Security installs and configures AJAX camera systems for residential properties, office buildings, retail spaces, and commercial facilities. Get a free quote today.
Key Specifications
Type
Wall mount with varifocal lens adapter
Length
174mm
Mounting Surfaces
Concrete, wood, aluminum, steel
Color
Black (also available in White)
Included
Complete fastener set, cable routing latches
Core Features
Varifocal-Ready: Built-in adapter designed specifically for AJAX cameras with a motorized varifocal lens
174mm Standoff: Extends the camera clear of the wall for a better field of view and easier cable access

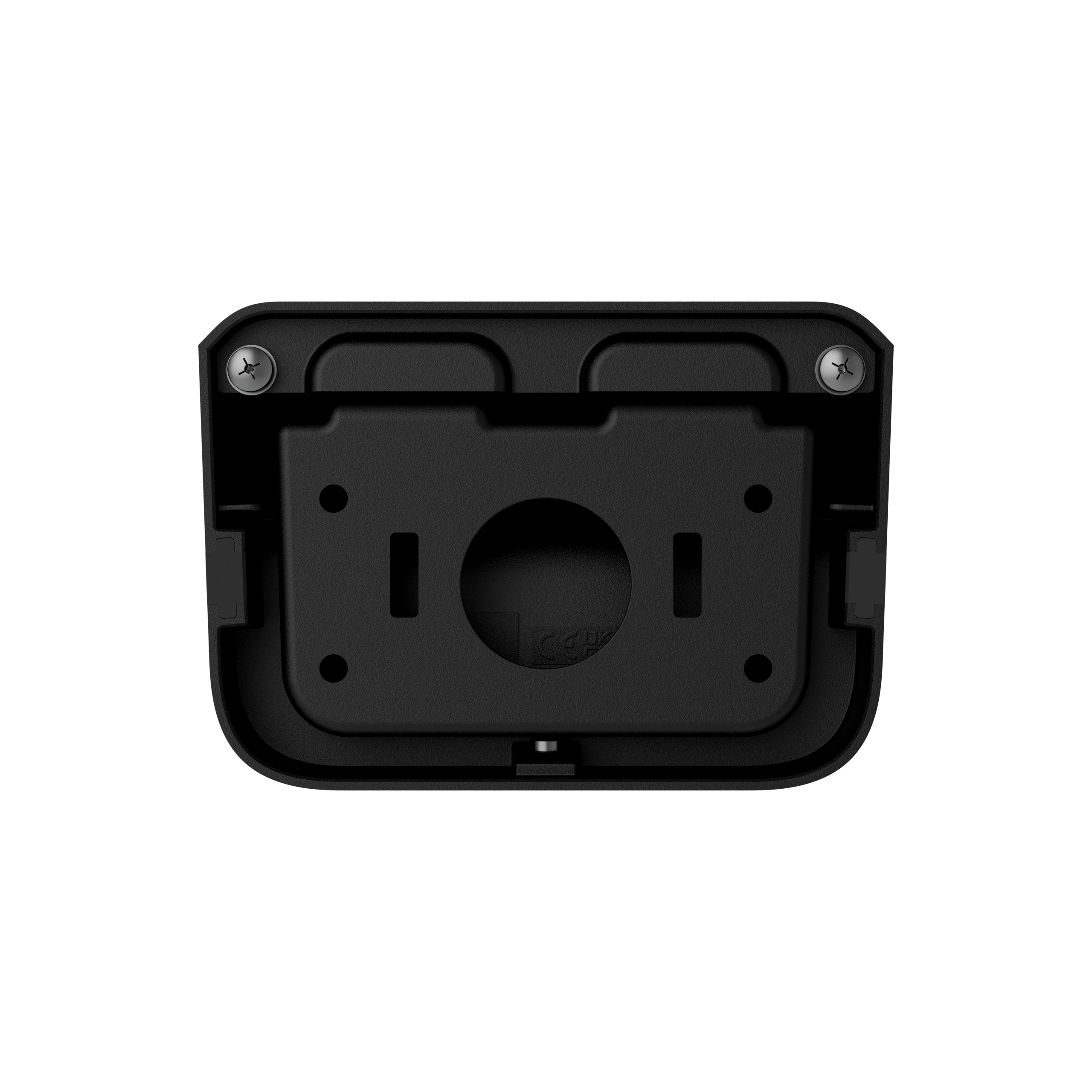

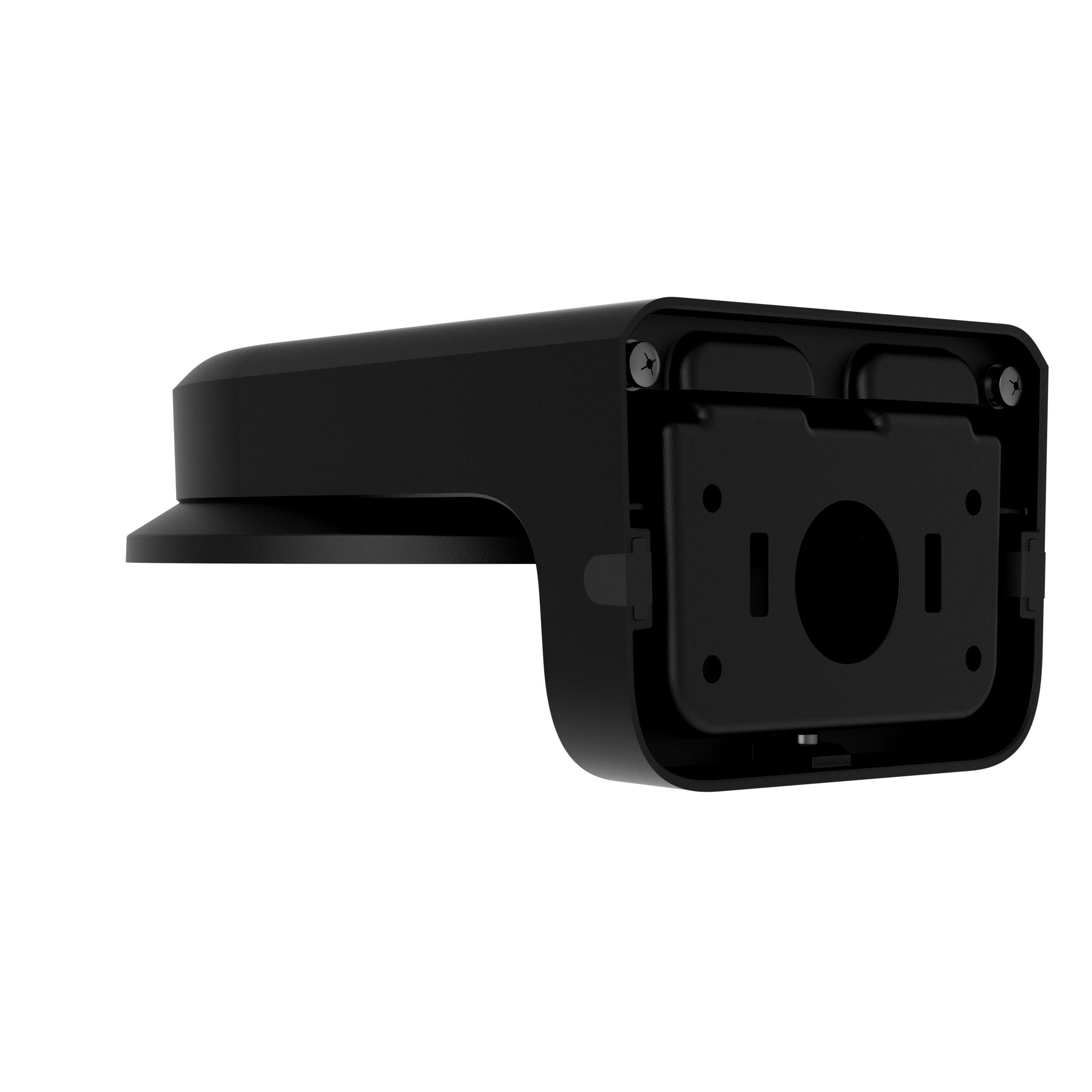

Pre-Drilled Fixing Points: Both the camera and the mount attach through pre-drilled holes, no measuring or drilling extra points
Internal Cable Routing: Latches and internal space keep wiring hidden and protected inside the mount body
Multi-Surface Fixings: Works on reinforced concrete, wood, aluminum, and steel
Complete Set: All required fasteners are included in the box
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | AJAX MountCam A2 (Black) |
| Model/SKU | 168237 |
| Type | Wall mount bracket with motorized varifocal lens adapter |
| Length | 174mm |
| Compatible Cameras | BulletCam HL, TurretCam HL, DomeCam Mini HL, Superior TurretCam HLVF, Superior DomeCam Mini HLVF |
| Note | BulletCam HLVF is not compatible with any MountCam variant, per Ajax’s official compatibility guidance |
| Mounting Surfaces | Reinforced concrete, wood, aluminum, steel |
| Fixing Points | Pre-drilled for both camera and mount |
| Cable Management | Internal routing latches and cable space |
| Color | Black (also available in White) |
| Complete Set | Mount body, varifocal adapter, all required fasteners |
Material, weight, and weatherproofing rating are not published by Ajax for this accessory. We can confirm these against the current technical data sheet before your installation if needed.
Frequently Asked Questions
A1 is a 164mm mount without a varifocal adapter, for fixed-lens cameras. A2 is 174mm and includes the adapter needed for cameras with a motorized varifocal lens. If you’re not sure which your camera needs, tell us the exact model and we’ll confirm.
No. Ajax’s own compatibility guidance states BulletCam HLVF is not compatible with any MountCam variant, A1, A2, B1, or B2. Confirm your exact camera model with us before ordering so we can recommend the correct mounting solution.
Yes, it’s supplied as a complete set with all required fasteners for mounting on reinforced concrete, wood, aluminum, or steel.
Yes, the mount includes internal cable routing latches and space to organise wiring, keeping cables protected and out of sight rather than running externally down the wall.
Yes, correct mount selection and secure fixing matter for camera stability and weatherproofing. Sipko Security can confirm compatibility with your exact camera model and handle the full installation.
Mount Your Camera the Right Way
Getting the mount and adapter right the first time avoids re-drilling and re-cabling later. We’ll confirm compatibility with your exact camera model before installation.
