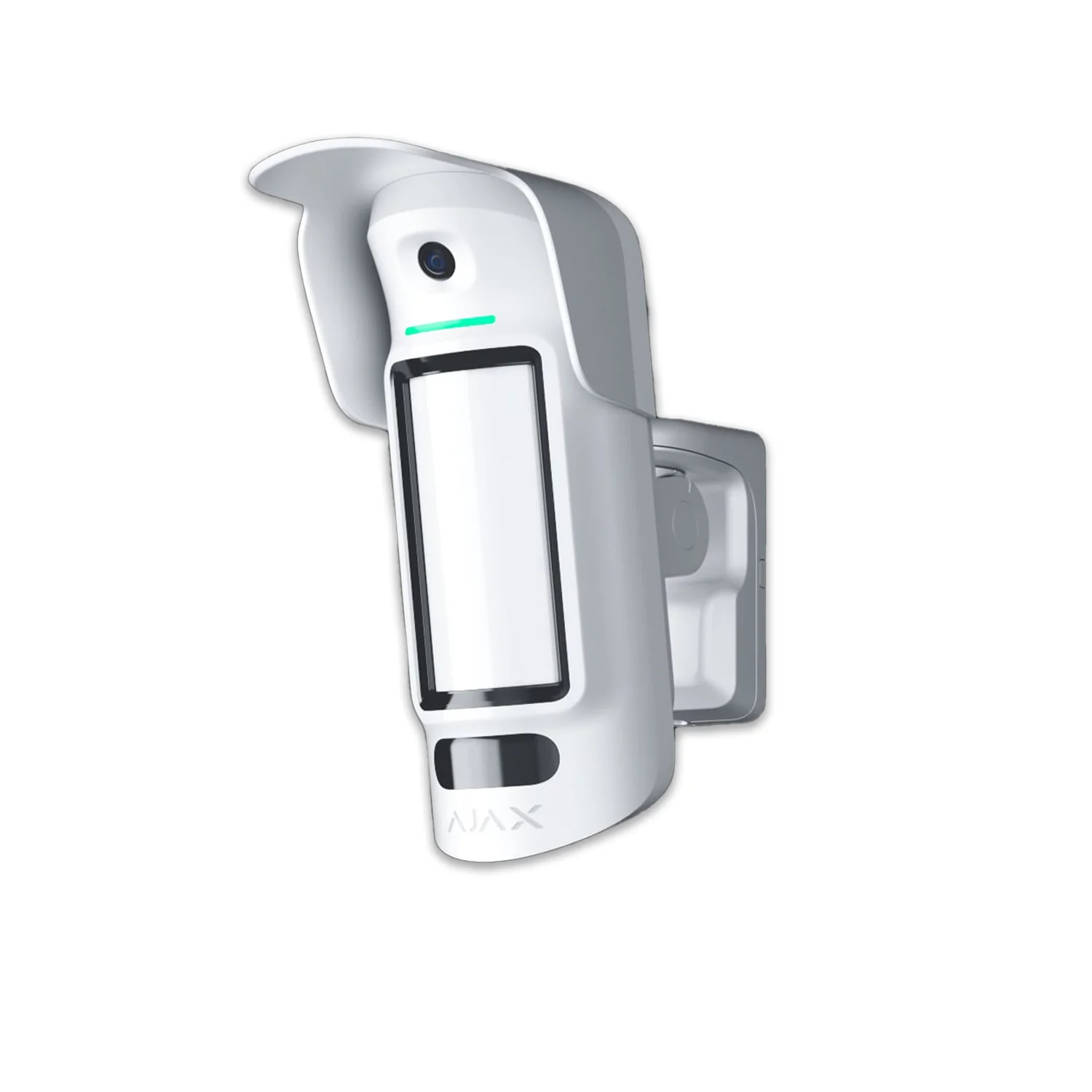

AJAX MotionCam Outdoor HighMount (PhOD) Jeweller
The AJAX MotionCam Outdoor HighMount is a professional wireless outdoor motion detector designed for high-mount installation (2-4m height) with dual motion detection technology, extended photo verification options, and swivel mount for flexible coverage. Ideal for remote sites, warehouses, and industrial complexes.
A$880.00
SKU: AJAX#107890 · In Stock · High-Mount Motion Detector with Camera
Photo Verification
Extended Photo Verification
Multiple capture modes: by alarm, demand, schedule, scenario, and arming/disarming. Up to 5 photos delivered in under 9 seconds with HDR and IR illumination.
Dual Motion Detection
Combines dual PIR sensors and K-band microwave technology with LISA algorithm for superior accuracy and minimal false alarms in complex environments.
Up to 1,700m Range
Jeweller & Wings dual protocols with encryption ensure reliable long-distance communication and fast photo delivery.
Industrial-Grade Protection
IP55 rated, operating -25°C to +60°C, with anti-masking, tamper alarm, magnetometer, and optional hood. Designed for demanding environments.
Melbourne security installations: Sipko Security installs high-mount AJAX systems for warehouses, industrial sites, and remote properties. Get a free quote today.
Technical Specifications
Product Details
Detection Range
Up to 15m at 2-4m height
Weather Rating
IP55 Protection
Wireless Range
Up to 1,700m open space
Camera Resolution
320×240 / 640×480px
Communication
Jeweller & Wings
Sensors
Dual PIR + Microwave
Photo Delivery
Up to 9 seconds
Installation Height
2-4m (6.6-13ft)
Core Features
Detailed Breakdown
Dual Motion Detection Technology: Two PIR sensors combined with K-band microwave technology for ultimate accuracy. SmartDetect algorithm prevents false alarms from wind, heat flows, and swaying branches.
Extended Photo Verification Modes: Capture photos by alarm, on demand, schedule, scenario, or arming/disarming. Delivers up to 5 photos in under 9 seconds with HDR and IR backlight.
High-Mount Installation (2-4m): Designed for elevated mounting up to 13 feet. Swivel mount provides flexible viewing angle adjustment for optimal coverage without blind zones.
Advanced Anti-Masking System: Detects obstacles, painting, taping over lens. Active 24/7 with tamper alarm and magnetometer for complete sabotage protection.
Industrial-Grade Weather Protection: IP55 rated for harsh conditions. Operates reliably -25°C to +60°C with automatic temperature compensation and optional hood protection.
Dual Wireless Protocols: Jeweller & Wings encrypted communication with dynamic key encryption, 1,700m range, and fast delivery in less than 0.15 seconds.
Extended Battery Life: Six pre-installed CR123A batteries provide up to 3 years of operation. Optional 12-24V external power supply available for permanent deployment.
Professional Installation Features: QR code pairing, SmartBracket mounting, field of view verification via PRO app, and comprehensive event logging with 500-event history.
Frequently Asked Questions
Product FAQ
HighMount is designed for installation at elevated heights (2-4m/6.6-13ft) with a wider vertical viewing angle and swivel mount for flexible positioning. It’s ideal for warehouses, remote sites, and industrial complexes where high placement is necessary to avoid blind zones.
The MotionCam HighMount supports five photo capture modes: Photo by Alarm (when armed and movement detected), Photo on Demand (manual trigger via app), Photo by Schedule (automatic at set times), Photo by Scenario (when other detectors trigger), and Photo by Arming/Disarming (automatic system state changes).
K-band microwave (24 GHz) is a second detection technology combined with dual PIR sensors. It detects movement differently than heat, allowing the device to trigger only when both sensor types detect motion. This dual-trigger approach significantly reduces false alarms from environmental factors.
Yes. The metal swivel mount allows flexible adjustment of the viewing angle to optimize coverage for your specific installation. This enables proper alignment even when mounted in corners, on walls, or under eaves.
No. The MotionCam HighMount does not have pet immunity. It’s designed for commercial and industrial applications where pet interference is not expected. The dual motion detection ensures minimal false alarms from environmental factors instead.
The MotionCam HighMount operates on six CR123A batteries (pre-installed) and typically provides up to 3 years of operation. For permanent installations, a 12-24V external power supply is available, with batteries serving as automatic backup if power fails.
Secure Your Facility Today
AJAX MotionCam Outdoor HighMount provides professional-grade perimeter protection for warehouses, industrial complexes, remote sites, and commercial properties across Melbourne. Expert installation ensures optimal high-mount placement and coverage.
