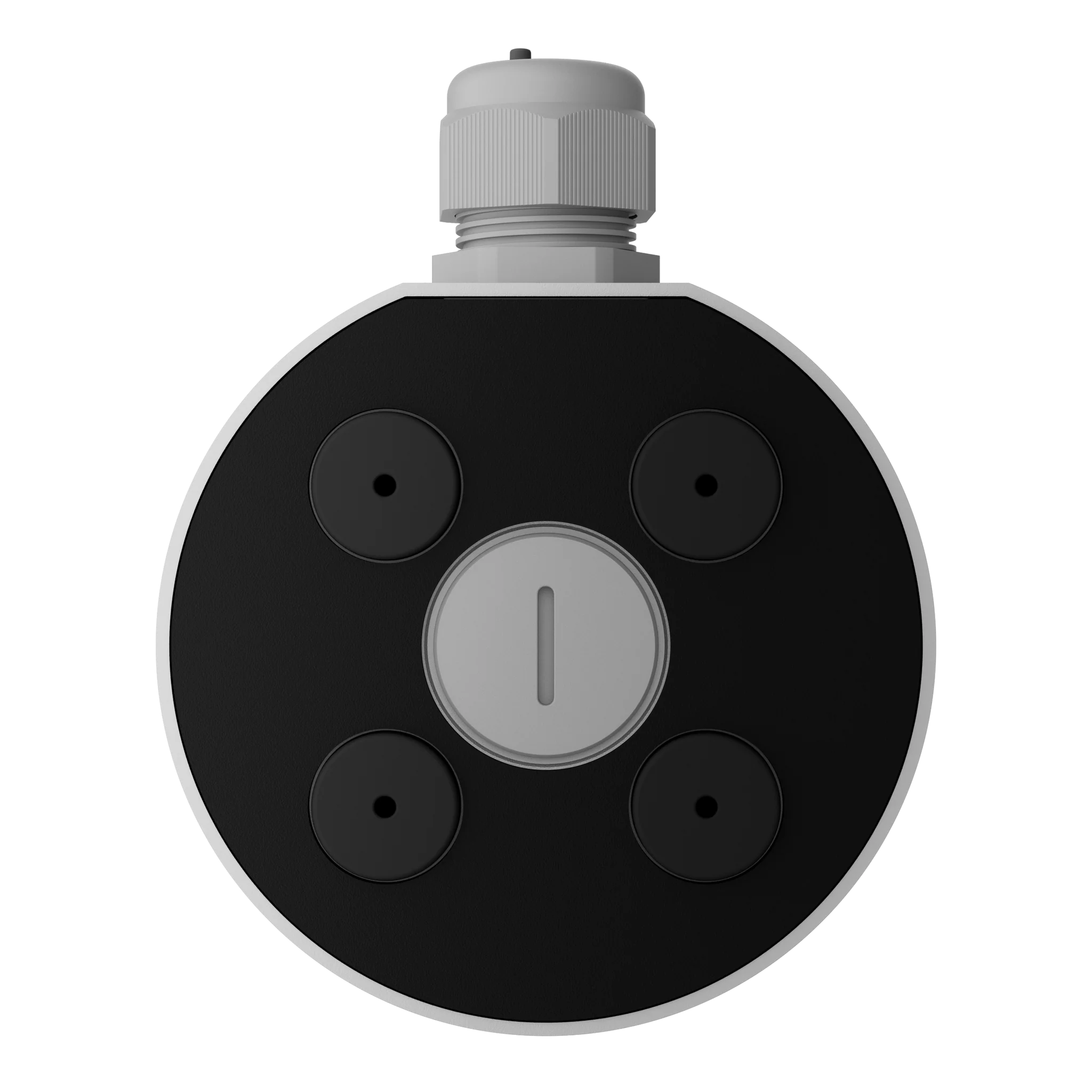

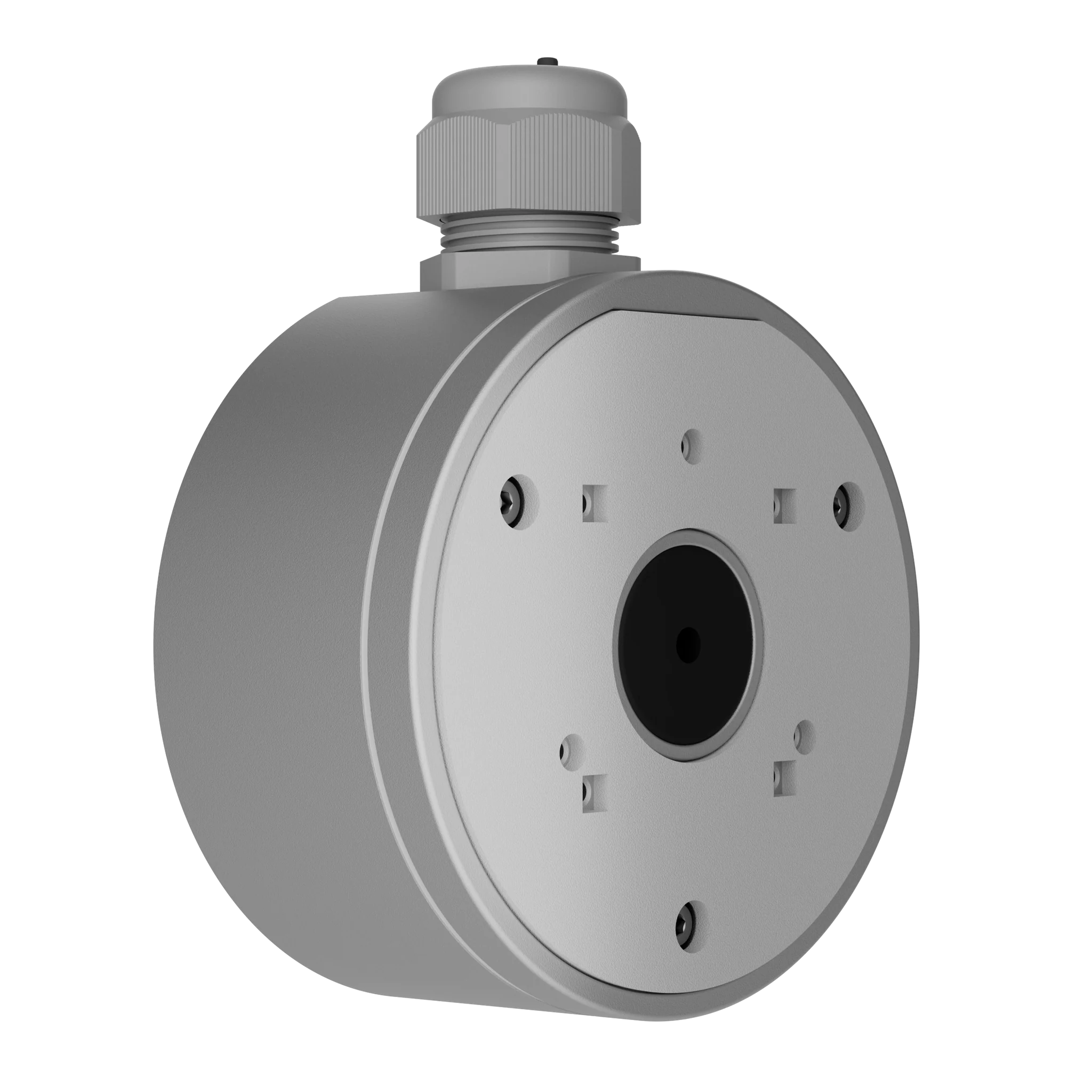

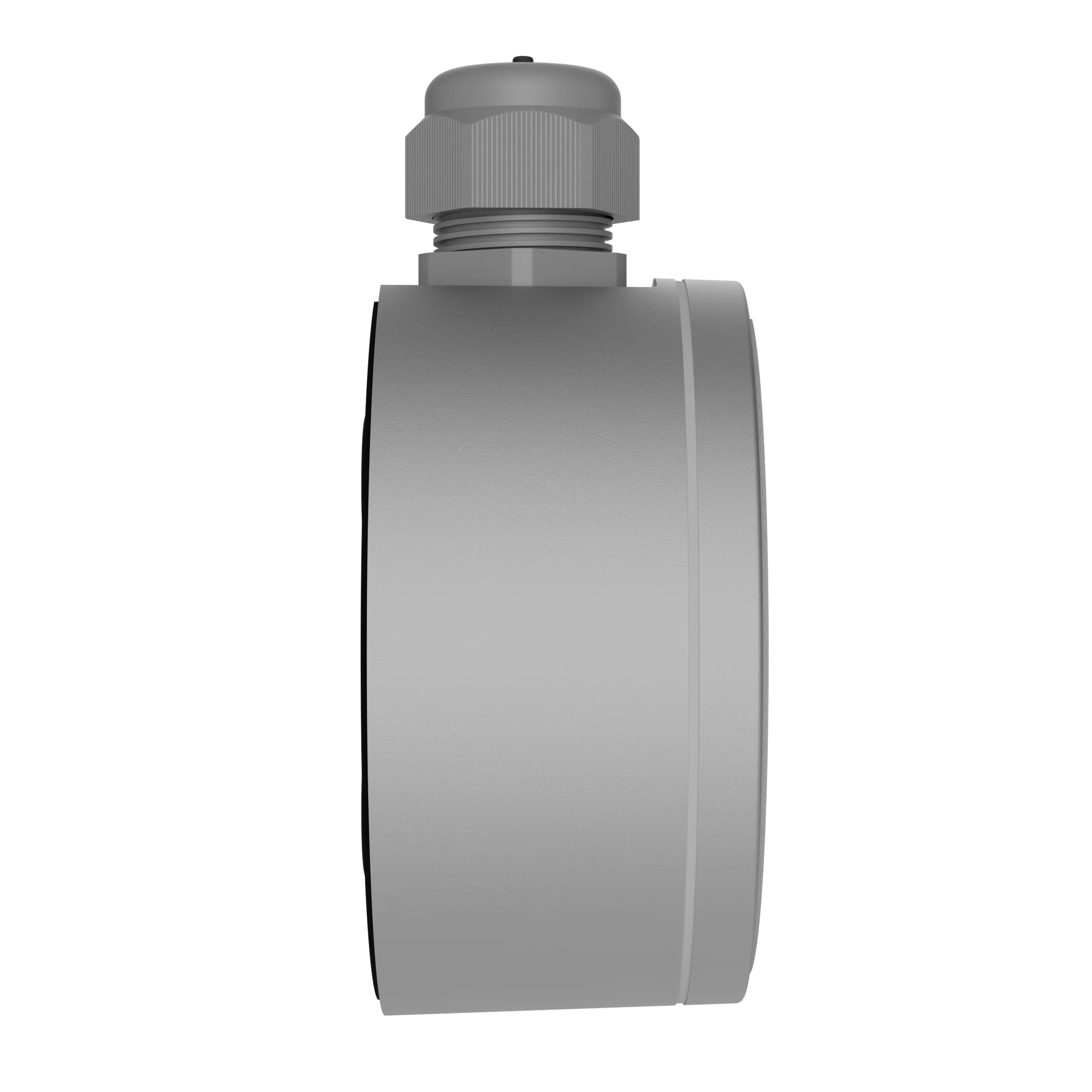

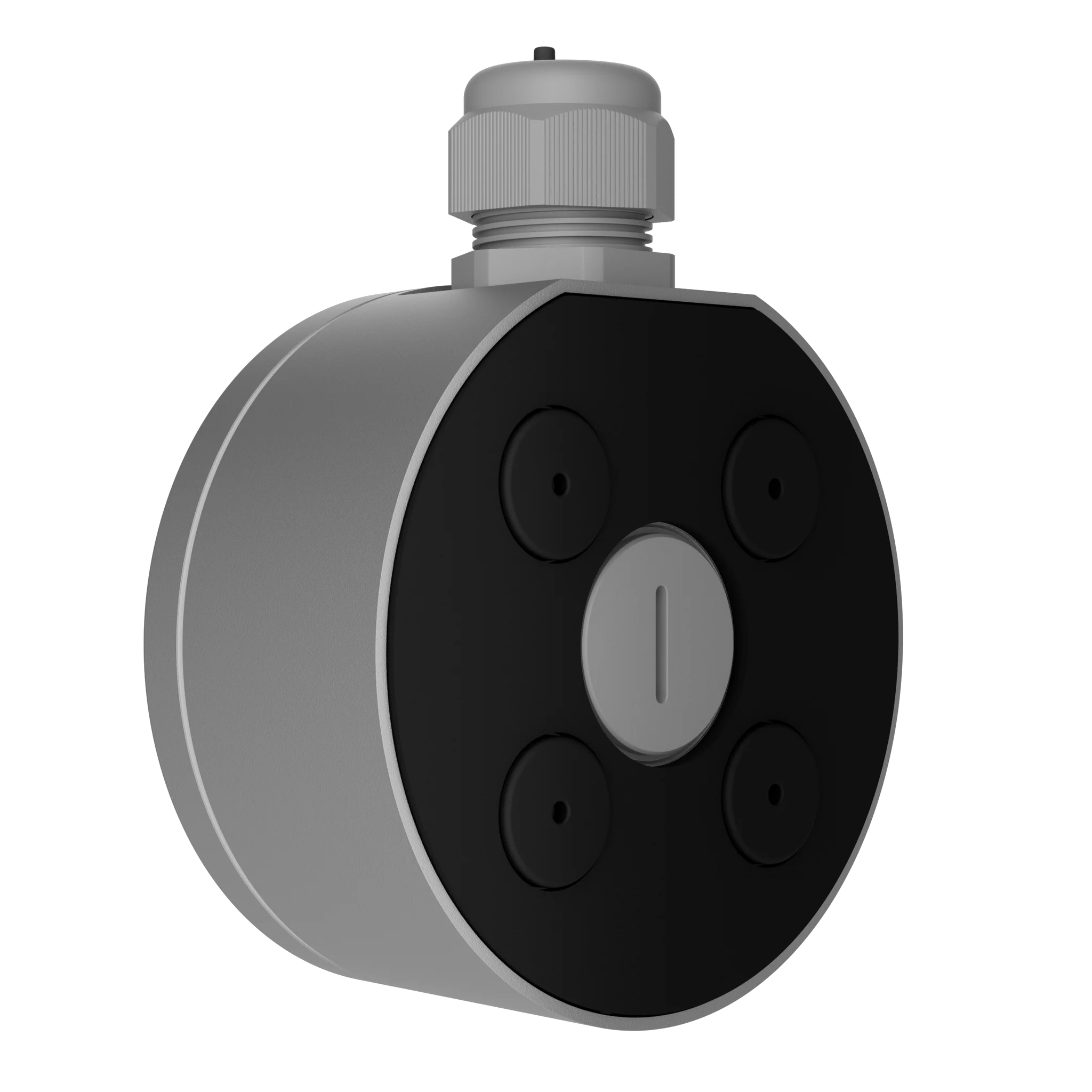

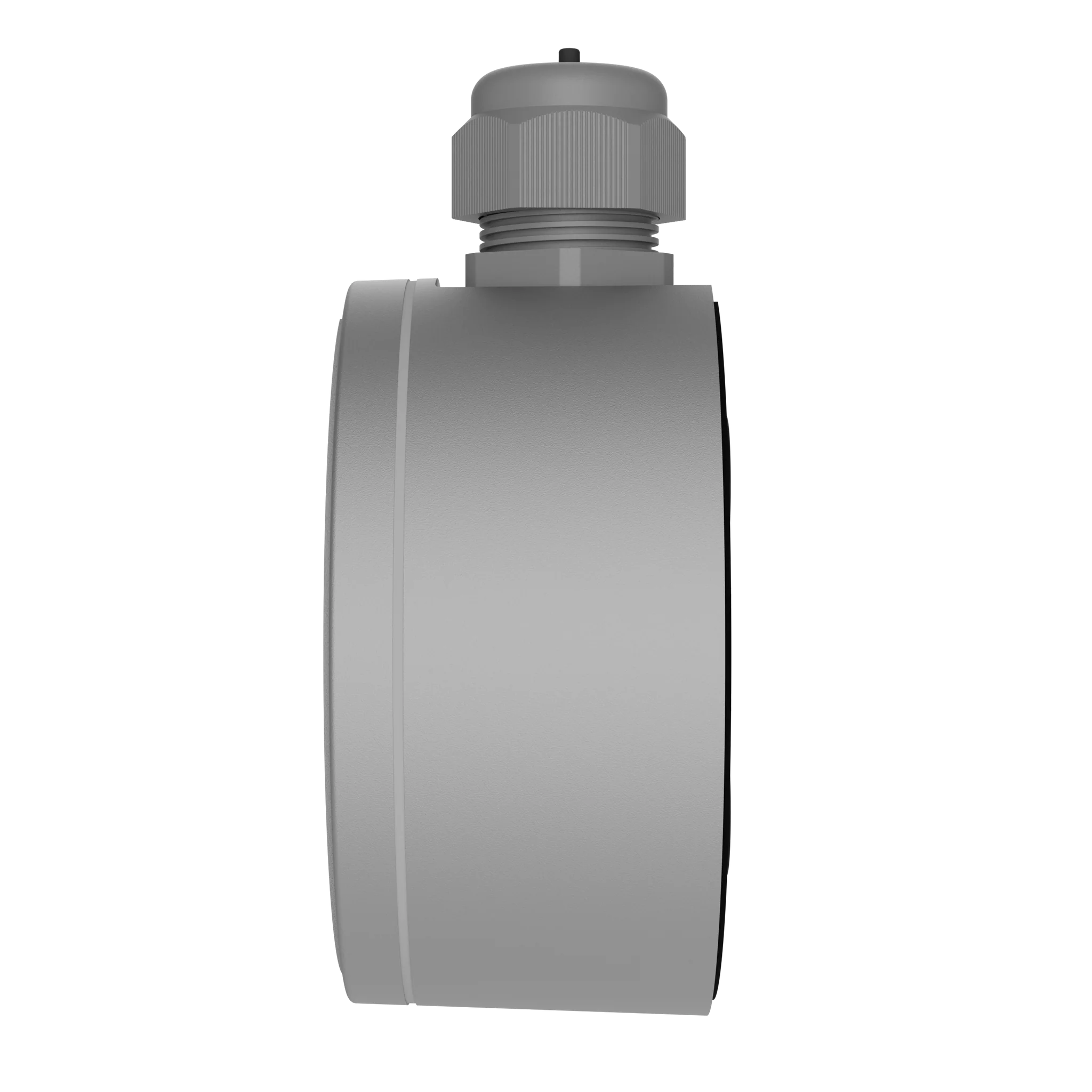

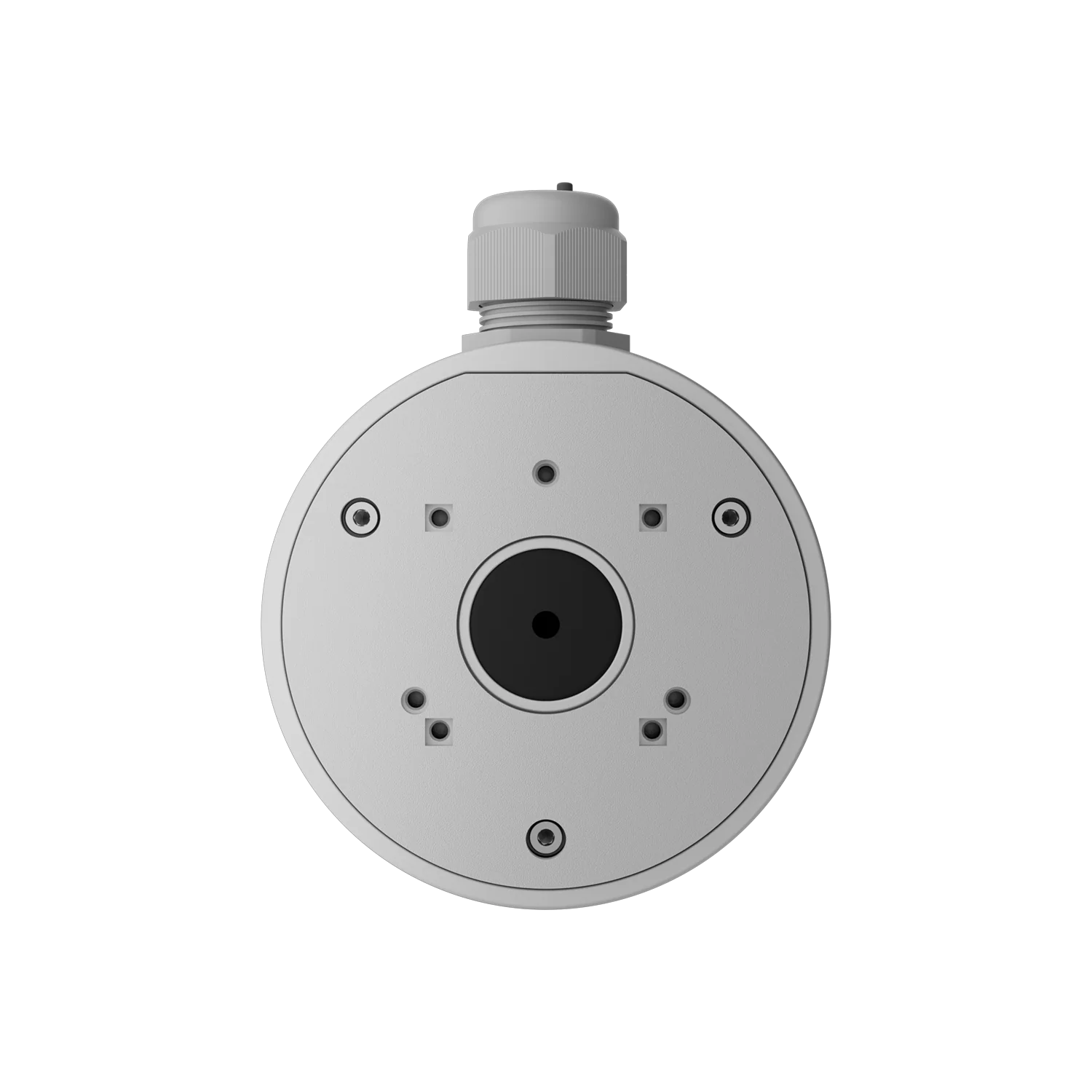

AJAX JunctionBox 118×59 White - Waterproof Mounting Box for AJAX Cameras
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX JunctionBox (118x59) |
| Type | Mounting box for a wired security IP camera |
| Compatible cameras | BulletCam, DomeCam Mini, TurretCam |
| Cable gland | PG21, protects the cable from damage, loss of insulation and excessive bending |
| Sealing ring | For 1 or 2 cables, prevents water, dust and other contaminants from entering the box |
| Mounting wire | Secures the lid during installation until it is fixed with screws |
| Grounding terminal | Grounding is carried out by a specialist in compliance with local electrical safety rules and regulations |
| Dimensions | 152 x 117 x 59 mm |
| Weight | 468 g |
| Operating temperature | -40 to +60 degrees C |
| Operating humidity | Up to 90% |
| Colour | White (this listing is the white model). Ajax also makes it in black |
| Complete set | JunctionBox (118x59), installation template, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical specifications Web page · ajax.systems · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Similar products
-
AJAX Ceiling Mount Bracket Black - Professional Australian Made Motion Sensor Mounting Bracket
Price on request
-
AJAX Hood for MotionProtect Outdoor
Price on request
-
AJAX Module Holder Type B ASP Black - Professional AJAX Module Installation Accessory
Price on request
-
AJAX MountCam A1 Black - Professional 164MM Wall Mount IP Camera Accessory
Price on request
-
AJAX MountCam A2 Black - 174mm Wall Mount for Varifocal Cameras
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
It is a mounting box for a wired Ajax security IP camera. The cable enters through a gland with a sealing ring, and the box has a lid, a mounting wire and a grounding terminal.
Ajax lists BulletCam, DomeCam Mini and TurretCam. Ask us to check your exact camera before you order.
The PG21 cable gland has a sealing ring for 1 or 2 cables.
It helps prevent water, dust and other contaminants from entering the camera mounting box.
It holds the lid in place during installation, so the lid cannot fall off until it is secured with screws.
The box has a grounding terminal. Ajax says grounding must be carried out by a specialist in compliance with local electrical safety rules and regulations.
The JunctionBox (118x59), an installation template, an installation kit and a quick start guide. The camera is sold separately.
Yes. We supply and install Ajax cameras and accessories across Melbourne and the Mornington Peninsula. Request a quote and we will plan the mounting and cabling with you.
