AJAX DoorBell Black - 4MP Smart Video Doorbell with AI Detection
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX DoorBell |
| Type | Wired video doorbell with built-in AI, PIR sensor and control through the Ajax apps, outdoor and indoor |
| Image sensor | 4 MP CMOS |
| Video resolution | Up to 2688 x 1520 px |
| Field of view | Horizontal 155 degrees, vertical 90 degrees |
| Video codec | H.264 |
| Dynamic range | HDR |
| Night illumination | Smart IR up to 20 ft (about 6 m), adjusted in real time to avoid overexposure |
| Storage | Ajax NVR or Ajax Cloud Storage |
| Video protocol | JetSparrow, an encrypted peer-to-peer protocol developed by Ajax Systems |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Backup channel | Jeweller and Wings radio, used for commands, alarms, events and photo verification when the doorbell is added to an Ajax hub |
| Audio | Microphone and speaker for two-way talk. Codec G.722. Noise suppression and echo cancellation always on |
| Motion detection | Built-in PIR sensor plus software image analysis |
| AI object detection | People, pets, vehicles |
| PIR detection distance | Up to 13 ft (about 4 m), depending on the sensitivity setting |
| PIR detection angle | Horizontal 120 degrees, vertical 100 degrees |
| PIR sensitivity | 3 levels, set in the Ajax apps by a PRO or an admin user |
| ONVIF | Conformant with ONVIF Profile S |
| Sabotage protection | Tamper alarm if removed from the mounting panel, holding screw, mTLS encryption, authentication via Ajax Cloud, secure boot, signed over-the-air updates |
| Communication loss detection | Wi-Fi from 30 s, Jeweller and Wings after 36 s |
| Power consumption | 10 W |
| Power supply | 12 to 24 V DC, or 16 to 24 V AC at 50/60 Hz |
| Minimum current, no wired chime | 1 A at 12 V DC, 0.5 A at 24 V DC, 0.6 A at 16 V AC, 0.4 A at 24 V AC |
| Minimum current, with wired chime | 3 A at 12 V DC, 3 A at 24 V DC, 0.6 A at 16 V AC, 0.4 A at 24 V AC |
| Power supply with a wired chime (BellKit) | DC 12 to 24 V, 3 A or more; AC 16 to 24 V, 10 VA or more |
| Built-in battery | Li-ion 600 mAh, to heat the doorbell in cold weather and as short backup power |
| Recommended mounting height | 4 to 5 ft (about 1.2 to 1.5 m). Avoid direct sunlight |
| Dimensions | 5.71 x 1.85 x 1.34 in (about 145 x 47 x 34 mm) |
| Weight | 5.75 oz (about 163 g) |
| Operating temperature | -13 to 140 degrees F (about -25 to 60 degrees C) |
| Operating humidity | Up to 90% |
| Protection class | IP54 |
| Colour | Black (RAL 9005). Also available in white, grey and graphite |

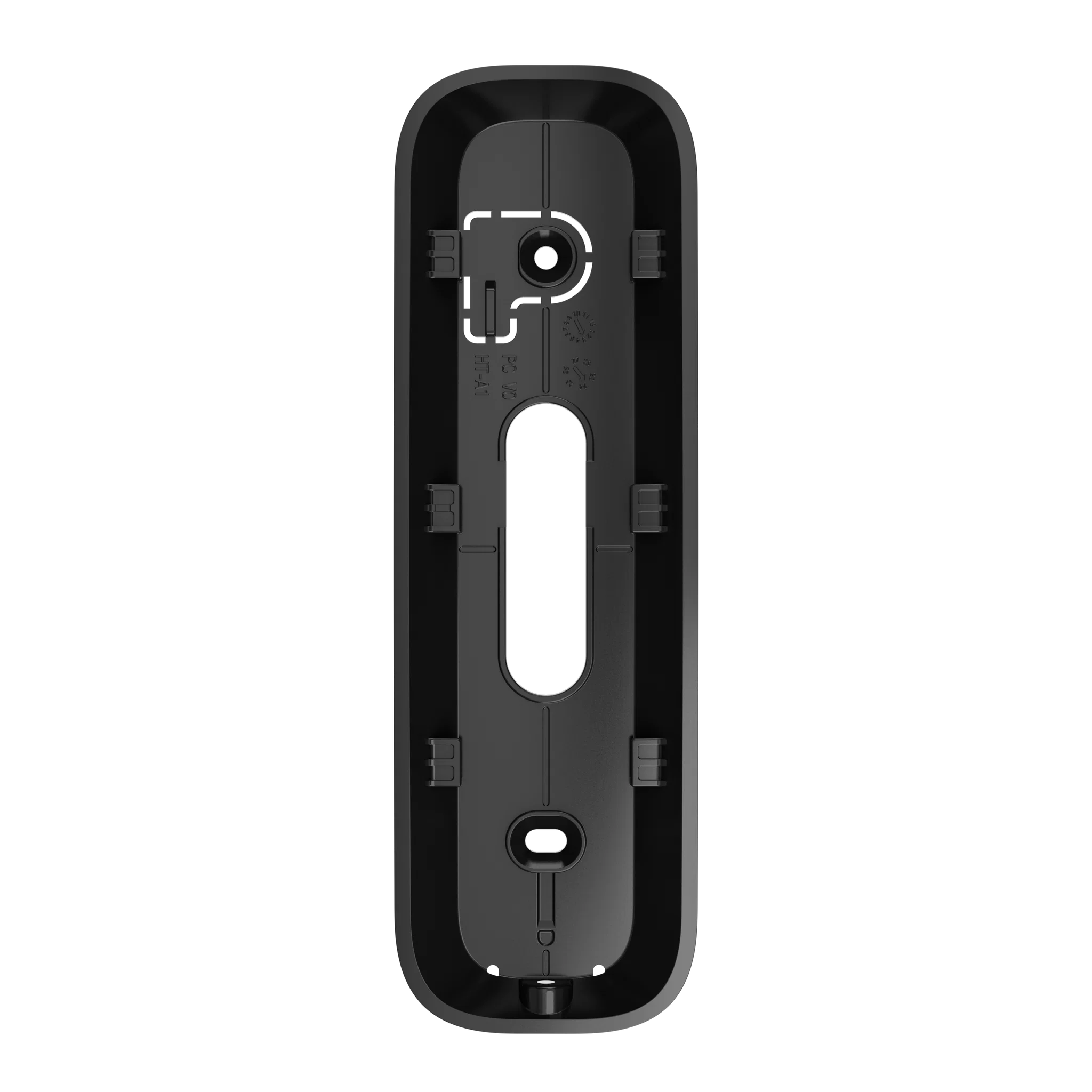

| Complete set | DoorBell, SmartBracket mounting panel, 2 wedge brackets, BellKit for a wired chime, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
AJAX 8MP BulletCam HLVF (2.8 - 12mm) White - 4K Motorized PoE IP Camera
Price on request
-
AJAX BulletCam 5MP 2.8mm White - AI Wired IP Bullet Camera
Price on request
-
AJAX BulletCam 5MP 4mm White - AI Wired IP Bullet Camera
Price on request
-
AJAX BulletCam 8MP 2.8mm White - 4K AI Wired IP Bullet Camera
Price on request
-
AJAX BulletCam HL 5MP 2.8mm White - AI Hybrid Illumination IP Camera
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
No. It is a wired doorbell powered from 12 to 24 V DC or 16 to 24 V AC. The built-in 600 mAh battery only heats the doorbell in cold weather and keeps it running for short power cuts.
Yes. The BellKit in the box connects it to a wired chime. With a chime connected it needs a stronger supply: 12 to 24 V DC at 3 A or more, or 16 to 24 V AC at 10 VA or more. We check your existing transformer before installing.
Over 2.4 GHz Wi-Fi (802.11 b/g/n). When it is added to an Ajax hub, Ajax radio (Jeweller and Wings) is also used as a backup channel for commands, alarms, events and photo verification.
On an Ajax NVR or in Ajax Cloud Storage. Ajax does not list a memory card slot for the DoorBell.
The camera sees 155 degrees across and 90 degrees top to bottom, with a 4 MP sensor (up to 2688 x 1520 px) and HDR for bright and dark areas.
Yes. Smart IR lights the scene up to 20 ft (about 6 m) and adjusts its strength so faces close to the door are not washed out.
A PIR sensor (up to 13 ft, about 4 m, 120 degrees across) plus software image analysis detect movement, and on-device AI recognises people, pets and vehicles. Sensitivity has 3 levels.
Yes. It is rated IP54 and works from -13 to 140 degrees F (about -25 to 60 degrees C). Ajax recommends mounting it 4 to 5 ft (about 1.2 to 1.5 m) high and out of direct sunlight.
The DoorBell, a SmartBracket mounting panel, 2 wedge brackets to angle it, the BellKit for a wired chime, an installation kit and a quick start guide.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply and install Ajax doorbells across Melbourne and the Mornington Peninsula, including the power supply and connection to your chime. Request a quote and we will check your door and wiring.
