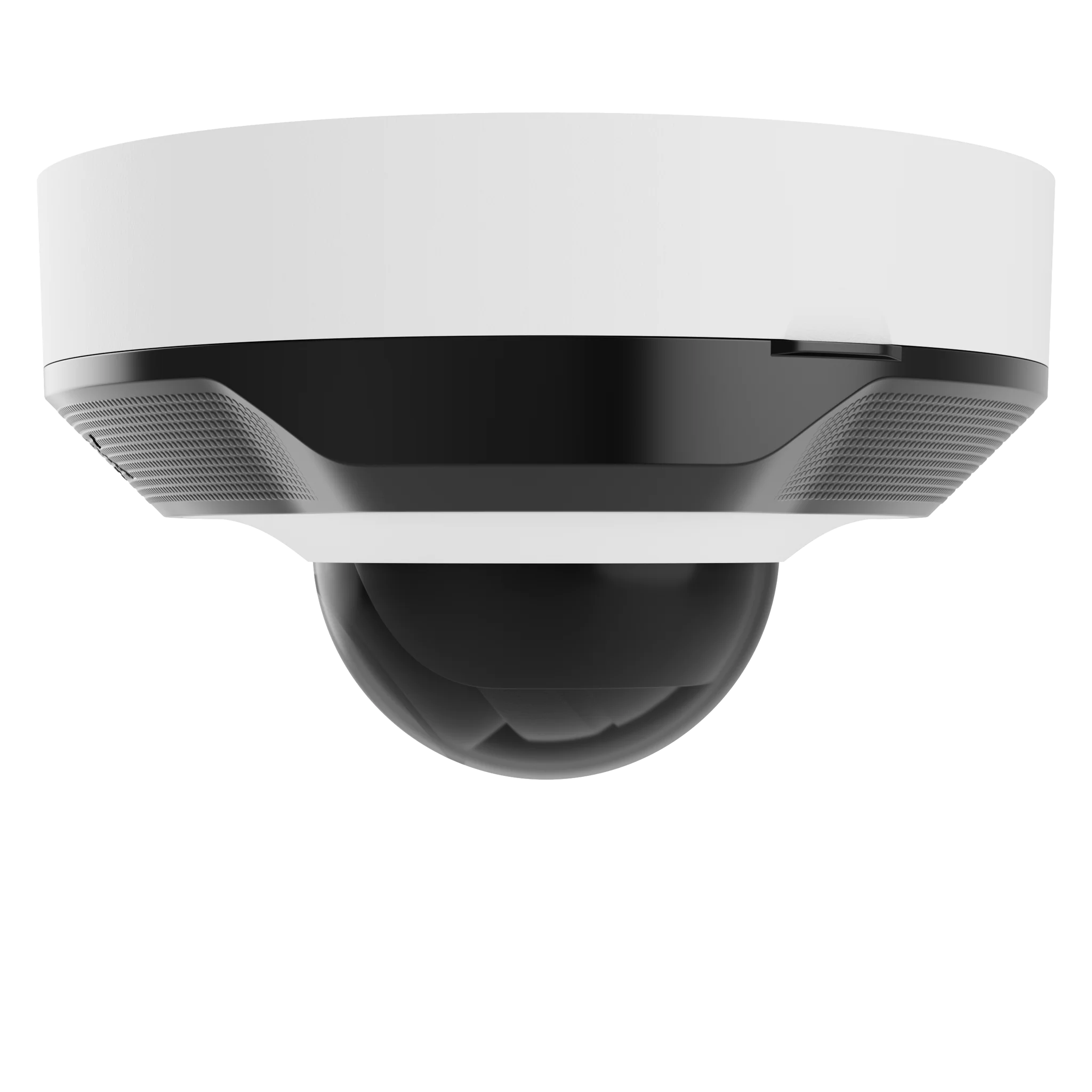

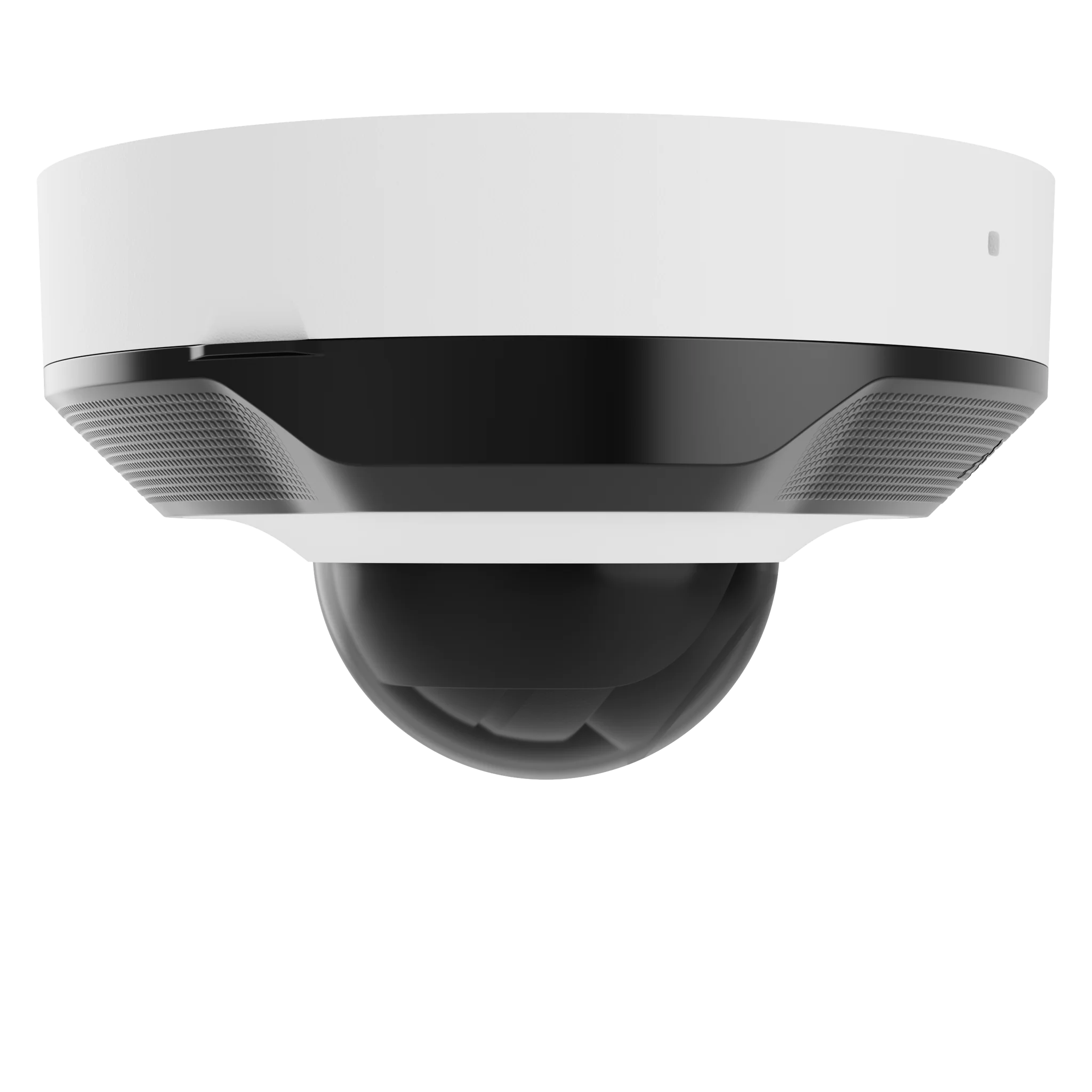

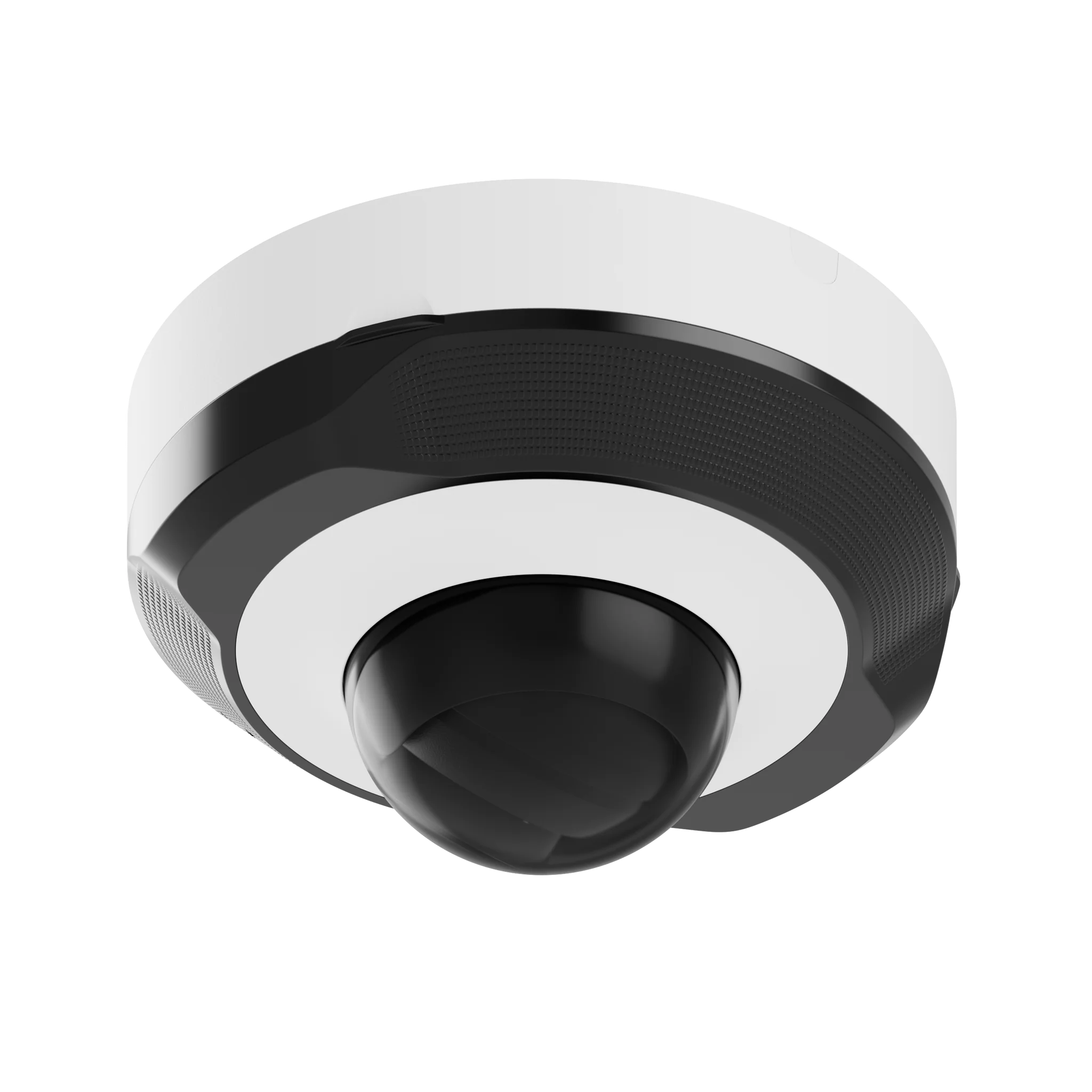

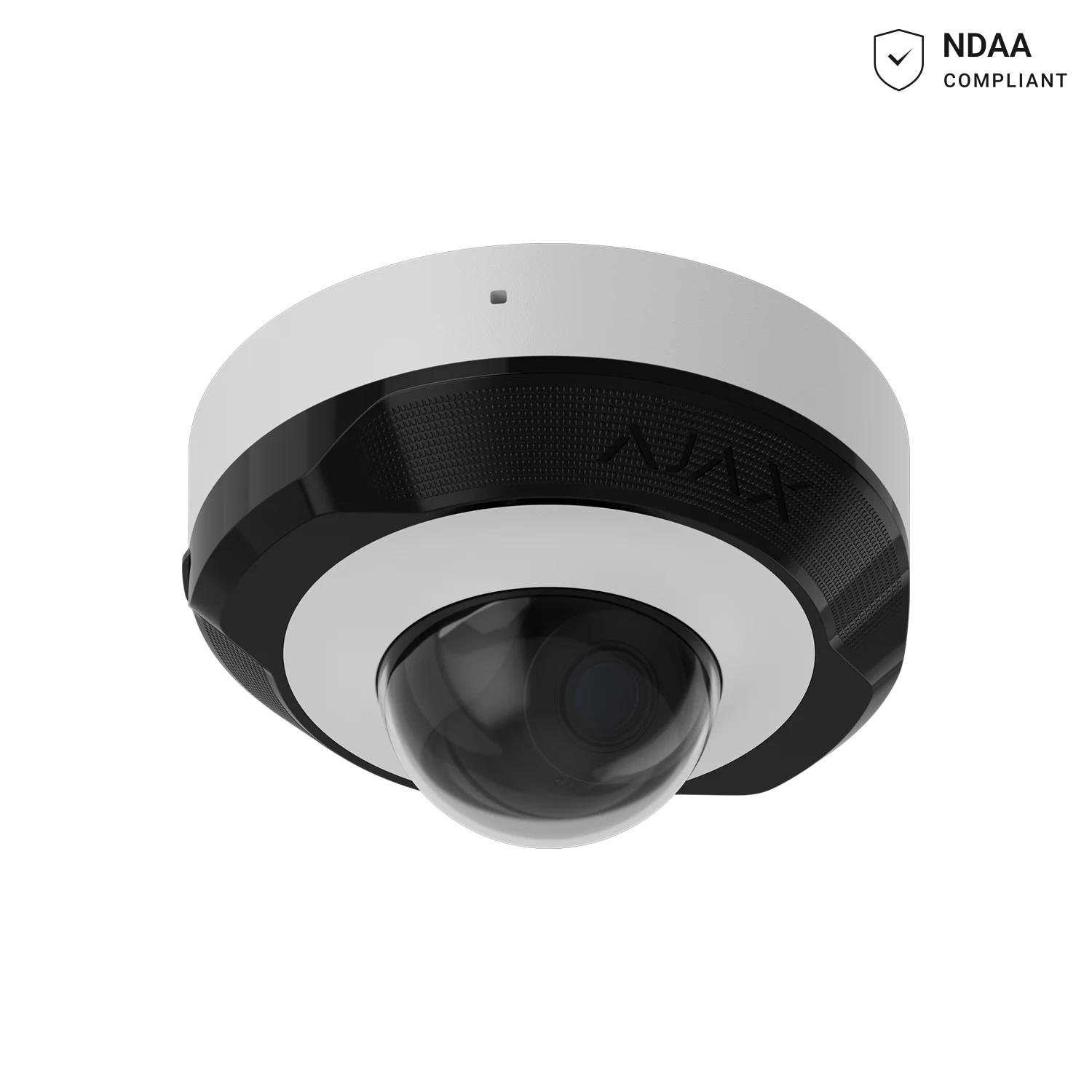

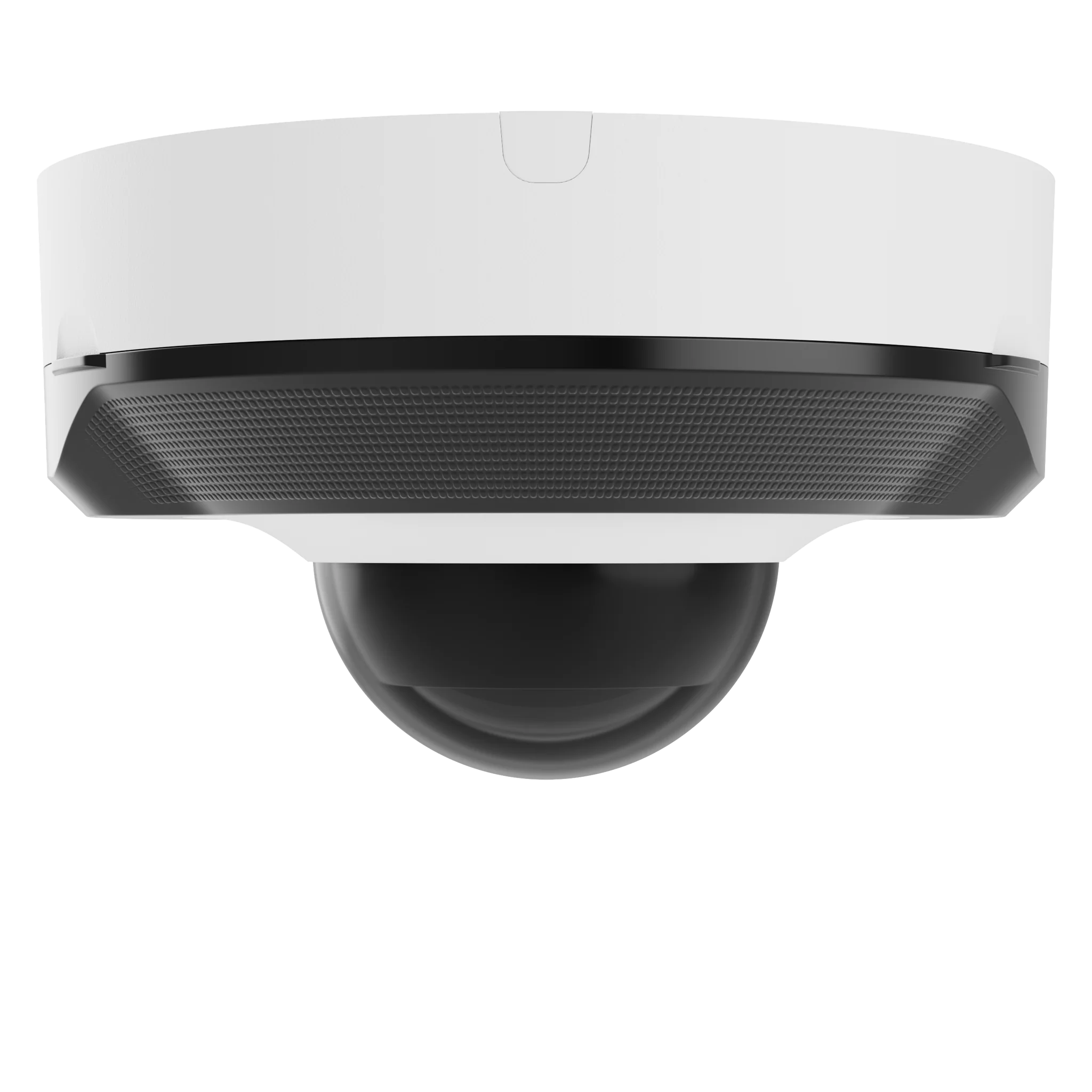

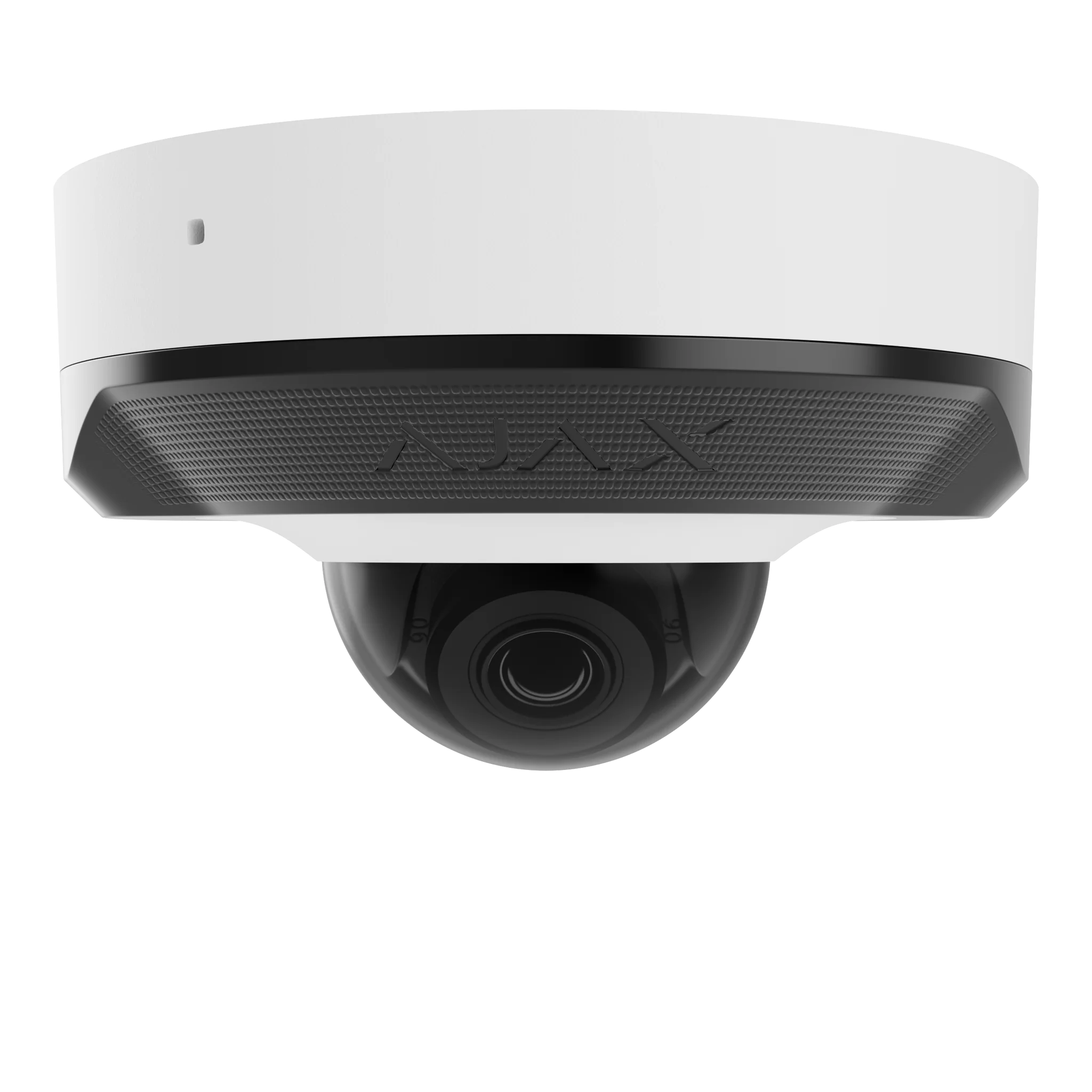

AJAX #76018 DomeCam Mini 5MP 2.8MM White | Wired IP Dome Camera with Wide Angle Dome
The AJAX DomeCam Mini 5MP 2.8MM White is a professional wired outdoor/indoor IP camera with 5MP resolution (2880x1620px), 100-110° viewing angle, True WDR, AI object detection (people, pets, vehicles), smart IR up to 60m, PoE/12V power, built-in microphone, H.264/H.265 codecs, IP65 rated. Perfect for comprehensive video surveillance with JetSparrow protocol and ONVIF support.
📷 Why Dome Form Factor? This 4MM wide-angle-dome model provides a 100-110° viewing angle, ideal for long-range surveillance and recognition tasks. Compared to turret models, the compact dome design offers discreet installation with up to 60m IR range. Choose this version for ceiling/wall mounting, retail spaces, or inconspicuous indoor surveillance.
A$295.00 RRP
SKU: 76018 · In Stock · 5MP IP Dome Camera with AI & 60m IR
IP Camera
Pet Immunity Up to 20kg
Advanced algorithm ignores pets up to 50cm height and 20kg weight, reducing false alarms from household animals.
12m Detection Range
Covers up to 12 meters with configurable sensitivity levels for precise intrusion detection.
5-Year Battery Life
Single CR123A battery operates for up to 5 years, minimizing maintenance and replacement requirements.
Temperature Compensation
Detects motion reliably across operating range from -10°C to +40°C with intelligent thermal sensing.
Professional indoor security for Melbourne: Sipko Security installs and configures AJAX MotionProtect detectors for residential properties, office buildings, retail spaces, and commercial facilities. Get a free quote today.
Key Specifications
Sensor Type
Passive Infrared (PIR) sensor
Detection Range
Up to 12m (at 2.4m height)
Pet Immunity
Up to 20kg / 50cm height
Wireless Protocol
Jeweller (1,700m range)
Battery
1x CR123A (up to 5 years)
Temperature
-10°C to +40°C (with compensation)
Mounting
SmartBracket panel (included)
Core Features
Passive Infrared Sensor: Detects moving objects with temperatures close to human body temperature for reliable intrusion detection
Advanced Pet Immunity: Ignores animals up to 20kg and 50cm height, configurable with 3 sensitivity levels
12-Meter Coverage: Horizontal detection angle of 88.5 degrees, ideal for rooms and entry points
Temperature Compensation: SmartDetect algorithm maintains accuracy across -10°C to +40°C operating range
Jeweller Wireless Protocol: 1,700m communication range with two-way communication, frequency hopping, and block encryption
Long Battery Life: Up to 5 years on single CR123A battery, low battery notifications included
SmartBracket Mounting: Quick installation on vertical surfaces or room corners, includes complete installation kit
Tamper Protection: Detects attempts to detach detector or open enclosure, instant notifications to hub
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | AJAX MotionCam HDR Jeweller (White) |
| Model/SKU | 30655 |
| Type | Wireless indoor PIR Motion Detector with Photo Verification with HDR |
| Sensitive Element | PIR sensor |
| Detection Range | Up to 12m (at 2.4m installation height) |
| Detection Angle | Horizontal: 88.5°, Motion detection speed: 0.3-2 m/s |
| Sensitivity Levels | 3 levels (High, Normal/Default, Low) |
| Pet Immunity | Up to 20kg weight, up to 50cm height (configurable) |
| False Alarm Prevention | SmartDetect software algorithm |
| Temperature Compensation | Effective from -10°C to +40°C |
| Wireless Protocol | Jeweller with two-way communication |
| Communication Range | Up to 1,700m (open space, line-of-sight) |
| Frequency Bands | 866.0-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz (regional) |
| Encryption | AES-128 block encryption with dynamic key |
| Battery Type | 1x CR123A (3V Lithium, pre-installed) |
| Battery Capacity | 1,600 mAh |
| Battery Life | Up to 5 years (calculated with default hub ping interval 3 minutes) |
| Operating Voltage | 2.1-3.3V (3V nominal) |
| Current Consumption | Quiescent: 34.5 μA, Maximum: 61 mA |
| Housing Material | Polycarbonate |
| Color | White |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 86 grams |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | Up to 75% (non-condensing) |
| Protection Class | IP50 |
| Sabotage Protection | Tamper alarm on detachment or enclosure opening |
| Mounting | SmartBracket panel (included) |
| Recommended Height | 2.4 meters |
| Use | Indoor only |
| Warranty | 24 months |
| Complete Set | MotionProtect, SmartBracket panel, CR123A battery (pre-installed), installation kit, quick start guide |
Frequently Asked Questions
AJAX MotionProtect combines advanced pet immunity (up to 20kg), temperature compensation, 5-year battery life, and reliable Jeweller wireless protocol. It’s perfect for Australian homes and businesses seeking professional intrusion detection without false alarms from pets or climate variations.
The detector uses SmartDetect algorithm with configurable sensitivity levels. With proper installation at 2.4m height and correct sensitivity settings (Low for all animals up to 50cm, Medium for small dogs, High for cats), it ignores pets up to 20kg while detecting human intruders.
Up to 12 meters when installed at the recommended 2.4 meters height. The horizontal detection angle is 88.5 degrees, covering typical room areas. Sensitivity is adjustable to customize coverage for your specific layout.
The single CR123A battery operates for up to 5 years with default hub polling (36 seconds). Actual life depends on motion frequency and hub settings. System sends low battery alerts 2 months before depletion, and detector can work for up to 2 months after low battery notification.
Yes. MotionProtect operates from -10°C to +40°C with temperature compensation, handling typical Australian indoor temperatures. It maintains accuracy even during temperature changes and is not affected by air conditioning or heating variations common in Melbourne homes.
Jeweller provides two-way encrypted communication with up to 1,700m range (open space). It uses frequency hopping to prevent jamming, AES-128 block encryption with dynamic keys, and automatic power control. Communication is reliable and secure between detector and hub.
MotionProtect detector, SmartBracket mounting panel, CR123A battery (pre-installed), complete installation kit with screws and fastening materials, and quick start guide. Everything needed for immediate installation.
Yes. Proper placement at 2.4m height, correct sensitivity settings, and Jeweller signal strength testing are crucial for optimal performance. Sipko Security provides professional installation ensuring maximum detection accuracy and minimal false alarms.
AJAX MotionProtect includes 24-month manufacturer warranty (excludes pre-installed battery). Sipko Security provides full warranty support and ongoing technical assistance for Melbourne customers.
Secure Your Home with Professional Motion Detection
The AJAX MotionProtect combines reliable PIR detection, advanced pet immunity, and long battery life for comprehensive indoor security. Perfect for Melbourne homes and businesses seeking professional intrusion detection without false alarms.
