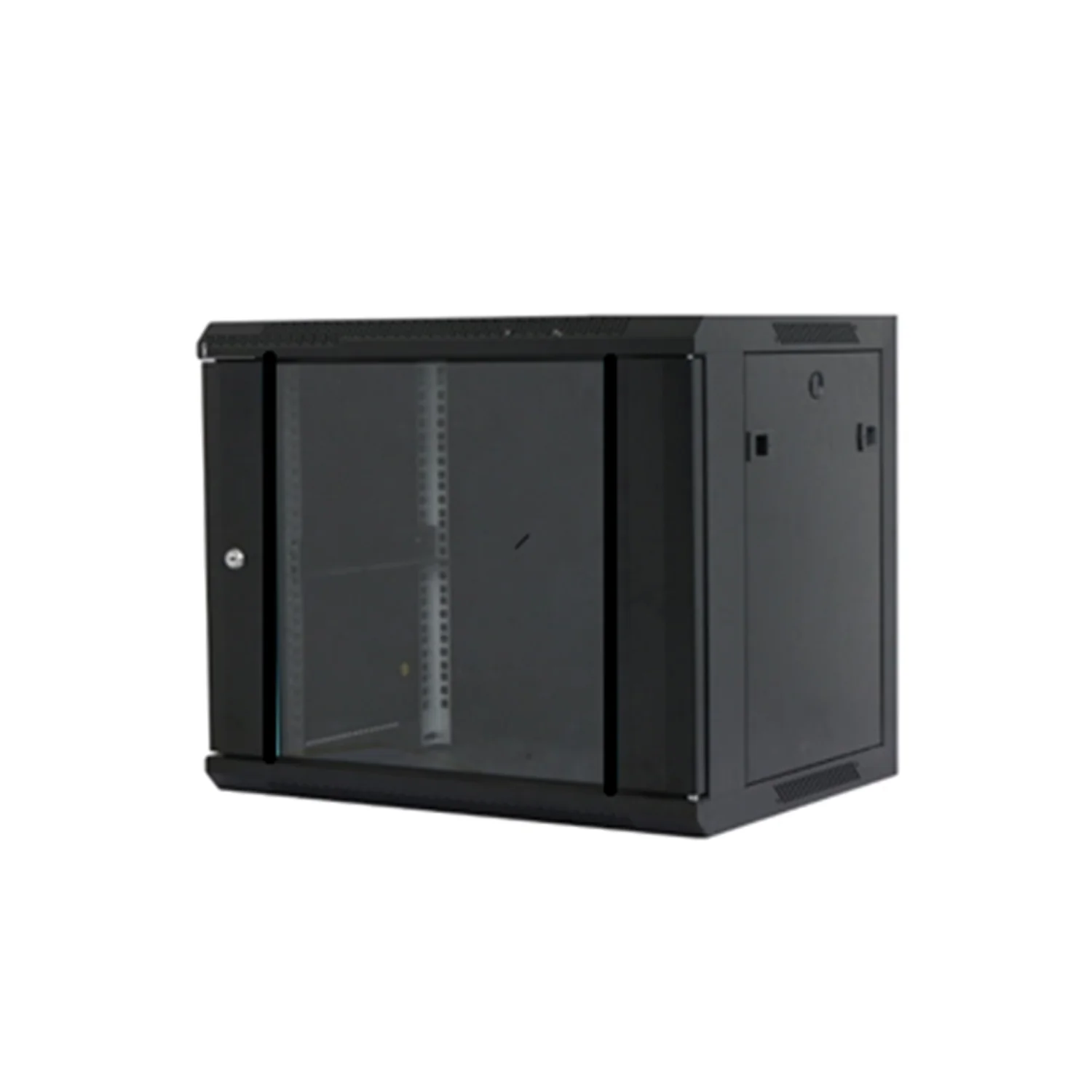

19″ 6RU Wall Mount Cabinet (PA-R645-6)
The PA-R645-6 (Lanberg WF01 series WF01-6406-23B) is a modern, high-precision 19″ 6RU wall mount server rack cabinet designed for secure network and ICT infrastructure. Built from heavy-duty cold-rolled steel with a matte black finish (RAL9004), it supports up to a 60kg static load and features a lockable perforated single-leaf front door, removable side panels, adjustable mounting depth, and dual top vents for optimal cooling.
A$131.00 Incl. GST
Model PA-R645-6 · Self-assembly Flat Pack · Accessories included · Updated 2024
SKU: PA-R645-6
Melbourne installation notes: If you are setting up or expanding a business or home IT network, this 6RU cabinet keeps your switches, patch panels, and routers protected. We provide the complete assembly pack including grounding cables, mounting brackets, M6 screws, and front/side keys. For professional assistance, contact Sipko Security.
Technical Specifications
Product Details
ICT Height
6U / 6RU height capacity
Dimensions
600(W) × 450(D) × 379(H) mm
Working Depth
379.5 mm adjustable depth
Max Static Load
60 kg capacity (wall mounted)
Cooling Vents
2 top panel vents (optional cooling fan kit)
Door & Side Panels
Perforated single front door, removable side panels (keys included)
Cabinet Weight
15 kg net weight
Certifications
Comply with UL, ROHS standards
Core Features & Workmanship
Detailed Breakdown
Premium Perforated Front Door:
Ensures natural air circulation and heat expulsion. The lockable door keeps network gear secure against unauthorised physical tampering.
Heavy Duty Steel Construction:
Manufactured from high-grade cold-rolled steel with sheet thicknesses of 1.5mm for the front door & mounting rails, and 1.2mm for the frames. Finished in durable matte black RAL9004.
Easy Flat Pack Assembly:
Packaged in a robust cardboard box for safe, damage-free transport. Simple step-by-step paper instructions and video guides make self-assembly smooth and quick.
Adjustable Depth of Installation:
Features 4 vertical rails with a working depth of up to 379.5 mm, allowing flexible configuration of server shelves, switches, and cable management tools.
Removable Lockable Side Panels:
Side panels pop off quickly to give easy access for cabling adjustments and equipment maintenance. Separate locks provide absolute security.
Compliant Network Standards:
Designed and constructed to meet ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, and IEC297-2:1982 layout specifications.
Grounding Protection:
Equipped with grounding connection wires on both the bottom steel panel and the front door to prevent static damage to sensitive network components.
Complete Technical Specifications
Data Table
| Specification | Details / Values |
|---|---|
| Type of Cabinet | Wall mount |
| Standard Size | 19-inch width compatibility |
| ICT Height | 6U / 6RU |
| Assembly Type | Self-assembly (Flat Pack) |
| Working Depth | 379.5 mm max |
| Front Door Type | Perforation, single-leaf with lock |
| Maximum Static Load | 60 kg |
| Fan Slots | 2 (optional cooling fan kit) |
| Vertical Rails | 4 rails with adjustable depth |
| Thermostat / LCD | No / No |
| Cabinet Colour | Black (RAL9004) |
| Weatherproof Rating | IP20 (indoor use) |
| Sheet Metal Thickness | Front door: 1.5mm · Rails: 1.5mm · Frame: 1.2mm · Rear door: 1.0mm · Side panel: 1.0mm |
| Dimensions (W x D x H) | 600 mm × 450 mm × 379 mm |
| Cabinet Net Weight | 15 kg |
| Grounding Details | Bottom panel and front door grounding points |
| Included Accessories | Front lock, grounding cable, M6 screws, mounting bracket, assembly elements, side locks, user guide |
| Manufacturer Code / EAN | WF01-6406-23B / 5901969439922 |
| Warranty | 36 months manufacturer warranty |
Frequently Asked Questions
Product FAQ
The PA-R645-6 server rack cabinet is shipped in a “Flat Pack” format for self-assembly. This makes it easy to transport in standard passenger vehicles and allows you full control over the assembly process. Each cabinet includes a step-by-step paper instruction guide and a link to online video setup instructions.
A 6RU height allows you to store up to 6 standard 19-inch rack units. You can mount network switches, patch panels, NVR/DVR units, power distribution boards (PDUs), or modems. With a 379.5 mm working depth, it is ideal for standard-depth networking hardware.
The cabinet includes 2 fan vents in the top panel to promote natural heat convection. Cooling fan kits are sold separately as an optional accessory. If your equipment operates under high-temperature conditions, we recommend installing the optional dual fan kit.
Highly secure. The perforated front door features a robust mechanical key lock. Both removable side panels are equipped with quick-access locks, allowing full access to components only when unlocked. Keys for all locks are included in the package.
The maximum static load capacity is 60 kg when securely wall-mounted. Ensure you mount the cabinet to structural wall studs or brickwork using the supplied mounting bracket and heavy-duty masonry anchors.
Organise Your Network Infrastructure Today
Keep your IT systems cool, organized, and physically secure with the PA-R645-6 6RU Server Rack Cabinet. Contact the Sipko Security Melbourne team to secure your unit or request professional network cabinet installation.
