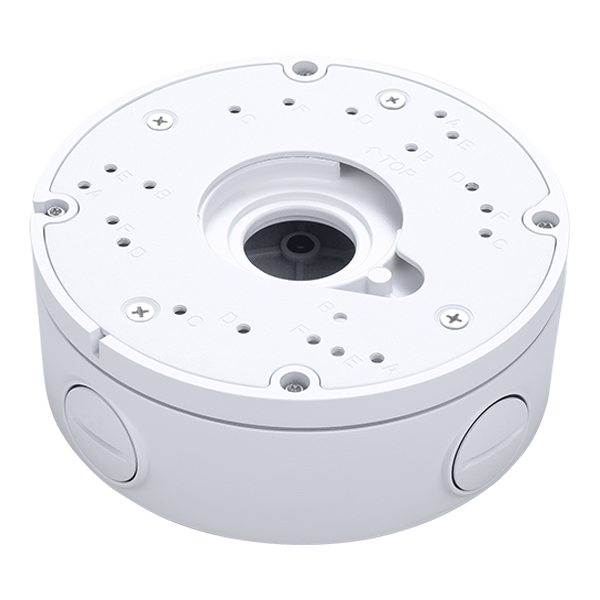

VIVOTEK AM-71H Waterproof Conduit Box
The VIVOTEK AM-71H is a weatherproof aluminium alloy conduit box covering one of the broadest compatibility lists in VIVOTEK’s mounting range, spanning dome, fisheye and panoramic cameras. It has a 3/4″ pipe thread and dual side cable entries, with a distinctive round housing larger than the AM-71D/AM-71E family.
Price on Request
SKU: AM-71H · Waterproof Conduit Box · White
Mounting Accessory
Dual Side Cable Entries
Two knockout points give flexible cable routing options for conduit installation.
3/4″ Thread
Connects through to the supported camera’s mounting point above.
Fisheye and Panoramic Compatible
Alongside dome models, it fits VIVOTEK fisheye (FE93xx series) and panoramic (TB9332-E, TB9333-E, TT9333-E) cameras.
457g, Ø141.8mm
Larger than the AM-71D/71E, sized for the broad range of cameras it supports.
Melbourne installations: Sipko Security supplies and installs VIVOTEK dome, fisheye and panoramic cameras with a concealed conduit finish for outdoor sites. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
3/4″
Dimensions
Ø141.8 x 51 mm, 457g
Core Features
Dual Cable Entries: Two side knockout points for flexible conduit routing
3/4″ Camera Thread: Connects directly through to the supported camera’s mounting point
Aluminium Alloy Construction: Corrosion-resistant white finish for outdoor use
Extensive Compatibility: Supports FD9399-EH(T)V, IT9399-H(T)VW, FD9389-EH(T)V-V3, IT9389-H(T)VW-V3, FD9383-H(T)V, IT9383-H(T)VW, FD9368, FD9380, FD9360, IT9388-HT, IT9380-HTV-V2, FD9389-EH(T)V-V2, TB9332-E, TB9333-E, TT9333-E, FE9380-H, FE9382-EHV-V2, FE9391-EHV-V2 and FE9191-H-V2
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-71H (P/N VIO900000083, V02) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | 3/4″ |
| Dimensions | Ø141.8 x 51 mm |
| Weight | 457g |
| Supported Models | FD9399-EH(T)V, IT9399-H(T)VW, FD9389-EH(T)V-V3, IT9389-H(T)VW-V3 series, FD9383-H(T)V, IT9383-H(T)VW, FD9368, FD9380, FD9360, FD9380-H(T)V-V2, IT9388-HT, IT9380-HTV-V2, FD9389-EH(T)V-V2, TB9332-E, TB9333-E, TT9333-E, FE9380-H, FE9382-EHV-V2, FE9391-EHV-V2, FE9191-H-V2 |
Frequently Asked Questions
Yes. Alongside its dome camera range, the AM-71H supports several VIVOTEK fisheye models, including FE9380-H, FE9382-EHV-V2, FE9391-EHV-V2 and FE9191-H-V2.
These are additional VIVOTEK camera series listed in the AM-71H’s supported models. Confirm your exact camera model number against the compatibility list before ordering.
The AM-71H is larger (141.8mm vs 117mm diameter), has two cable entry points instead of one, and covers a much broader compatibility list spanning dome, fisheye and panoramic cameras rather than a single camera family.
Planning a Concealed Conduit Installation?
Contact Sipko Security to add the AM-71H conduit box to your VIVOTEK dome, fisheye or panoramic camera order, for a clean, concealed cable finish. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
