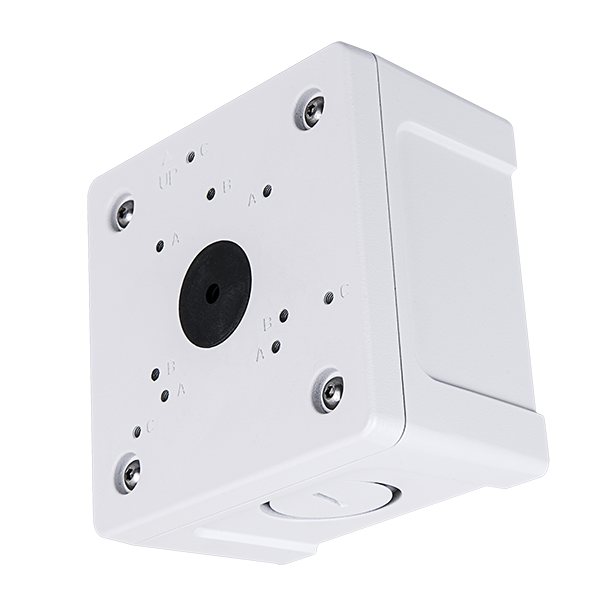

VIVOTEK AM-71C Waterproof Junction Box
The VIVOTEK AM-71C is a square aluminium alloy junction box rated IP66, built for a wide range of VIVOTEK bullet and turret cameras. It has a PF 3/4″ pipe thread and a bottom cable exit, with mounting points that accept pole and corner mount brackets for angled installations.
Price on Request
SKU: AM-71C · Waterproof Junction Box · White
Mounting Accessory
Bottom Cable Exit
Cable routes out through the base rather than the side, differing from the AM-719’s side entry design.
IP66 Weatherproof
Rated for dust and heavy rain protection with the supported camera range.
Pole and Corner Mount Ready
Compatible with pole mount and corner mount brackets for angled or column-mounted installations.
760g, 122 x 122mm
Slightly deeper than the AM-719, at 76mm high versus 63mm.
Melbourne installations: Sipko Security supplies and installs VIVOTEK bullet and turret cameras with the correct waterproof junction box for your site. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Protection Rating
IP66 (with supported cameras)
Dimensions
122 x 122 x 76 mm, 760g
Core Features
Bottom Cable Exit: Routes cable out through the base of the box rather than the side
PF 3/4″ Camera Thread: Connects directly through to the supported camera’s mounting point
Pole and Corner Mount Compatible: Fixing points suit pole and corner brackets for angled installations
Extensive Compatibility: Supports FD9360-H, FD9380-H, FD9380-HV-V2, FD9383-HV, IB9360-H, IB9368-HT, IB9380-H, IB9388-HT, IB9389 series, IB9383-H(T)V, IB9399 series, IB9369, IT9360-H, IT9380-H and IT9380-HV-V2
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-71C (P/N VIO100000404, V02) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | PF 3/4″ |
| Protection Rating | IP66 (with supported cameras) |
| Dimensions | 122 x 122 x 76 mm |
| Weight | 760g |
| Supported Models | FD9360-H, FD9380-H, FD9380-HV-V2, FD9383-HV, IB9360-H, IB9368-HT, IB9380-H, IB9388-HT, IB9389-(E)H, IB9389-(E)HM, IB9389-(E)HT, IB9389-EH(T)-V2, IB9383-H(T)V, IB9399-EHV, IB9399-EHTV, IB9389-EHV-V3, IB9389-EHTV-V3, IB9369, IT9360-H, IT9380-H, IT9380-HV-V2 |
Frequently Asked Questions
Both are square, IP66-rated junction boxes with the same 122 x 122mm footprint, but the AM-71C is slightly deeper (76mm vs 63mm), routes cable through the base rather than the side, and has a different supported camera list. Confirm the exact box against your camera model.
Yes. Alongside its bullet camera range, the AM-71C also supports IT9360-H, IT9380-H and IT9380-HV-V2 turret cameras.
It’s designed to work with pole mount and corner mount brackets, both sold separately, for angled or column-mounted installations.
