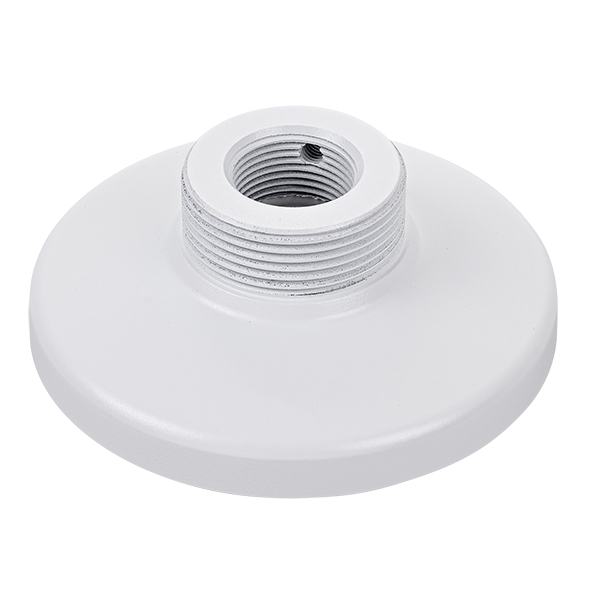

VIVOTEK AM-52E Mounting Adapter for Outdoor Dome
The VIVOTEK AM-52E is an aluminium alloy mounting adapter built for a range of VIVOTEK outdoor dome and turret cameras. It has a 3/4″ NPT female thread that screws onto the camera’s mounting point and a 1-1/2″ PS male thread that connects to pendant pipes, wall mounts and parapet brackets, giving installers a clean way to route cabling through the pipe or bracket.
Price on Request
SKU: AM-52E · Mounting Adapter for Outdoor Dome · White
Mounting Accessory
Aluminium Alloy Build
Corrosion-resistant aluminium construction in a white finish, built for outdoor exposure.
Dual-Thread Connector
3/4″ NPT female to 1-1/2″ PS male, connecting the camera to pendant pipes and parapet brackets.
Also Fits Turret Cameras
Supported models include IT9389-H, IT9389-HT, IT9360-H, IT9380-H and IT9388-HT turret cameras, as well as outdoor domes.
244g, Ø115mm
Mid-sized between the AM-528 and AM-525, matched to its own specific camera range.
Melbourne installations: Sipko Security supplies and installs VIVOTEK outdoor dome and turret cameras with the correct mounting adapter for your ceiling, wall or pole. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
3/4″ NPT female & 1-1/2″ PS male
Dimensions
Ø115 x 41.5 mm, 244g
Core Features
Dual-Thread Design: 3/4″ NPT female connects to the camera, 1-1/2″ PS male connects to pendant pipes, wall mounts or parapet brackets
Aluminium Alloy Construction: Corrosion-resistant white finish built for outdoor mounting
Wide Compatibility: Supports IT9389-H, IT9389-HT, IT9360-H, IT9380-H, IT9388-HT, FD9360-H, FD9380-H, FD9369, FD9383-HV, IT9383-H(T)VW, FD9199-H and FD9189-H-V3
Clean Cable Routing: The through-hole design allows cabling to be routed inside the connected pipe or bracket for a tidy finish
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-52E (P/N 100217700G V01 / 100217701G V02) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | 3/4″ NPT female & 1-1/2″ PS male |
| Dimensions | Ø115 x 41.5 mm |
| Weight | 244g |
| Supported Models | IT9389-H, IT9389-HT, IT9360-H, IT9380-H, IT9388-HT, FD9360-H, FD9380-H, FD9369, FD9383-HV, IT9383-H(T)VW, FD9199-H, FD9189-H-V3 |
Frequently Asked Questions
All three are dome/turret mounting adapters with the same thread type, but sized and specified for different camera families. The AM-52E is 115mm in diameter and covers a range including IT-series turret cameras, while the AM-528 (130mm) and AM-525 (155mm) cover other dome and fisheye model lists. Check your camera’s exact model number against each adapter’s supported models before ordering.
Yes. The AM-52E supports several VIVOTEK IT-series turret cameras (IT9389-H, IT9389-HT, IT9360-H, IT9380-H, IT9388-HT) in addition to outdoor dome models.
No. The AM-52E is the adapter that connects a compatible camera to a separately purchased pendant pipe, wall mount or parapet mount.
