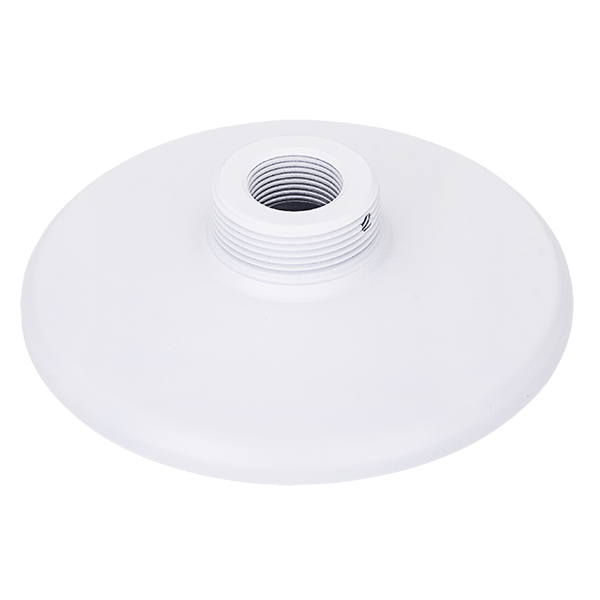

VIVOTEK AM-525 Mounting Adapter for Outdoor Dome
The VIVOTEK AM-525 is a larger aluminium alloy mounting adapter built for VIVOTEK’s outdoor dome and fisheye camera range. It has a 3/4″ NPT female thread that screws onto the camera’s mounting point and a 1-1/2″ PS male thread that connects to pendant pipes, wall mounts and other VIVOTEK mounting brackets, giving installers a clean way to route cabling through the pipe or bracket.
Price on Request
SKU: AM-525 · Mounting Adapter for Outdoor Dome · White
Mounting Accessory
Aluminium Alloy Build
Corrosion-resistant aluminium construction in a white finish, built for outdoor exposure.
Dual-Thread Connector
3/4″ NPT female to 1-1/2″ PS male, connecting the camera to pendant pipes and mounting brackets.
Also Fits Fisheye Cameras
Supported models include several VIVOTEK fisheye cameras (FE9380-HV, FE9382-EHV-V2, FE9391-EHV-V2, FE9191-H-V2) as well as outdoor domes.
320g, Ø155mm
Larger than the AM-528, sized for VIVOTEK’s outdoor dome housings.
Melbourne installations: Sipko Security supplies and installs VIVOTEK outdoor dome and fisheye cameras with the correct mounting adapter for your ceiling, wall or pole. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
3/4″ NPT female & 1-1/2″ PS male
Dimensions
Ø155 x 42 mm, 320g
Core Features
Dual-Thread Design: 3/4″ NPT female connects to the camera, 1-1/2″ PS male connects to pendant pipes, parapet or wall mounts
Aluminium Alloy Construction: Corrosion-resistant white finish built for outdoor mounting
Wide Compatibility: Supports FD836B-EHTV, FD836B-EHVF2, FD836B-HTV, FD836B-HVF2, FD836BA-EHTV, FD836BA-EHVF2, FD836BA-HTV, FD836BA-HVF2, FD8382-ETV, FD8382-EVF2, FD8382-TV, FD8382-VF2, FD9371-EHTV, FD9371-HTV, FD9381-EHTV, FD9381-HTV, MS8392-EV, FD9365-(E)HTV, FD9365-(E)HTV-A, FD9367-(E)H(T)V, FD8377-(E)HTV, FD9387-(E)H(T)V, FD9387-(E)HTV-A, FD9391-EHTV, FE9380-HV, FE9382-EHV-V2, FE9391-EHV-V2 and FE9191-H-V2
Clean Cable Routing: The through-hole design allows cabling to be routed inside the connected pipe or bracket for a tidy finish
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-525 (P/N 100140500G) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | 3/4″ NPT female & 1-1/2″ PS male |
| Dimensions | Ø155 x 42 mm |
| Weight | 320g |
| Supported Models | FD836B-EHTV, FD836B-EHVF2, FD836B-HTV, FD836B-HVF2, FD836BA-EHTV, FD836BA-EHVF2, FD836BA-HTV, FD836BA-HVF2, FD8382-ETV, FD8382-EVF2, FD8382-TV, FD8382-VF2, FD9371-EHTV, FD9371-HTV, FD9381-EHTV, FD9381-HTV, MS8392-EV, FD9365-(E)HTV, FD9365-(E)HTV-A, FD9367-(E)H(T)V, FD8377-(E)HTV, FD9387-(E)H(T)V, FD9387-(E)HTV-A, FD9391-EHTV, FE9380-HV, FE9382-EHV-V2, FE9391-EHV-V2, FE9191-H-V2 |
Frequently Asked Questions
The AM-525 is the larger adapter (155mm diameter), built for VIVOTEK’s outdoor dome and fisheye range. The AM-528 is smaller (130mm diameter) and fits VIVOTEK’s fixed dome cameras. Check your camera’s model number against each adapter’s supported models list before ordering.
Yes. Alongside VIVOTEK’s outdoor dome range, the AM-525 also supports several fisheye models, including FE9380-HV, FE9382-EHV-V2, FE9391-EHV-V2 and FE9191-H-V2.
No. The AM-525 is the adapter that connects a compatible camera to a separately purchased pendant pipe, wall mount or parapet mount.
Fitting a VIVOTEK Outdoor Dome or Fisheye Camera?
Contact Sipko Security to add the AM-525 mounting adapter to your VIVOTEK camera order, or to plan a complete pendant, pole or wall-mounted installation. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
