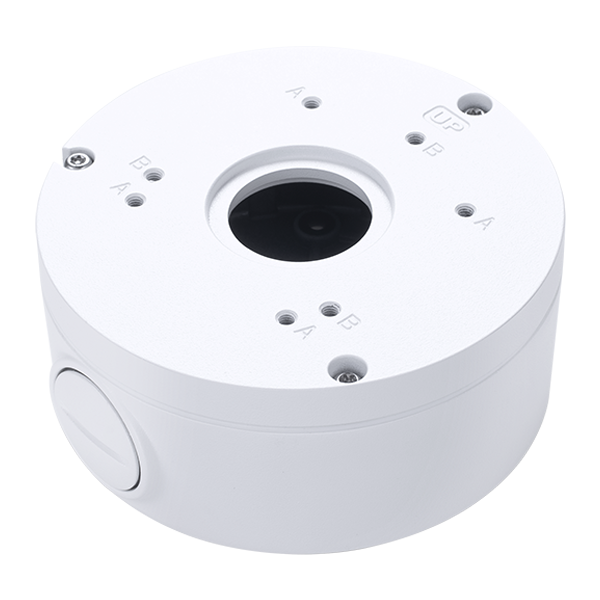

VIVOTEK AM-71K Junction Box
The VIVOTEK AM-71K is a compact aluminium alloy conduit/junction box for a range of VIVOTEK bullet and turret cameras, including IT9380-HV-V2. It has a 3/4″ pipe thread and a single side cable entry, in a smaller, more compact footprint than the AM-71H and AM-719 boxes.
Price on Request
SKU: AM-71K · Junction Box · White
Mounting Accessory
Compact Footprint
At 110mm diameter, the smallest of VIVOTEK’s round conduit/junction boxes.
3/4″ Thread
Connects through to the supported bullet or turret camera’s mounting point.
Bullet and Turret Fit
Supports a range of IB93xx bullet cameras and IT9360/IT9380 turret cameras.
263g, Ø110mm
Light and compact, suited to smaller bullet and turret camera housings.
Melbourne installations: Sipko Security supplies and installs VIVOTEK bullet and turret cameras with the correct junction box for a clean, concealed cable finish. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
3/4″
Dimensions
Ø110 x 48 mm, 263.4g
Core Features
Compact Design: The smallest of VIVOTEK’s round junction/conduit boxes at 110mm diameter
3/4″ Camera Thread: Connects directly through to the supported camera’s mounting point
Aluminium Alloy Construction: Corrosion-resistant white finish for outdoor use
Model Fit: Supports IB9399-EH(T)V, IB9389-EH(T)V-V3, IB9383-H(T)V, IB9368, IB9380, IB9388, IB9360, IT9380, IT9360, IB9389-EH(T)-V2, IB9380-H(T)V-V2 and IT9380-HV-V2
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-71K (P/N VIO900000082) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | 3/4″ |
| Dimensions | Ø110 x 48 mm |
| Weight | 263.4g |
| Supported Models | IB9399-EH(T)V, IB9389-EH(T)V-V3, IB9383-H(T)V, IB9368, IB9380, IB9388, IB9360, IT9380, IT9360, IB9389-EH(T)-V2, IB9380-H(T)V-V2, IT9380-HV-V2 |
Frequently Asked Questions
The AM-71K is the smallest and lightest of VIVOTEK’s round conduit/junction boxes, at 110mm diameter and 263.4g, suited to a specific range of bullet and turret cameras. Confirm your exact camera model against its supported list before ordering.
Yes. It supports IT9360, IT9380 and IT9380-HV-V2 turret cameras alongside its bullet camera range.
VIVOTEK lists IB9399-EH(T)V, IB9389-EH(T)V-V3, IB9383-H(T)V, IB9368, IB9380, IB9388, IB9360, IT9380, IT9360, IB9389-EH(T)-V2, IB9380-H(T)V-V2 and IT9380-HV-V2 as supported models. Confirm your exact camera model before ordering.
Fitting a Compact VIVOTEK Bullet or Turret Camera?
Contact Sipko Security to add the AM-71K junction box to your VIVOTEK camera order, for a clean, concealed cable finish. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
