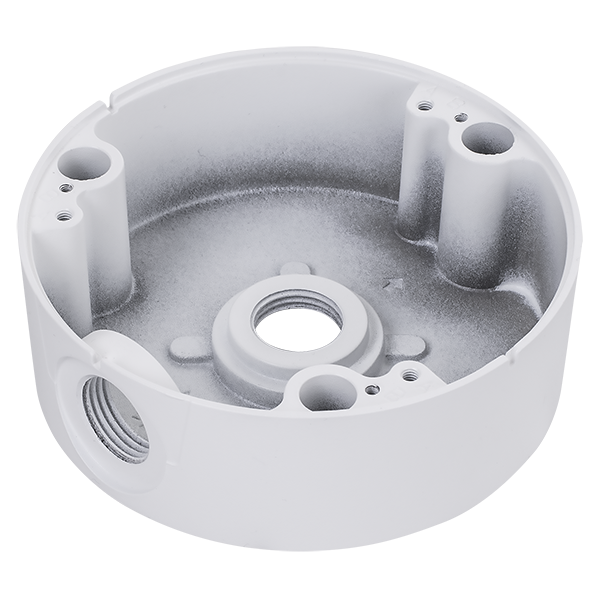

VIVOTEK AM-71D Outdoor Conduit Box
The VIVOTEK AM-71D is an aluminium alloy conduit box that mounts behind select VIVOTEK dome cameras, with side cable entries for running conduit into the wall or ceiling instead of leaving cable exposed. It has a PF 1/2″ pipe thread at the centre to connect through to the camera, and is finished in white to match the camera housing.
Price on Request
SKU: AM-71D · Outdoor Conduit Box · White
Mounting Accessory
Side Cable Entries
Multiple knockout points let cabling enter from the side for a concealed conduit run instead of exposed cable.
PF 1/2″ Thread
Connects through to the camera’s own mounting thread, sitting behind the dome as its base.
Aluminium Alloy Build
Corrosion-resistant white finish, matched to VIVOTEK’s dome camera housings.
240g, Ø117mm
Compact base sized to sit directly behind the supported dome camera models.
Melbourne installations: Sipko Security supplies and installs VIVOTEK dome cameras with a concealed conduit finish where a clean, exposed-cable-free look is required. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
PF 1/2″
Dimensions
Ø117 x 40 mm, 240g
Core Features
Concealed Conduit Wiring: Side entry points let cable run through conduit into the wall or ceiling rather than sitting exposed
PF 1/2″ Camera Thread: Connects directly through to the supported dome camera’s mounting point
Aluminium Alloy Construction: Corrosion-resistant white finish for outdoor use
Specific Model Fit: Supports FD9360-H, FD9380-H, FD9383-HV, FD9380-HV-V2, FD9199-H and FD9189-H-V3
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-71D (P/N 100231900G) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | PF 1/2″ |
| Dimensions | Ø117 x 40 mm |
| Weight | 240g |
| Supported Models | FD9360-H, FD9380-H, FD9383-HV, FD9380-HV-V2, FD9199-H, FD9189-H-V3 |
Frequently Asked Questions
A conduit box like the AM-71D routes cable through a rigid conduit pipe into the wall or ceiling. A junction box is typically used to house cable connections or slack where conduit isn’t run. Both sit behind the dome camera, but for different wiring approaches.
VIVOTEK lists this as a standard outdoor conduit box, not the waterproof-rated version. For a fully waterproof-sealed conduit box, the AM-71B is the correct part.
VIVOTEK lists FD9360-H, FD9380-H, FD9383-HV, FD9380-HV-V2, FD9199-H and FD9189-H-V3 as supported models. Confirm your exact camera model before ordering.
Planning a Concealed Conduit Installation?
Contact Sipko Security to add the AM-71D conduit box to your VIVOTEK dome camera order, for a clean, concealed cable finish. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
