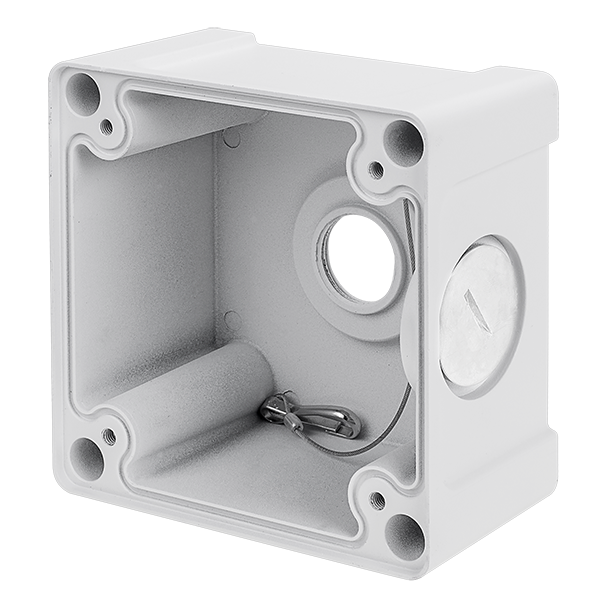

VIVOTEK AM-719 Outdoor Junction Box
The VIVOTEK AM-719 is a square aluminium alloy junction box rated IP66, built for VIVOTEK’s high-end bullet camera range. It has a PF 3/4″ pipe thread and a sealed side cable entry, with mounting points that also accept the AM-218 wall mount, AM-312 pole mount and AM-412 corner mount for a variety of installation angles.
Price on Request
SKU: AM-719 · Outdoor Junction Box · White
Mounting Accessory
Square Housing
A distinct square shape, unlike the round conduit boxes, designed for VIVOTEK’s high-end bullet camera series.
IP66 Weatherproof
A sealed side cable entry protects the internal wiring compartment from dust and heavy rain.
Wall, Pole and Corner Compatible
Mounting points also accept the AM-218 wall mount, AM-312 pole mount and AM-412 corner mount.
550g, 122 x 122mm
A compact square footprint matched to VIVOTEK’s high-end bullet camera bases.
Melbourne installations: Sipko Security supplies and installs VIVOTEK bullet cameras with the correct junction box for your wall, pole or corner mount. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Protection Rating
IP66 (with supported cameras)
Dimensions
122 x 122 x 63 mm, 550g
Core Features
Square, Multi-Bracket Housing: Mounting points accept the AM-218 wall mount, AM-312 pole mount and AM-412 corner mount
PF 3/4″ Camera Thread: Connects directly through to the supported bullet camera’s mounting point
Aluminium Alloy Construction: Corrosion-resistant white finish for outdoor use
High-End Bullet Camera Fit: Supports the IB836B, IB8382, IB9371, IB9381, IB9365, IB9367, IB8377, IB9391 and IB9387 series
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-719 (P/N 100184500G) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | PF 3/4″ |
| Protection Rating | IP66 (with supported cameras) |
| Dimensions | 122 x 122 x 63 mm |
| Weight | 550g |
| Compatible Mounts | AM-218 (wall), AM-312 (pole), AM-412 (corner) |
| Supported Models | IB836B-EHF3, IB836B-EHT, IB836B-HF3, IB836B-HT, IB836BA-EHF3/EHT/HF3/HT, IB8382-EF3/ET/F3/T, IB9371-(E)HT, IB9381-(E)HT, IB9365-(E)HT, IB9365-(E)HT-A, IB9367-(E)H(T), IB8377-(E)HT, IB9391-EHT, IB9387-(E)H(T), IB9387-(E)HT-A |
Frequently Asked Questions
The AM-719 is built specifically for VIVOTEK’s high-end bullet camera series, which use a square mounting base rather than the round base of dome cameras.
Yes. Its mounting points accept the AM-218 wall mount, AM-312 pole mount and AM-412 corner mount, each sold separately.
VIVOTEK lists the IB836B, IB8382, IB9371, IB9381, IB9365, IB9367, IB8377, IB9391 and IB9387 series as supported models. Confirm your exact camera model before ordering.
