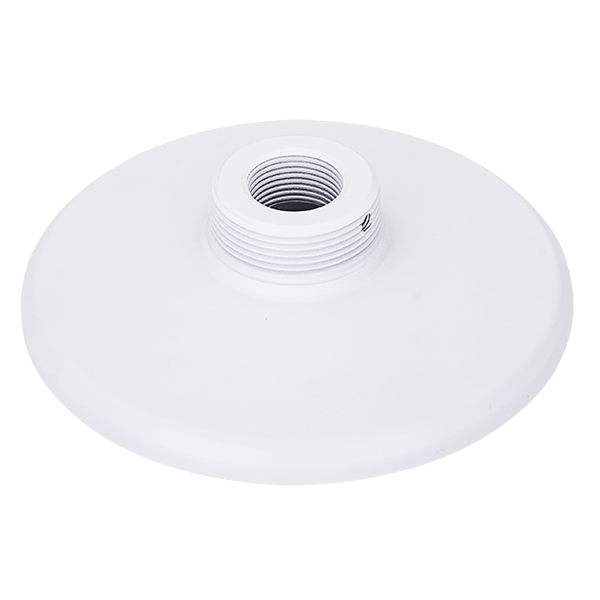

VIVOTEK AM-528 Mounting Adapter for Fixed Dome
The VIVOTEK AM-528 is an aluminium alloy mounting adapter for VIVOTEK fixed dome cameras. It has a 3/4″ NPT female thread that screws onto the camera’s mounting point and a 1-1/2″ PS male thread that connects to pendant pipes, wall mounts and other VIVOTEK mounting brackets, giving installers a clean way to route cabling through the pipe or bracket.
Price on Request
SKU: AM-528 · Mounting Adapter for Fixed Dome · White
Mounting Accessory
Aluminium Alloy Build
Corrosion-resistant aluminium construction in a white finish, suited to outdoor and indoor installs.
Dual-Thread Connector
3/4″ NPT female to 1-1/2″ PS male, connecting the dome camera to pendant pipes and mounting brackets.
Wide Model Compatibility
Fits a broad range of VIVOTEK fixed dome cameras across the FD8xxx and FD9xxx series.
Lightweight, 230g
Compact and light enough for pendant, pole and wall-mounted installations without added strain.
Melbourne installations: Sipko Security supplies and installs VIVOTEK fixed dome cameras with the correct mounting adapter for your ceiling, wall or pole. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
3/4″ NPT female & 1-1/2″ PS male
Dimensions
Ø130 x 42 mm, 230g
Core Features
Dual-Thread Design: 3/4″ NPT female connects to the dome camera, 1-1/2″ PS male connects to pendant pipes, parapet or wall mounts
Aluminium Alloy Construction: Corrosion-resistant white finish suited to both indoor and outdoor mounting
Wide Compatibility: Supports FD8167A, FD8169A, FD8177-H, FD8179-H, FD8367A-V, FD8369A-V, FD8377-HV, FD8379-HV, FD9189-H(M)(T), FD9389-(E)H(M)(T)V, FD9368-HTV, FD9388-HTV, FD9383-HTV, FD9399-EHV, FD9399-EHTV, FD9389-EHV-V3 and FD9389-EHTV-V3
Clean Cable Routing: The through-hole design allows cabling to be routed inside the connected pipe or bracket for a tidy finish
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-528 (P/N 100147800G) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | 3/4″ NPT female & 1-1/2″ PS male |
| Dimensions | Ø130 x 42 mm |
| Weight | 230g |
| Supported Models | FD8167A, FD8169A, FD8177-H, FD8179-H, FD8367A-V, FD8369A-V, FD8377-HV, FD8379-HV, FD9189-H(M)(T), FD9389-(E)H(M)(T)V, FD9368-HTV, FD9388-HTV, FD9383-HTV, FD9399-EHV, FD9399-EHTV, FD9389-EHV-V3, FD9389-EHTV-V3 |
Frequently Asked Questions
The AM-528 is sized for VIVOTEK’s fixed dome cameras (130mm diameter), while the AM-525 is a larger adapter (155mm diameter) built for VIVOTEK’s outdoor dome range. Check your camera’s model number against each adapter’s supported models list before ordering.
No. The AM-528 is the adapter that connects a compatible dome camera to a separately purchased pendant pipe, wall mount or parapet mount.
Yes. The threaded through-hole allows camera cabling to run inside the connected pipe or bracket for a cleaner installation.
Fitting a VIVOTEK Fixed Dome Camera?
Contact Sipko Security to add the AM-528 mounting adapter to your VIVOTEK fixed dome camera order, or to plan a complete pendant, pole or wall-mounted installation. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
