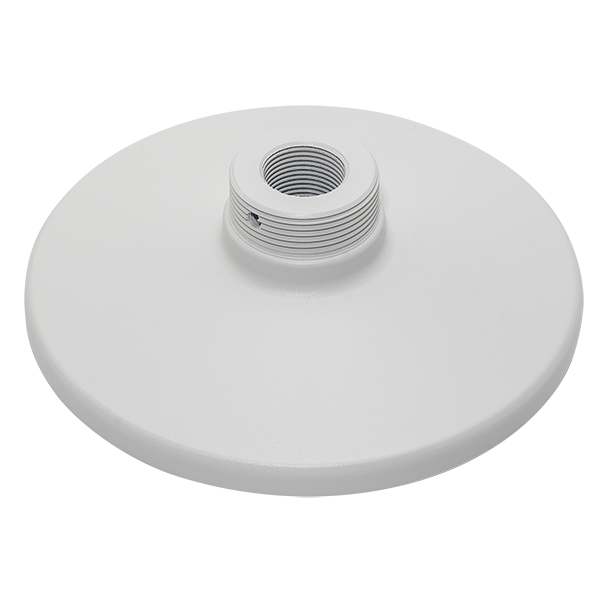

VIVOTEK AM-520 Mounting Adapter
The VIVOTEK AM-520 is a large aluminium alloy mounting adapter covering one of VIVOTEK’s widest dome and fisheye camera compatibility lists, from older FD8xxx models through to current FD9xxx and FE9xxx models. It has a 3/4″ NPT female thread that screws onto the camera’s mounting point and a 1-1/2″ PS male thread that connects to pendant pipes, wall mounts and parapet brackets.
Price on Request
SKU: AM-520 · Mounting Adapter for Dome/Fisheye · White
Mounting Accessory
Widest Compatibility List
Covers dozens of VIVOTEK dome and fisheye models spanning several generations of hardware.
Dual-Thread Connector
3/4″ NPT female to 1-1/2″ PS male, connecting the camera to pendant pipes, wall mounts or parapet brackets.
Aluminium Alloy Build
Corrosion-resistant white finish, suited to both indoor and outdoor installations.
841g, Ø180mm
The largest of VIVOTEK’s dome mounting adapters, suited to bigger dome housings.
Melbourne installations: Sipko Security supplies and installs VIVOTEK dome and fisheye cameras with the correct mounting adapter for your ceiling, wall or pole. Get a free quote today.
Key Specifications
Material
Aluminium alloy, white
Pipe Thread
3/4″ NPT female & 1-1/2″ PS male
Dimensions
Ø180 x 52 mm, 841g
Core Features
Dual-Thread Design: 3/4″ NPT female connects to the camera, 1-1/2″ PS male connects to pendant pipes, wall mounts or parapet brackets
Aluminium Alloy Construction: Corrosion-resistant white finish suited to both indoor and outdoor mounting
Broadest Model Support: Covers a wide range of dome and fisheye cameras including FD8xxx, FD9xxx and FE9xxx series models
Clean Cable Routing: The through-hole design allows cabling to be routed inside the connected pipe or bracket for a tidy finish
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-520 (P/N 900020104G V05) |
| Material | Aluminium alloy |
| Colour | White |
| Pipe Thread | 3/4″ NPT female & 1-1/2″ PS male |
| Dimensions | Ø180 x 52 mm |
| Weight | 841g |
| Supported Models | FD8137H, FD8137HV, FD8138-H, FD8154, FD8154V, FD8155H, FD8164, FD8164V, FD8165H, FD8167, FD8167-T, FD8169, FD816B-HF2, FD816B-HT, FD8171, FD8173-H, FD8181, FD8182-F2, FD8182-T, FD8338-HV, FD8355EHV, FD8362E, FD8365EHV, FD8367-TV, FD8367-V, FD8371EV, FD8373-EHV, FD8381-EV, FD9171-HT, FD9181-HT, FE8174, FE8174V, FE8181, FE8181V, FE8191, FE8391-V, FE9181-H, FE9182-H, FE9381-EHV, FE9382-EHV, FE9191, FE9391-EV, FE9582-EHNV, FD9167-HT-V2, FD9367-EHTV-V2, FD9187-HT-V3, FD9387-EHTV-V3, FD9365-EHTV-V2, FD9391-EHTV-V2 |
Frequently Asked Questions
The AM-520 is the largest of the four dome adapters at 180mm diameter, and covers the broadest range of VIVOTEK camera models, including several older FD8xxx series units. Always check your exact camera model number against each adapter’s supported models list before ordering.
No. The AM-520 is the adapter that connects a compatible camera to a separately purchased pendant pipe, wall mount or parapet mount.
The AM-520’s supported models list includes a number of legacy FD8xxx series cameras alongside current FD9xxx and FE9xxx models, so it’s a common fit for older installations. Confirm your exact model against the supported list before ordering.
Fitting a VIVOTEK Dome or Fisheye Camera?
Contact Sipko Security to add the AM-520 mounting adapter to your VIVOTEK camera order, or to plan a complete pendant, pole or wall-mounted installation. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
