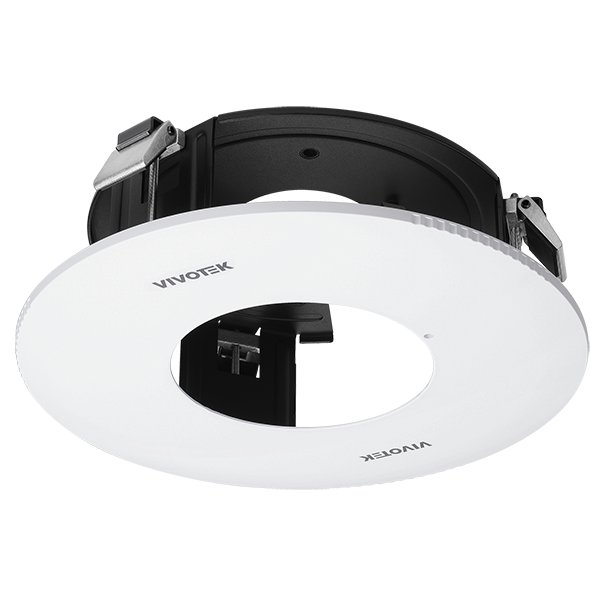

VIVOTEK AM-10H Recessed Kit
The VIVOTEK AM-10H is a ceiling recessed mounting kit for select VIVOTEK dome cameras. It uses a steel spring-clip bracket that grips into a ceiling tile or plasterboard cutout, with a white polycarbonate trim ring finishing flush against the ceiling for a clean, low-profile look, similar to a downlight fitting.
Price on Request
SKU: AM-10H · Recessed Kit · White
Mounting Accessory
Spring-Clip Ceiling Fit
SECC steel bracket with spring clips grips into a ceiling tile or plasterboard cutout without visible screws.
Flush, Downlight-Style Finish
The white polycarbonate trim ring sits flush against the ceiling, discreet in offices, retail and hospitality fitouts.
Steel and Polycarbonate Build
An SECC steel bracket for strength paired with a durable polycarbonate cover ring.
1180g, Ø255mm
Sized to suit a genuine ceiling cutout installation, not a surface-mounted dome housing.
Melbourne installations: Sipko Security supplies and installs VIVOTEK dome cameras with a flush recessed ceiling finish where suited to the site. Get a free quote today.
Key Specifications
Material
SECC steel bracket, polycarbonate cover, white
Mounting
Ceiling recessed, spring-clip fixings
Dimensions
Ø255 x 82.4 mm, 1180g
Core Features
Spring-Clip Fixing: Grips into a ceiling tile or plasterboard cutout, similar to how a downlight is fitted
Steel and Polycarbonate Construction: SECC steel bracket for strength, polycarbonate trim ring for a clean finish
Specific Model Fit: Supports FD9167-HT-V2, FD9367-EHTV-V2, FD9187-HT-V3, FD9387-EHTV-V3, FD9365-EHTV-V2 and FD9391-EHTV-V2
Discreet Indoor Finish: Suits offices, retail and hospitality fitouts where a flush ceiling look is preferred over a surface-mounted dome
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-10H (P/N VIO900073500) |
| Material | Bracket: SECC steel; Cover: polycarbonate |
| Colour | White |
| Mounting Type | Ceiling recessed, spring-clip fixings |
| Dimensions | Ø255 x 82.4 mm |
| Weight | 1180g |
| Supported Models | FD9167-HT-V2, FD9367-EHTV-V2, FD9187-HT-V3, FD9387-EHTV-V3, FD9365-EHTV-V2, FD9391-EHTV-V2 |
Frequently Asked Questions
No. Adapters like the AM-520 or AM-528 connect a surface-mounted dome to a pipe or bracket. The AM-10H instead recesses the camera into a ceiling tile or plasterboard cutout for a flush, downlight-style finish.
Its spring-clip fixing is designed for ceiling tiles and plasterboard cutouts, similar to a downlight installation. It is intended for indoor use.
VIVOTEK lists FD9167-HT-V2, FD9367-EHTV-V2, FD9187-HT-V3, FD9387-EHTV-V3, FD9365-EHTV-V2 and FD9391-EHTV-V2 as supported models. Confirm your exact camera model before ordering.
Want a Flush, Recessed Camera Finish?
Contact Sipko Security to add the AM-10H recessed kit to your VIVOTEK dome camera order, ideal for offices, retail and hospitality fitouts. We provide complete design, installation, and ongoing support for VIVOTEK camera systems across Melbourne and regional Victoria.
