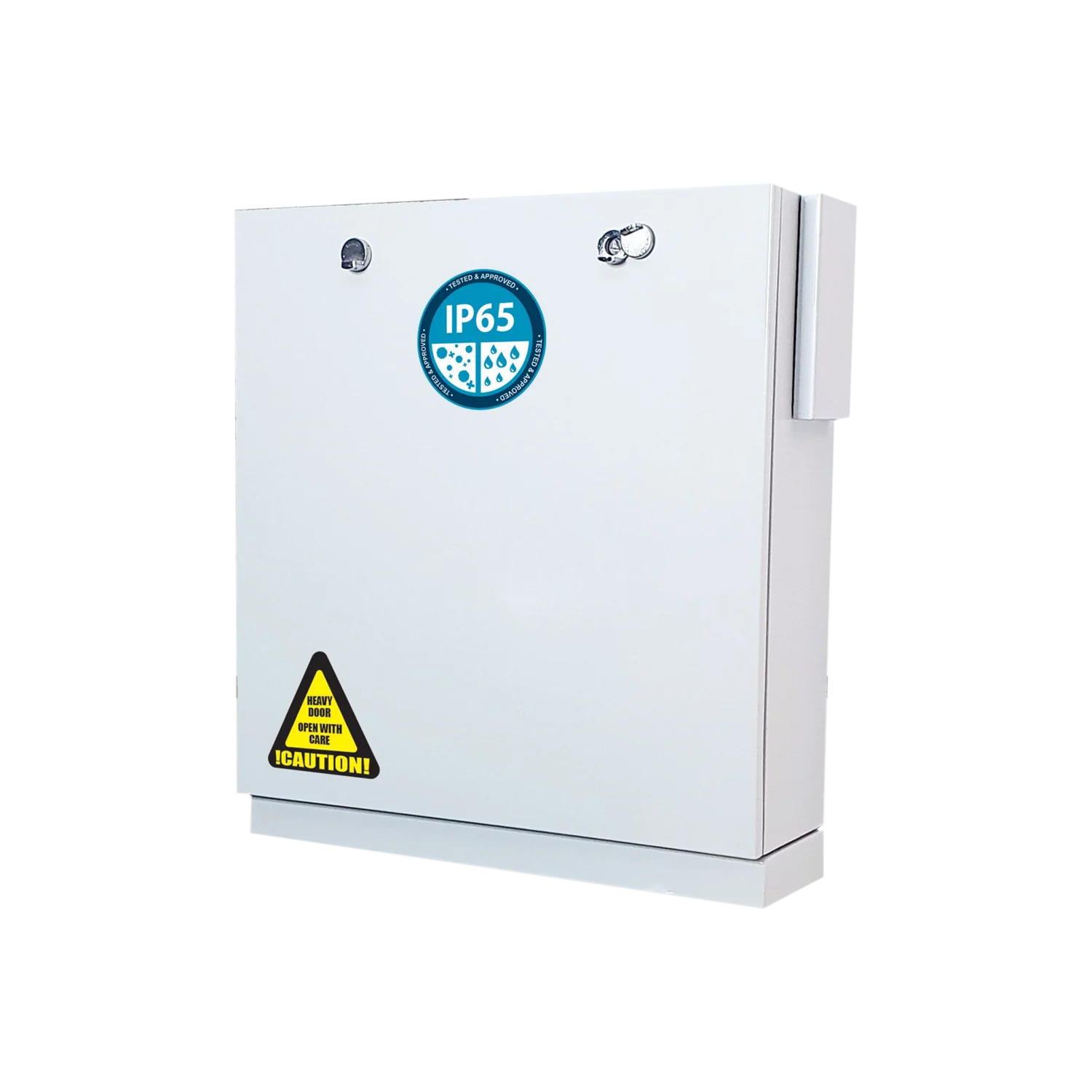

Outdoor Security Cabinet (PA-WMCAB-W)
The PA-WMCAB-W is a professional IP65-rated outdoor security cabinet for vertically wall-mounting your CCTV, alarm, and access control systems. Built from quality cold-rolled powder-coated steel, it fits 2RU equipment (230–490mm adjustable width, 450mm depth) and supports a 24” widescreen monitor. It features an IP68 temperature-controlled extractor fan, a 4-outlet SAA PDU, dual locks, and compartmentalised cable management for both dry and wet environments.
A$599.00 Incl. GST
Model PA-WMCAB-W · NVR/DVR and monitor not included · Updated 2024
SKU: PA-WMCAB-W
Melbourne installation note: The PA-WMCAB-W is designed for outdoor installations where moisture, dust, and temperature swings are a concern. Ideal for car parks, driveways, building exteriors, and industrial sites. Contact Sipko Security for a site assessment or to confirm compatibility with your NVR and monitor.
Technical Specifications
Complete Specifications
IP Rating
IP65 cabinet body — suitable for outdoor and harsh environments
Dimensions
Closed: 650H × 585W × 185D mm
Open: 650 × 585 × 760 mm
Open: 650 × 585 × 760 mm
Equipment Capacity
2RU · 230–490mm adjustable width · 450mm depth
Monitor
Up to 24” Widescreen · VESA 75/100 Quick-clip brackets
Ventilation
IP68 fan 120×120×25mm · On @40°C · Off @25°C · Air filter included
Power
4-outlet SAA approved PDU
Load Capacity
Wall mount: 30kg · Hinged shelf: 10kg
Weight
17kg (18.5kg with packaging)
Key Features
Feature Highlights
IP65 Outdoor Rated: Dust-tight and water-resistant for permanent outdoor installations across Melbourne’s varied climate.
Vertically Wall-Mounted: Space-efficient vertical mount for CCTV NVRs, alarm panels, and access control hardware with 2RU adjustable bay.

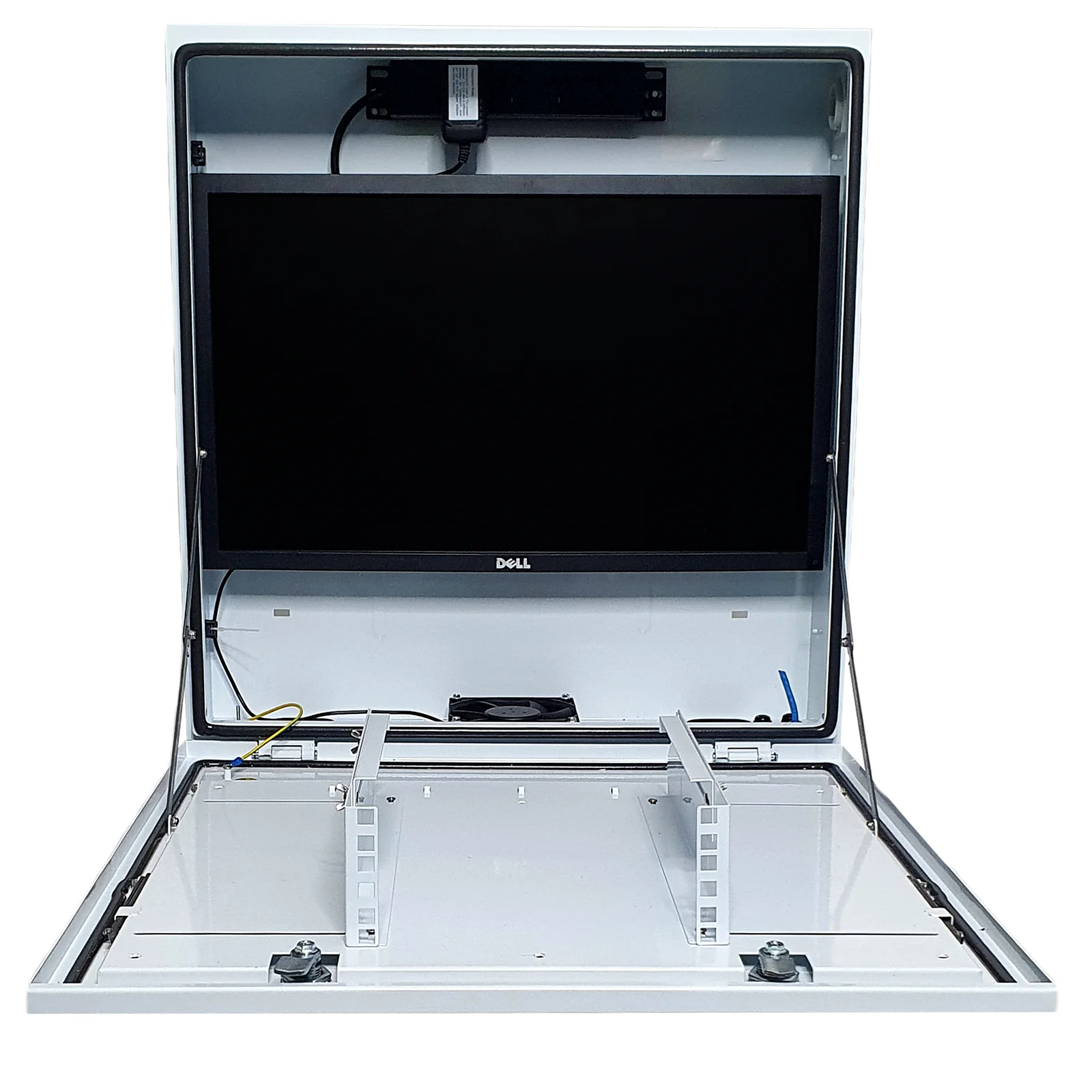

24” Monitor Support: VESA 75/100 two-part quick-clip brackets. Monitor must have downward-facing connectors for correct installation.
Temperature-Controlled IP68 Fan: Side-draught intake with an IP68-rated 120×120×25mm extractor. Auto on at 40°C, off at 25°C with air filter.
4-Outlet SAA PDU: SAA approved power distribution unit with adequate outlets for NVR, monitor, and peripheral devices.

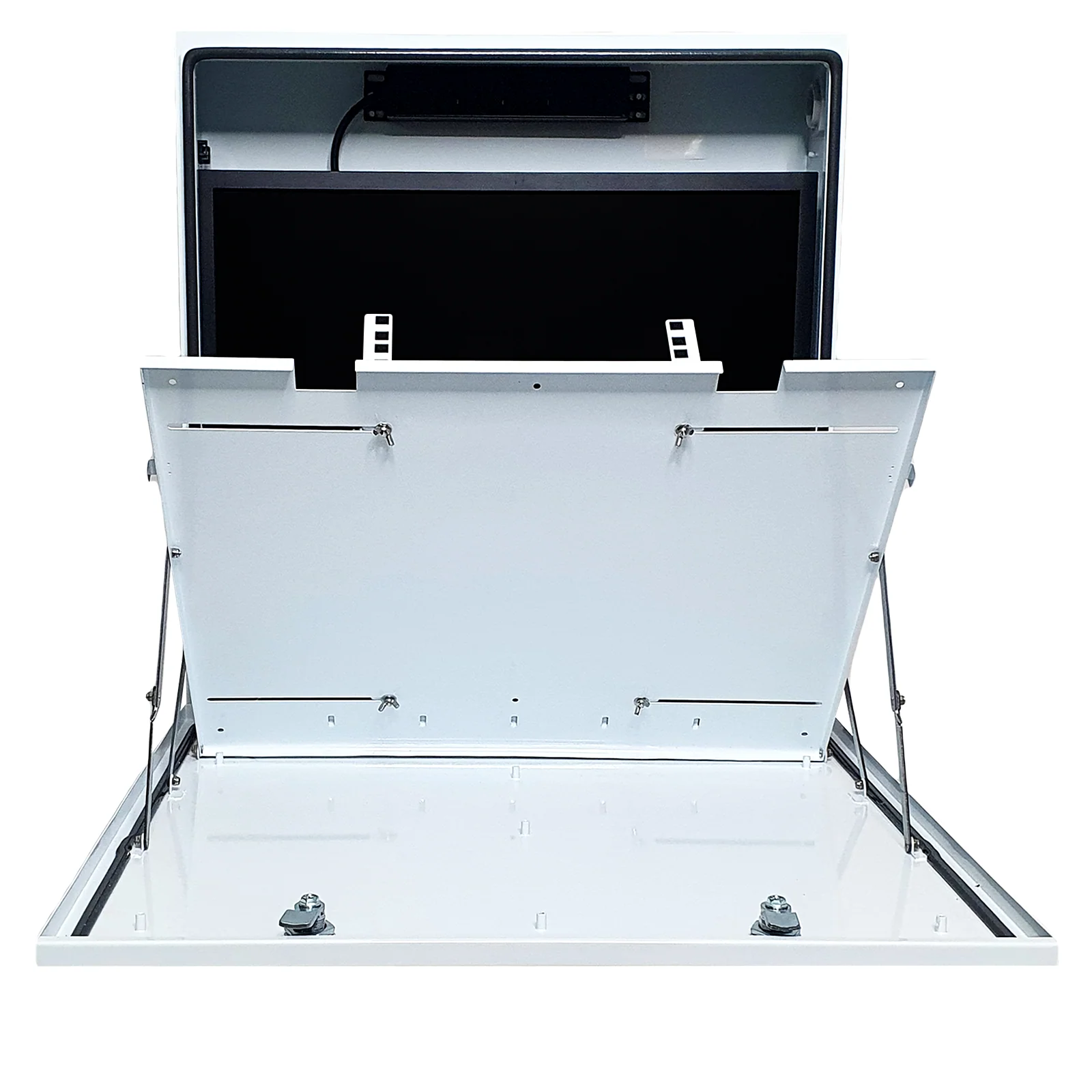

Dual Cabinet Locks: Two front-door locks for physical security. Adjustable NVR base and quick-clip monitor bracket included.
Dry Compartment Cable Entry: 2×24 12mm knockouts for M12 IP68 glands plus 2 oval rubber-sealed cut-outs.
Wet Compartment Cable Entry: 2×4 circular knockouts (2×25mm / 1×40mm / 1×50mm) suited to PVC screw adapters for conduit runs.
Hinged Shelf: Multi-purpose hinged shelf for custom applications — store batteries, modems, or additional hardware.
Full Tech Specs
Complete Data
| Specification | Value |
|---|---|
| IP Rating | IP65 |
| Dimensions (Closed) | 650H × 585W × 185D mm |
| Dimensions (Open) | 650 × 585 × 760 mm |
| Load Capacity – Wall Mount | 30kg |
| Load Capacity – Hinged Shelf | 10kg |
| Weight | 17kg (18.5kg with packaging) |
| Material | Quality cold rolled steel, powder coated |
| Equipment Capacity | 2RU · 230–490mm adjustable width · 450mm depth |
| Monitor Support | Up to 24” Widescreen |
| VESA Mount | 75/100 – 2-part quick-clip monitor brackets |
| Wall Mount Points | 4 × mounting points |
| Wall Mount Pattern (W × H) | 440 × 353 mm |
| Power | 4-outlet SAA PDU |
| Ventilation Fan | IP68 · 120×120×25mm · On @40°C / Off @25°C |
| Cabinet Lock | 2× locks on front door |
| Cable Mgmt – Dry | 2×24 12mm knockouts (M12 IP68 gland) + 2 oval rubber sealed cut-outs |
| Cable Mgmt – Wet | 2×4 circular knockouts: 2×25mm / 1×40mm / 1×50mm (PVC screw adapters) |
| Hinged Shelf | Multiple use – custom applications |
| SKU | PA-WMCAB-W |
| Vendor | Power Automatix |
Frequently Asked Questions
Common Questions
The cabinet is IP65 rated — fully dust-tight and protected against low-pressure water jets from any direction. This makes it suitable for permanent outdoor installations on building exteriors, under eaves, in car parks, and other exposed locations.
No. The PA-WMCAB-W is sold as an empty enclosure. You supply your own NVR/DVR (up to 2RU) and 24” monitor with downward-facing connectors. The cabinet includes all brackets, PDU, fan, and cable management hardware.
The IP68-rated 120×120×25mm extractor fan is thermostatically controlled. It switches on automatically when the internal temperature reaches 40°C and shuts off when it drops to 25°C. Side-draught air intake with a filter prevents dust build-up on hot days.
Any widescreen monitor up to 24” with VESA 75 or 100mm mounting holes is compatible. The monitor must have downward-facing connectors (HDMI, DisplayPort, power) so cables can route neatly through the cabinet. Check your monitor specs before ordering.
The dry compartment uses 12mm knockouts with M12 IP68 glands for sealed low-voltage signal cables. The wet compartment uses larger circular knockouts (25mm, 40mm, 50mm) suited to PVC conduit screw adapters for power cables and larger conduit runs.
The cabinet uses 4 wall mounting points on a 440×353mm pattern. Always fix to structural wall studs or use appropriate masonry anchors rated to at least 30kg. Professional installation is recommended for outdoor locations.
