Hikvision KIT-PHA64 AX Hybrid Kit – 1x Keypad, 1x Siren Strobe, 3x PIR Detector
The Hikvision KIT-PHA64 AX Hybrid Kit gives you a complete, professional‑grade security foundation. Includes the powerful PHA64‑LP/NP AX Hybrid Pro Control Panel, a wired LCD keypad, an outdoor siren/strobe, and three pet‑immune PIR detectors with EOLR.
Expandable to 64 zones and 32 areas, it supports wired and wireless devices (optional 3G/4G/GPRS), remote management via iVMS‑4200 / Hik‑Partner Pro, and professional ARC reporting (ADM‑CID/SIA‑DCS).
SKU: KIT-PHA64
A$465.30 +GST
A$517.00 ex GST · 3 Year Warranty & Support
Contact SIPKO
64 Zones / 32 Areas
8 on‑board zones, expandable via Speed‑X bus. Perfect for growing properties.
Pet Immune PIR (x3)
PDP18‑EG2 detectors ignore pets up to ~25kg, reduce false alarms.
Hybrid Flexibility
Wired + wireless (Wi‑Fi / 3G/4G optional). Supports up to 64 keyfobs, 8 keypads.
36h battery backup
12V 7Ah battery included. Keeps system alive during power outages.
Melbourne professional installation matters: We configure zones, pet‑immune sensitivity, mobile app access (Hik‑Partner Pro) and ARC communication so your system is reliable from day one. For advice on expansion or integration with CCTV, use the contact page.
SEO Keywords:
Hikvision KIT-PHA64
· Hybrid alarm kit · PHA64-LP/NP · pet immune PIR · LCD keypad · outdoor siren strobe · 64 zone alarm · Melbourne security installation
Technical Specifications – Hikvision KIT-PHA64
Quick‑Read Specs
Zones / Areas
64 zones (8 on‑board), 32 areas
Pet Immune PIR
3x PDP18‑EG2, EOLR supported, immune up to ~25kg
Communication
Ethernet, optional 3G/4G/GPRS, Wi‑Fi 2.4GHz, ISAPI, Cloud P2P, DC‑09, CSV‑IP, ISUP 5.0
Battery backup
12V 7Ah lead acid (included) · up to 36h standby
Expansion
Up to 64 tags, 64 keyfobs, 8 keypads, 16 wireless sounders
Power outputs
Bell: 12V 1.2A · AUX: 12V 1.5A
Keypad included
PK1‑LRT‑HWB wired LCD keypad
Dimensions (panel)
261 × 199 × 86.4 mm · 997 g
Detailed specifications
| Category | Detail |
|---|---|
| Software features | Zones: 64 (8 on‑board) · Area: 32 · Users: installer(1), admin(1), operator(62) · SMS notification (with 3G/4G) · ARC: ISAPI, Cloud P2P, DC‑09 (ADM‑CID/SIA‑DCS), CSV‑IP, ISUP · EOL: 1K,2.2K,4.7K,5.6K,6.8K,8.2K |
| Hardware features | Alarm input: 64 · Alarm output: 64 (2 on‑board relay, 2 I/O) · Power out: Bell 12V 1.2A, AUX 12V 1.5A · Optional 3G/4G/GPRS · Wi‑Fi 802.11b/g/n · 1x Speed‑X bus · 1x wired sounder output · Dual tamper |
| Electrical | Input: 100‑240VAC · Consumption (220V) with alarm: 2A/32W, standby: 250mA/4W · Battery: 12V 7Ah (included) · Battery life: up to 36h |
| General | Operating temp: -10°C to 40°C · Humidity: 10%‑90% · Material: plastic · Colour: white · Panel weight: 997g |

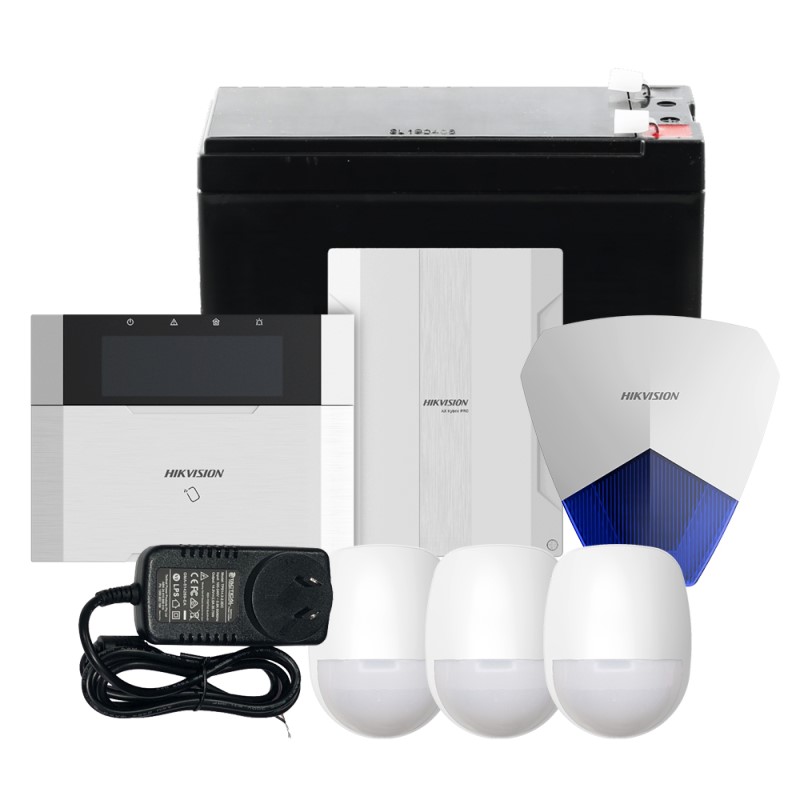

| Kit includes | 1x PHA64‑LP/NP panel, 1x PK1‑LRT‑HWB keypad, 1x PS1‑B outdoor siren strobe, 3x PDP18‑EG2 PIR (pet immune, EOLR), 1x power supply, 1x 12V 7Ah battery, 3‑year warranty |
Installer note: Speed‑X bus supports long cable runs. EOL resistors can be set via software (multiple values supported). For dual‑path reporting (IP + 4G) we recommend fitting the optional 3G/4G module.
Key features – why choose this hybrid kit?
Pet immune · 64 zones
1Complete all‑in‑one kit
Control panel, keypad, siren, 3x PIR – everything to start securing your property immediately.
2Pet immune PIR detectors
PDP18‑EG2 ignores pets up to ~25kg, reducing false alarms while maintaining intrusion detection.
3Hybrid flexibility
Mix wired (8 on‑board) with wireless devices (up to 64 zones total). Add keyfobs, tags, wireless sounders.
4Remote management
Control via iVMS‑4200, web client or Hik‑Partner Pro app. Arm/disarm, receive alerts, view status.
5Multiple communication paths
Ethernet primary, optional 3G/4G/GPRS for redundancy. Supports ARC protocols (ADM‑CID, SIA‑DCS).
6Powerful expandability
Up to 64 tags, 64 keyfobs, 8 keypads, 16 wireless sounders – scales with your needs.
736h battery backup
12V 7Ah battery included – keeps system running during power cuts.
8Professional monitoring ready
DC‑09 protocol allows direct connection to Alarm Receiving Centres (ARC) for 24/7 monitoring.
What is a hybrid alarm system?
wired + wireless
Hybrid means you can connect both wired detectors (like the included PIRs) and wireless devices (keyfobs, wireless PIRs, door contacts) to the same control panel. The KIT‑PHA64 gives you 8 on‑board wired zones plus a Speed‑X bus for more wired devices, and supports optional radio modules for up to 64 wireless zones. Best of both worlds: reliability of wired, convenience of wireless expansion.
Ideal Melbourne applications
homes · offices · shops
1Family homes
Pet immune PIRs for living areas, keypad near entry, siren for external deterrence.
2Small offices / clinics
Zone areas separately (reception, offices, store). Operator codes for staff.
3Retail shops / cafes
Protect stockrooms and entries. Optional 4G for dual‑path reporting.
4Warehouses / sheds
Use wired PIRs on Speed‑X bus; add wireless keyfobs for staff.
Request your Melbourne installation quote
Melbourne service
Tell us about your property (home, office, shop), number of rooms/entry points, any pets, and whether you need ARC monitoring. We’ll recommend placement, expansion options (wireless keyfobs, extra PIRs) and provide a fixed quote. Prefer to talk? Use our contact page.
Frequently asked questions – Hikvision KIT-PHA64
alarm kit FAQ
It’s a hybrid kit: the included keypad, PIRs and siren are wired, but the PHA64 panel supports wireless expansion (keyfobs, wireless detectors) via optional Wi‑Fi/3G/4G modules. You can mix both.
The PDP18‑EG2 detectors are engineered to ignore pets up to approximately 25kg. They still detect human intruders, drastically reducing false alarms from cats or dogs.
Yes. Use the free Hik‑Partner Pro app (or iVMS‑4200) to arm/disarm, receive push notifications, and check system status remotely. We set this up during installation.
Absolutely. The panel supports DC‑09 (ADM‑CID / SIA‑DCS) over IP or optional 3G/4G, so it can communicate with Alarm Receiving Centres for professional monitoring.
The kit includes a 12V 7Ah backup battery. It keeps the system running for up to 36 hours. If you have an optional 4G module, alarm signals still get through.
The PHA64 panel supports up to 64 zones total. You have 8 on‑board wired zones, and the rest can be added via the Speed‑X bus (wired) or wireless receivers.
Yes. You can create up to 62 operator codes and enrol up to 64 wireless keyfobs, each with different permission levels (arm/disarm specific areas).
We strongly recommend professional installation to ensure correct zoning, EOL termination, and communication setup. Our Melbourne team handles the whole process.
The kit includes a 3‑year warranty and local Melbourne support. We also offer post‑installation tuning and assistance.
Yes. The panel can integrate with Hikvision CCTV systems via ISAPI. For example, alarm events can trigger camera recording or vice versa. We can design a combined system.
Price & kit contents
A$517.00 +GST
Hikvision KIT-PHA64 AX Hybrid Kit – A$517.00 +GST (A$465.30 ex GST). Includes: PHA64‑LP/NP control panel, PK1‑LRT‑HWB wired LCD keypad, PS1‑B outdoor siren strobe, 3x PDP18‑EG2 pet immune PIR detectors (with EOLR), power supply, 12V 7Ah battery, and full 3‑year warranty & support. For a customised quote with installation, use the form above or contact us.
