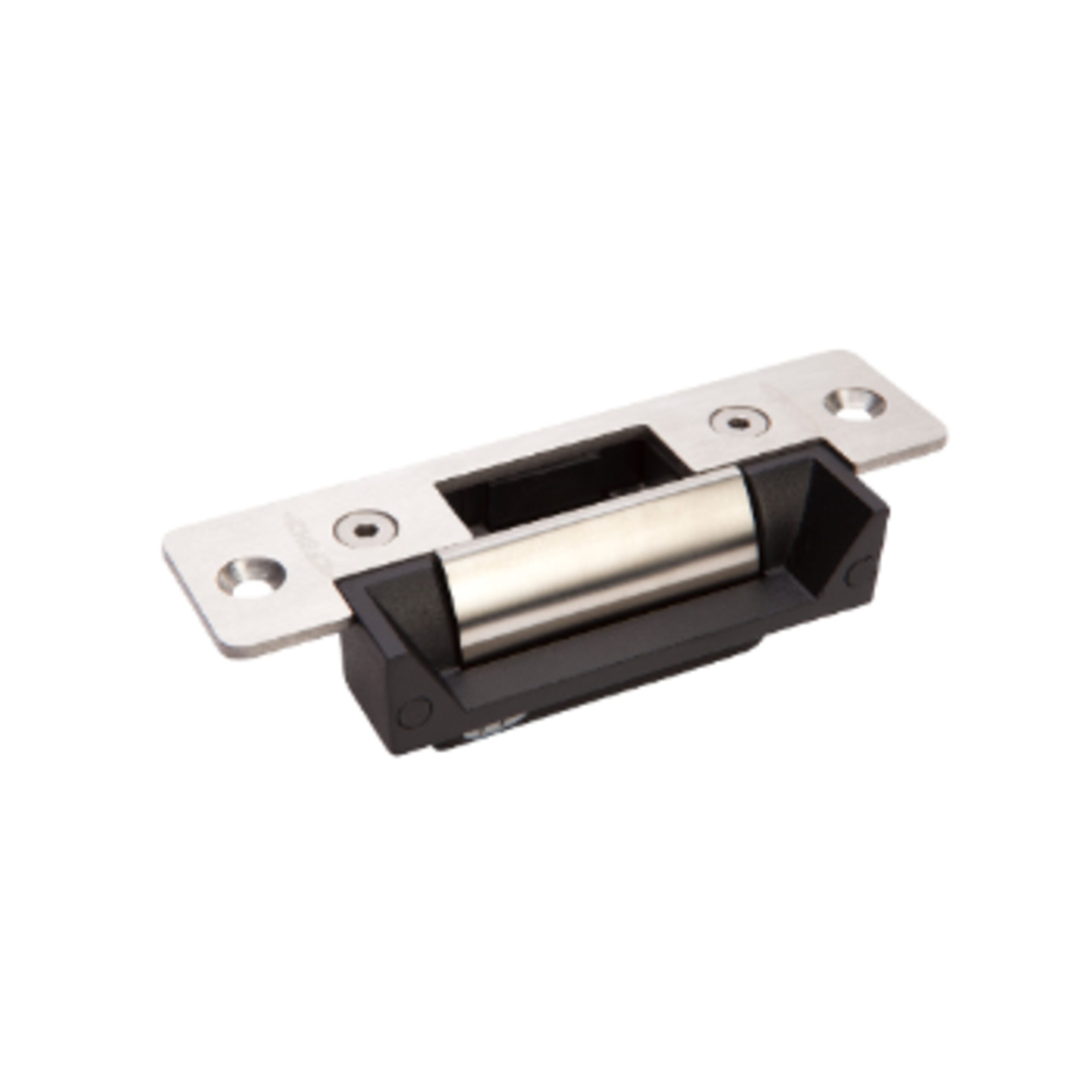

FSH FES10 Light Commercial Electric Strike
The FSH FES10 is a compact ANSI footprint electric strike designed for light commercial and residential access control. Manufactured by Allegion, it accepts 12 or 24VDC, is IP56 weather resistant, fire rated up to 4 hours (AS 1905), and features a patented Barbell mechanism for simple PTL/PTO field-interchangeable locking. Backed by a 5-year mechanical and electronic warranty.
Contact for Pricing
SKU: FSH-FES10 · Trade pricing available · 5-Year Warranty
Part No: FES10
Melbourne access control specialists: Sipko Security supply and install FSH electric strikes across Melbourne for commercial doors, apartment buildings, and office entry systems. Contact us for installation pricing.
Technical Specifications
Product Details
Holding Strength
Up to 1000kg
Voltage / Current
12VDC / 24VDC · 200mA @12V · 100mA @24V
Dimensions
125mm (L) × 42mm (W) × 35mm (D)
Latch Depth
Compatible up to 15mm latch depth
IP Rating
IP56 (FES10 non-monitored)
Fire Rating
Up to 4-hour (AS 1905)
Warranty
5 years mechanical + electronic
Approvals
CE / C-Tick certified
Core Features & Engineering
Detailed Breakdown
Stainless Steel Faceplate & Keeper: Corrosion-resistant stainless steel construction for long-term durability in commercial environments.
Patented Barbell Mechanism: Easily switch between Power To Lock (PTL) and Power To Open (PTO) operation on-site without specialist tools, reducing installation time significantly.
Low Power Consumption: Draws only 100mA at 24VDC, making it energy efficient and compatible with low-voltage access control panels without requiring additional PSU capacity.
IP56 Weather Resistance: The FES10 (non-monitored) is sealed to IP56 — fully protected against dust ingress and powerful water jets. Suitable for outdoor-facing door frames.
4-Hour Fire Rated: Tested and compliant to AS 1905 fire resistance standards. Critical for fire-rated doors in commercial buildings requiring compliant access control hardware.
Pre-Drilled for Extension Lips: Ready for FES10-EL15, EL25, EL50 and EL75 extension lip accessories, giving installers flexibility across different frame configurations.
FES10M Optional — Door Status Monitoring: The FES10M variant includes a Door Status Sensor (latch monitoring) for integration with alarm panels and access control audit logs.
Complete Technical Specifications
Data Table
| Specification | Details / Values |
|---|---|
| Part Numbers | FES10 (non-monitored, IP56) · FES10M (door status monitoring) |
| Function | Mortice mount, PTL / PTO field interchangeable |
| Footprint | Small ANSI footprint |
| Holding Strength | Up to 1000kg |
| Voltage | Dual voltage 12VDC / 24VDC |
| Current Draw | 200mA @ 12VDC · 100mA @ 24VDC |
| Dimensions | 125mm (L) × 42mm (W) × 35mm (D) |
| Latch Depth Compatibility | Up to 15mm |
| IP Rating | IP56 (FES10 non-monitored only) |
| Fire Rating | Up to 4-hour (AS 1905) |
| Monitoring | Non-monitored (FES10) · Door latch monitoring (FES10M) |
| Faceplate / Keeper | Stainless steel |
| Locking Mechanism | Patented Barbell (site-interchangeable PTL/PTO) |
| Extension Lips Available | FES10-EL15 · FES10-EL25 · FES10-EL50 · FES10-EL75 |
| Approvals | CE / C-Tick |
| Warranty | 5 years mechanical · 5 years electronic |
| Brand / Manufacturer | FSH by Allegion |
Frequently Asked Questions
Product FAQ
The FES10 is the non-monitored version with IP56 weather resistance, suitable for outdoor-exposed door frames. The FES10M includes a Door Status Sensor that monitors door latch position — ideal for alarm panel integration and access audit logging. The FES10M does not carry IP56 rating.
Yes. The patented Barbell mechanism allows on-site switching between Power To Lock (PTL) and Power To Open (PTO) operation simply by changing over the barbell component — no replacement or specialist tools required. This makes it highly flexible for changing security requirements.
Yes. The FES10 is fire tested to a 4-hour fire resistance rating in accordance with AS 1905 (Australian Standard). Contact Allegion or Sipko Security for specific fire door compliance documentation for your project.
The FES10 accepts 12VDC or 24VDC and is compatible with virtually all standard access control panels including Ajax, Hikvision, Dahua, Bosch, DSC, and third-party systems that provide a relay output. Its low current draw (100mA @ 24VDC) means it runs on most standard panels without extra PSU upgrades.
Yes. The FES10 is pre-drilled and compatible with four extension lip accessories: FES10-EL15 (15mm), FES10-EL25 (25mm), FES10-EL50 (50mm), and FES10-EL75 (75mm). These allow installation on a wide range of door frame types including timber, metal, aluminium, and PVC profiles.
