Dahua IP Villa Door Station with Reader Kit — 7″ Touchscreen Indoor Monitor & PoE Switch
The Dahua Villa Door Station with Reader Kit adds a built‑in Mifare® card reader and keypad to the trusted IP villa intercom platform. The outdoor station features a 2MP HD 140° wide‑angle colour camera with anodized aluminium front panel (IP65 & IK07), a 7‑inch TFT capacitive touchscreen indoor monitor (1024×600), and a PoE switch. Unlock with card, PIN, smartphone app or indoor touchscreen — up to 10,000 cards and 50 passwords. Available in Black or Silver outdoor station with White or Black indoor monitor. Ideal for Melbourne homes, townhouses and small offices requiring keyless entry and remote control.
A$429.00 inc. GST
From $429.00 (White VTH / Silver VTO / Surface Mount). Includes 3-year warranty & support. Authorised Dahua store. Free shipping on orders over $400*
SKU: DHI-KTP01L-S2-AUS
Built‑in Mifare® Reader & Keypad
Supports up to 10,000 card users and 50 PIN codes. Unlock with a tap or a personal code at the door.
Smartphone App & Remote Unlock
See live video, speak to visitors and unlock the door from anywhere via the Dahua app — no extra hardware needed.
IP65 & IK07 Outdoor Station
Anodized aluminium front panel rated for dust, rain and impact — built tough for exposed Australian outdoor entry points.
2MP HD 140° Colour Camera
CMOS low‑illumination wide‑angle lens captures a full‑colour door entry scene in HD, day or night.
Kit Contents: 1 × Outdoor IP Villa Door Station with Keypad & Mifare Reader (Silver or Black) · 1 × 7″ Indoor Monitor DHI‑VTH (White or Black) · 1 × PoE Switch (4×RJ‑45 PoE + 1×uplink) · Mounting bracket included. Available in Surface Mount (default) or Flush Mount. Colour combinations: White VTH / Silver VTO from A$429 · Black VTO or Black VTH variants from A$479.
SEO Keywords:
Dahua IP Villa Door Station with Reader Melbourne
· Dahua card reader intercom · keypad door station · Mifare access control · 7 inch touchscreen intercom · smartphone door unlock · IP65 video intercom · PoE intercom kit Australia
Technical Specifications
Complete Specifications
Indoor Monitor
7″ TFT capacitive touch screen, 1024×600 resolution — H.265 & H.264 video decoding
Outdoor Camera
2MP HD CMOS, 140° wide angle, low illumination full colour — anodized aluminium panel
Connectivity
Standard IP over PoE — Cat5e/Cat6 network cabling between all devices
Weather Rating
IP65 & IK07 (outdoor station — dust, rain and impact resistant)
Card Reader & Keypad
Built‑in Mifare® reader (13.56 MHz), supports up to 10,000 cards and 50 PIN codes
Lock Control
Access control function supporting connection to 2 locks (e.g. front gate + front door)
Alarm I/O
6-channel alarm input, 1-channel alarm output (indoor monitor)
Power & Switch
PoE switch included: 4×RJ‑45 PoE ports + 1×uplink; guide rail mount supported
Specifications Summary
| Feature | Specification |
|---|---|
| Model Code / SKU | DHI-KTP01L-S2-AUS |
| Kit Contents | IP Villa Door Station with Keypad & Mifare Reader + 7″ Indoor Monitor + PoE Switch (4×PoE RJ‑45 + 1×uplink) + Mounting Bracket |
| Outdoor Station Camera | 2MP HD CMOS, low illumination, 140° wide angle, full colour video intercom |
| Outdoor Panel Material | Anodized aluminium front panel with backlit keypad |
| Indoor Monitor Screen | 7″ TFT capacitive touchscreen, 1024×600 resolution |
| Video Compression | H.265 and H.264 decoding |
| Communication | Standard IP over PoE (Cat5e/Cat6 network cabling) |
| Card Reader | Built‑in Mifare® 13.56 MHz — capacity: 10,000 cards, 50 passwords |
| Lock Control | Supports 2 locks (access control function built‑in) |
| Alarm I/O | 6-channel alarm input, 1-channel alarm output |
| Weather Rating | IP65 + IK07 (outdoor station) |
| Power | Standard PoE (included PoE switch powers all devices) |
| Colour Options | White VTH / Silver VTO · White VTH / Black VTO · Black VTH / Silver VTO · Black VTH / Black VTO |
| Mount Options | Surface mount (default) or Flush mount |
| Smartphone App | Yes — remote video call, door unlock and card management |
| IPC Monitor | Supports outdoor station and IPC monitor simultaneously |
Surface vs Flush Mount: Surface mount attaches directly to the wall using the included bracket — faster and simpler to install. Flush mount recesses the outdoor station into the wall for a cleaner, recessed look in new builds or renovation projects. Surface mount starts at A$429; flush mount at A$439.
Key Features & Benefits
IP Villa Intercom + Reader
1
Mifare® Card Reader & Keypad
The built‑in reader supports up to 10,000 cards and 50 PIN codes, offering keyless entry for family members, staff or authorised visitors. Manage access easily via the indoor monitor or smartphone app.
2
Smartphone App Remote Access
Receive calls, see live colour video and unlock the door — even add or delete card users — all from your phone, wherever you are in the world.
3

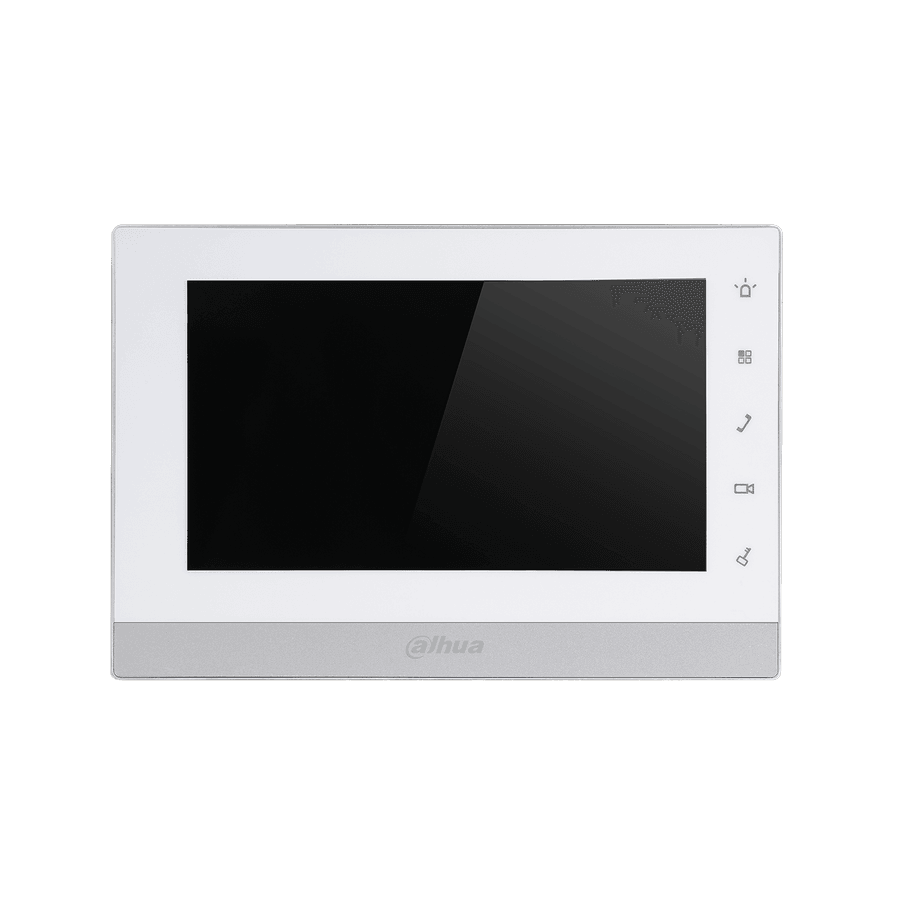

7″ Touchscreen Indoor Monitor
The 1024×600 capacitive touchscreen provides a large, clear view of visitors with intuitive one‑touch door unlock and supports H.265 & H.264 video decoding.
4
Flexible Colour & Mount Options
Choose from White or Black indoor monitors and Silver or Black outdoor stations — four combinations to match any property. Surface or flush mount to suit new builds and retrofits.
Ideal Melbourne Applications
Best Use Cases
1
Residential Homes & Villas
Perfect for families wanting keyless entry — issue cards to every member and use PIN codes for guests. Combines video intercom, smartphone access and card reader in one kit.
2
Townhouses & Duplexes
Standard IP PoE cabling integrates easily into new builds and existing structured cabling. Issue cards to residents and codes to maintenance contractors — managed from the indoor monitor.
3
Small Offices & Boutique Retail
Replace keys with programmable cards for staff. Monitor the entrance and unlock the door from the indoor touchscreen or smartphone. Also view a network camera feed alongside the intercom.
4
Gated Communities & Shared Entries
With 10,000‑card capacity, the system easily covers multi‑residence entries. Surface or flush mount the outdoor station at the gate, and install monitors in each unit over PoE.
Request Your Melbourne Installation Quote
Melbourne Service
Tell us your property type, preferred colour combination (White/Black monitor, Silver/Black outdoor station), mount style (surface or flush), whether you need gate or door lock wiring, and how many indoor monitors you require. We’ll quote the Dahua Villa Door Station with Reader Kit supply + installation and advise on cabling, lock compatibility, card management and smartphone app setup.
Frequently Asked Questions
6 FAQs
The built‑in reader works with standard Mifare® 13.56 MHz cards and tags. You can order additional compatible cards through us or use common Mifare Classic / Ultralight credentials.
Yes. The Dahua smartphone app lets you receive live video calls, unlock the door remotely, and manage card users — all from anywhere with an internet connection.
Up to 10,000 card users and 50 PIN codes. You can add, delete or block cards instantly from the indoor monitor or the smartphone app.
Surface mount attaches the outdoor station to the wall surface — faster and simpler. Flush mount recesses it into the wall for a cleaner integrated look, ideal for new builds. Surface mount starts at A$429; flush at A$439.
The system supports two locks (e.g. front gate and front door), both controllable via card, PIN, indoor monitor or smartphone app.
Yes. The outdoor station carries IP65 (dust and water ingress) and IK07 (impact resistance) ratings, with an anodized aluminium front panel — well suited for exposed Australian outdoor entry points.
Price, Warranty & Support
3-Year Warranty
Dahua DHI-KTP01L-S2-AUS starts from A$429.00 inc. GST (White VTH / Silver VTO / Surface Mount) and includes a 3-year warranty & support. For Melbourne installations, we can supply and install the complete kit, run Cat5e/Cat6 cabling, connect and configure lock outputs, program cards, set up the Dahua app, and test the full system.
Note: Final installed pricing depends on cabling distance, wall material, number of monitors, lock type, colour variant chosen, and on-site conditions. For a fast quote, use the form above or contact us here.
