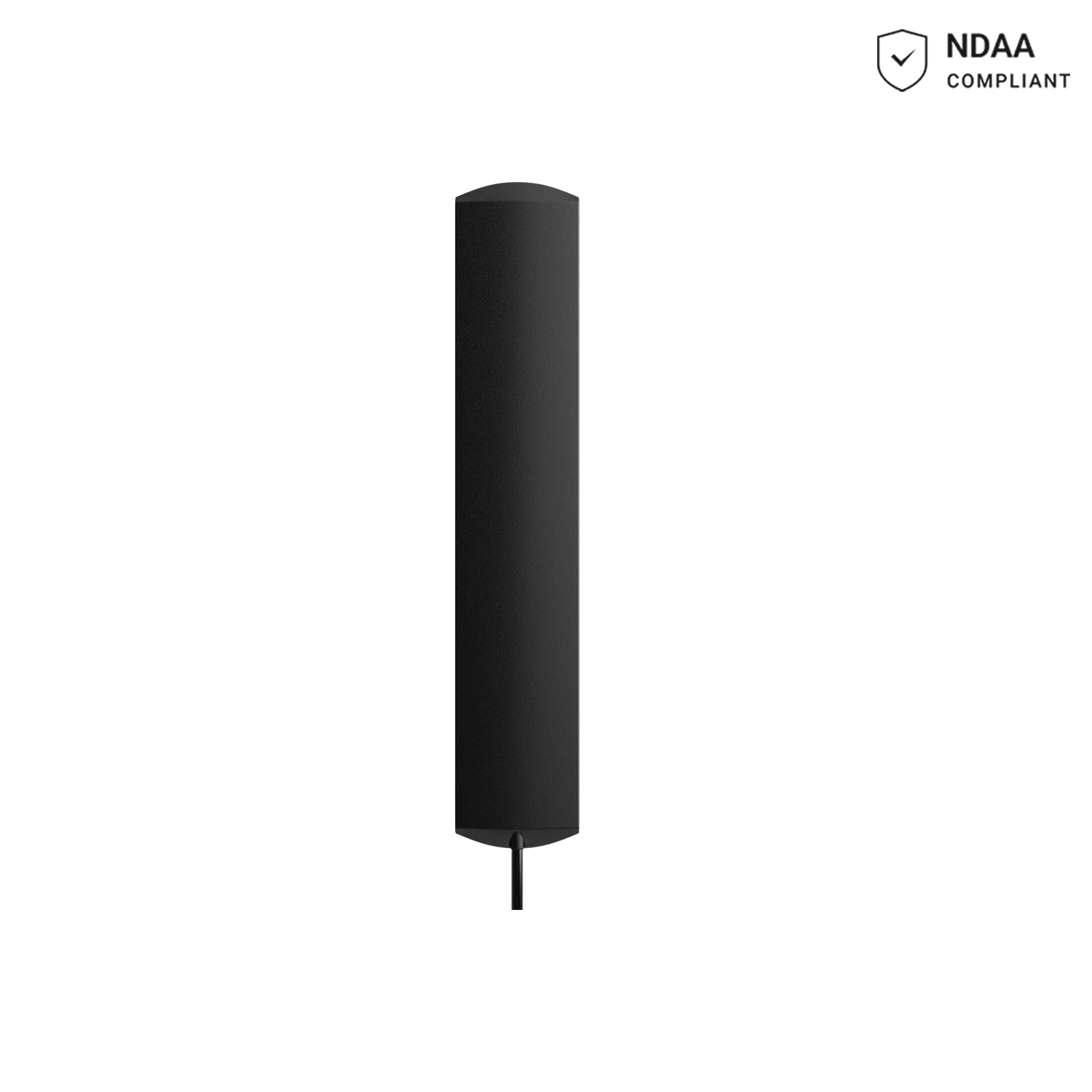

AJAX #104117 External Antenna | LTE & Radio Communication for Hub BP
The AJAX External Antenna enhances LTE and radio communication for Hub BP Jeweller installations. Supports 2G/3G/LTE, Jeweller, and Wings protocols across 698-960 MHz and 1,710-2,690 MHz frequencies. 3-meter cable with SMA connector. Perfect for installations in metal enclosures, concrete rooms, safes, or locations with poor signal strength.
Price on Request
SKU: 104117 · In Stock · Compatible with Hub BP Jeweller
Antenna
Multi-Protocol Support
Connects to Cellular (2G/3G/LTE), Jeweller, or Wings communication channel on Hub BP for improved signal strength.
3-Meter Cable
Extended 3m cable allows antenna placement outside metal enclosures, concrete walls, or safes for optimal signal reception.
Breakage Detection
Hub BP detects antenna cable breakage or disconnection and sends immediate notifications to users and monitoring stations.
Extreme Temperature Range
Operates reliably from −40°C to +85°C, suitable for harsh outdoor and industrial environments.
Professional antenna installation for Melbourne: Sipko Security provides expert installation of external antennas for Hub BP systems in metal enclosures, concrete structures, and locations with poor signal. Get a free quote today.
Key Specifications
Communication Channels
2G/3G/LTE, Jeweller, Wings
Frequencies
698-960 MHz / 1,710-2,690 MHz
Connector
SMA
Cable Length
3 meters (3,000mm)
Dimensions
115.6 × 21.7 × 5.8 mm
Weight
41g
Temperature
−40°C to +85°C
Humidity
Up to 95%
Compatible Hub
Hub BP Jeweller
Core Features
Enhanced Signal Strength: Improves communication for hubs installed in metal enclosures, concrete rooms, safes, or locations with poor signal reception
One Antenna Per Channel: Connects to one communication output—Cellular, Jeweller, or Wings—providing external antenna support for that specific channel
Dual-Band Operation: Covers 698-960 MHz and 1,710-2,690 MHz frequency ranges for comprehensive cellular and radio communication support
Cable Routing: 3-meter cable routes through holes in Hub BP casing, allowing antenna placement outside the enclosure
Sabotage Detection: Hub BP automatically detects antenna cable breakage or disconnection and notifies users and monitoring companies immediately
Easy Installation: Attaches to surfaces using pre-applied double-sided adhesive tape for secure mounting
Extreme Temperature Tolerance: Operates reliably from −40°C to +85°C, suitable for outdoor and industrial environments
High Humidity Resistance: Functions in environments with up to 95% humidity without performance degradation
Complete Technical Specifications
| Specification | Details |
|---|---|
| Model Number | AJAX #104117 |
| Product Name | ExternalAntenna |
| Type | External Antenna for LTE and Radio Communication |
| Color | Black |
| Compatible Hub | Hub BP Jeweller |
| Communication Channels | 2G / 3G / LTE, Jeweller, Wings (one channel per antenna) |
| Operating Frequencies | 698-960 MHz / 1,710-2,690 MHz |
| Connector Type | SMA |
| Cable Length | 3,000 mm (3 meters) |
| Sabotage Protection | Antenna breakage detection with automatic notification |
| Installation Method | Pre-applied double-sided adhesive tape |
| Cable Routing | Through holes in Hub BP casing |
| Antenna Dimensions | 115.6 × 21.7 × 5.8 mm |
| Weight | 41g |
| Operating Temperature | −40°C to +85°C |
| Operating Humidity | Up to 95% |
| Complete Set | ExternalAntenna + Quick Start Guide |
| Warranty | 2 years |
Frequently Asked Questions
An external antenna is essential when Hub BP is installed inside a metal enclosure, reinforced concrete room, safe, or any location where thick walls or metal obstructions significantly weaken cellular or radio signals. The antenna allows the communication point to be moved outside the obstruction.
No, one ExternalAntenna connects to ONE communication output: either Cellular (2G/3G/LTE), Jeweller, or Wings. If you need to improve signal for multiple channels, you’ll need multiple external antennas.
Hub BP continuously monitors the antenna connection. If the antenna cable is cut, damaged, or disconnected, the hub immediately detects the breakage and sends notifications to users and monitoring companies, ensuring tamper attempts are detected quickly.
The #104117 ExternalAntenna is specifically designed for Hub BP Jeweller. It is not compatible with Hub 2, Hub 2 Plus, or other Ajax hub models. Always verify compatibility before purchasing.
The antenna connects to Hub BP’s communication channel via SMA connector. The 3-meter cable routes through holes in the Hub BP casing. The antenna mounts to surfaces using pre-applied double-sided adhesive tape. Professional installation is recommended for optimal placement and signal strength.
Yes, the antenna operates in extreme temperatures from −40°C to +85°C and tolerates up to 95% humidity, making it suitable for outdoor and harsh industrial environments.
Yes, if the Hub BP is installed in a location where metal or concrete obstructs cellular signals, connecting the external antenna to the Cellular channel and placing it outside the obstruction significantly improves 2G/3G/4G signal reception and reliability.
The antenna supports dual-band operation: 698-960 MHz and 1,710-2,690 MHz. These frequency ranges cover 2G/3G/LTE cellular bands as well as Jeweller and Wings radio protocols used by Ajax systems.
