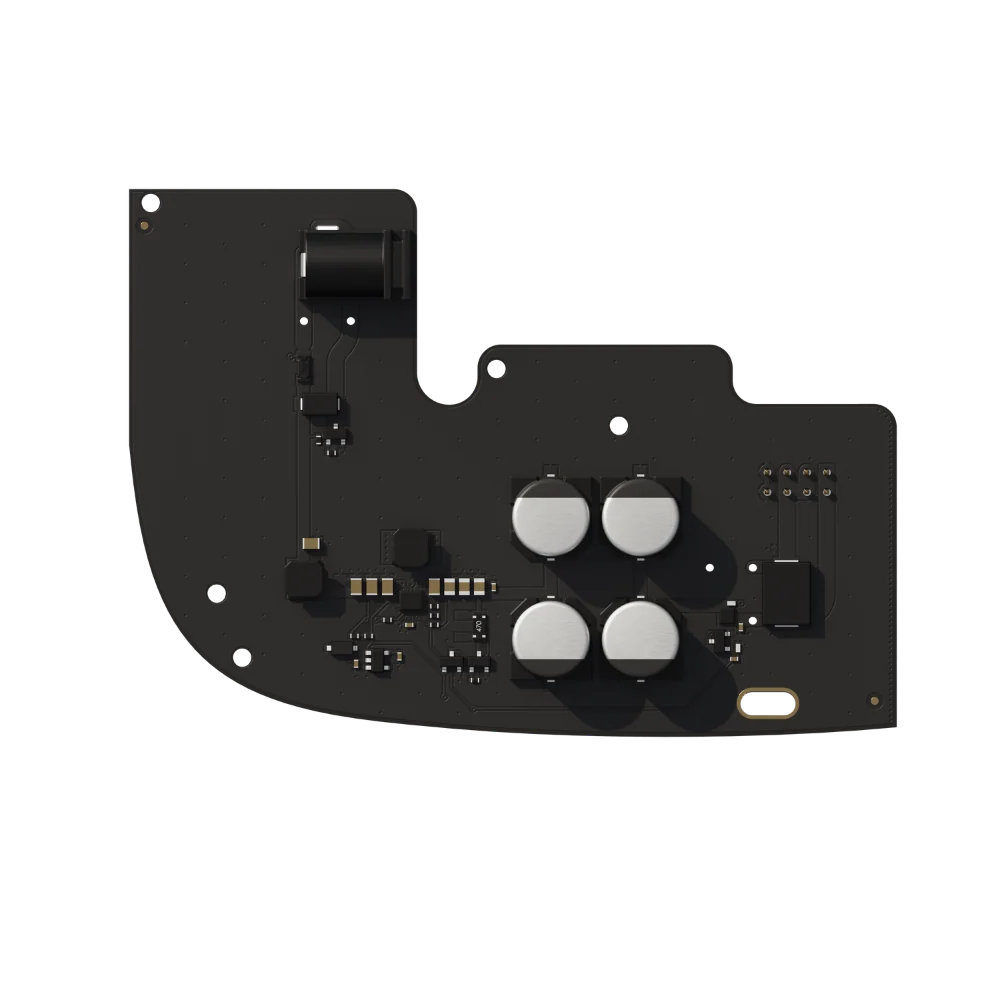

AJAX 6V PSU for Hub 2/Hub 2 Plus/ReX 2
The AJAX 6V PSU (type A) is an alternative power supply unit for Hub 2, Hub 2 Plus, and ReX 2. Enables operation from portable batteries or external 6V power sources. Featuring stable 4.8V output, zinc-air alkaline battery compatibility, and compact internal design for seamless integration.
Price on Request
SKU: AJAX#20763 · In Stock · Power Supply Unit
Portable Power
Portable Battery Operation
Connect to 4.2–10V zinc-air alkaline batteries for autonomous hub operation without mains power dependency.
Stable 4.8V Output
Regulated power delivery ensures reliable hub operation with ±3% voltage stability across temperature ranges.
Internal Installation
Compact 98 × 70 × 17 mm design fits inside hub or range extender enclosure with terminal adapter included.
Wide Operating Range
Functions reliably from -10°C to +40°C in up to 75% humidity. Input voltage range 4.2–10V accommodates various battery types.
Melbourne AJAX installations: Sipko Security can assist with 6V PSU integration for portable power solutions. Get a free quote today.
Technical Specifications
Product Details
Input Voltage
4.2–10 V DC
Output Voltage
4.8 V ± 3%
Output Current
Up to 1.5 A
Compatible Devices
Hub 2, Hub 2 Plus, ReX 2
Battery Type
Zinc-air Alkaline 4.2–10V
Operating Temp
-10°C to +40°C
Power Jack
5.5 × 2.1 mm (male)
Dimensions
98 × 70 × 17 mm
Core Features & Specifications
Detailed Breakdown
Internal Installation: Designed as an internal PSU replacement that mounts inside the hub or range extender enclosure. Replaces the standard power supply module with zero external modifications.
Portable Battery Compatibility: Operates from zinc-air alkaline batteries with 4.2–10V output. Accepts recommended battery types for extended autonomous operation without mains power.
Regulated Power Output: Delivers stable 4.8V ± 3% output regardless of input voltage variations. Automatic voltage regulation ensures hub reliability across battery discharge cycles.
Connector Compatibility: Eight-pin connector between boards. Power jack slot 6.5 × 2 mm input and 5.5 × 2.1 mm male plug output with terminal adapter included.
Wide Temperature Operating Range: Functions reliably from -10°C to +40°C with automatic temperature compensation. Operating humidity up to 75% for stable performance in various climates.
Compact Form Factor: Weighs only 26g with dimensions of 98 × 70 × 17 mm. Fits seamlessly inside hub enclosures without requiring external housings or adaptations.
Complete Kit Included: 6V PSU module, terminal adapter, and quick start guide. Everything needed for installation by qualified electricians.
Professional Installation Required: Should only be installed by qualified electricians. Requires opening hub enclosure and internal board replacement following strict electrical safety guidelines.
Frequently Asked Questions
Product FAQ
The AJAX 6V PSU (type A) is designed for Hub 2, Hub 2 Plus, and ReX 2. It replaces the standard power supply module inside these devices to enable operation from portable battery sources instead of mains power.
The 6V PSU is specifically designed for zinc-air alkaline batteries with 4.2–10V output. We provide a list of recommended battery types that deliver optimal performance and longevity. Using incompatible batteries may damage the PSU or hub.
Yes. The 6V PSU should only be installed by qualified electricians. Installation requires opening the hub enclosure, disconnecting power, removing internal boards, and replacing the power supply module. Improper installation risks damage to the hub or personal injury.
Battery life depends on hub activity level and battery capacity. Zinc-air alkaline batteries typically provide 6–12 months of autonomous operation for normal security monitoring. We recommend checking battery status regularly via the Ajax app and replacing when voltage drops below acceptable levels.
The PSU has automatic switch-off voltage protection at 3–3.4V. When battery voltage drops below this threshold, the hub will shut down gracefully to prevent damage to components. The PSU will not operate below switch-on voltage of 4.2V ± 0.5%.
The PSU is an internal component and operates inside the hub enclosure. It’s not exposed to weather. However, it operates reliably in up to 75% humidity and -10°C to +40°C temperature ranges when installed inside the hub.
Need Portable Power for Your AJAX Hub?
The AJAX 6V PSU enables autonomous operation of Hub 2, Hub 2 Plus, and ReX 2 from portable batteries. Perfect for remote locations, backup power scenarios, or temporary installations across Melbourne. Professional installation ensures optimal performance and reliability.
