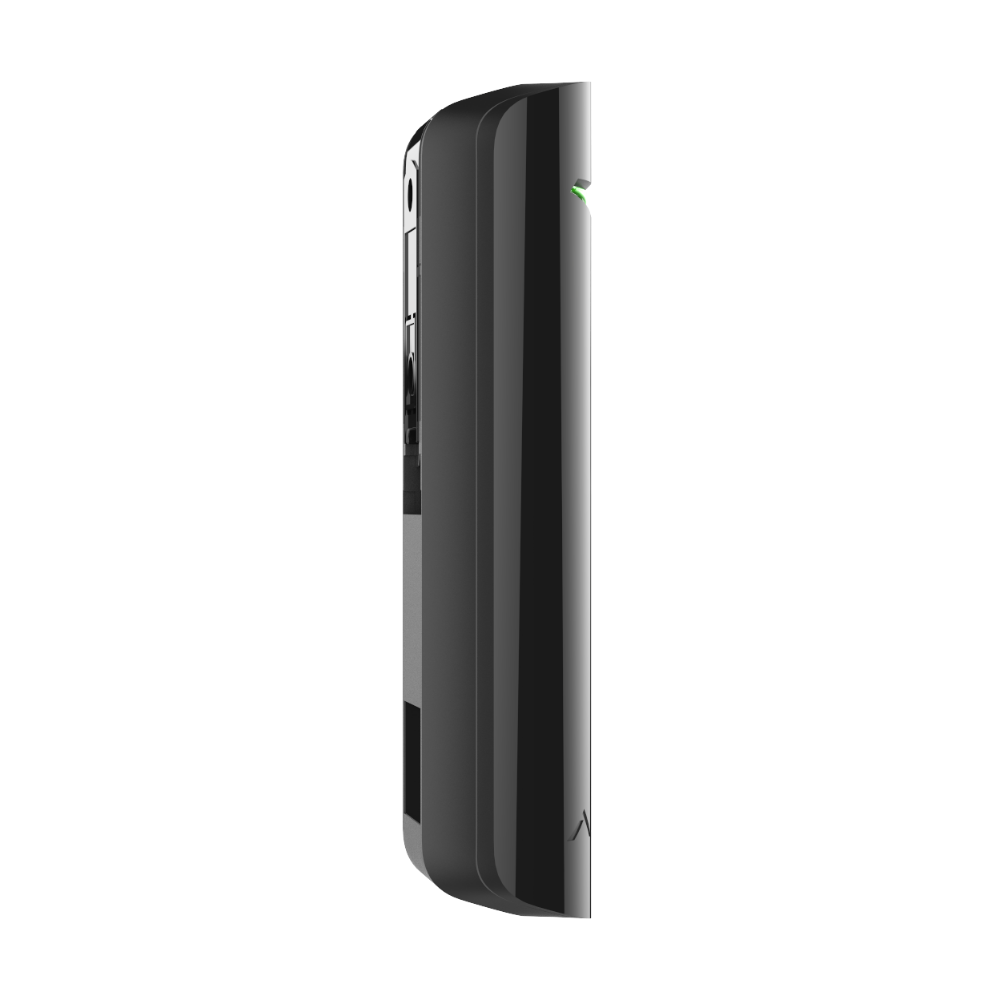

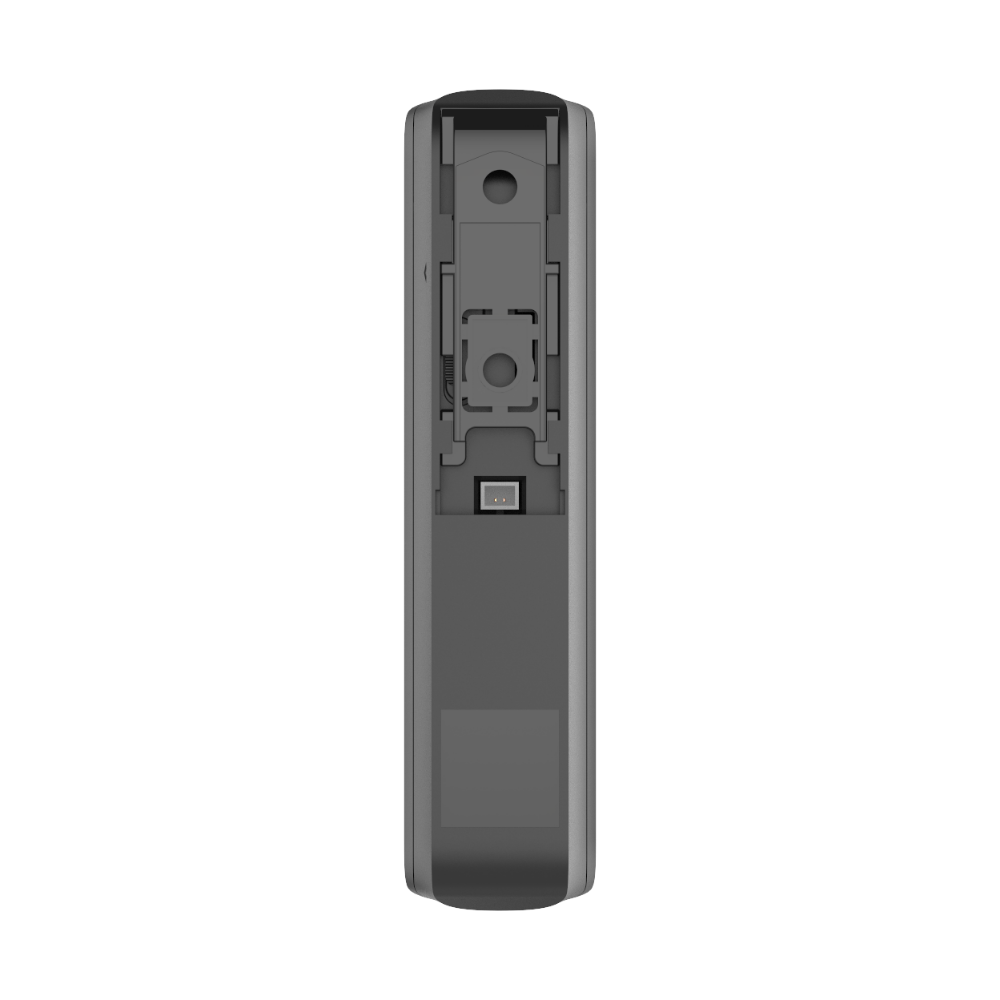

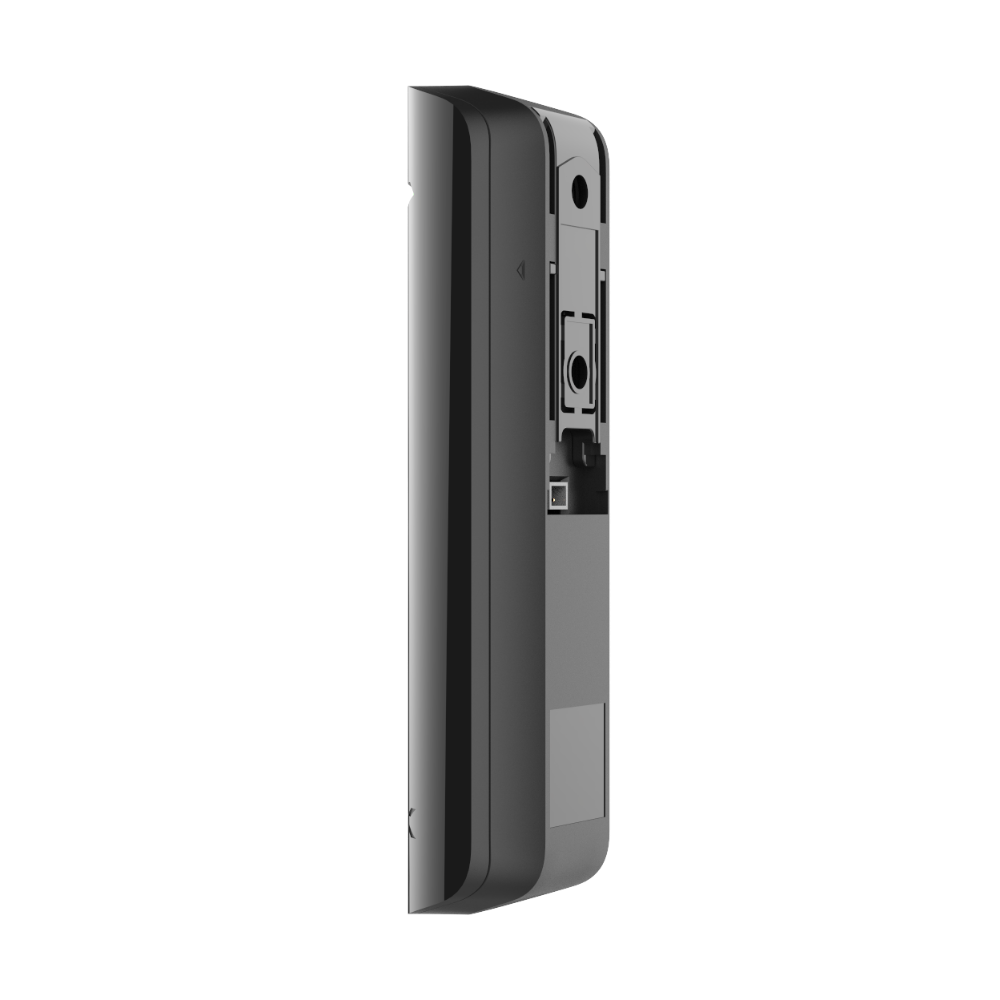

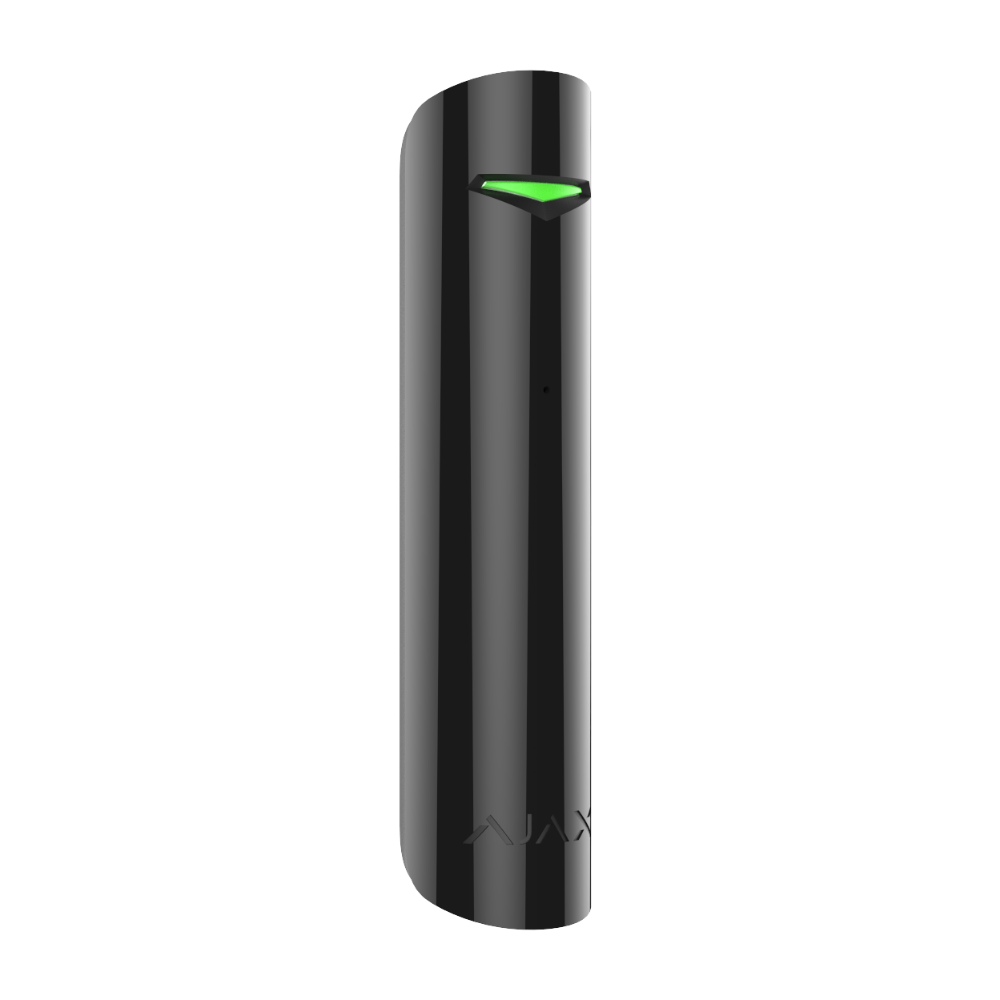

AJAX GlassProtect Black | Wireless Glass Break Detector
The AJAX GlassProtect Black is a wireless acoustic glass break detector using the DualTone dual-frequency verification algorithm to detect shattering glass up to 9m away across a 180° angle. Runs on a CR123A battery for up to 7 years, communicates over the Jeweller protocol up to 1,000m from the hub, and includes terminals for integrating third-party NC detectors.
Why a dedicated glass break detector? Motion detectors only trigger once someone is already inside the room. GlassProtect catches the break itself, the moment a window is smashed, giving you an earlier warning on ground-floor rooms with large glazing or sliding doors.
Price on Request
SKU: 30626 · In Stock · Wireless Glass Break Detector
Glass Break Detector
DualTone Detection
Verifies both the low-frequency impact and the high-frequency shatter within 1.5 seconds, cutting false alarms from everyday noise.
9m / 180° Coverage
One detector can cover an entire room of windows from a central ceiling or wall position.
7-Year Battery Life
Single CR123A battery, with advance low-battery notifications sent well before replacement is needed.
1,000m Wireless Range
Jeweller two-way encrypted radio reaches the hub from well outside typical Melbourne homes and offices.
Professional glass break protection for Melbourne: Sipko Security installs and configures AJAX GlassProtect detectors for residential properties, office buildings, retail spaces, and commercial facilities. Get a free quote today.
Key Specifications
Sensor Type
Acoustic glass break detector, DualTone algorithm
Detection Range
Up to 9m, 180° angle
Sensitivity
3 adjustable levels
Wireless Protocol
Jeweller (up to 1,000m)
Battery
1x CR123A (up to 7 years)
Temperature
-10°C to +40°C
Mounting
SmartBracket panel (included)
Protection Class
IP50
Core Features
DualTone Verification: Confirms both the low-frequency impact sound and the high-frequency glass shatter within 1.5 seconds before triggering an alarm
9m Range, 180° Angle: A single detector covers a full wall of windows from one mounting point
Three Sensitivity Levels: Tune detection to the room, avoiding false triggers near TVs, kitchens or busy streets
NC Integration Terminals: Wire in a third-party normally-closed detector alongside the built-in acoustic sensor
Jeweller Wireless Protocol: Up to 1,000m communication range with two-way encrypted communication and frequency hopping
7-Year Battery Life: Single CR123A battery with advance low-battery notifications sent to the app
SmartBracket Mounting: Quick wall or ceiling installation, no disassembly required to fit
Tamper Protection: Detects attempts to detach the detector or open its enclosure, with instant notification to the hub
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | AJAX GlassProtect Jeweller (Black) |
| Model/SKU | 30626 |
| Type | Wireless acoustic glass break detector |
| Detection Method | DualTone dual-frequency verification algorithm |
| Detection Range | 1 to 30ft (up to 9m) |
| Detection Angle | 180° |
| Sensitivity Levels | 3 adjustable levels |
| Wireless Protocol | Jeweller with two-way communication |
| Communication Range | Up to 1,000m (3,250ft, open space, line-of-sight) |
| Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (regional) |
| Modulation | GFSK |
| Encryption | Block encryption with dynamic key |
| Maximum Power Output | Up to 20mW |
| Battery Type | 1x CR123A (3V Lithium, pre-installed) |
| Battery Life | Up to 7 years |
| Operating Voltage | 2.1–3.3V (3V nominal) |
| Current Consumption | Quiescent: 18μA, Maximum: 21mA |
| Housing Material | Polycarbonate |
| Color | Black (also available in White) |
| Dimensions | Approx. 90 × 20 × 20 mm (3.54 × 0.79 × 0.79 in) |
| Weight | Approx. 30g (1.06 oz) |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | Up to 75% (non-condensing) |
| Protection Class | IP50 |
| Sabotage Protection | Tamper alarm on detachment or enclosure opening |
| Third-Party Integration | Terminals for connecting NC (normally-closed) detectors |
| Mounting | SmartBracket panel (included) |
| Use | Indoor only |
| Warranty | 24 months |
| Complete Set | GlassProtect detector, SmartBracket panel, CR123A battery (pre-installed), installation kit, quick start guide |
Frequently Asked Questions
A contact sensor only triggers when the door or window is opened. GlassProtect listens for the glass being broken itself, so it catches an intruder smashing a window without opening it, and it can cover several windows in a room from one central position instead of needing a sensor on every frame.
The DualTone algorithm requires both the low-frequency impact sound and the high-frequency shatter sound to occur together within 1.5 seconds, which everyday noises rarely produce. Sensitivity is also adjustable across 3 levels, and correct placement during installation reduces false triggers further.
Up to 9 metres across a 180° angle, so one detector mounted centrally can usually cover an entire room’s worth of windows, rather than needing one sensor per window.
Up to 7 years on the single pre-installed CR123A battery. The system sends low-battery notifications well in advance, so there’s no risk of it dying without warning.
GlassProtect works with standard glass types but does not detect breakage through glass covered with shockproof film, sunscreen tint, or similar coatings, since these dampen the acoustic signature it listens for. We’ll check your specific glazing during the site assessment.
GlassProtect detector, SmartBracket mounting panel, CR123A battery (pre-installed), installation kit, and quick start guide.
AJAX GlassProtect includes a 24-month manufacturer warranty (excludes the pre-installed battery). Sipko Security provides full warranty support and ongoing technical assistance for Melbourne customers.
Add Dedicated Glass Break Protection
GlassProtect catches a break the moment it happens, not once someone’s already inside. Ideal alongside door/window contacts for ground-floor rooms with large glazing in Melbourne homes and businesses.
