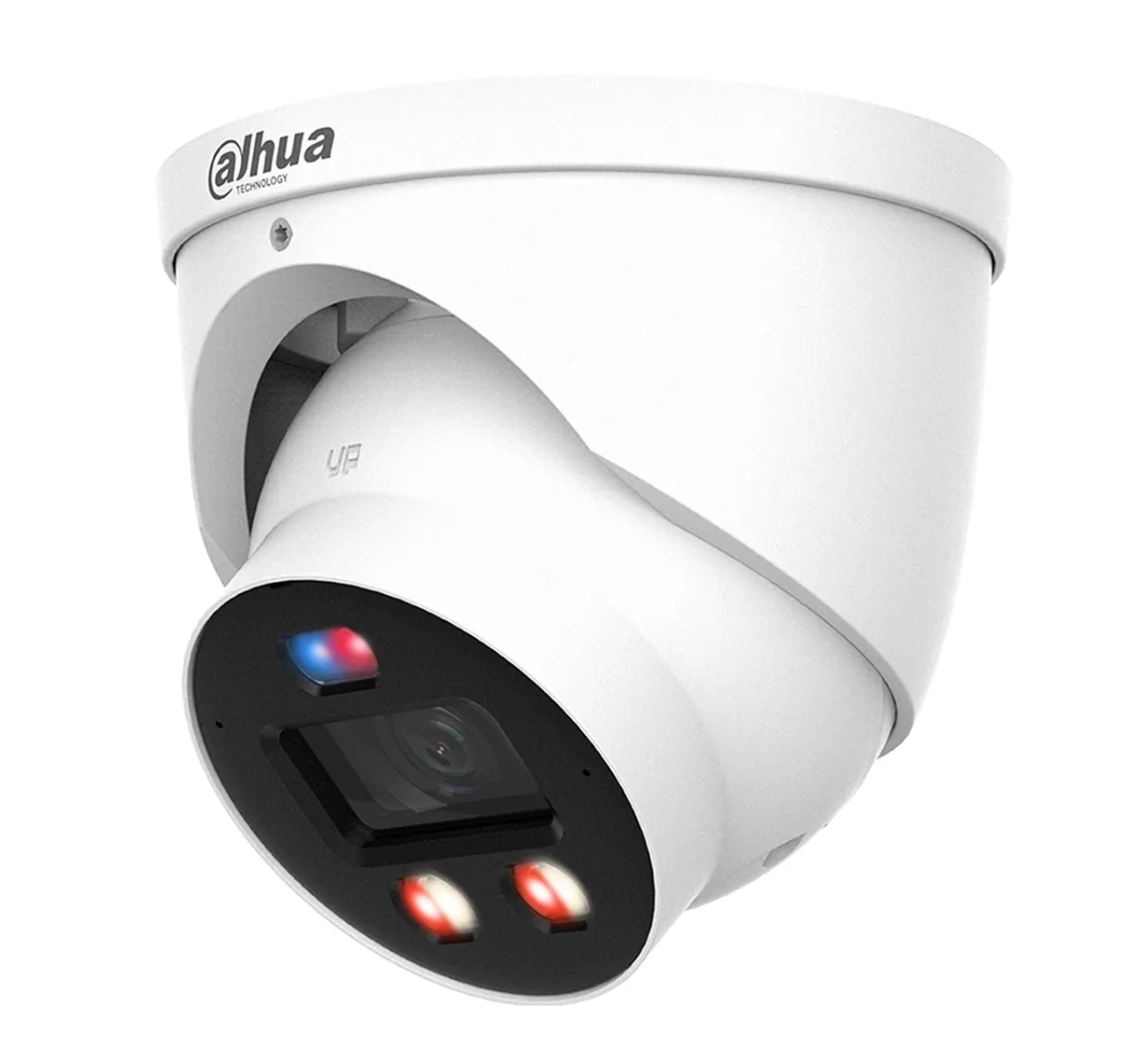

Dahua DH-IPC-HDW3849H-ZAS-PV 8MP Motorised Active Deterrence Turret Camera
The Dahua DH-IPC-HDW3849H-ZAS-PV is an 8MP (4K) active deterrence turret camera with a motorised 2.7mm to 13.5mm zoom lens. Because the lens is motorised, the view can be adjusted remotely from the app after installation, from a wide 108° to a narrow 34° for detail at distance, without anyone going back up a ladder.
Night vision reaches up to 50m on infrared and 40m on warm light, and the camera can flash a warning light and sound an alarm through its speaker when someone crosses a line or enters a zone. SMD 4.0 and perimeter protection separate people and vehicles from other movement. Includes audio and alarm in and out ports, a microSD slot supporting up to 256GB, PoE or 12V DC power, and an IP67-rated metal housing. This is the black variant. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera |
| Model/SKU | DH-IPC-HDW3849H-ZAS-PV |
| Finish | Black |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s to 1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 50 m (IR); up to 40 m (warm light) |
| Illuminators | 2 IR LED; 2 warm light. Auto/Manual control |
| Angle Adjustment | Pan 0° to 360°; Tilt 0° to 78°; Rotation 0° to 360° |
| Lens | Motorised vari-focal 2.7 mm to 13.5 mm, φ16 mount, fixed iris |
| Field of View | H: 108° to 34°; V: 56° to 19°; D: 130° to 39° |
| Close Focus Distance | 1.5 m |
| DORI Distance (wide) | Detect 89.9 m; Observe 36.0 m; Recognise 18.0 m; Identify 9.0 m |
| DORI Distance (tele) | Detect 257.4 m; Observe 103.0 m; Recognise 51.5 m; Identify 25.7 m |
| Perimeter Protection (IVS) | Tripwire, intrusion (with human and vehicle classification) |
| Smart Features | SMD 4.0, Quick Pick (with AI NVR), Smart Search (with Smart NVR), AI SSA |
| Network Port | RJ-45 (10/100 Base-T) |
| Interoperability | ONVIF (Profile S, G and T); CGI |
| Users/Host | 20 (total bandwidth 72 M) |
| Storage | Micro SD card (max. 256 GB); FTP; SFTP; NAS |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Audio Input / Output | 1 channel in, 1 channel out (RCA) |
| Alarm Input / Output | 1 in (wet contact, 5 mA 3 to 5 VDC); 1 out (wet contact, 300 mA 12 VDC) |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | Basic 4.8 W (12 VDC), 6 W (PoE); Max. 8.5 W (12 VDC), 11.6 W (PoE) |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal |
| Dimensions | 127.6 mm x Ø122.0 mm |
| Net Weight | 885 g |
| Warranty | 3 years |
Similar products
-
Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-Focal Mini Dome Camera
$204.00
-
Dahua DH-IPC-HDBW3666EP-AS-AUS 6MP Dome Camera with SMD 4.0
$208.00
-
Dahua DH-IPC-HDBW3866EP-AS-AUS 8MP Starlight Dome Camera
$243.86
-
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Eyeball Camera
$139.00
-
Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ - 5MP WizColor Series Network Camera
$192.54
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
The zoom and focus are driven by small motors, so the view can be set from the app or recorder instead of by hand at the camera. If the view needs changing later, say a fence goes up or you want a tighter shot of a gate, it takes seconds and nobody needs to climb a ladder.
Zoomed out it can identify a person at around 9m and recognise one at 18m. Zoomed in, those distances extend to about 25.7m and 51.5m. Identification needs a much closer or more zoomed view than simply detecting that someone is there.
The image resolution is the same 8MP. The differences are the motorised zoom lens and the longer 50m infrared range on this model, against a fixed wide lens and 30m on the standard version.
It takes a microSD card up to 256GB. That is fine as a backup or for a single camera, but for continuous recording across several cameras a Dahua NVR with a surveillance hard drive is the better option.
This listing is the black housing. The same model is made in a white finish, so ask us if you would prefer white to match existing cameras.
Zoom Adjusted From Your Phone
The Dahua DH-IPC-HDW3849H-ZAS-PV has a motorised zoom lens, so the field of view can be set and fine-tuned remotely after installation, with infrared reaching up to 50m.
