Dahua DH-IPC-EBW81242-AS-S2 Security Camera | 12MP Fisheye 360° Panoramic, Heat Map, People Counting, IVS Tripwire & Intrusion, IP67/IK10

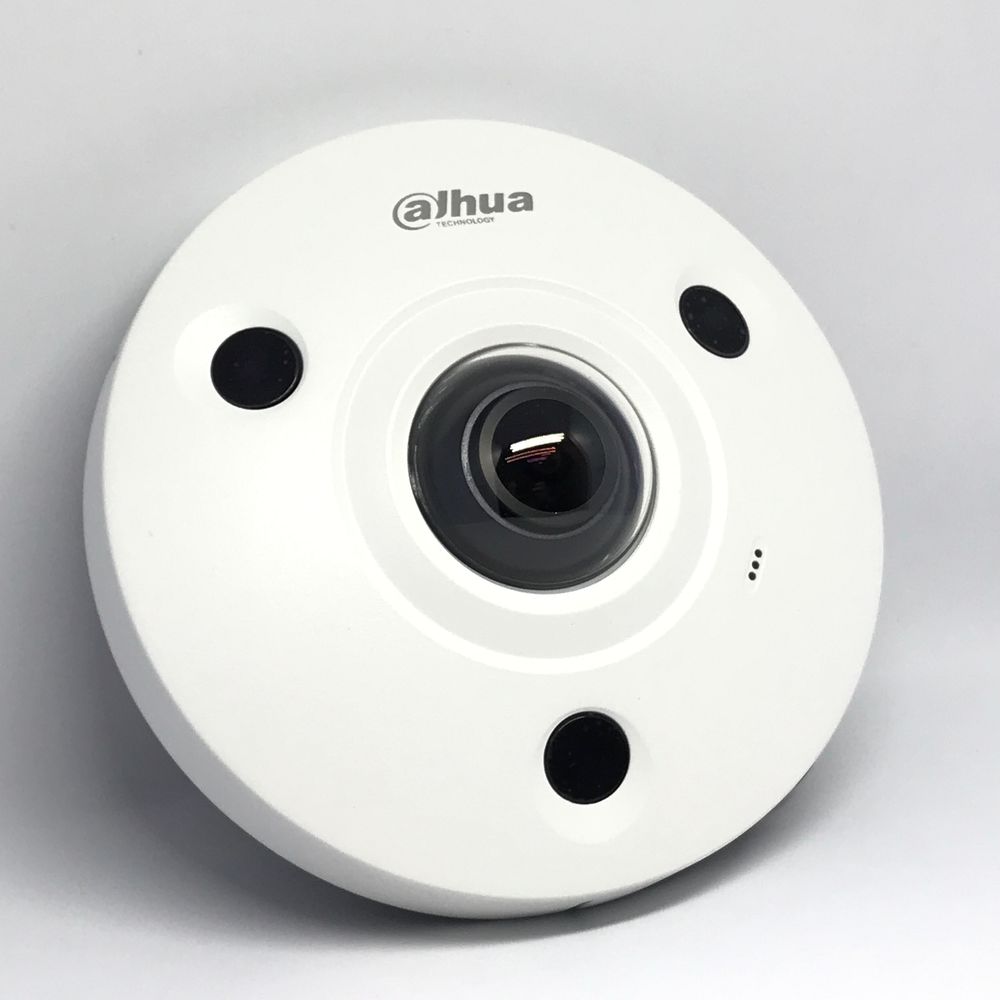

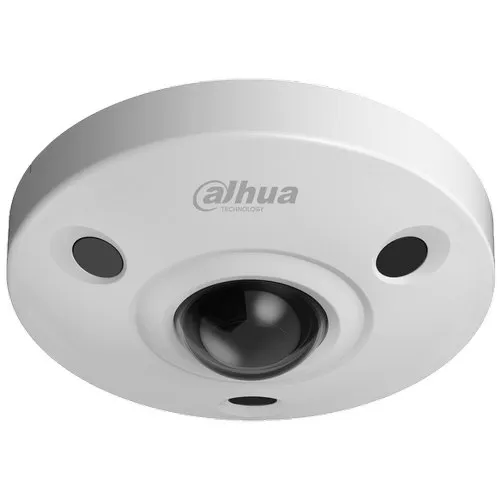

The Dahua DH-IPC-EBW81242-AS-S2 is a high-resolution 12MP fisheye 360° panoramic IP camera designed to deliver total situational awareness from a single mounting point.
Panoramic cameras are ideal when you need wide-area coverage without installing multiple cameras. This fisheye camera supports advanced analytics including people counting in multiple areas, queuing management, heat map generation (exportable), and track map insights for understanding movement patterns.
With Dahua IVS (Intelligent Video Surveillance) functions such as tripwire and intrusion detection, plus strong imaging tools like 120dB WDR and 3D DNR, it suits busy indoor and outdoor environments such as shopping centres, airports, banks, hotels, lobbies, and large open plan spaces.
Model: DH-IPC-EBW81242-AS-S2
·
12MP Fisheye 360°
A$1,260.00 +GST
Includes 3 Year Warranty & Support.
Contact SIPKO
360° Coverage From One Camera
Fisheye lens delivers panoramic visibility, reducing blind spots and the need for multiple cameras.
Heat Map + People Counting
Generate exportable heat maps and count people across multiple areas for retail and operations insights.
IVS Smart Detection
Tripwire and intrusion rules for proactive alerts, plus abnormality detection for system health and event reliability.
Rugged, Install-Friendly
12V DC or PoE, MicroSD up to 256GB, audio and alarm I/O, plus IP67 and IK10 protection.
Best results come from correct placement:
fisheye cameras are powerful, but performance depends on ceiling height, target distances, and how you de-warp the view (panorama, quad view, or corridor outputs).
If you want reliable people counting and heat maps, we help tune counting zones, dwell-time thresholds and analytics schedules.
For Melbourne site advice, use the contact page.
SEO Keywords:
DH-IPC-EBW81242-AS-S2
· Dahua 12MP fisheye camera · 360 degree CCTV · panoramic IP camera · heat map analytics · people counting · queuing management · tripwire intrusion detection · IP67 IK10 · Melbourne CCTV installation
Technical Specifications
Quick-Read Specs
Resolution
Up to 12MP (4000 × 3000) @ 25 fps · 8MP supported
Imaging
120dB WDR · 3D DNR · HLC · BLC · digital watermarking
Compression
H.265 · Smart H.264+/H.265+ · ROI for bandwidth control
Night Support
Built-in IR LED · up to 10 m illumination distance
Analytics
IVS intrusion + tripwire · people counting · heat map · queuing/track insights
I/O + Storage
Audio 1 in/1 out + built-in mic/speaker · MicroSD up to 256GB · Alarm I/O
Power
12V DC or PoE for easier installation and cleaner cabling
Protection
IP67 weatherproof + IK10 vandal resistance for harsh deployments
Quick-Read Specs Table
| Specification | Detail |
|---|---|
| Camera Type | 12MP fisheye panoramic 360° IP camera |
| Max Output | 12M (4000 × 3000) @ 25 fps · supports 8M (3280 × 2480) @ 25/30 fps |
| Compression | H.265 · Smart H.264+/H.265+ · ROI |
| Imaging | 120dB WDR · 3D DNR · HLC · BLC · digital watermarking |
| Intelligent Monitoring | Intrusion · Tripwire · People Counting · Heat Map · Track Map |
| Abnormality Detection | Motion · Video tampering · Scene changing · Audio detection · No/Full/Error SD card · Network disconnection · IP conflict · Illegal access · Voltage detection |
| IR Night Support | Built-in IR LED · up to 10 m |
| Storage | MicroSD up to 256 GB |
| Audio | Audio 1 in / 1 out · built-in mic · (also listed: dual-array mic + speaker) |
| Alarm I/O | Alarm I/O (listed both 1 in / 1 out and 2 in / 2 out) |
| Power | 12V DC / PoE |
| Protection | IP67 · IK10 |
| Warranty | 3 years |
Note on spec lists: The provided details include both audio/alarm 1 in/1 out and a separate list showing alarm 2 in/2 out with dual-array mic & speaker.
If you want the exact I/O counts confirmed, share the official datasheet PDF and we’ll reconcile it for your product listing.
Key Features & Benefits
Panoramic Analytics
1
Replace Multiple Cameras With One
A single fisheye provides wide-area coverage for open lobbies, retail floors, reception areas and hallways, reducing camera count and installation points.
2
Heat Maps That Turn Footfall Into Insights
Adjust people count and time thresholds to generate heat maps that can be exported, helping you understand where visitors spend time.
3
IVS Tripwire & Intrusion Alerts
Dahua IVS functions like tripwire and intrusion detection turn wide coverage into actionable alerts across key boundaries.
4
Bandwidth & Storage Efficient
H.265 plus Smart coding (H.264+/H.265+) and ROI provide flexible bitrate control for different bandwidth and retention environments.
What is a Fisheye 360° Camera?
Fisheye Explained
A fisheye camera uses an ultra-wide lens to capture a full 360° scene from a single point, typically mounted on a ceiling. In playback or live view, the image can be de-warped into panorama, quad, or region views for easier monitoring. This makes fisheye cameras a strong choice for wide-open environments where conventional cameras would leave blind spots or require multiple angles.
1
Total Situational Awareness
Capture activity across a wide horizontal area to track people and vehicles without constant PTZ movement.
2
Better Operations Visibility
People counting, queuing insights, track maps and heat maps support staffing decisions, layout improvements and safety.
3
Smarter Alerts With IVS Rules
Tripwire and intrusion detection rules help monitor restricted areas and after-hours boundaries more effectively.
4
Rugged for Public Spaces
IP67 and IK10 ratings make it suitable for public-facing and high-risk locations when installed correctly.
Ideal Melbourne Applications
Best-Fit Sites
1
Retail Stores & Shopping Centres
Ideal for floor coverage, entry observation, footfall analytics and heat map insights without multiple cameras.
2
Hotels, Lobbies & Reception Areas
One ceiling-mounted fisheye provides broad visibility to support safety, incident review and visitor flow monitoring.
3
Airports, Stations & Public Facilities
Designed for wide scenes and high traffic. IK10/IP67 protection supports demanding environments.
4
Banks, Offices & Secure Interiors
Use IVS tripwire/intrusion to secure zones and combine with de-warping views for practical monitoring.
Request Your Melbourne Installation Quote
Melbourne Service
Tell us the space you want to cover (lobby, retail floor, hallway, open office), ceiling height, lighting, and whether you need people counting and heat maps. We’ll recommend mounting position, de-warping view modes, storage settings (H.265 + ROI), and alert rules (tripwire/intrusion). Prefer to talk? Use our contact page.
Frequently Asked Questions
10 FAQs
It’s best for wide open areas where you want maximum coverage from one camera, such as lobbies, retail floors, reception areas, and public spaces.
Yes. A fisheye lens captures the full scene from a single point and can be de-warped into panorama, quad or region views in your NVR/VMS.
Yes. It supports people counting across multiple areas and heat map generation. You can set thresholds (people count and time) and export the heat map for reporting.
It supports IVS functions such as intrusion and tripwire, plus abnormality detection such as tamper, scene change, network events and SD card status.
H.265 plus Smart H.264+/H.265+ and ROI allow flexible bitrate control, helping fit different bandwidth limits and retention targets.
Yes. It includes built-in IR LEDs with up to 10m illumination distance, supporting low-light monitoring.
Yes. It supports MicroSD cards up to 256GB for local recording. For longer retention and easier de-warp playback, an NVR/VMS is recommended.
Yes. With IP67 weather resistance and IK10 vandal protection, it suits harsh environments and public-facing sites when installed correctly.
It supports 12V DC and PoE, which makes installation easier and reduces cabling complexity.
This listing includes 3 Year Warranty & Support. SIPKO can assist with selection, placement, and analytics tuning in Melbourne.
Price & Market Reference
AUD (+GST)
Current pricing for the Dahua DH-IPC-EBW81242-AS-S2 is A$1,260.00 +GST, including 3 Year Warranty & Support. If you’re buying a fisheye for analytics, plan it around outcomes: ceiling height, de-warp views, counting zones, dwell thresholds and storage strategy. For Melbourne advice and installation, use our contact page.
Note: Final installation pricing depends on ceiling access, cable routes, PoE switching, and whether you need analytics commissioning and reporting exports.
