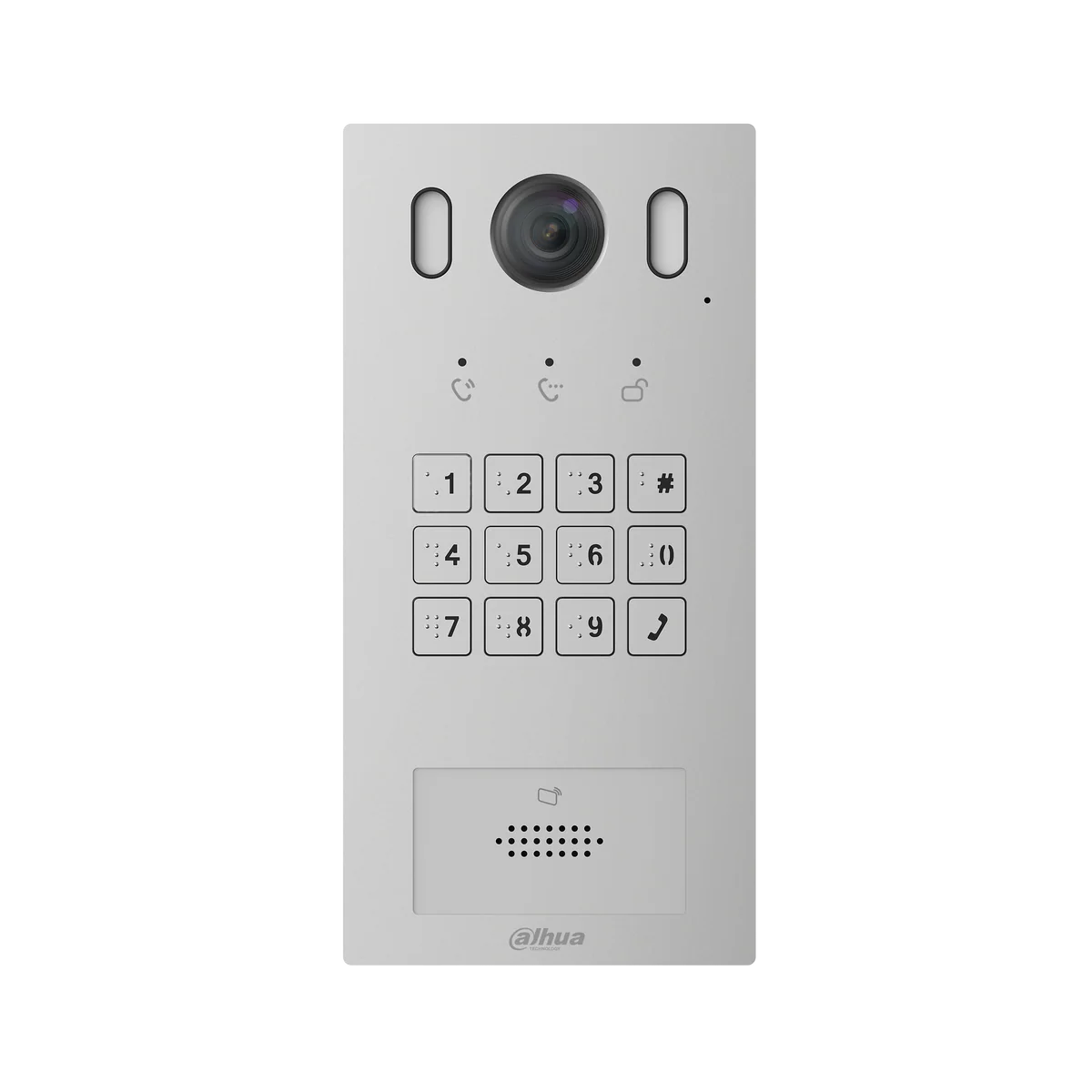

Dahua DHI‑VTO3222E‑P / DHI‑VTO3221E‑P Villa Outdoor Station | 2‑Wire IP Door Station, 2MP Camera, Keypad, MIFARE, Wiegand, IK08/IP65
The Dahua DHI‑VTO3222E‑P / DHI‑VTO3221E‑P is a premium 2‑wire IP villa door station built for secure entry control and modern video intercom workflows.
It combines a 2MP HD camera, a bright 2.3” OLED screen, and a highly durable aluminum panel with a mechanical keypad (with Braille) for accessible, reliable operation.
This model supports large deployments with up to 5,000 users and 10,000 cards, and offers multiple unlock methods including password, IC (MIFARE) card, and remote unlock.
For access control integrations, it can connect to card readers and controllers through Wiegand and supports key interfaces such as RS‑485, relay door control, and tamper alarm.
Models: DHI‑VTO3222E‑P / DHI‑VTO3221E‑P
·
2‑Wire IP Villa Door Station
A$419.00 +GST
A$452.00 +GST · Includes 3 Year Warranty & Support.
Contact SIPKO
2MP Camera + OLED Screen
2MP HD video with a 2.3” OLED display for clear visitor and status visibility.
Multiple Unlock Methods
Password, MIFARE IC card (13.56MHz), and remote unlocking for flexible entry control.
Wiegand + Access Control I/O
Connect readers/controllers via Wiegand, plus RS‑485, relay output, feedback and exit button.
IK08 + IP65 Outdoor Build
Aluminum panel, tamper switch support, and outdoor rating for Melbourne entry points (sealant required).
Important install notes:
This unit is IP65 rated, but correct sealing is required. Apply silicone (or liquid sodium silicate as recommended) to gaps between the device and the wall, per the quick start guide.
It supports PoE (802.3af). If you use the 12VDC / 600mA power output to power an external load, connect it to a PoE PSE compliant with 802.3at.
For wiring, lock type, and system compatibility, use the contact page.
SEO Keywords:
DHI‑VTO3222E‑P
·
DHI‑VTO3221E‑P
· Dahua 2‑wire IP villa door station · mechanical keypad Braille · 2MP intercom camera · MIFARE 13.56MHz · Wiegand · IK08 IP65 · Melbourne video intercom installation
Technical Specifications
Quick‑Read Specs
Camera
1/2.9” 2MP CMOS · Lens 2mm · View H:140° V:82°
Video
H.264 compression · Day/Night: Color image
Audio
G.711 · Omni mic · Built‑in speaker · Two‑way talk
Display
2.3” OLED
Keypad & Reader
Mechanical keypad with Braille · MIFARE 13.56MHz
Access Control I/O
Alarm In/Out 1/1 · Relay Out · RS‑485 · Wiegand In
Network
10/100Mbps Ethernet · TCP/IP
Protection
IK08 + IP65 (seal gaps as per guide) · Tamper switch
Full Technical Specifications
| Category | Specification |
|---|---|
| Model | DHI‑VTO3222E‑P / DHI‑VTO3221E‑P |
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded LINUX OS |
| Video Compression | H.264 |
| Image Sensor | 1/2.9” 2MP CMOS |
| Auto Gain Control | White Light |
| Lens | 2mm |
| Angle of View | H: 140° · V: 82° |
| Day/Night | Color Image |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional Mic |
| Audio Output | Built‑in Speaker |
| Bidirectional Talk | Dual‑way bidirectional talk supported |
| Screen | 2.3” OLED |
| Keypad | Mechanical buttons with Braille |
| Reader | MIFARE card (13.56MHz) |
| Alarm In/Out | 1 / 1 |
| Door Control | 1 relay out |
| RS‑485 | 1 |
| Feedback | 1 |
| Exit Button | 1 |
| Wiegand In | 1 |
| Ethernet | 10M/100Mbps |
| Network Protocol | TCP/IP |
| Ingress Protection | IK08, IP65 (seal gaps between device and wall; liquid sodium silicate recommended; see quick start guide) |
| Tamper Switch | 1 |

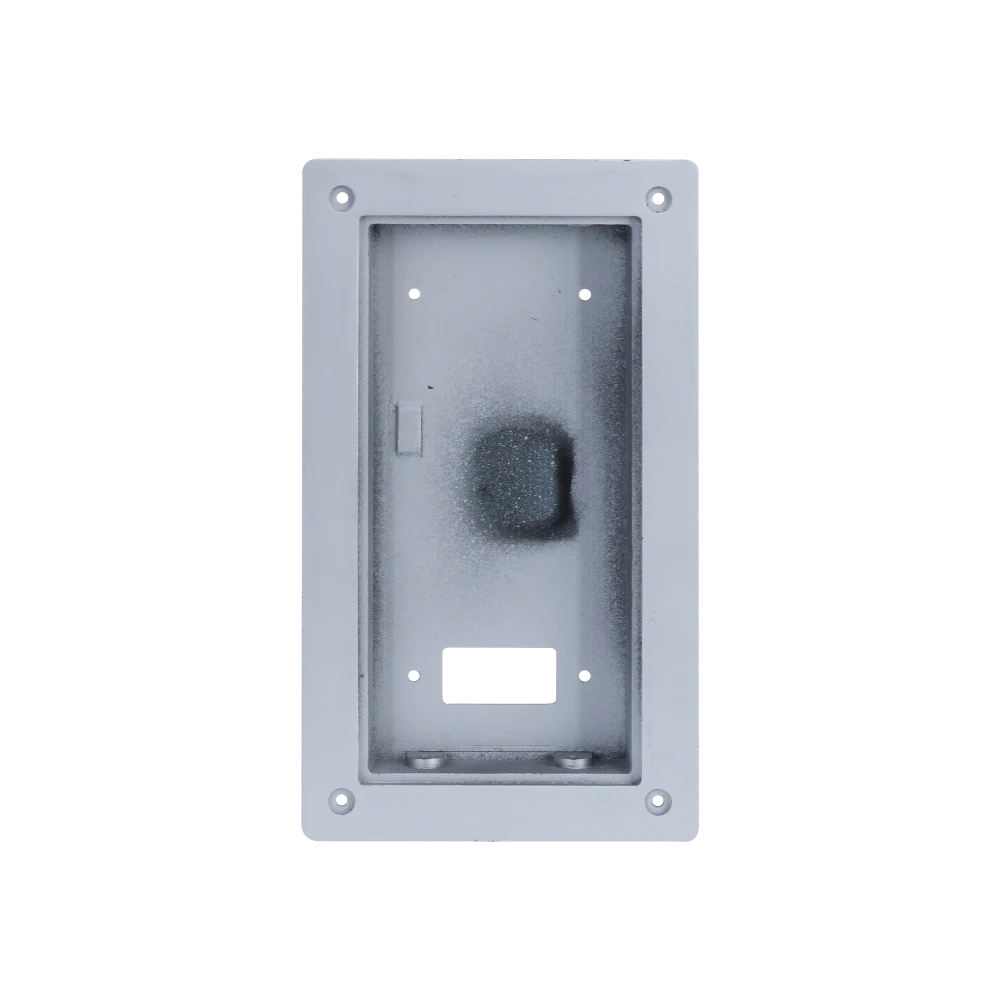

| Installation | Surface & Flush |
| Material | Aluminum |
| Power | DC 12V, 2A · PoE (802.3af). If using 12V power output to charge a load, use PSE compliant with 802.3at. |
| Power Output | 12 VDC, 600 mA |
| Power Consumption | Standby ≤2W · Work ≤7W |
| Working Temperature | −40°C to +60°C |
| Relative Humidity | 20% to 95% RH |
| Dimensions | 200mm × 98mm × 32mm |
| Weight | 1.5 kg |
Installer tip: For best reliability, confirm lock current draw and select the correct power method (DC or PoE). If using PoE and powering external loads from the unit’s 12V output, ensure the switch/PSE is 802.3at compliant.
Key Features & Benefits
Access + Intercom
1
Secure, Scalable User Management
Supports up to 5,000 users and 10,000 cards, making it suitable for larger residential and small commercial entry systems.
2
Flexible Unlock Methods
Unlock using password, IC card (MIFARE), or remote unlocking depending on your system setup and access rules.
3
Wiegand Integration
Connect external readers and controllers via Wiegand, plus RS‑485 and relay I/O for access control expansion.
4
Outdoor Durability You Can Trust
Aluminum panel, IK08 impact rating, and IP65 ingress protection (with correct sealing) for harsh outdoor environments.
How the Door Station Works
Workflow
The DHI‑VTO3222E‑P / DHI‑VTO3221E‑P combines video intercom and access control interfaces. A visitor can call from the station, you can verify via monitor/app, and unlock through configured methods such as PIN, card, or remote command.
1
Visitor Interaction
Use the mechanical keypad (with Braille) and screen for clear visitor prompts and accessible input at the door or gate.
2
Video Verification
The 2MP camera provides entry context to support safer decisions before unlocking.
3
Unlock Options
Unlock via password, MIFARE card, or remote unlocking based on your system rules and access control setup.
4
Integration & Control
Use relay output, RS‑485, feedback and Wiegand connections to integrate locks, controllers, and additional readers.
Ideal Melbourne Applications
Best‑Fit Sites
1
Residential Villas & Townhomes
Door station for front entrances and side gates with keypad + card access and optional remote unlock convenience.
2
Apartment Entrances (Small Scale)
Scales to thousands of users and cards, suitable for controlled entry points where card and PIN access is required.
3
Offices, Clinics & Studios
Secure door control at reception entrances, with access control I/O for lock and exit button workflows.
4
Gates & Outdoor Entries
IK08/IP65-rated build fits outdoor placements when properly sealed as per the quick start guide.
Request Your Melbourne Installation Quote
Melbourne Service
Tell us your entry type (front door or gate), preferred unlock method (PIN, card, remote), and your lock type (electric strike or maglock). We’ll recommend mounting (surface/flush), sealing requirements for IP65, power method (DC or PoE), and access control wiring. Prefer to talk? Use our contact page.
Frequently Asked Questions
10 FAQs
It’s a Dahua 2‑wire IP villa outdoor station for door or gate entry. It provides video verification, keypad and card access, and interfaces for door control and access integrations.
Yes. It supports password unlocking, IC card unlocking (MIFARE 13.56MHz), and remote unlocking depending on your system setup.
It supports up to 5,000 users and 10,000 cards, making it suitable for larger user lists in controlled entry systems.
Yes. It supports Wiegand input and also includes RS‑485 and relay door control for common access control integrations.
It has a 2MP CMOS camera with a 2mm lens and angle of view H: 140°, V: 82°.
Yes. It is IK08 and IP65 rated. For correct IP65 protection, seal gaps between the device and wall as recommended in the quick start guide.
Yes. It supports PoE (802.3af) and also supports DC 12V power. If using the 12V output to power external loads, use an 802.3at compliant PoE PSE.
It supports both surface and flush mounting. SIPKO can advise the best approach based on your wall type and cable routing.
It includes a 2.3” OLED screen for status and interface visibility at the door station.
Pricing includes 3 Year Warranty & Support. For Melbourne supply and installation, use the contact page or call SIPKO.
Price & Market Reference
AUD (+GST)
Current pricing for the Dahua DHI‑VTO3222E‑P / DHI‑VTO3221E‑P is A$419.00 +GST (previously A$452.00 +GST), including 3 Year Warranty & Support. For the best result, plan entry control end‑to‑end: lock type, power method (DC vs PoE), access method (PIN vs card), sealing for IP65, and any Wiegand/RS‑485 integrations. For a tailored recommendation, use our contact page.
Note: Installation pricing varies based on cable routes, mounting method, lock hardware, and any additional access control components.
