Dahua DHI-KTP01L-AUS IP Intercom Villa Kit — Outdoor Station & Indoor Monitor
The DHI-KTP01L-AUS is a complete IP villa intercom kit designed for residential and small commercial installations across Melbourne. The kit pairs an outdoor station with a 2MP HD 140° wide-angle colour camera (anodized aluminium front panel, IP65 & IK07) with a 7-inch TFT capacitive touchscreen indoor monitor (1024×600) and a PoE switch. It supports smartphone app access for remote video calls and door unlocking, H.265 & H.264 video decoding, dual lock control, and both surface and flush mount options. Available in White or Black colour combinations. An elegant, high-performance entry intercom for Australian homes and businesses.
A$365.00 inc. GST
From $365.00 (White/Silver/Surface). Includes 3-year warranty & support. Authorised Dahua store. Free shipping on orders over $400*
SKU: DHI-KTP01L-S-AUS
7″ Touchscreen Monitor
1024×600 TFT capacitive touch panel for crystal-clear live viewing and one-touch door release from inside the home.
Smartphone App & Remote Unlock
Answer the door and unlock remotely from anywhere via the Dahua app — no additional hardware required.
IP65 & IK07 Outdoor Station
Anodized aluminium front panel rated for dust, rain and impact — built tough for exposed Australian outdoor entry points.
2MP HD 140° Colour Camera
CMOS low-illumination wide-angle lens on the outdoor station captures a full colour door entry scene in HD.

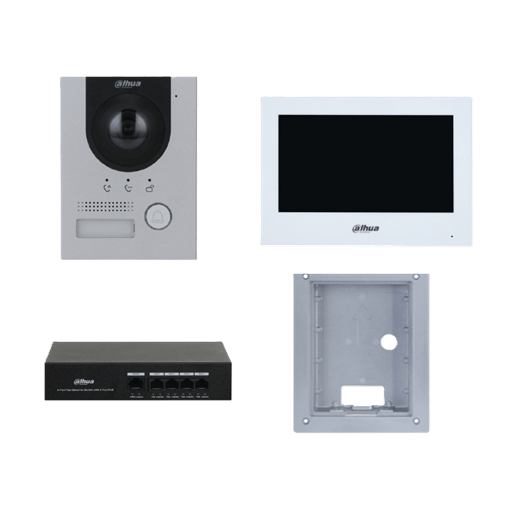

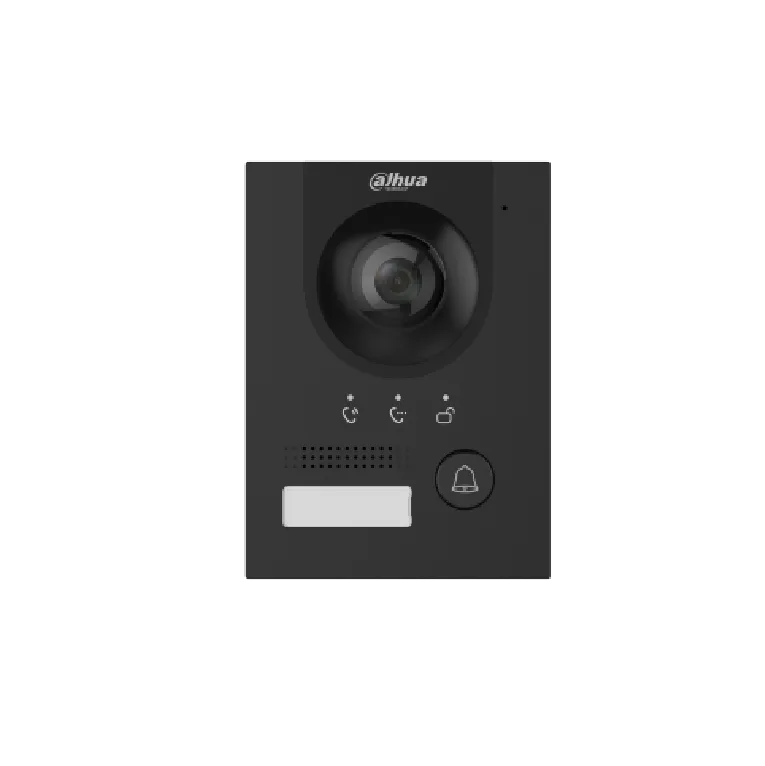

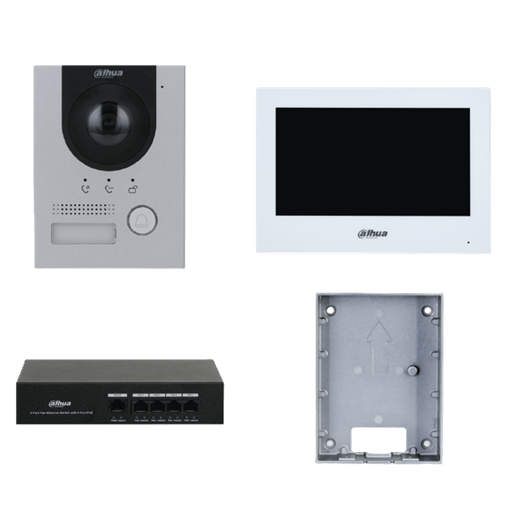

Kit Contents: 1 × Outdoor IP Villa Door Station (Silver or Black) · 1 × 7″ Indoor Monitor DHI-VTH (White or Black) · 1 × PoE Switch (4×RJ-45 PoE + 1×uplink) · Mounting bracket included. Available in Surface Mount (default) or Flush Mount. Colour combinations: White VTH / Silver VTO from A$365 · Black VTO or Black VTH variants from A$410.
SEO Keywords:
Dahua KTP01L-AUS Melbourne
· IP villa intercom kit · Dahua video intercom · smartphone door unlock · 7 inch touchscreen monitor · DHI-KTP01L outdoor station · IP65 intercom · H.265 video intercom Melbourne · PoE intercom kit Australia
Technical Specifications
Complete Specifications
Indoor Monitor
7″ TFT capacitive touch screen, 1024×600 resolution — H.265 & H.264 video decoding
Outdoor Camera
2MP HD CMOS, 140° wide angle, low illumination full colour — anodized aluminium panel
Connectivity
Standard IP over PoE — Cat5e/Cat6 network cabling between all devices
Weather Rating
IP65 & IK07 (outdoor station — dust, rain and impact resistant)
App & Remote Access
Smartphone app for live video call, remote door unlock from anywhere via internet
Lock Control
Access control function supporting connection to 2 locks (e.g. front gate + front door)
Alarm I/O
6-channel alarm input, 1-channel alarm output (indoor monitor)
Power & Switch
PoE switch included: 4×RJ-45 PoE ports + 1×uplink; guide rail mount supported
Specifications Summary
| Feature | Specification |
|---|---|
| Model Code / SKU | DHI-KTP01L-S-AUS |
| Kit Contents | IP Villa Door Station + 7″ Indoor Monitor + PoE Switch (4×PoE RJ-45 + 1×uplink) + Mounting Bracket |
| Outdoor Station Camera | 2MP HD CMOS, low illumination, 140° wide angle, full colour video intercom |
| Outdoor Panel Material | Anodized aluminium front panel |
| Indoor Monitor Screen | 7″ TFT capacitive touchscreen, 1024×600 resolution |
| Video Compression | H.265 and H.264 decoding |
| Communication | Standard IP over PoE (Cat5e/Cat6 network cabling) |
| Lock Control | Supports 2 locks (access control function built-in) |
| Alarm I/O | 6-channel alarm input, 1-channel alarm output |
| Weather Rating | IP65 + IK07 (outdoor station) |
| Power | Standard PoE (included PoE switch powers all devices) |
| Colour Options | White VTH / Silver VTO · White VTH / Black VTO · Black VTH / Silver VTO · Black VTH / Black VTO |
| Mount Options | Surface mount (default) or Flush mount |
| Smartphone App | Yes — remote video call and door unlock |
| IPC Monitor | Supports outdoor station and IPC monitor simultaneously |
Surface vs Flush Mount: Surface mount attaches directly to the wall using the included bracket — faster and simpler to install. Flush mount recesses the outdoor station into the wall for a cleaner, recessed look in new builds or renovation projects. Surface mount starts at A$365; flush mount at A$370.
Key Features & Benefits
IP Villa Intercom
1
Standard IP PoE — Simple & Reliable
Runs over standard Cat5e/Cat6 network cabling with a PoE switch included in the kit. Straightforward IP architecture that integrates easily with any network or NVR environment.
2
Smartphone App Remote Access
Receive calls, see live colour video from the door camera, and unlock the gate or front door remotely — all from your phone, wherever you are in the world.
3
7″ Touchscreen Indoor Monitor
The 1024×600 capacitive touchscreen provides a large, clear view of visitors with intuitive one-touch door unlock and supports H.265 & H.264 video decoding for high-quality streams.
4
Colour Options for Any Aesthetic
Choose from White or Black indoor monitors and Silver or Black outdoor stations — four combination variants to match your property’s interior and exterior design.
Ideal Melbourne Applications
Best Use Cases
1
Residential Homes & Villas
Perfect for single-family homes wanting a reliable front-door intercom with smartphone integration — with the flexibility to choose Black or White colour combinations to suit any home style.
2
Townhouses & Duplexes
Standard IP PoE cabling integrates easily into new builds and existing network infrastructure in multi-level townhouses or duplexes where a structured cabling run is already in place.
3
Small Offices & Boutique Retail
Manage visitor access and unlock doors from inside the office or remotely via smartphone. The IPC monitor function also lets staff monitor a network camera alongside the intercom feed.
4
New Builds & Renovation Projects
With flush mount and surface mount options at comparable price points, the KTP01L-AUS is ideal for both new-build rough-in installations and surface-mounted retrofit upgrades.
Request Your Melbourne Installation Quote
Melbourne Service
Tell us your property type (home, townhouse, office), preferred colour combination (White/Black monitor, Silver/Black outdoor station), preferred mount style (surface or flush), whether you need gate or door lock wiring, and how many indoor monitors you require. We’ll quote the DHI-KTP01L-AUS supply + installation and advise on cabling, lock compatibility, and smartphone app setup.
Frequently Asked Questions
6 FAQs
The DHI-KTP01L-AUS uses standard IP over PoE, meaning it requires Cat5e or Cat6 network cabling between the outdoor station, the indoor monitor, and the included PoE switch. This is the same cabling used for standard IP cameras and network devices — simple and widely available in Australia.
Yes. The kit supports the Dahua smartphone app, allowing you to receive live video calls from the outdoor station and remotely unlock the door or gate from anywhere in the world via your internet connection.
The KTP01L-AUS is available in four combinations: White Monitor / Silver Outdoor Station (from A$365), White Monitor / Black Outdoor Station (from A$410), Black Monitor / Silver Outdoor Station (from A$410), and Black Monitor / Black Outdoor Station (from A$410). Each is available in surface or flush mount.
Surface mount (default) attaches the outdoor station to the wall surface using the included bracket — faster and simpler to install. Flush mount recesses the outdoor station into the wall for a cleaner, integrated appearance, ideal for new builds or renovation projects. Surface mount starts at A$365; flush mount at A$370.
The system includes built-in access control supporting connection to two locks — for example, a front gate electric strike and a front door magnetic lock — controllable from both the indoor touchscreen monitor and the smartphone app.
Yes. The outdoor station carries IP65 (dust and water ingress protection) and IK07 (impact resistance) ratings, and features an anodized aluminium front panel — making it well-suited for exposed outdoor entry points across Australian conditions.
Price, Warranty & Support
3-Year Warranty
Dahua DHI-KTP01L-S-AUS starts from A$365.00 inc. GST (White VTH / Silver VTO / Surface Mount) and includes a 3-year warranty & support. For Melbourne installations, we can supply and install the complete kit, run Cat5e/Cat6 network cabling, connect and configure lock outputs, set up the Dahua smartphone app, and test the full system end-to-end.
Note: Final installed pricing depends on cabling distance, wall material, number of monitors, lock type, colour variant chosen, and on-site conditions. For a fast quote, use the form above or contact us here.
Already have a Dahua intercom that is playing up? See our Dahua intercom repair service in Melbourne.
